SANWA SUPPLY

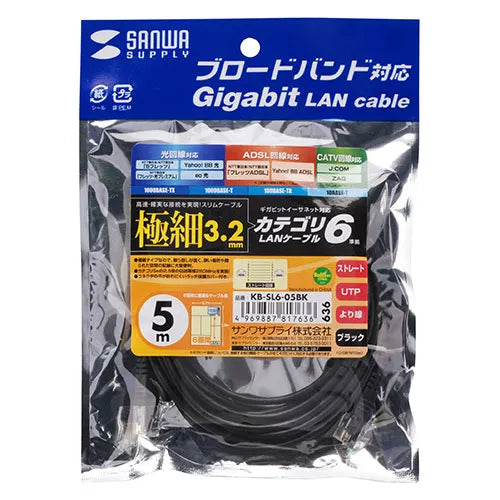

Category 6 compliant ultra-thin LAN cable (black, 5m) KB-SL6-05BK
Category 6 compliant ultra-thin LAN cable (black, 5m) KB-SL6-05BK
GTIN（JAN）：4969887817636
SKU：KB-SL6-05BK
Regular price
¥1,670 JPY
Regular price
Sale price
¥1,670 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Ultra-thin 3.2mm diameter, Gigabit Ethernet compatible Category 6 LAN cable]
●This is a Category 6 compliant LAN cable compatible with Gigabit Ethernet.
●Its ultra-thin design, with a diameter of only 3.2mm, makes it easy to handle and very convenient for wiring in narrow spaces or limited areas.
●The perfect length for a 6-tatami mat room.
●It achieves a transmission bandwidth of 250MHz and a transmission speed of 1000Mbps (1Gbps), which is 2.5 times that of Category 5e.
●It comes with a connector tab protection cover to prevent the tab from breaking.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length (m): 5m
■Color: Black
■Cable Diameter (mm): 3.2mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection Wire
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: Laying/32.0mm, After installation/25.6mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
●This is a Category 6 compliant LAN cable compatible with Gigabit Ethernet.
●Its ultra-thin design, with a diameter of only 3.2mm, makes it easy to handle and very convenient for wiring in narrow spaces or limited areas.
●The perfect length for a 6-tatami mat room.
●It achieves a transmission bandwidth of 250MHz and a transmission speed of 1000Mbps (1Gbps), which is 2.5 times that of Category 5e.
●It comes with a connector tab protection cover to prevent the tab from breaking.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length (m): 5m
■Color: Black
■Cable Diameter (mm): 3.2mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection Wire
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: Laying/32.0mm, After installation/25.6mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
