SANWA SUPPLY

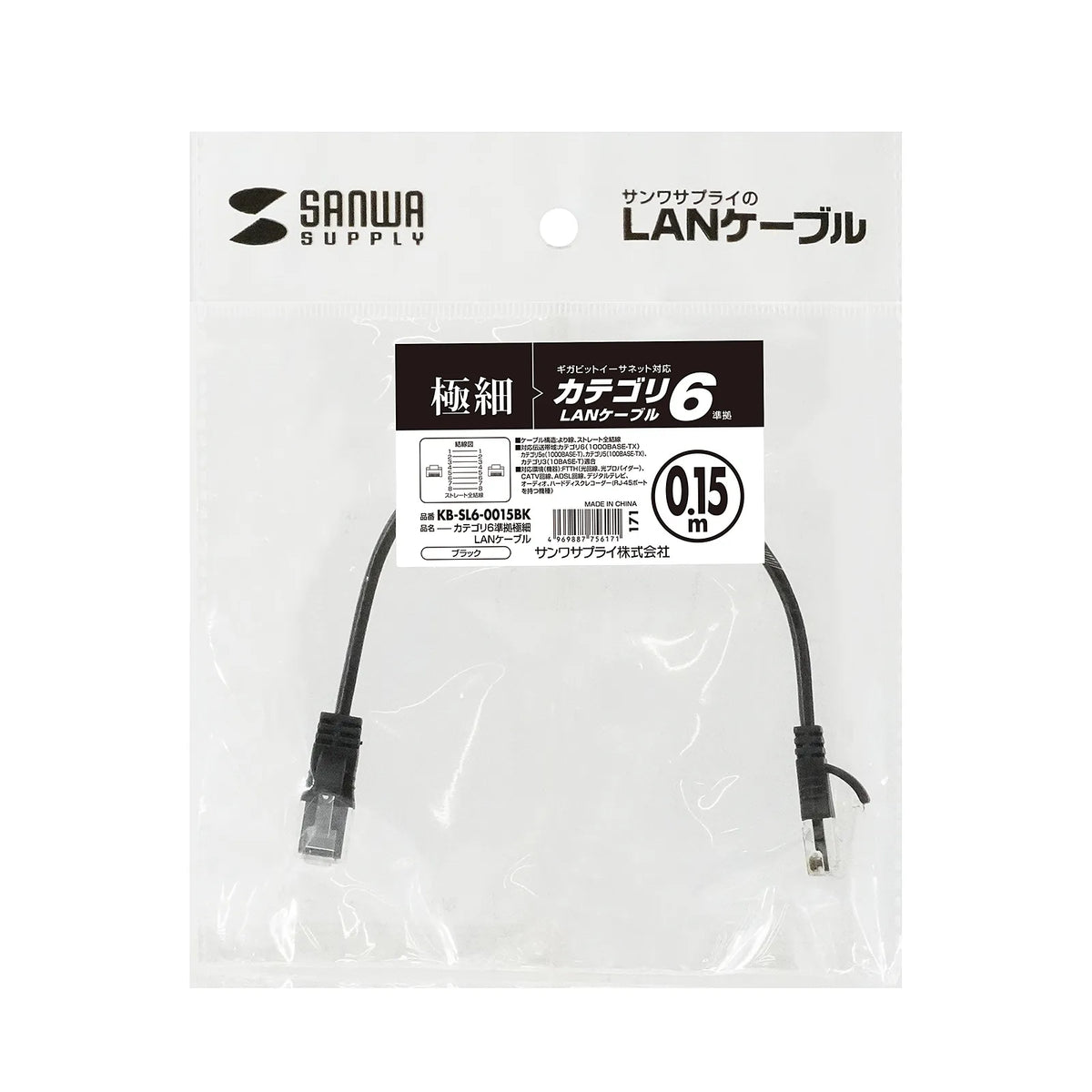

Category 6 compliant ultra-thin LAN cable KB-SL6-0015BK
Category 6 compliant ultra-thin LAN cable KB-SL6-0015BK
GTIN（JAN）：4969887756171
SKU：KB-SL6-0015BK
Regular price
¥653 JPY
Regular price
Sale price
¥653 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Ultra-thin 3.2mm diameter, Gigabit Ethernet compatible Category 6 LAN cable]
●Ultra-thin type with a diameter of only 3.2mm, making it easy to handle and very convenient for wiring in narrow places and limited spaces.
●Category 6 compliant LAN cable compatible with Gigabit Ethernet.
●Achieves a transmission bandwidth of 250MHz and a transmission speed of 1000Mbps (1Gbps), which is 2.5 times that of Enhanced Category 5.
●Comes with a latch protection cover that prevents the connector's claws from breaking.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length (m): 0.15m
■Color: Black
■Cable Diameter (mm): 3.2mm
■Number of Cable Cores: 8 cores (4P)
■ Wiring specifications: Straight connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: Laying/32.0mm, After installation/25.6mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80 degrees Celsius
■Inspection: 100% continuity test
●Ultra-thin type with a diameter of only 3.2mm, making it easy to handle and very convenient for wiring in narrow places and limited spaces.
●Category 6 compliant LAN cable compatible with Gigabit Ethernet.
●Achieves a transmission bandwidth of 250MHz and a transmission speed of 1000Mbps (1Gbps), which is 2.5 times that of Enhanced Category 5.
●Comes with a latch protection cover that prevents the connector's claws from breaking.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Compatible Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length (m): 0.15m
■Color: Black
■Cable Diameter (mm): 3.2mm
■Number of Cable Cores: 8 cores (4P)
■ Wiring specifications: Straight connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: Laying/32.0mm, After installation/25.6mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80 degrees Celsius
■Inspection: 100% continuity test
