SANWA SUPPLY

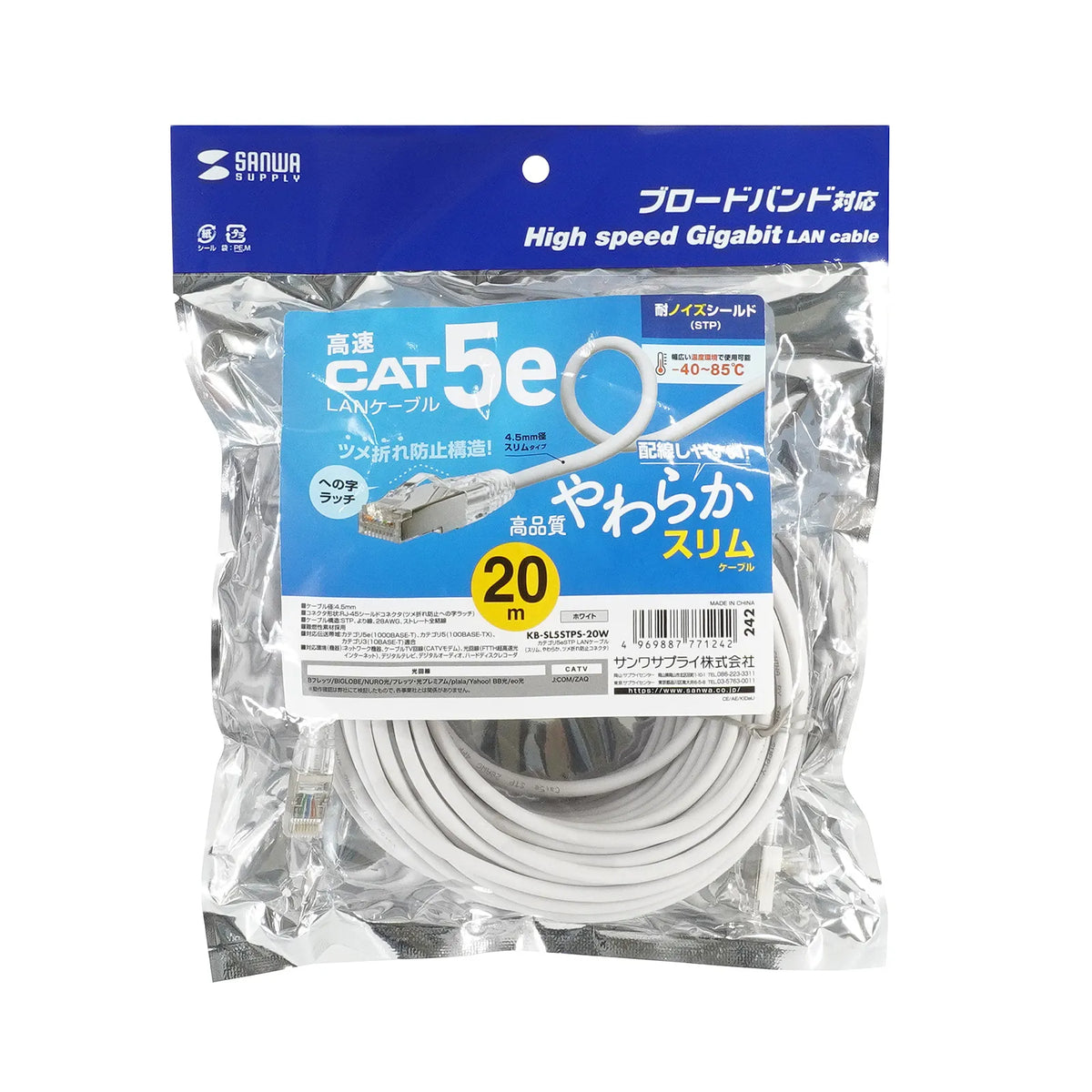

Category 5e STP LAN Cable (Slim, Flexible, Anti-Snag Connector) KB-SL5STPS-20W
Category 5e STP LAN Cable (Slim, Flexible, Anti-Snag Connector) KB-SL5STPS-20W
GTIN（JAN）：4969887771242
SKU：KB-SL5STPS-20W
Regular price
¥3,703 JPY
Regular price
Sale price
¥3,703 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Category 5e STP LAN Cable with 1Gbps Transmission Speed, Noise-Resistant STP Specification, Operating Temperature Range -40 to 85 degrees Celsius, Flexible Material and 4.5mm Diameter Slim Cable, and Anti-Break Connector]
●A "flexible LAN cable" that is soft and easy to handle, allowing for neat wiring.
●A Gigabit-compatible LAN cable that achieves a transmission speed of 1Gbps and a transmission bandwidth of 100MHz.
●A noise-resistant cable with twisted pair cables further covered by shielding.
●Uses a polycarbonate connector with a V-shaped latch structure to prevent the connector from breaking.
●Since there is no latch cover, it is possible to insert and remove the connector smoothly.
●It has an integrated boot to protect the cable core when the cable is bent.
●A LAN cable with excellent temperature resistance, oil resistance, and UV resistance.
●Uses flame-retardant material that is less likely to cause the spread of fire.
■Category: CAT5e
■Standard Name: 1000BASE-T
■Compatible Categories/Standards: Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 100MHz
■Cable Length (m): 20m
■Color: White
■Cable Diameter (mm): 4.5mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight Wiring
■Cable structure: STP
■Cross separator: None
■Minimum bending radius: During installation/36.0mm, After installation/36.0mm
■Cable conductor: 28AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch protection connector: Yes
■Latch protection cover: None
■Operating temperature range: -10 to 80 degrees Celsius
■Inspection: 100% continuity test
