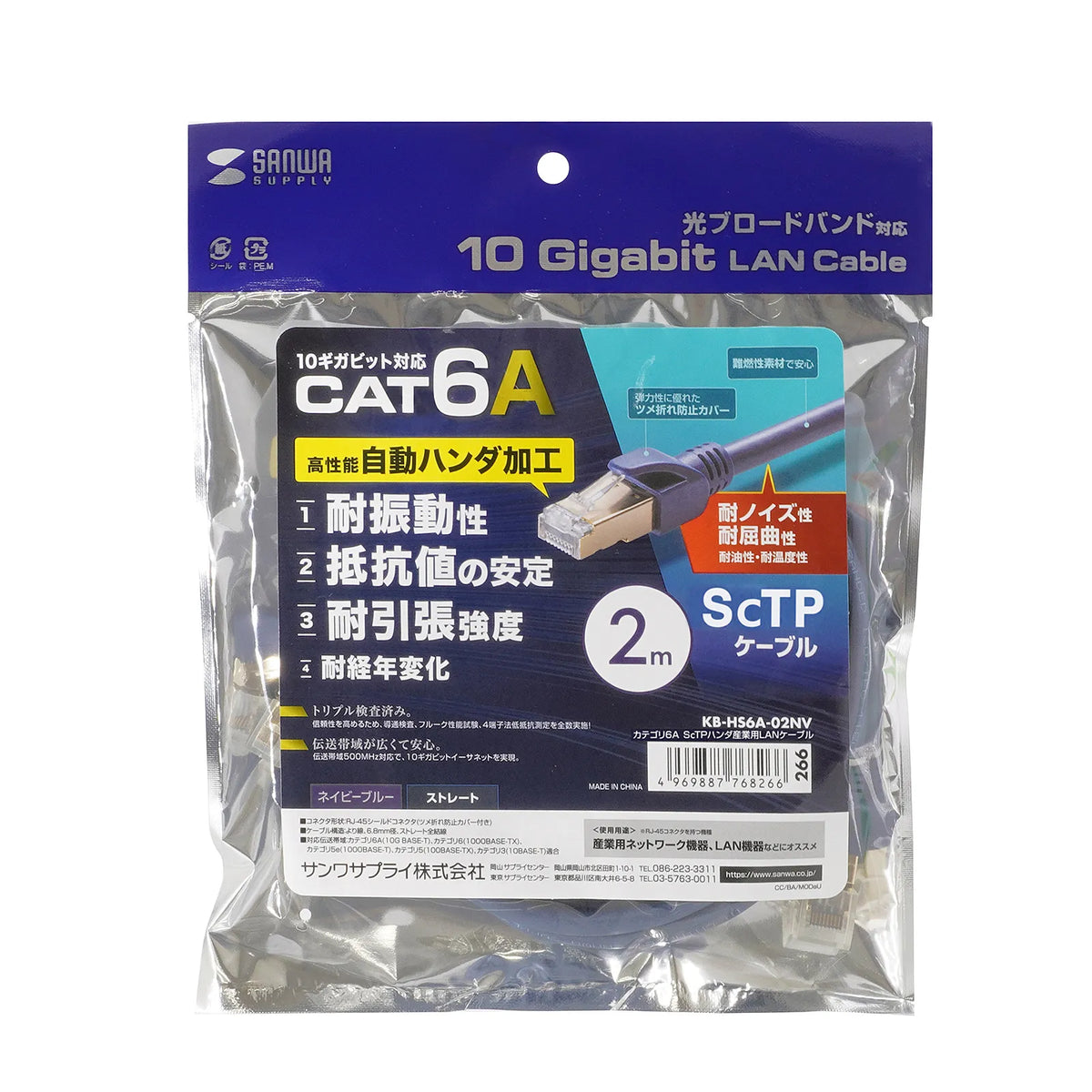

Category 6A SFTP Solder Industrial LAN Cable KB-HS6A-02NV
Category 6A SFTP Solder Industrial LAN Cable KB-HS6A-02NV
GTIN（JAN）：4969887768266
SKU：KB-HS6A-02NV
Regular price
¥3,557 JPY
Regular price
Sale price
¥3,557 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[High-performance CAT6A SFTP soldered industrial LAN cable with excellent resistance stability, vibration resistance, improved tensile strength, oil resistance, temperature resistance, and flexibility.]
●This high-performance Category 6A LAN cable for industrial use achieves stable resistance through soldering inside the connector, and has excellent vibration resistance, tensile strength, and aging resistance, as well as excellent noise resistance.
●It is fully compatible with 10 Gigabit Ethernet (10GBASE-T), so it can be used with peace of mind even in ultra-high-speed network environments.
●It clears a transmission bandwidth of 500MHz, which is 5.0 times that of Category 5e and twice that of Category 6. The wider the bandwidth, the faster the transmission speed is possible and the more effective it is in preventing data errors.
●The ScTP double-shielded cable structure prevents various interfering radio waves from entering from the outside, and a shielded plug is used for reliable noise countermeasures.
●Uses an ScTP cable that is suitable for industrial use and has excellent oil resistance, temperature resistance, and flexibility.
●Uses flame-retardant material that is less likely to cause the spread of fire.
●Equipped with a latch protection cover to prevent the plug's latch from breaking.
●All units undergo triple testing (continuity test, Fluke performance test, 4-terminal low resistance measurement) to enhance reliability.
■Category: CAT6A
■Standard name: 10GBASE-T
■Compatible categories and standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 10Gbps
■Frequency response: 500MHz
■Cable length (m): 2m
■Color: Navy blue
■Cable diameter (mm): 6.8mm
■Number of cable cores: 8 cores (4P)
■Wiring Specification: Straight Connection
■Cable Structure: ScTP
■Cross Separator: None
■Minimum Bending Radius: During Installation/54.4mm, After Installation/54.4mm
■Cable Conductor: 26AWG
■Cable Conductor Structure: Stranded Wire
■PoE: Supported
■Sheath Material: PUR
■Color Wiring: TIA/EIA-568B
■Connector Shape: RJ-45 Connector
■Slim Connector: None
■Latch Protection Connector: None
■Latch Protection Cover: Yes
■Operating Temperature Range: -20 to 80 degrees Celsius
■Inspection: 100% Continuity Test, 100% Fluke Test, 100% Low Resistance Precision Measurement
●This high-performance Category 6A LAN cable for industrial use achieves stable resistance through soldering inside the connector, and has excellent vibration resistance, tensile strength, and aging resistance, as well as excellent noise resistance.
●It is fully compatible with 10 Gigabit Ethernet (10GBASE-T), so it can be used with peace of mind even in ultra-high-speed network environments.
●It clears a transmission bandwidth of 500MHz, which is 5.0 times that of Category 5e and twice that of Category 6. The wider the bandwidth, the faster the transmission speed is possible and the more effective it is in preventing data errors.
●The ScTP double-shielded cable structure prevents various interfering radio waves from entering from the outside, and a shielded plug is used for reliable noise countermeasures.
●Uses an ScTP cable that is suitable for industrial use and has excellent oil resistance, temperature resistance, and flexibility.
●Uses flame-retardant material that is less likely to cause the spread of fire.
●Equipped with a latch protection cover to prevent the plug's latch from breaking.
●All units undergo triple testing (continuity test, Fluke performance test, 4-terminal low resistance measurement) to enhance reliability.
■Category: CAT6A
■Standard name: 10GBASE-T
■Compatible categories and standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 10Gbps
■Frequency response: 500MHz
■Cable length (m): 2m
■Color: Navy blue
■Cable diameter (mm): 6.8mm
■Number of cable cores: 8 cores (4P)
■Wiring Specification: Straight Connection
■Cable Structure: ScTP
■Cross Separator: None
■Minimum Bending Radius: During Installation/54.4mm, After Installation/54.4mm
■Cable Conductor: 26AWG
■Cable Conductor Structure: Stranded Wire
■PoE: Supported
■Sheath Material: PUR
■Color Wiring: TIA/EIA-568B
■Connector Shape: RJ-45 Connector
■Slim Connector: None
■Latch Protection Connector: None
■Latch Protection Cover: Yes
■Operating Temperature Range: -20 to 80 degrees Celsius
■Inspection: 100% Continuity Test, 100% Fluke Test, 100% Low Resistance Precision Measurement
