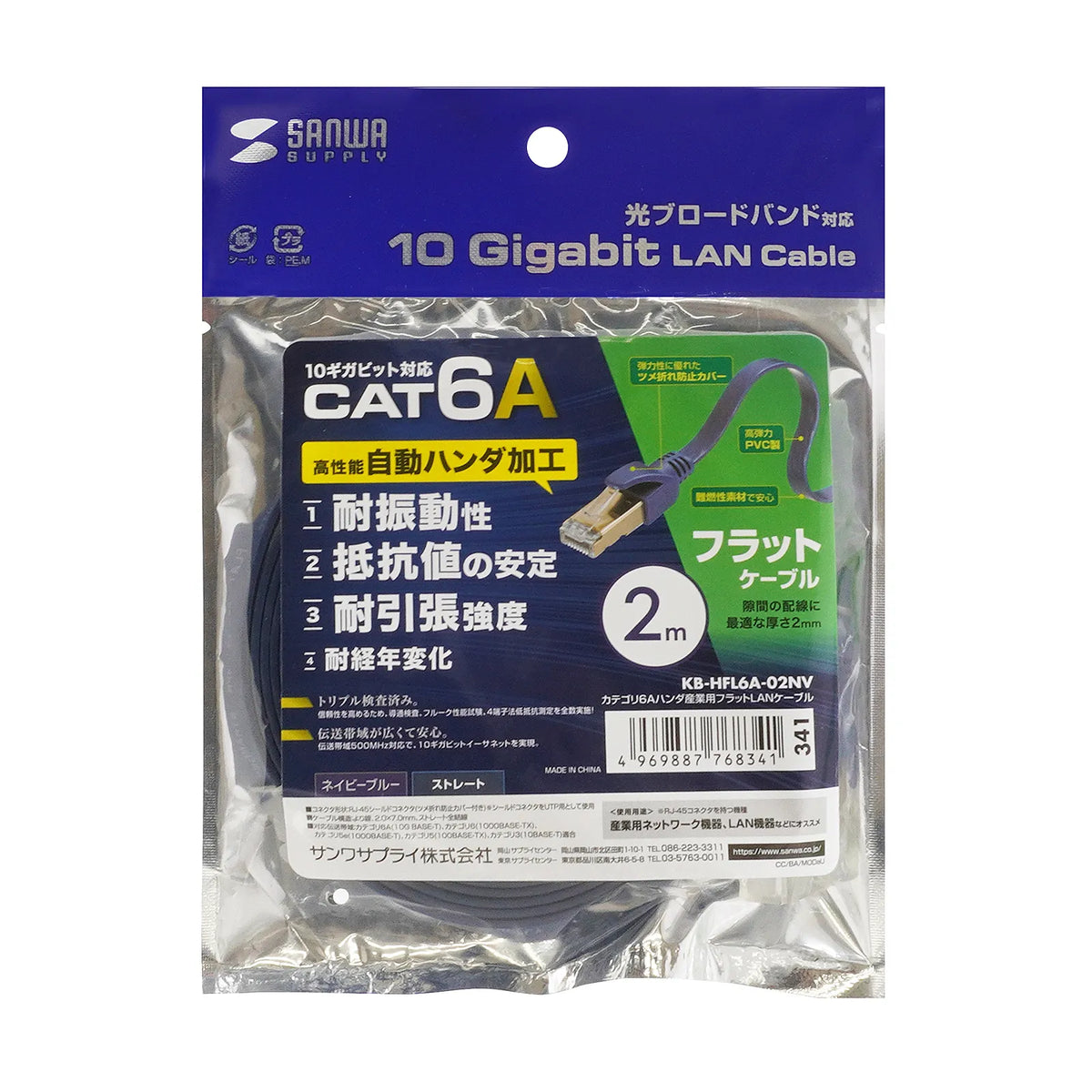

Category 6A Solder Industrial Flat LAN Cable KB-HFL6A-02NV
Category 6A Solder Industrial Flat LAN Cable KB-HFL6A-02NV
GTIN（JAN）：4969887768341
SKU：KB-HFL6A-02NV
Regular price
¥1,742 JPY
Regular price
Sale price
¥1,742 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[High-performance CAT6A UTP soldered industrial flat LAN cable with high elasticity PVC cable for excellent resistance stability, vibration resistance, and tensile strength.]
●A high-performance Category 6A flat LAN cable for industrial use with excellent resistance stability, vibration resistance, tensile strength, and aging resistance, achieved through soldering inside the connector.
●Clears a transmission bandwidth of 500MHz, which is 5.0 times that of Category 5e and twice that of Category 6. A wider bandwidth enables faster transmission and helps prevent data errors.
●The 2.0mm thin flat type is ideal for wiring in narrow spaces.
●Uses a highly elastic PVC cable with excellent flexibility, making it a flat type cable that is less likely to break.
●Uses flame-retardant material that is less likely to cause the spread of fire.
●Comes with a latch protection cover to prevent the plug's latch from breaking.
●All units undergo triple testing (continuity test, Fluke performance test, 4-terminal low-resistance measurement) to enhance reliability.
■Category: CAT6A
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 2m
■Color: Navy Blue
■Flat Cable Diameter: 2.0×7.0mm
■Number of Cable Cores: 8 cores (4P)
■ Wiring specifications: Straight connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: During installation/16.0mm, After installation/8.0mm
■Cable conductor: 28AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
*Shielded connector used for UTP
■Slim connector: None
■Latch prevention connector: None
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80 degrees
■Inspection: 100% continuity test, 100% Fluke test, 100% low resistance precision measurement
●A high-performance Category 6A flat LAN cable for industrial use with excellent resistance stability, vibration resistance, tensile strength, and aging resistance, achieved through soldering inside the connector.
●Clears a transmission bandwidth of 500MHz, which is 5.0 times that of Category 5e and twice that of Category 6. A wider bandwidth enables faster transmission and helps prevent data errors.
●The 2.0mm thin flat type is ideal for wiring in narrow spaces.
●Uses a highly elastic PVC cable with excellent flexibility, making it a flat type cable that is less likely to break.
●Uses flame-retardant material that is less likely to cause the spread of fire.
●Comes with a latch protection cover to prevent the plug's latch from breaking.
●All units undergo triple testing (continuity test, Fluke performance test, 4-terminal low-resistance measurement) to enhance reliability.
■Category: CAT6A
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 2m
■Color: Navy Blue
■Flat Cable Diameter: 2.0×7.0mm
■Number of Cable Cores: 8 cores (4P)
■ Wiring specifications: Straight connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: During installation/16.0mm, After installation/8.0mm
■Cable conductor: 28AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
*Shielded connector used for UTP
■Slim connector: None
■Latch prevention connector: None
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80 degrees
■Inspection: 100% continuity test, 100% Fluke test, 100% low resistance precision measurement
