SANWA SUPPLY

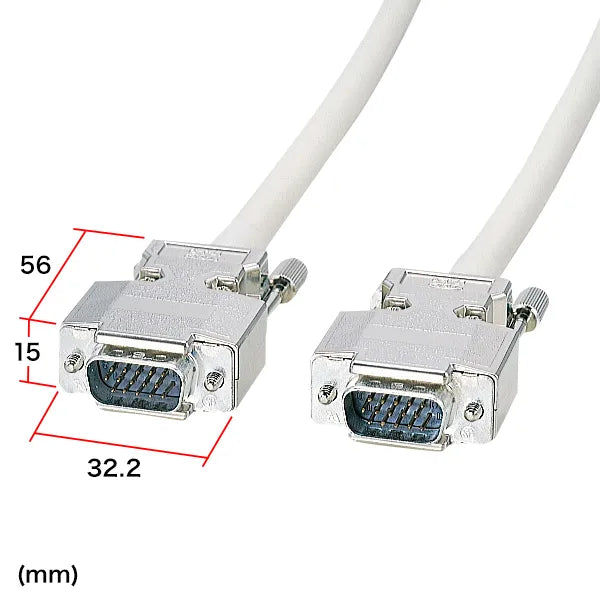

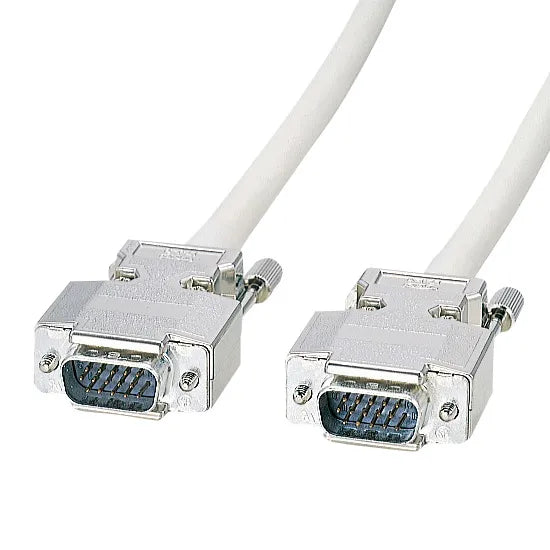

Analog RGB cable KB-HD156N
Analog RGB cable KB-HD156N
GTIN（JAN）：4969887843512
SKU：KB-HD156N
Regular price
¥15,101 JPY
Regular price
Sale price
¥15,101 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Mini D-sub 15-pin Display Cable]
●This cable connects a computer with a mini D-sub (HD) 15-pin analog RGB terminal to a display, and also connects them to a switch/splitter.
●It is a straight-through type that connects all 15 pins of the mini D-sub 15-pin connector.
●It is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●It is metal-plated, making it resistant to external noise and fully compliant with FCC standards for electromagnetic interference (EMI).
●By using machined pins compliant with US MIL standards, contact noise is shut out. Of course, it is also gold-plated to resist rust and signal degradation due to aging.
●This cable complies with the VESA DDCI standard.
●It is compatible with Windows Plug & Play.
*Depending on the model of your computer, the upper and lower protrusions on the connector of this cable may interfere with the connection. In this case, we can make a custom cable for you, so please contact us.
■Cable length: 6m

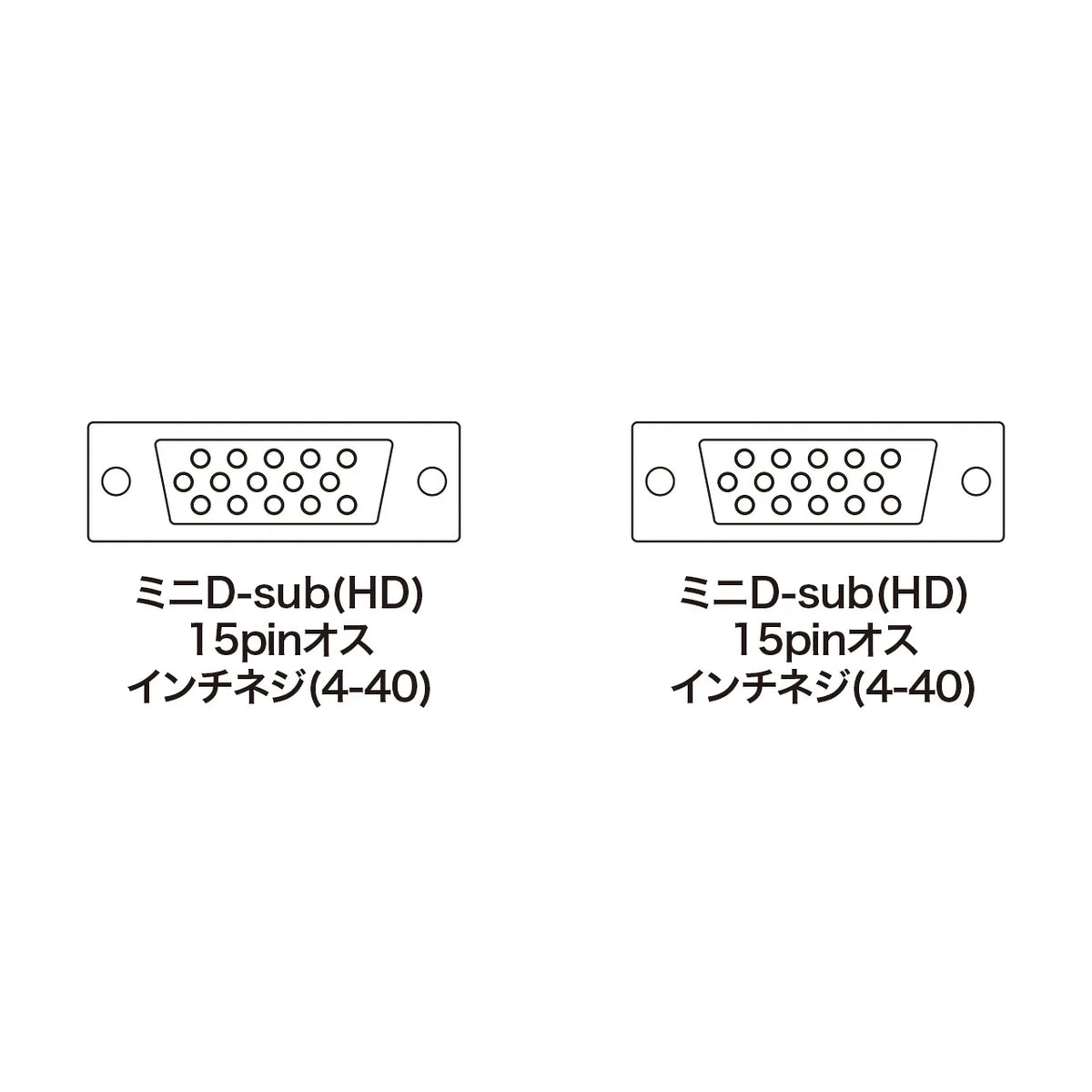

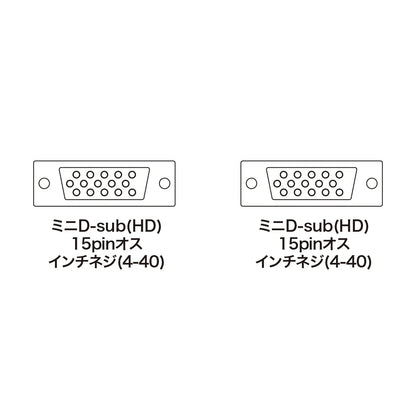

■Connector shape:
Mini D-sub (HD) 15-pin male inch screw (4-40) -
Mini D-sub (HD) 15-pin male inch screw (4-40)
■Cable diameter: 8.2mm
■Cable standard: UL2464

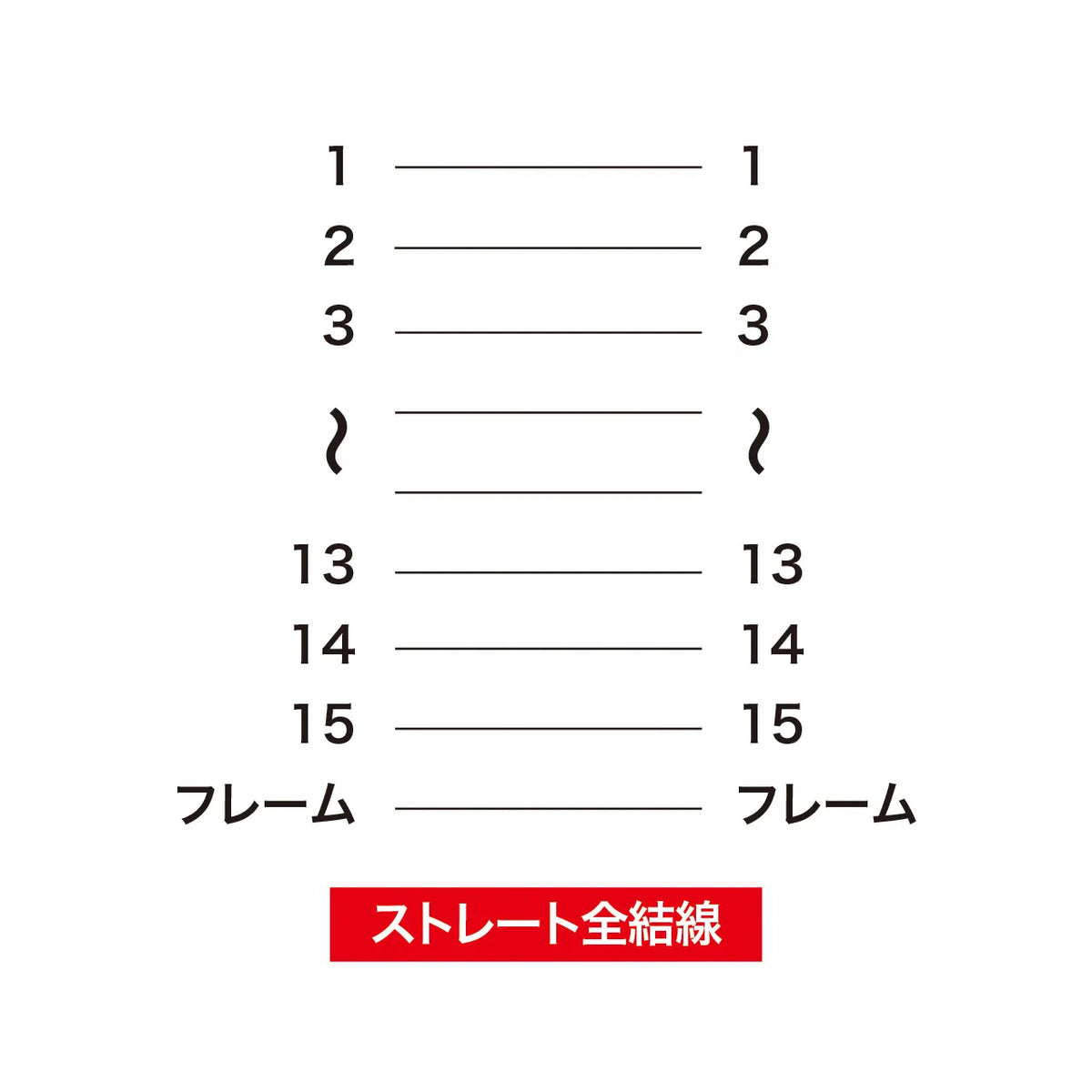

■Wiring: Straight through wiring
≪Custom orders available≫
Custom production, such as changing the length, is possible from just one cable.
*For custom orders of one cable or more, we will use the connector material specified by Sanwa Supply. Custom production of cables with molded or PC98 color connectors is not possible in small quantities. Thank you for your understanding.
●This cable connects a computer with a mini D-sub (HD) 15-pin analog RGB terminal to a display, and also connects them to a switch/splitter.
●It is a straight-through type that connects all 15 pins of the mini D-sub 15-pin connector.
●It is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●It is metal-plated, making it resistant to external noise and fully compliant with FCC standards for electromagnetic interference (EMI).
●By using machined pins compliant with US MIL standards, contact noise is shut out. Of course, it is also gold-plated to resist rust and signal degradation due to aging.
●This cable complies with the VESA DDCI standard.
●It is compatible with Windows Plug & Play.
*Depending on the model of your computer, the upper and lower protrusions on the connector of this cable may interfere with the connection. In this case, we can make a custom cable for you, so please contact us.
■Cable length: 6m
■Connector shape:
Mini D-sub (HD) 15-pin male inch screw (4-40) -
Mini D-sub (HD) 15-pin male inch screw (4-40)
■Cable diameter: 8.2mm
■Cable standard: UL2464
■Wiring: Straight through wiring
≪Custom orders available≫
Custom production, such as changing the length, is possible from just one cable.
*For custom orders of one cable or more, we will use the connector material specified by Sanwa Supply. Custom production of cables with molded or PC98 color connectors is not possible in small quantities. Thank you for your understanding.
