SANWA SUPPLY

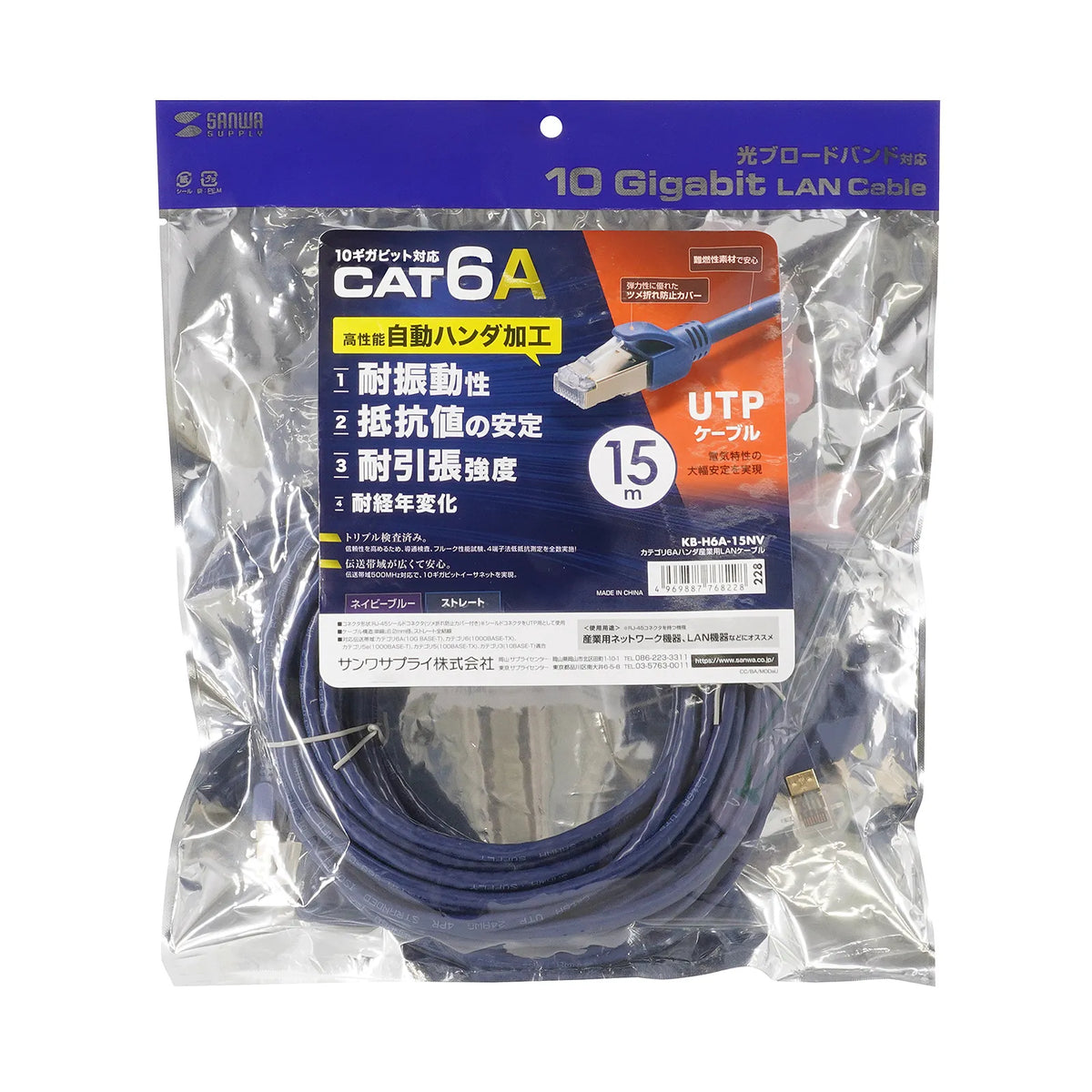

Category 6A Solder Industrial LAN Cable KB-H6A-15NV
Category 6A Solder Industrial LAN Cable KB-H6A-15NV
GTIN（JAN）：4969887768228
SKU：KB-H6A-15NV
Regular price
¥6,171 JPY
Regular price
Sale price
¥6,171 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[High-performance CAT6A UTP soldered industrial LAN cable with excellent resistance stability, vibration resistance, and tensile strength.]
●Stable resistance is achieved through soldering inside the connector. This is a high-performance Category 6A LAN cable for industrial use with excellent vibration resistance, tensile strength, and resistance to aging.
●Supports PoE (Power over Ethernet), which allows signal communication and power supply to LAN devices with a single LAN cable.
●Fully compatible with 10 Gigabit Ethernet (10GBASE-T), so it can be used with peace of mind even in ultra-high-speed network environments.
●Clears a transmission bandwidth of 500MHz, which is 5.0 times that of Category 5e and twice that of Category 6. The wider the bandwidth, the faster the transmission speed is possible and the more effective it is in preventing data errors.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines and achieve a significant improvement in the stability of electrical characteristics.
●Uses flame-retardant material that is less likely to cause the spread of fire.
●Equipped with a latch protection cover to prevent the plug's latch from breaking.
●All units undergo triple testing (continuity test, Fluke performance test, 4-terminal low resistance measurement) to enhance reliability.
■Category: CAT6A
■Standard name: 10GBASE-T
■Compatible categories/standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 10Gbps
■Frequency response: 500MHz
■Cable length (m): 15m
■Color: Navy blue
■Cable diameter (mm): 6.2mm
■Number of cable cores: 8 cores (4P)
■Connection Wire specifications: Straight connection
■Cable structure: UTP
■Cross separator: Yes
■Minimum bending radius: During installation/49.6mm, After installation/49.6mm
■Cable conductor: 24AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
*Shielded connector used for UTP
■Slim connector: None
■Latch prevention connector: None
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80 degrees
■Inspection: 100% continuity test, 100% Fluke test, 100% low resistance precision measurement
●Stable resistance is achieved through soldering inside the connector. This is a high-performance Category 6A LAN cable for industrial use with excellent vibration resistance, tensile strength, and resistance to aging.
●Supports PoE (Power over Ethernet), which allows signal communication and power supply to LAN devices with a single LAN cable.
●Fully compatible with 10 Gigabit Ethernet (10GBASE-T), so it can be used with peace of mind even in ultra-high-speed network environments.
●Clears a transmission bandwidth of 500MHz, which is 5.0 times that of Category 5e and twice that of Category 6. The wider the bandwidth, the faster the transmission speed is possible and the more effective it is in preventing data errors.
●A cross-shaped separator is included inside the cable to prevent electromagnetic interference between signal lines and achieve a significant improvement in the stability of electrical characteristics.
●Uses flame-retardant material that is less likely to cause the spread of fire.
●Equipped with a latch protection cover to prevent the plug's latch from breaking.
●All units undergo triple testing (continuity test, Fluke performance test, 4-terminal low resistance measurement) to enhance reliability.
■Category: CAT6A
■Standard name: 10GBASE-T
■Compatible categories/standards: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 10Gbps
■Frequency response: 500MHz
■Cable length (m): 15m
■Color: Navy blue
■Cable diameter (mm): 6.2mm
■Number of cable cores: 8 cores (4P)
■Connection Wire specifications: Straight connection
■Cable structure: UTP
■Cross separator: Yes
■Minimum bending radius: During installation/49.6mm, After installation/49.6mm
■Cable conductor: 24AWG
■Cable conductor structure: Stranded wire
■PoE: Supported
■Sheath material: PVC
■Color coding: TIA/EIA-568B
■Connector shape: RJ-45 connector
*Shielded connector used for UTP
■Slim connector: None
■Latch prevention connector: None
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80 degrees
■Inspection: 100% continuity test, 100% Fluke test, 100% low resistance precision measurement
