SANWA SUPPLY
GP-IB cable KB-GPIB2KN2
GP-IB cable KB-GPIB2KN2
GTIN（JAN）：4969887766019
SKU：KB-GPIB2KN2
Regular price
¥18,876 JPY
Regular price
Sale price
¥18,876 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

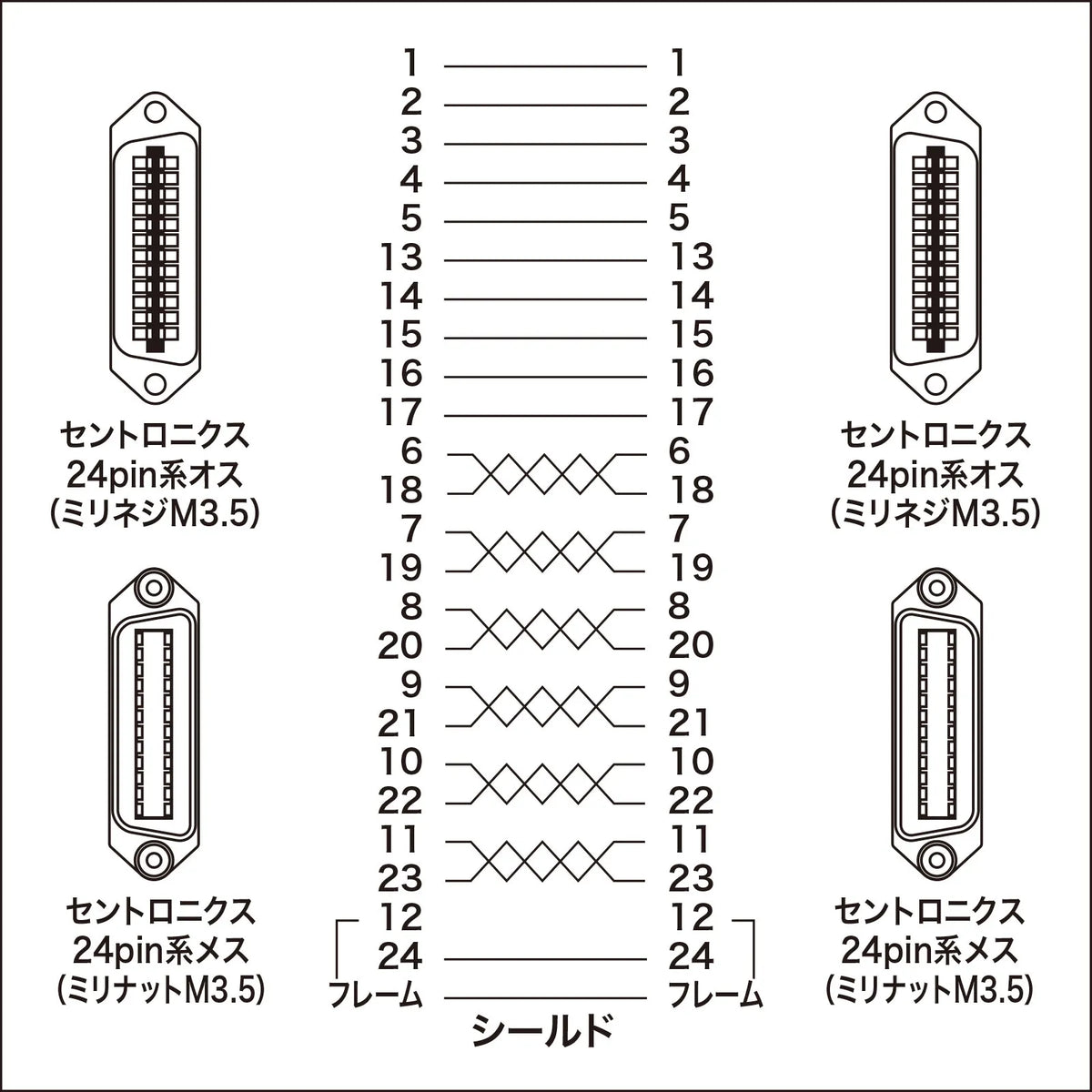

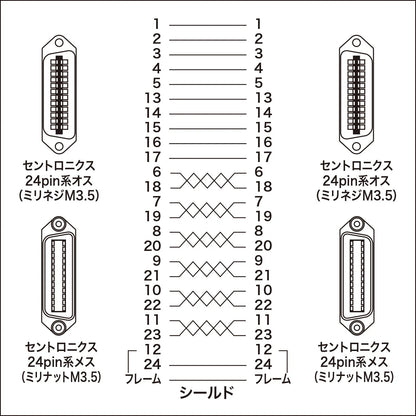

[GP-IB (IEEE488) Compliant Cable]

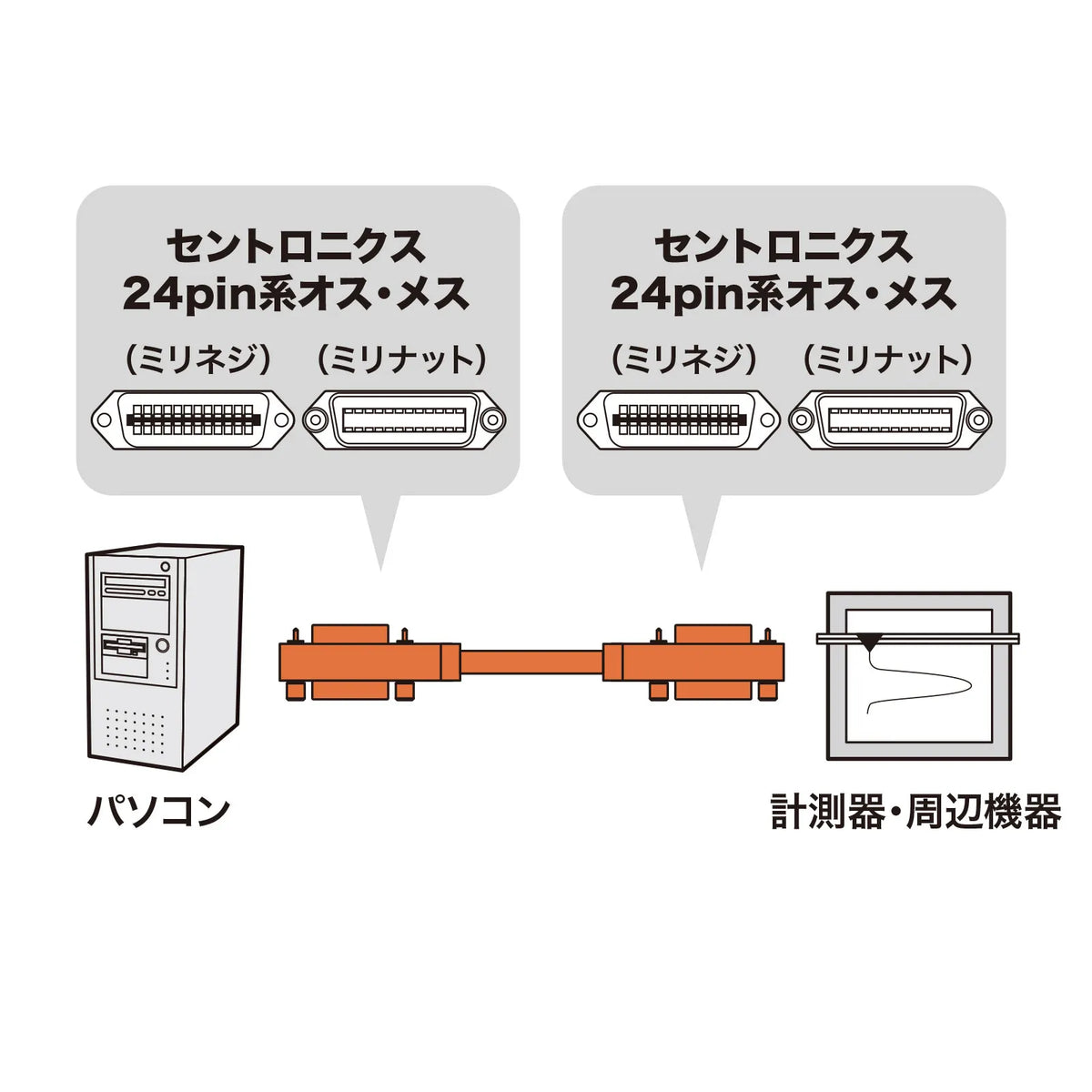

●This cable connects various PCs and peripherals with a GP-IB interface.
●A sealed aluminum shield is applied inside the high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Metal-treated for strong resistance to external noise, and fully compliant with FCC standards for electromagnetic interference (EMI) countermeasures.
●Uses gold-plated pins (contacts) that are resistant to rust and have less concern about signal degradation due to aging.
●Simplified packaging reduces waste after use and makes unpacking easy.
■Cable length: Approximately 2m
*Connector length not included.

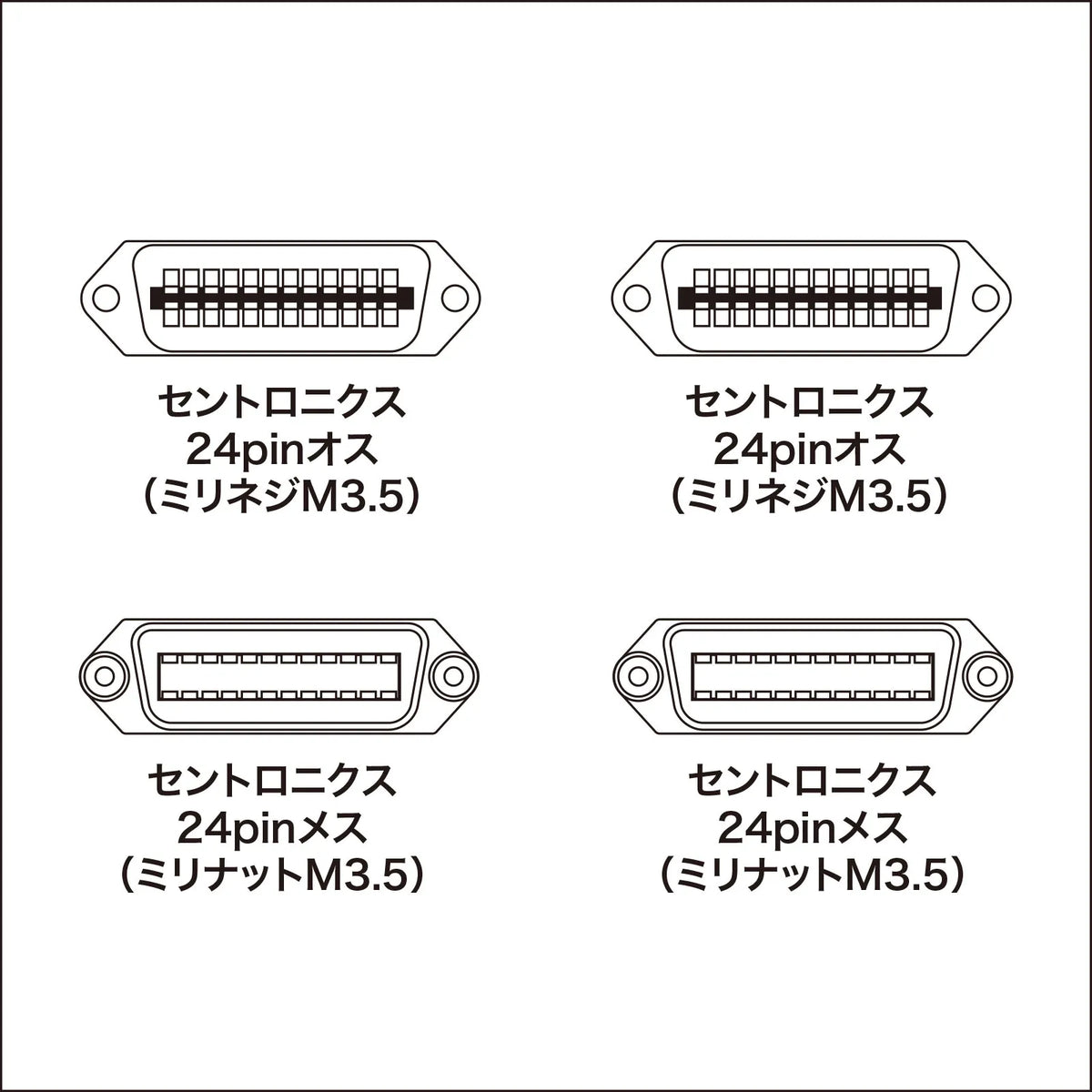

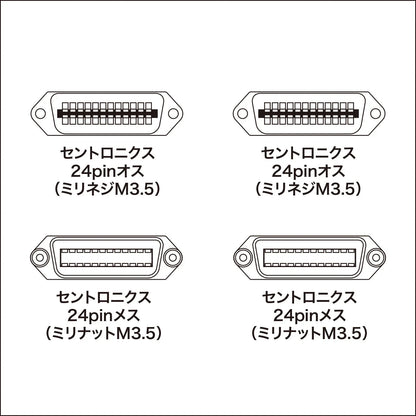

■Connector shape: Centronics 24-pin male (metric screw M3.5) / Centronics female (metric nut M3.5) -
Centronics 24-pin male (metric screw M3.5) / Centronics female (metric nut M3.5)
■Cable diameter: Approx. 9.2mm
■Wire standard (UL): UL2464
●This cable connects various PCs and peripherals with a GP-IB interface.
●A sealed aluminum shield is applied inside the high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Metal-treated for strong resistance to external noise, and fully compliant with FCC standards for electromagnetic interference (EMI) countermeasures.
●Uses gold-plated pins (contacts) that are resistant to rust and have less concern about signal degradation due to aging.
●Simplified packaging reduces waste after use and makes unpacking easy.
■Cable length: Approximately 2m
*Connector length not included.
■Connector shape: Centronics 24-pin male (metric screw M3.5) / Centronics female (metric nut M3.5) -
Centronics 24-pin male (metric screw M3.5) / Centronics female (metric nut M3.5)
■Cable diameter: Approx. 9.2mm
■Wire standard (UL): UL2464
