SANWA SUPPLY

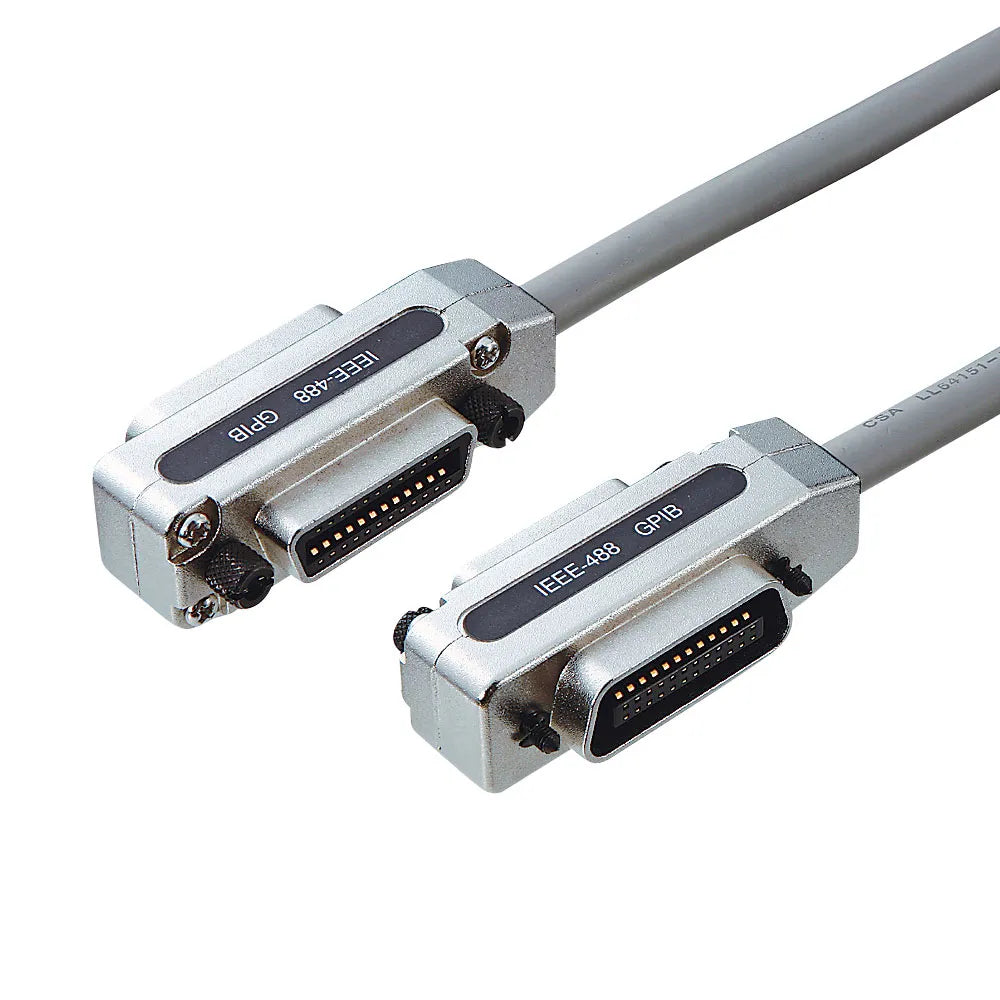

GP-IB cable KB-GPIB05KN2
GP-IB cable KB-GPIB05KN2
GTIN（JAN）：4969887765999
SKU：KB-GPIB05KN2
Regular price
¥14,520 JPY
Regular price
Sale price
¥14,520 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[GP-IB (IEEE488) Compliant Cable]

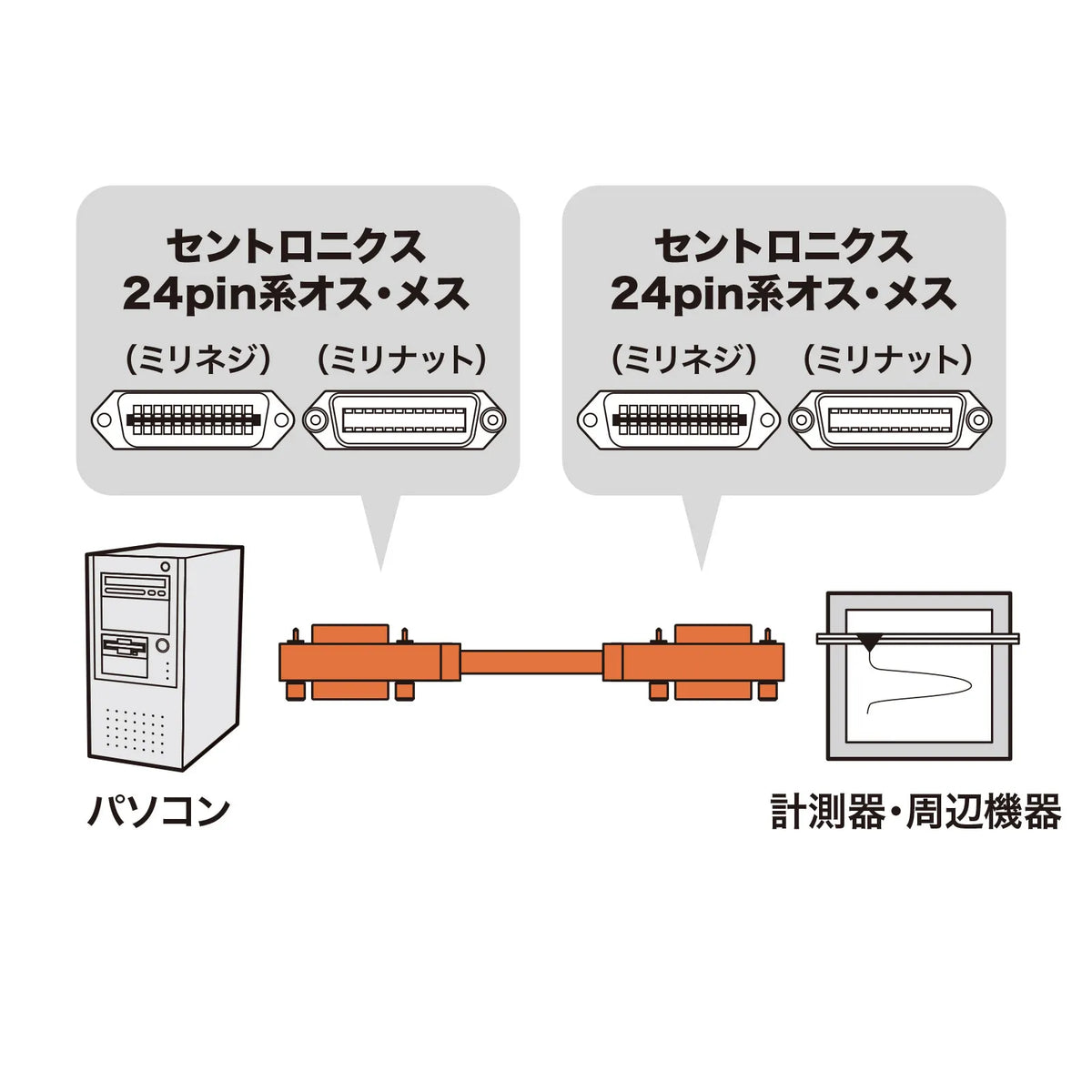

●This cable connects various PCs and peripherals with a GP-IB interface.
●A sealed aluminum shield is applied inside the high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Metal-treated for strong resistance to external noise and FCC compliant for complete protection against electromagnetic interference (EMI).
●Uses gold-plated pins (contacts) that are resistant to rust and less prone to signal degradation due to aging.
●Simplified packaging reduces waste after use and makes unpacking easy.
■Weight: Approx. 270g
■Cable length: Approx. 0.5m
*Connector length not included.

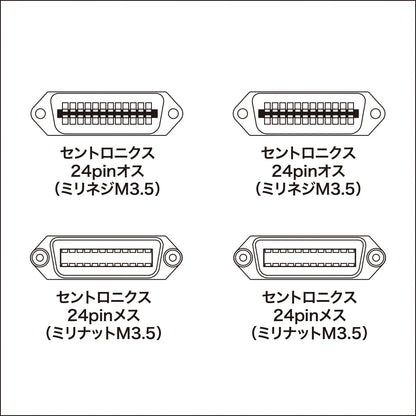

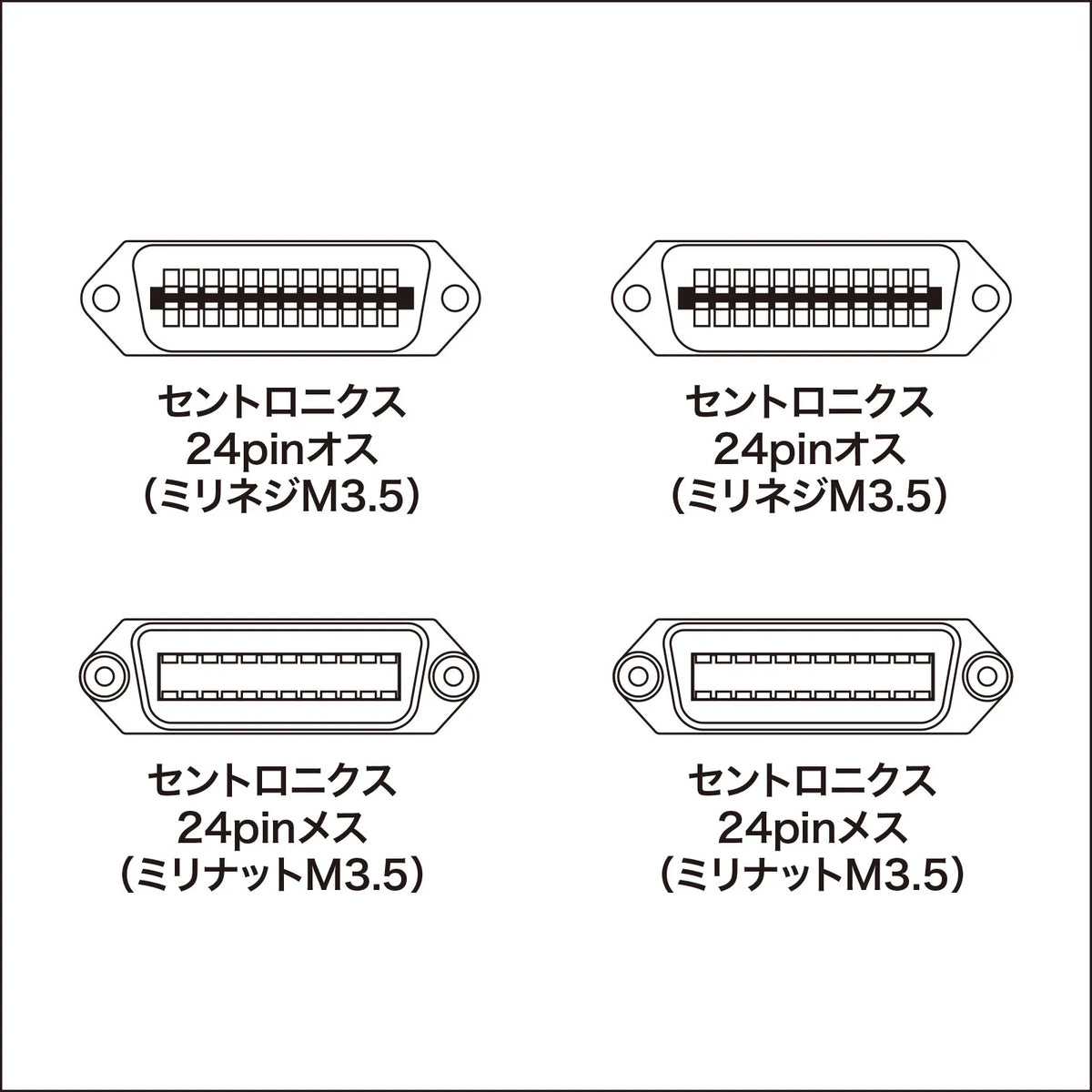

■Connector shape: Centronics 24-pin male (metric screw M3.5) / Centronics female (metric nut M3.5) -
Centronics 24-pin male (metric screw M3.5) / Centronics female (metric nut M3.5)
■Cable diameter: Approx. 9.2mm
■Wire standard (UL): UL2464
●This cable connects various PCs and peripherals with a GP-IB interface.
●A sealed aluminum shield is applied inside the high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Uses noise-resistant twisted pair wires with two core wires twisted together.
●Metal-treated for strong resistance to external noise and FCC compliant for complete protection against electromagnetic interference (EMI).
●Uses gold-plated pins (contacts) that are resistant to rust and less prone to signal degradation due to aging.
●Simplified packaging reduces waste after use and makes unpacking easy.
■Weight: Approx. 270g
■Cable length: Approx. 0.5m
*Connector length not included.
■Connector shape: Centronics 24-pin male (metric screw M3.5) / Centronics female (metric nut M3.5) -
Centronics 24-pin male (metric screw M3.5) / Centronics female (metric nut M3.5)
■Cable diameter: Approx. 9.2mm
■Wire standard (UL): UL2464
