SANWA SUPPLY

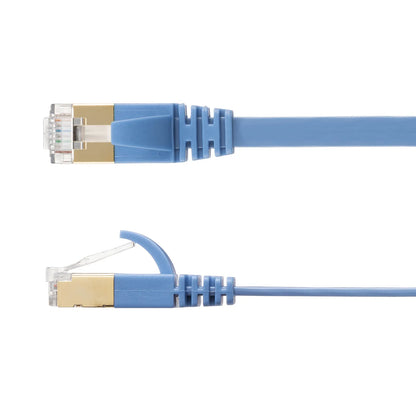

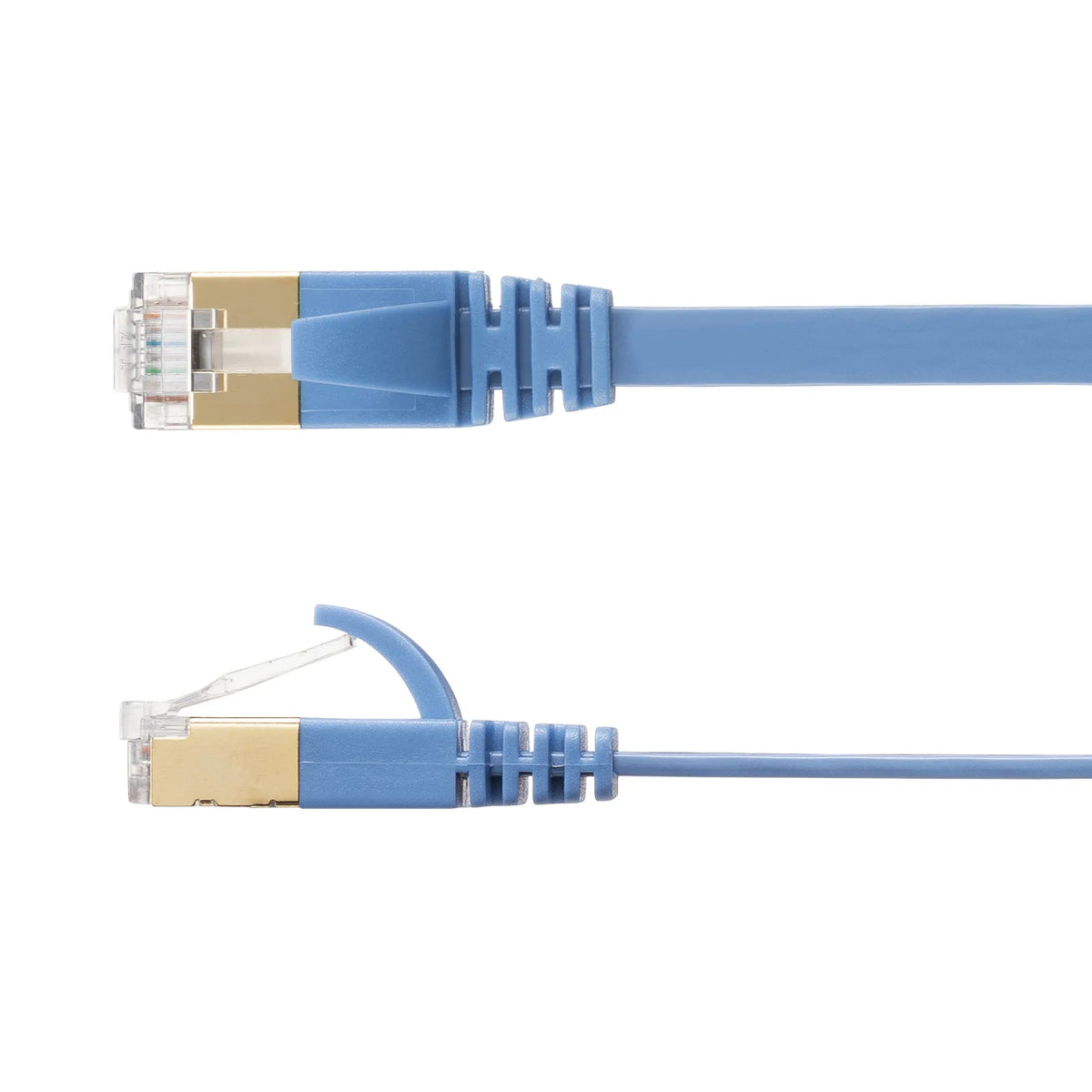

CAT7 Flat LAN Cable (15m, Blue) KB-FLU7-15BL
CAT7 Flat LAN Cable (15m, Blue) KB-FLU7-15BL
GTIN（JAN）：4969887775196
SKU：KB-FLU7-15BL
Regular price
¥3,920 JPY
Regular price
Sale price
¥3,920 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

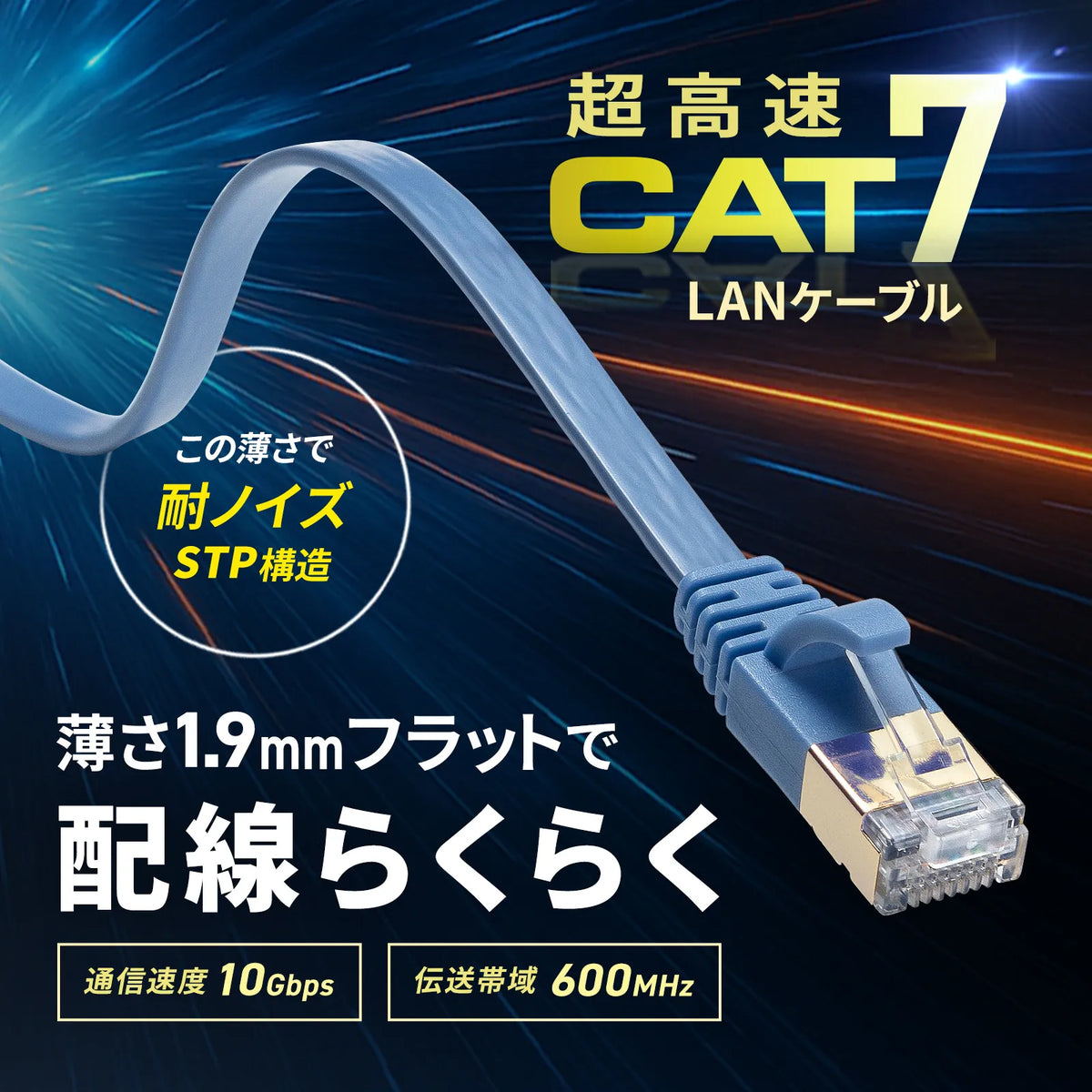

[A Category 7 compliant flat LAN cable that supports 10G BASE-T, is noise-resistant, and is only 1.9mm thick.]
● Clears a transmission bandwidth of 600MHz, which is 6.0 times that of Category 5e and 2.4 times that of Category 6. A wider bandwidth enables faster transmission and helps prevent data errors.
● Supports 10G BASE-T by minimizing cable quality and twisting inside the plug.
*Measured using FLUKE DTX-1800 (firmware 1.1) from FLUKE, USA. Plug part verified using a test table.

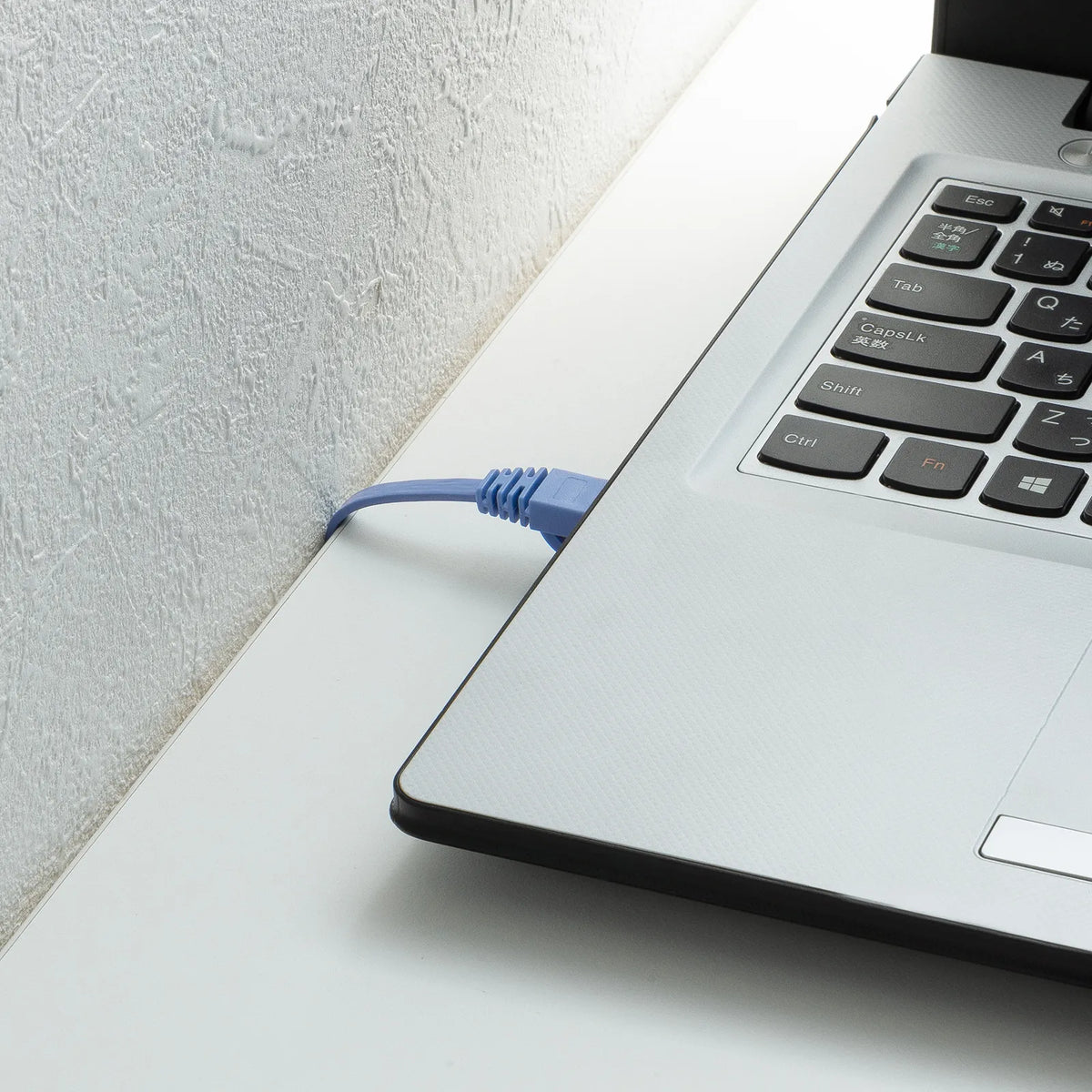

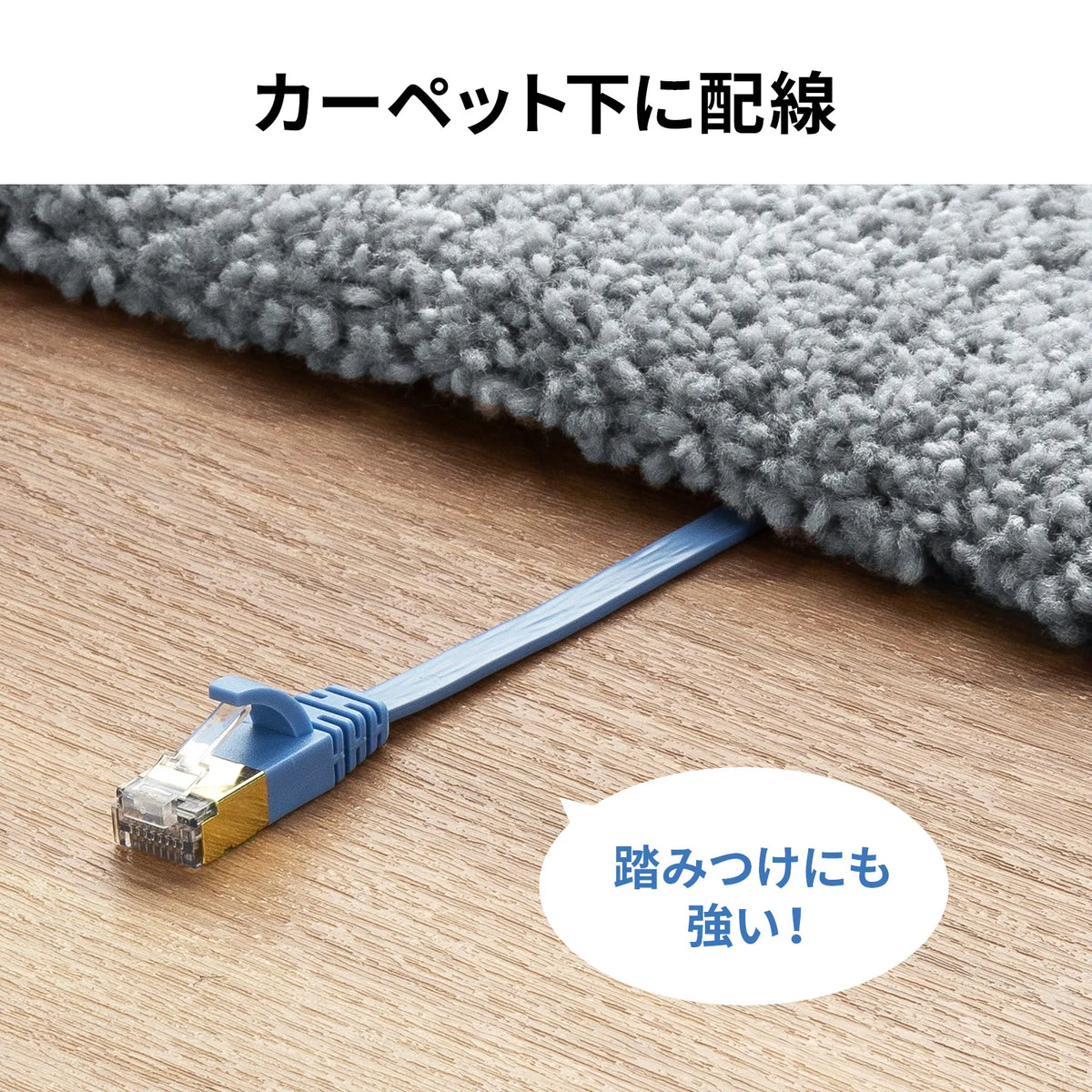

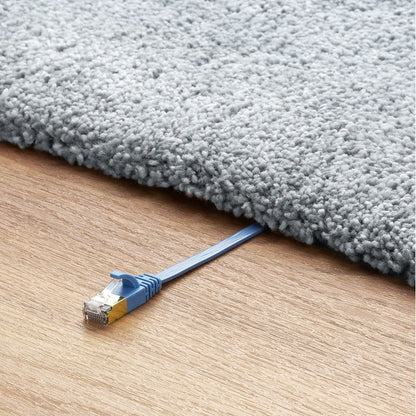

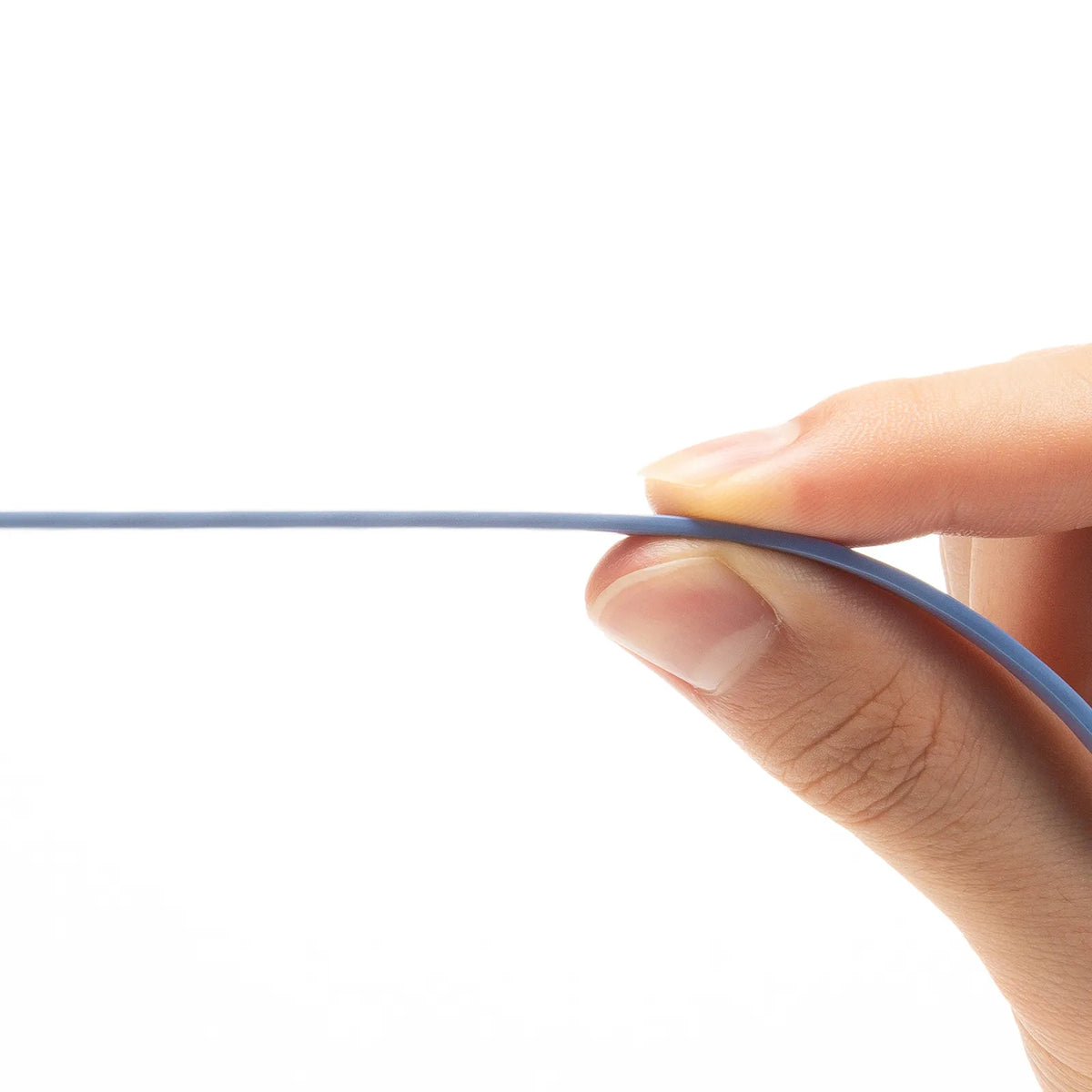

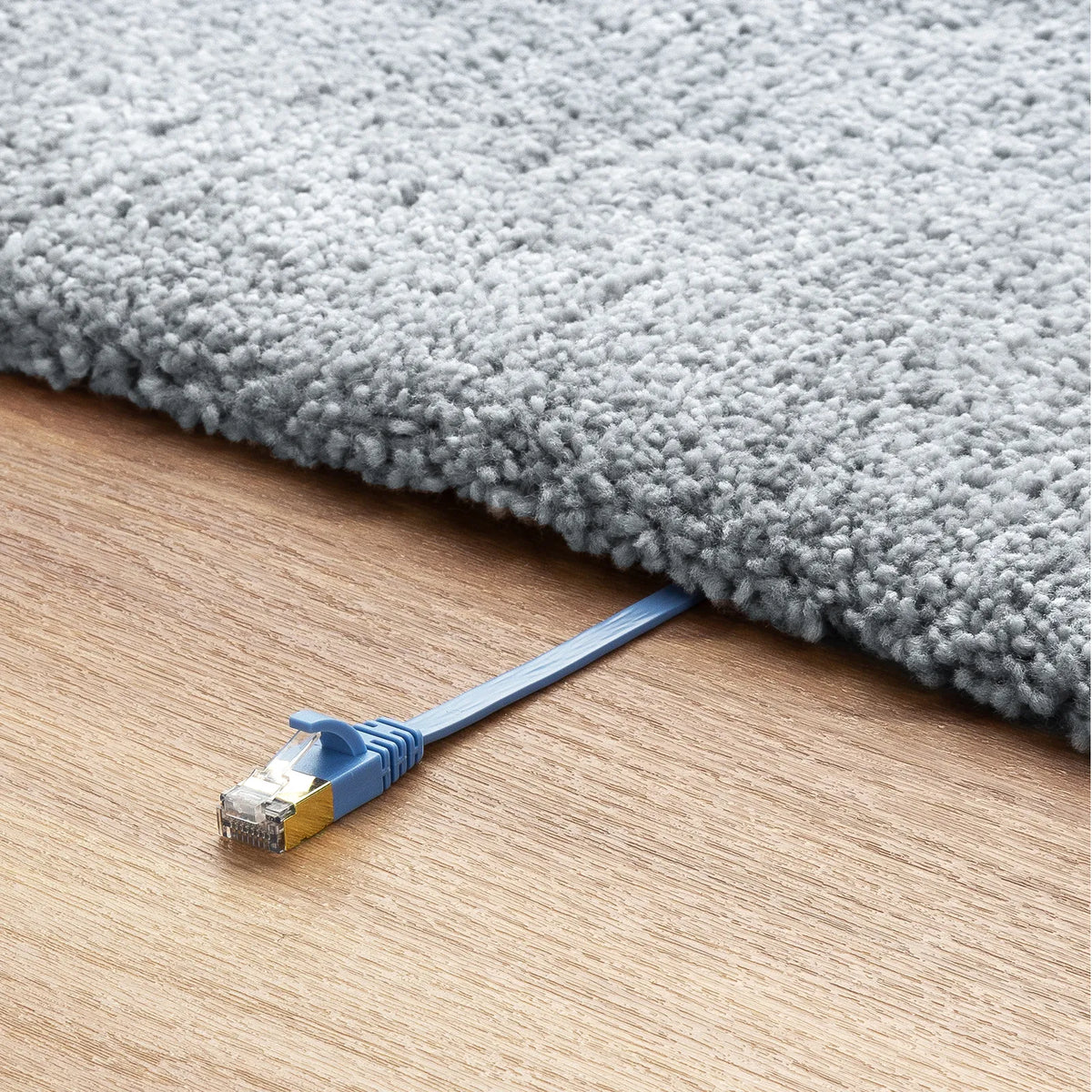

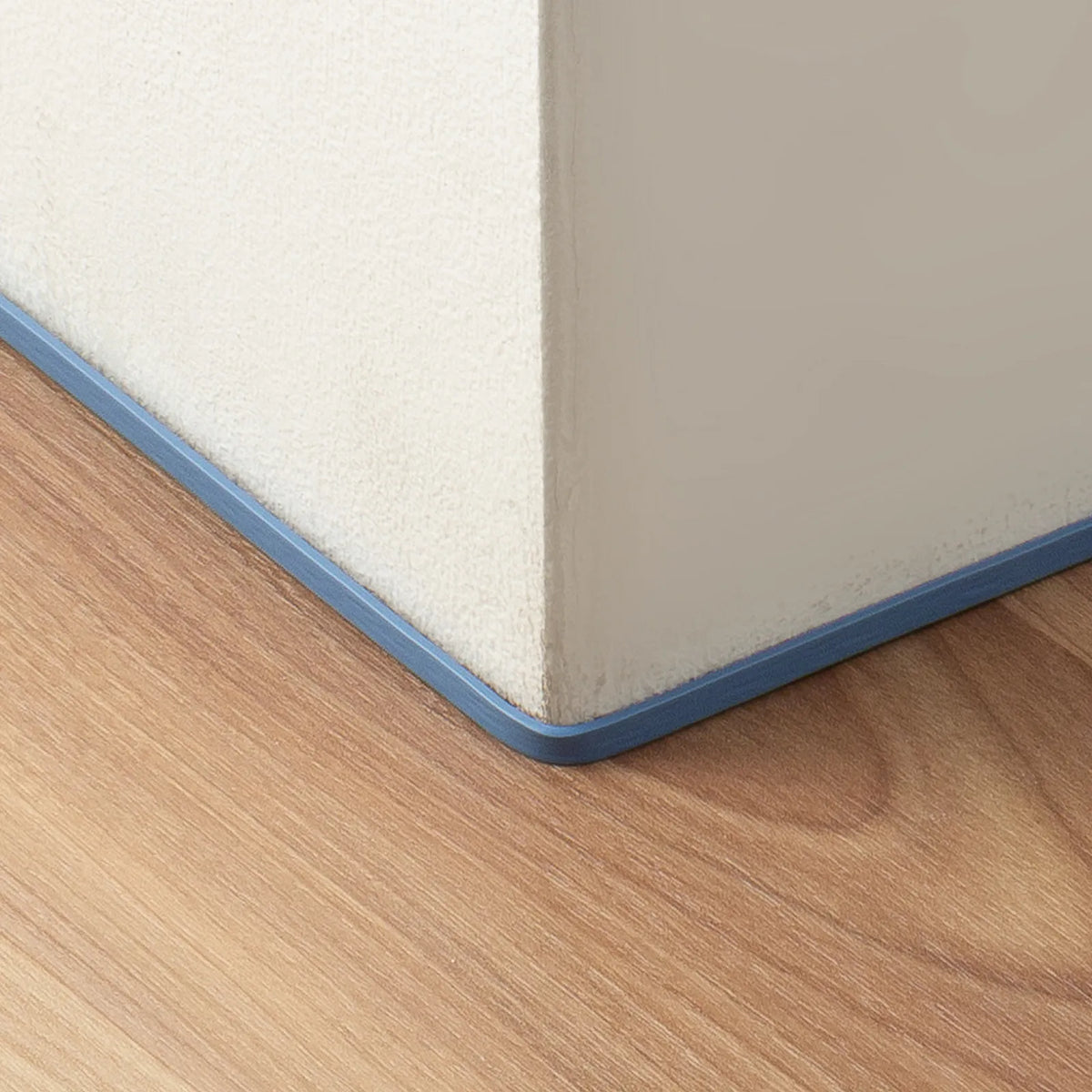

● Its thinness of 1.9mm makes it easy to handle. It can be neatly routed under carpets or in narrow gaps.
In addition, the inside of the cable is molded, so the cable is less likely to twist, and the performance characteristics do not deteriorate.

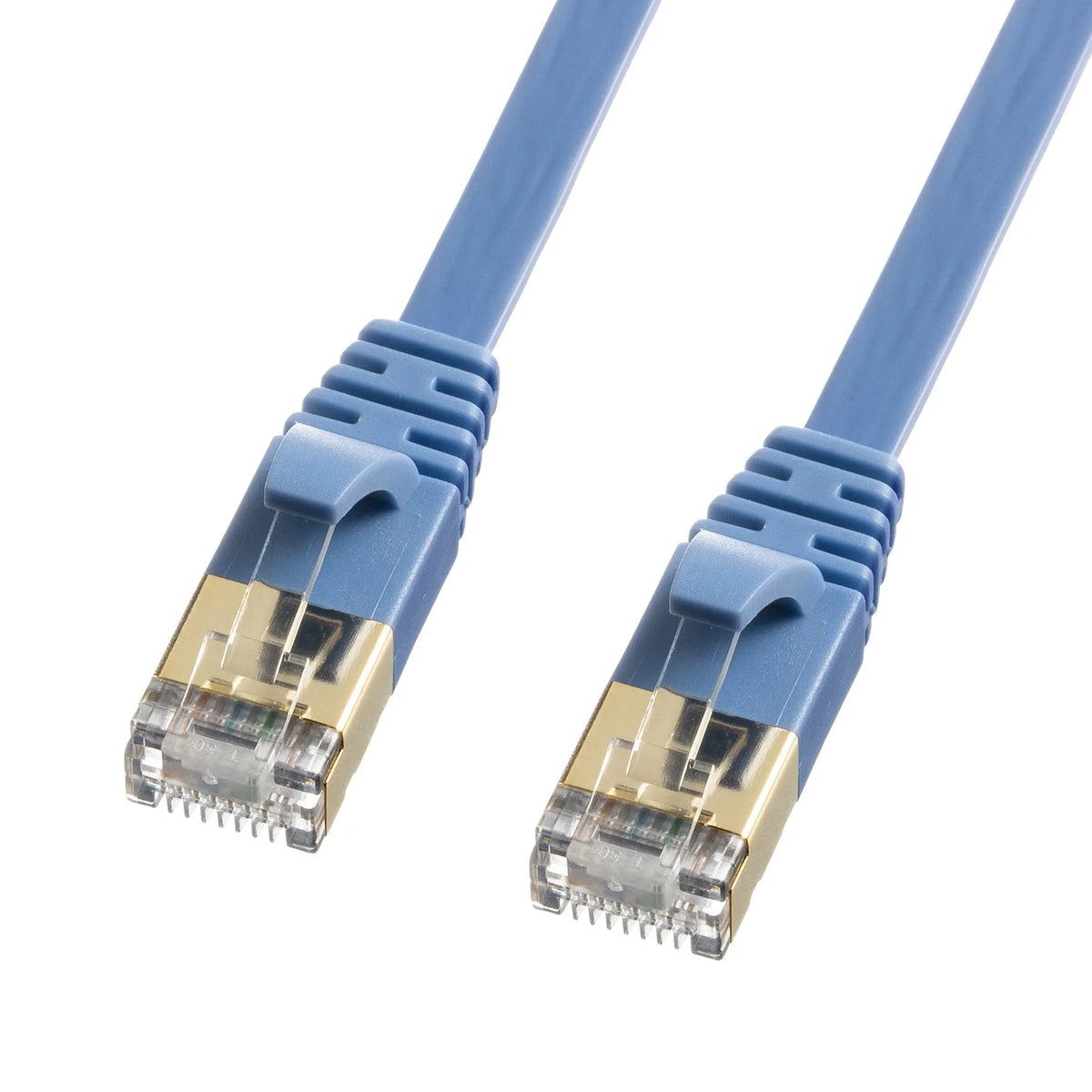

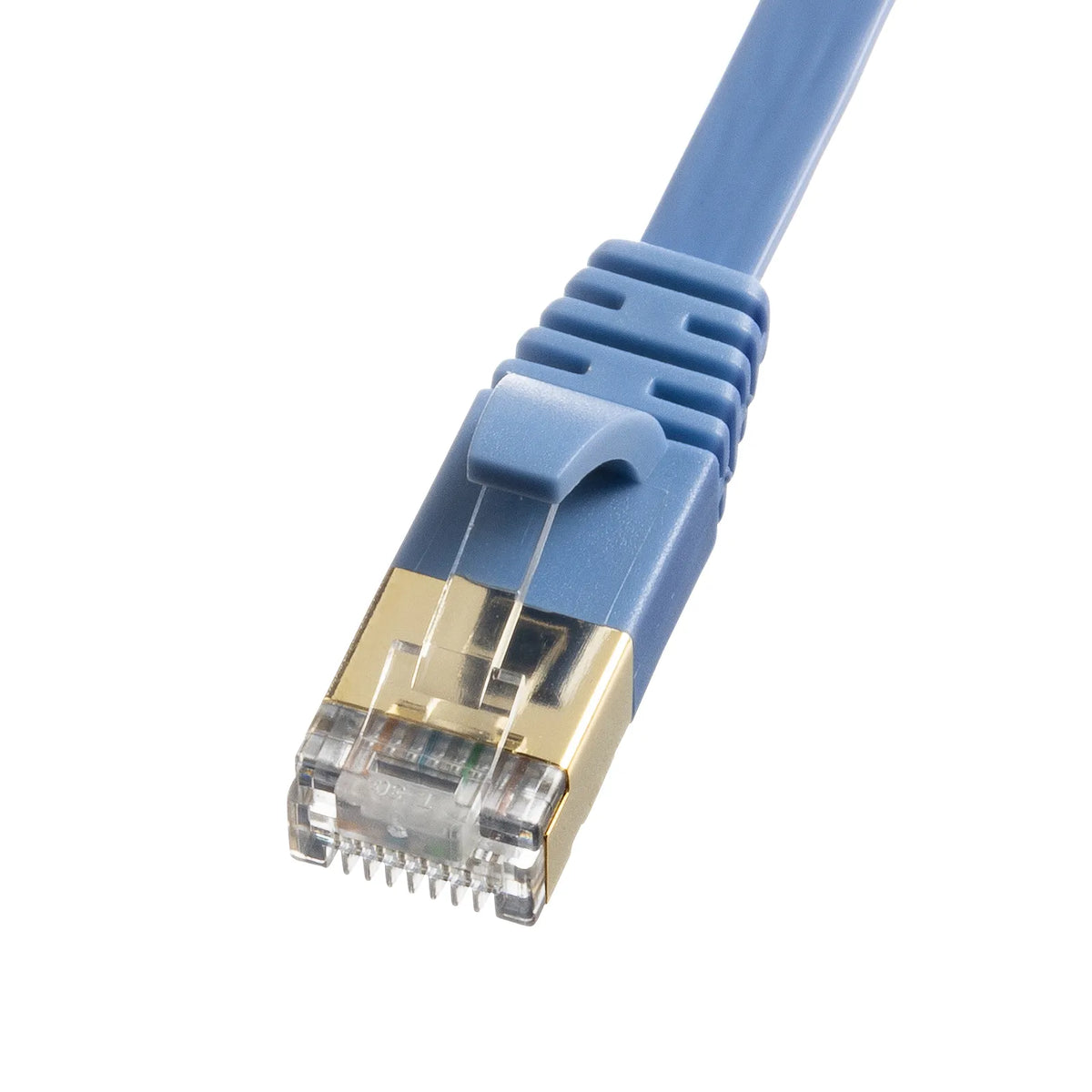

● Comes with a latch protection cover to prevent the plug's latch from breaking for added peace of mind.

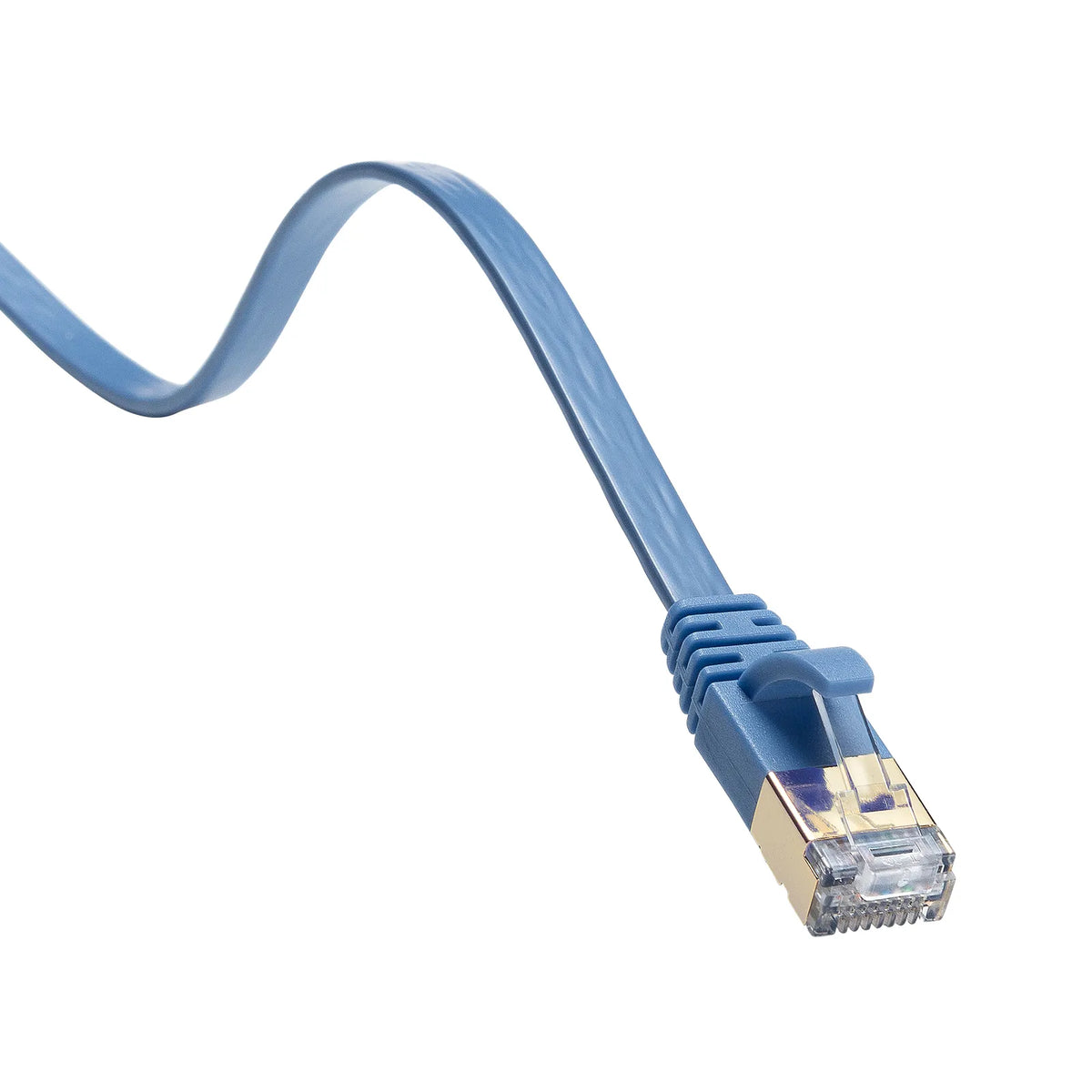

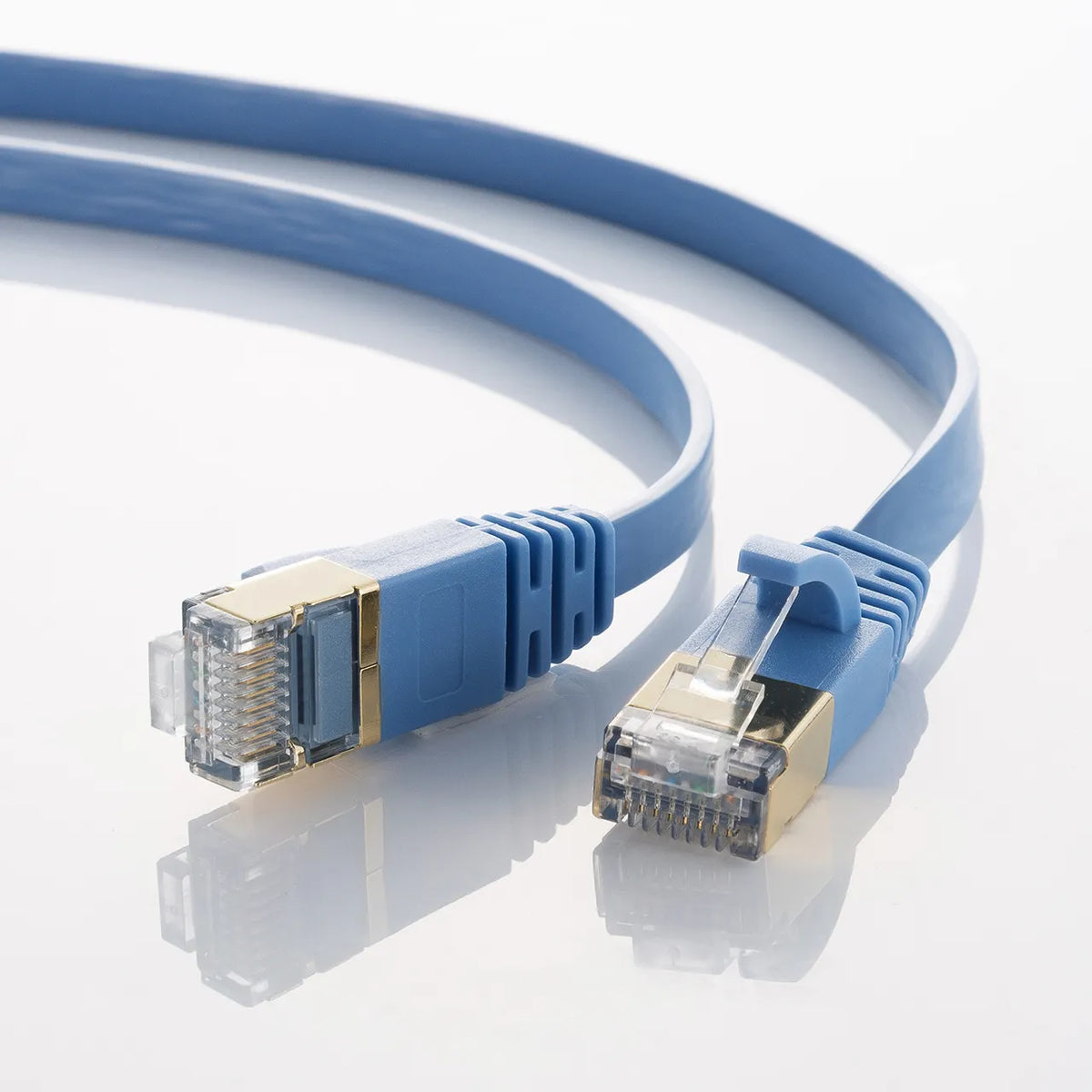

●Features gold-plated shielded plugs that suppress rust and oxide film formation, ensuring high-precision contact.
●The cable material is less likely to cause the spread of fire.
*For Gigabit connections, all other connected devices and cables must also be Gigabit compatible.
■Shape Specifications Type: Flat Cable
■Shape Type: Flat Type
■Category: CAT7
*Only the cable part is CAT7 compliant. The connector is RJ-45 specification.
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 7 (10GBASE-T), Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 600MHz
■Cable Length: 15m
■Color: Blue
■Flat Cable Diameter: 1.9×6.0mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Structure: STP
■Cross-shaped Filler: None
■Minimum Bending Radius: Approx. 17.6mm when installed After installation: 8.8mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch protection connector: No
■Latch protection cover: Yes
■Storage temperature range: Approx. -20 to 80 degrees
■Operating humidity: Approx. 10 to 80%
*No condensation
■Storage humidity: Approx. 10 to 80%
*No condensation
■Inspection: 100% continuity test
■Compatible environments (devices): Fiber optic lines (FTTH ultra-high-speed fiber optic internet), cable TV lines (CATV modems), ADSL lines (ADSL modems), network lines (network equipment), digital TVs, digital audio, hard disk recorders (models with RJ-45 ports), INS64 (30m or less)
*For Gigabit connections, all other connected devices and cables must also be Gigabit compatible.
■Operating temperature range: Approximately -10 to 80 degrees
