SANWA SUPPLY

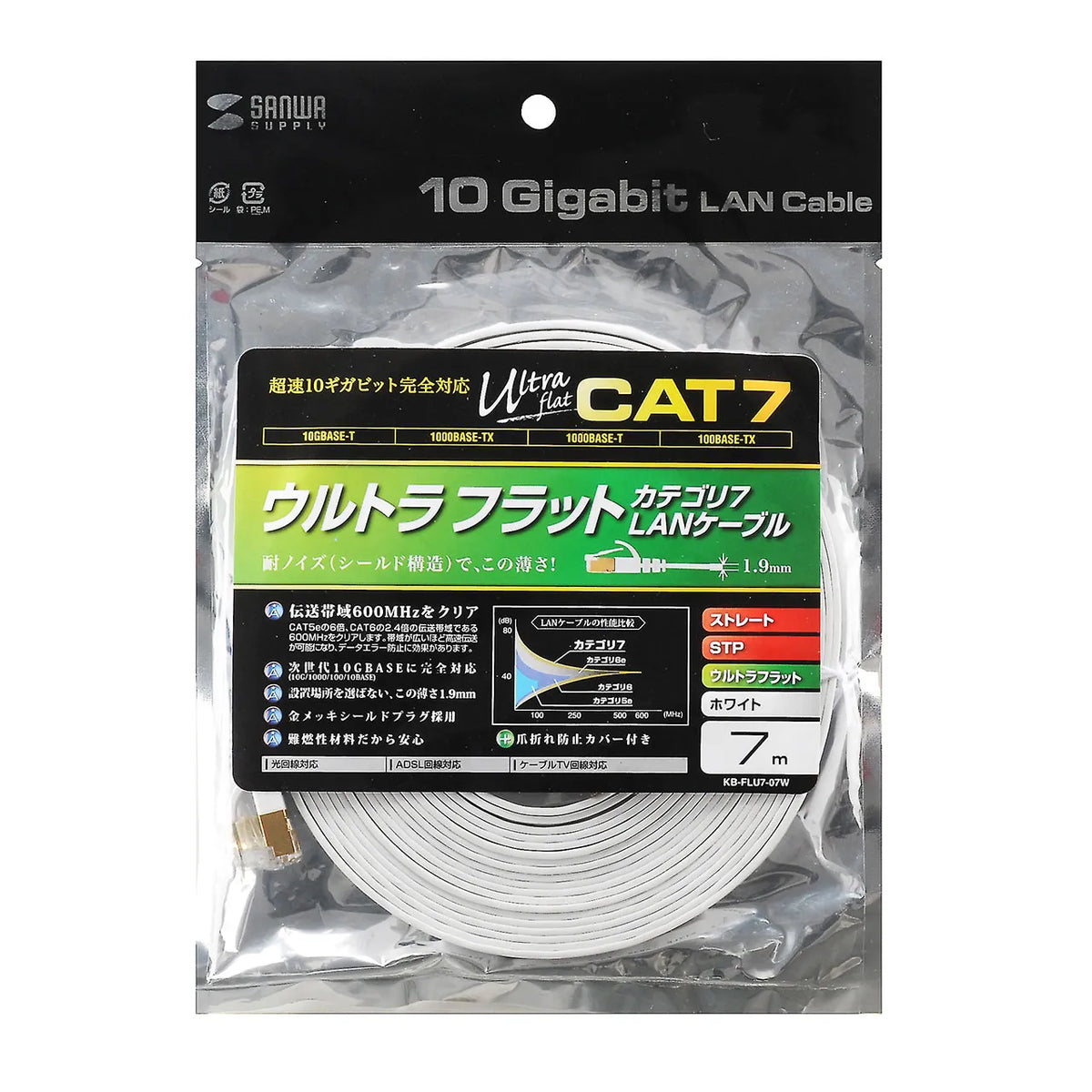

CAT7 Ultra Flat LAN Cable (7m, White) KB-FLU7-07W
CAT7 Ultra Flat LAN Cable (7m, White) KB-FLU7-07W
GTIN（JAN）：4969887818848
SKU：KB-FLU7-07W
Regular price
¥2,251 JPY
Regular price
Sale price
¥2,251 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Ultra-flat LAN cable compatible with Category 7, fully 10GBASE compatible, noise-resistant, and only 1.9mm thick]
● Clears a transmission bandwidth of 600MHz, which is 6.0 times that of Category 5e and 2.4 times that of Category 6. A wider bandwidth enables faster transmission and helps prevent data errors.
● Fully compatible with 10GBASE (10Gbps), which is rapidly becoming practical, by minimizing cable quality and twisting inside the plug.
*Measured using FLUKE DTX-1800 (firmware 1.1) from FLUKE, USA. Plug part verified using a test table.
● Easy to handle with a thickness of 1.9mm. Can be neatly routed under carpets or in narrow gaps.
In addition, the inside of the cable is molded, so the cable is less likely to twist, and performance characteristics do not deteriorate.
● Comes with a latch protection cover to prevent the plug's latch from breaking for added peace of mind.
●Features gold-plated shielded plugs that suppress rust and oxide film formation, ensuring high-precision contact.
●The cable material is less likely to cause the spread of fire.
*For Gigabit connections, all other connected devices and cables must also be Gigabit compatible.
■Category: CAT7
■Standard Name: 10GBASE-T
■Compatible Categories/Standards: Category 7 (10GBASE-T), Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 600MHz
■Cable Length: 7m
■Color: White
■Flat Cable Diameter: 1.9×6.0mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Structure: STP
■Cross Filler: None
■Minimum Bending Radius: When laid/48.0mm, After installation: 48.0mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch protection connector: No
■Latch protection cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
● Clears a transmission bandwidth of 600MHz, which is 6.0 times that of Category 5e and 2.4 times that of Category 6. A wider bandwidth enables faster transmission and helps prevent data errors.
● Fully compatible with 10GBASE (10Gbps), which is rapidly becoming practical, by minimizing cable quality and twisting inside the plug.
*Measured using FLUKE DTX-1800 (firmware 1.1) from FLUKE, USA. Plug part verified using a test table.
● Easy to handle with a thickness of 1.9mm. Can be neatly routed under carpets or in narrow gaps.
In addition, the inside of the cable is molded, so the cable is less likely to twist, and performance characteristics do not deteriorate.
● Comes with a latch protection cover to prevent the plug's latch from breaking for added peace of mind.
●Features gold-plated shielded plugs that suppress rust and oxide film formation, ensuring high-precision contact.
●The cable material is less likely to cause the spread of fire.
*For Gigabit connections, all other connected devices and cables must also be Gigabit compatible.
■Category: CAT7
■Standard Name: 10GBASE-T
■Compatible Categories/Standards: Category 7 (10GBASE-T), Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 600MHz
■Cable Length: 7m
■Color: White
■Flat Cable Diameter: 1.9×6.0mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Structure: STP
■Cross Filler: None
■Minimum Bending Radius: When laid/48.0mm, After installation: 48.0mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch protection connector: No
■Latch protection cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
