SANWA SUPPLY

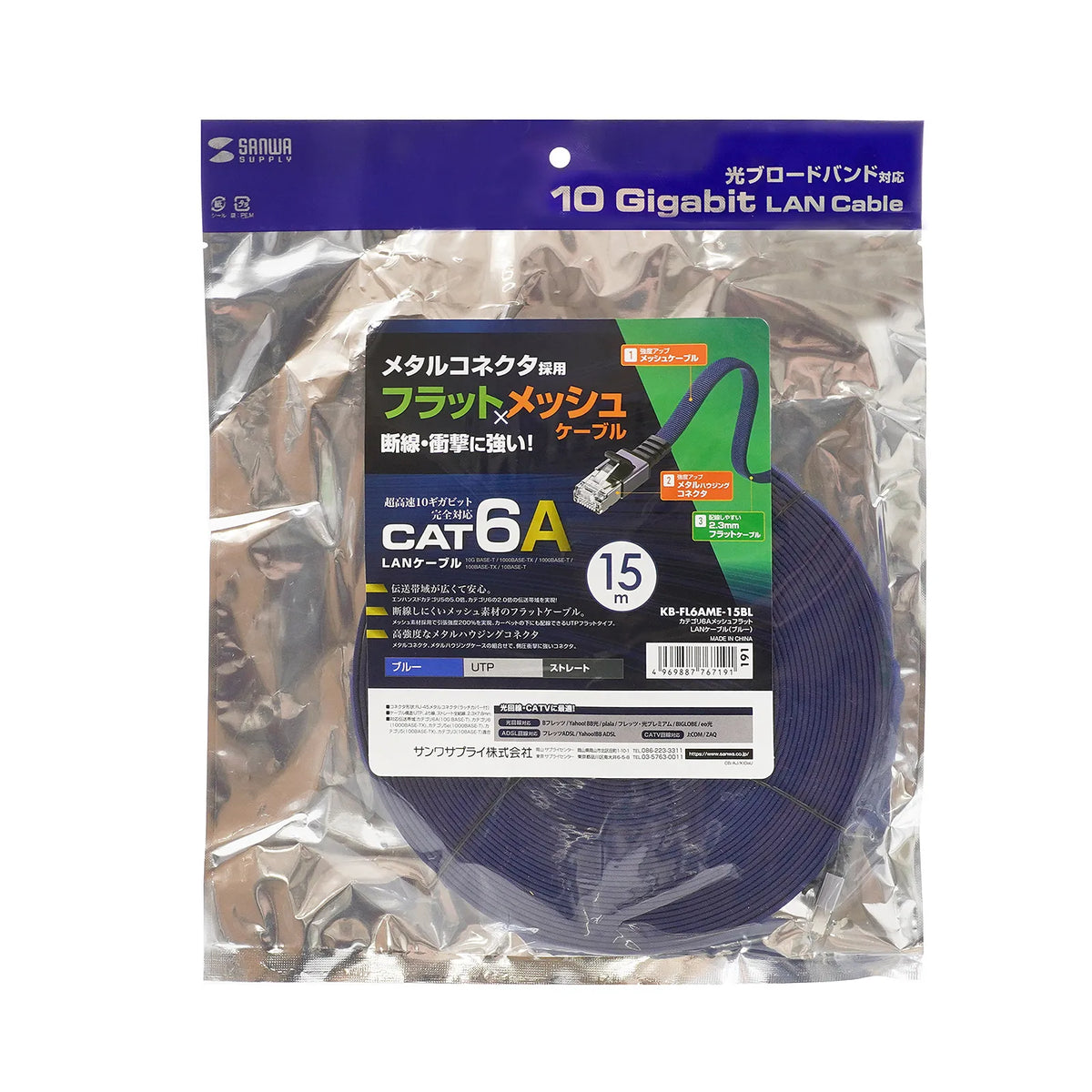

Category 6A Mesh Flat LAN Cable KB-FL6AME-15BL
Category 6A Mesh Flat LAN Cable KB-FL6AME-15BL
GTIN（JAN）：4969887767191
SKU：KB-FL6AME-15BL
Regular price
¥2,541 JPY
Regular price
Sale price
¥2,541 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Flat & Mesh Cable, Metal Connector for Strong Resistance to Disconnection and Impact, CAT6A Flat Mesh LAN Cable Compatible with 10Gbit Ethernet.]
● Achieves a transmission bandwidth of 500MHz, 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6! This high-performance LAN cable prevents errors with its ample transmission characteristics.
● Fully compatible with 10 Gigabit Ethernet (10G BASE-T), so it can be used even in ultra-high-speed network environments.
● Achieves 200% tensile strength with mesh material. The flat type cable with a thickness of 2.3mm can be routed under carpets or in narrow gaps. In addition, the inside of the cable is molded, so the cable is less likely to unravel and the performance characteristics do not deteriorate.
● The combination of metal connector and metal housing case makes the connector resistant to lateral pressure impact.
● Comes with a latch protection cover to prevent the plug's latch from breaking.
■Category: CAT6A
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 6A (10G BASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 15m
■Color: Blue
■Flat Cable Diameter: 2.3 x 7.8mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Structure: UT P
■Cross separator: None
■Minimum bending radius: During installation/12.0mm, after installation/6.0mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheathing material: Outer sheath/PVC + Mesh/PP
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch-break prevention connector: No
■Latch-break prevention cover: Yes
■Operating temperature range: -10 to 80 degrees
■Inspection: 100% continuity test
● Achieves a transmission bandwidth of 500MHz, 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6! This high-performance LAN cable prevents errors with its ample transmission characteristics.
● Fully compatible with 10 Gigabit Ethernet (10G BASE-T), so it can be used even in ultra-high-speed network environments.
● Achieves 200% tensile strength with mesh material. The flat type cable with a thickness of 2.3mm can be routed under carpets or in narrow gaps. In addition, the inside of the cable is molded, so the cable is less likely to unravel and the performance characteristics do not deteriorate.
● The combination of metal connector and metal housing case makes the connector resistant to lateral pressure impact.
● Comes with a latch protection cover to prevent the plug's latch from breaking.
■Category: CAT6A
■Standard Name: 10GBASE-T
■Supported Categories/Standards: Category 6A (10G BASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 10Gbps
■Frequency Response: 500MHz
■Cable Length (m): 15m
■Color: Blue
■Flat Cable Diameter: 2.3 x 7.8mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight connection
■Cable Structure: UT P
■Cross separator: None
■Minimum bending radius: During installation/12.0mm, after installation/6.0mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheathing material: Outer sheath/PVC + Mesh/PP
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch-break prevention connector: No
■Latch-break prevention cover: Yes
■Operating temperature range: -10 to 80 degrees
■Inspection: 100% continuity test
