SANWA SUPPLY

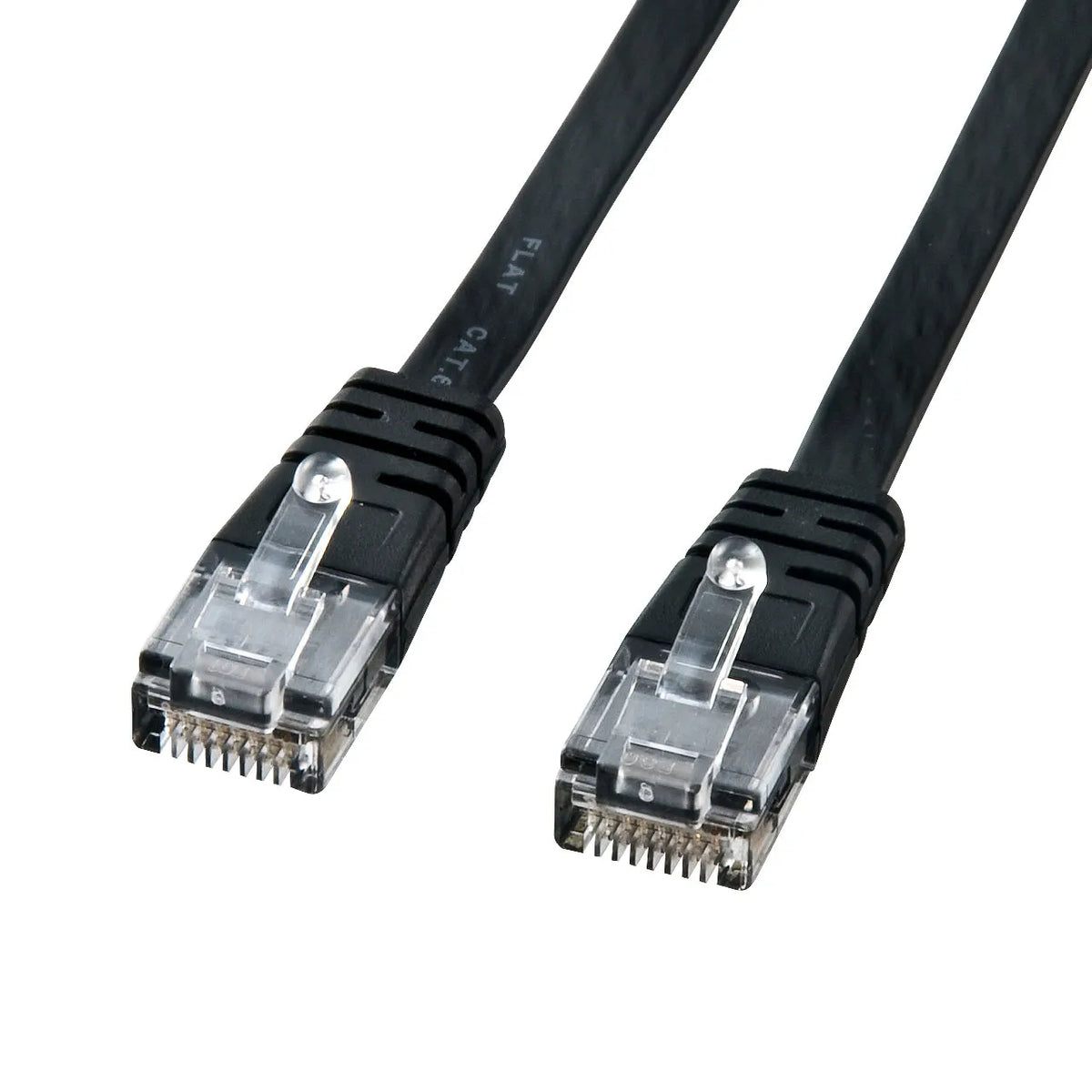

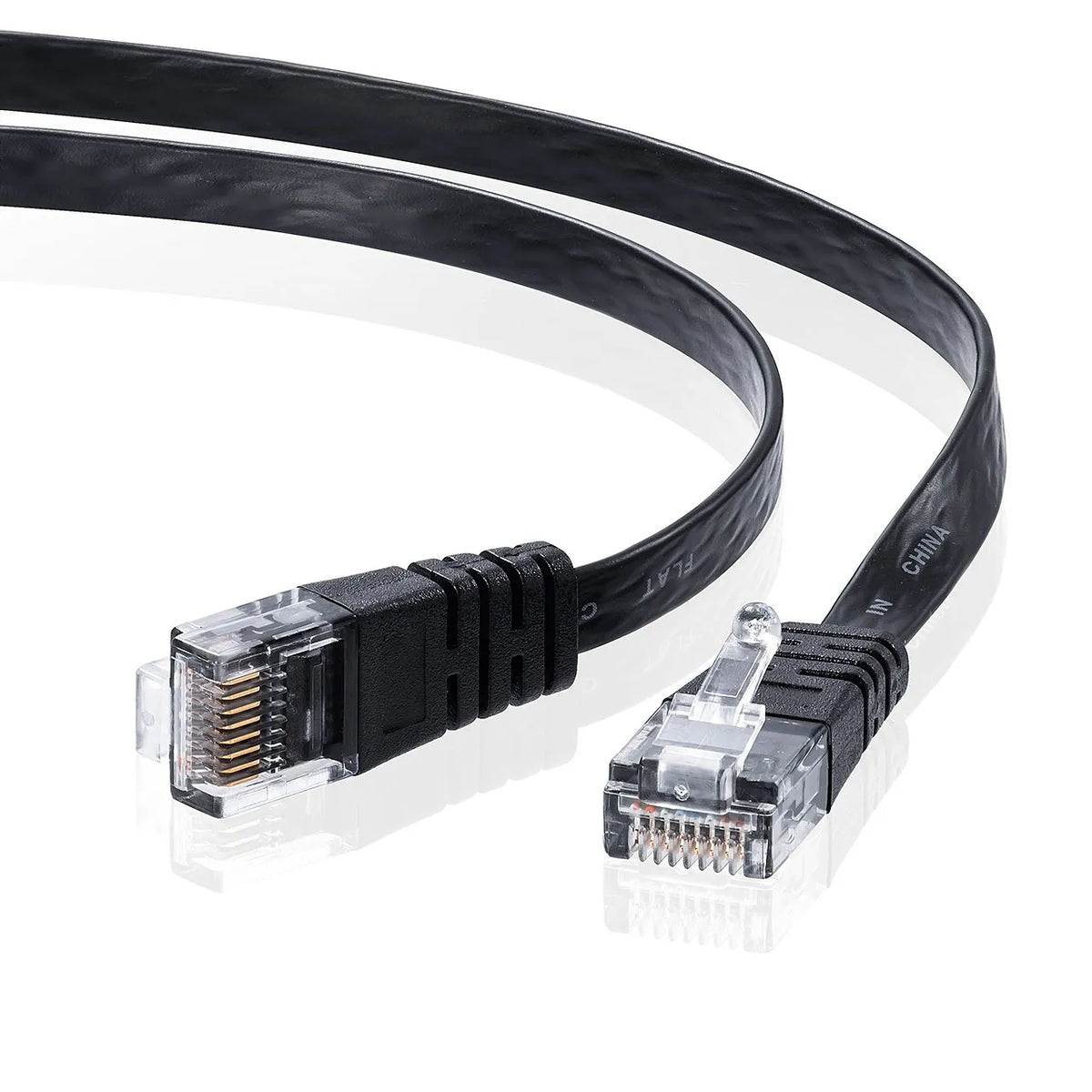

Category 6 Flat Cable 10m (Black) KB-FL6-10BKN
Category 6 Flat Cable 10m (Black) KB-FL6-10BKN
GTIN（JAN）：4969887567517
SKU：KB-FL6-10BKN
Regular price
¥2,178 JPY
Regular price
Sale price
¥2,178 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[1.4mm Thick Ultra-Flat Category 6 Flat LAN Cable with Full Gigabit Ethernet Compatibility]

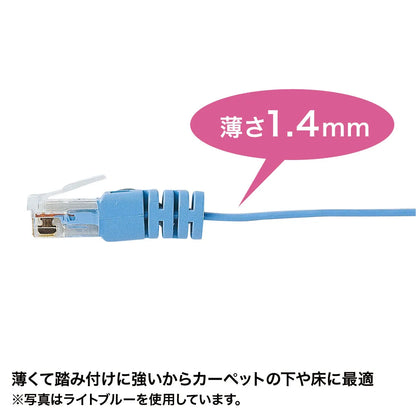

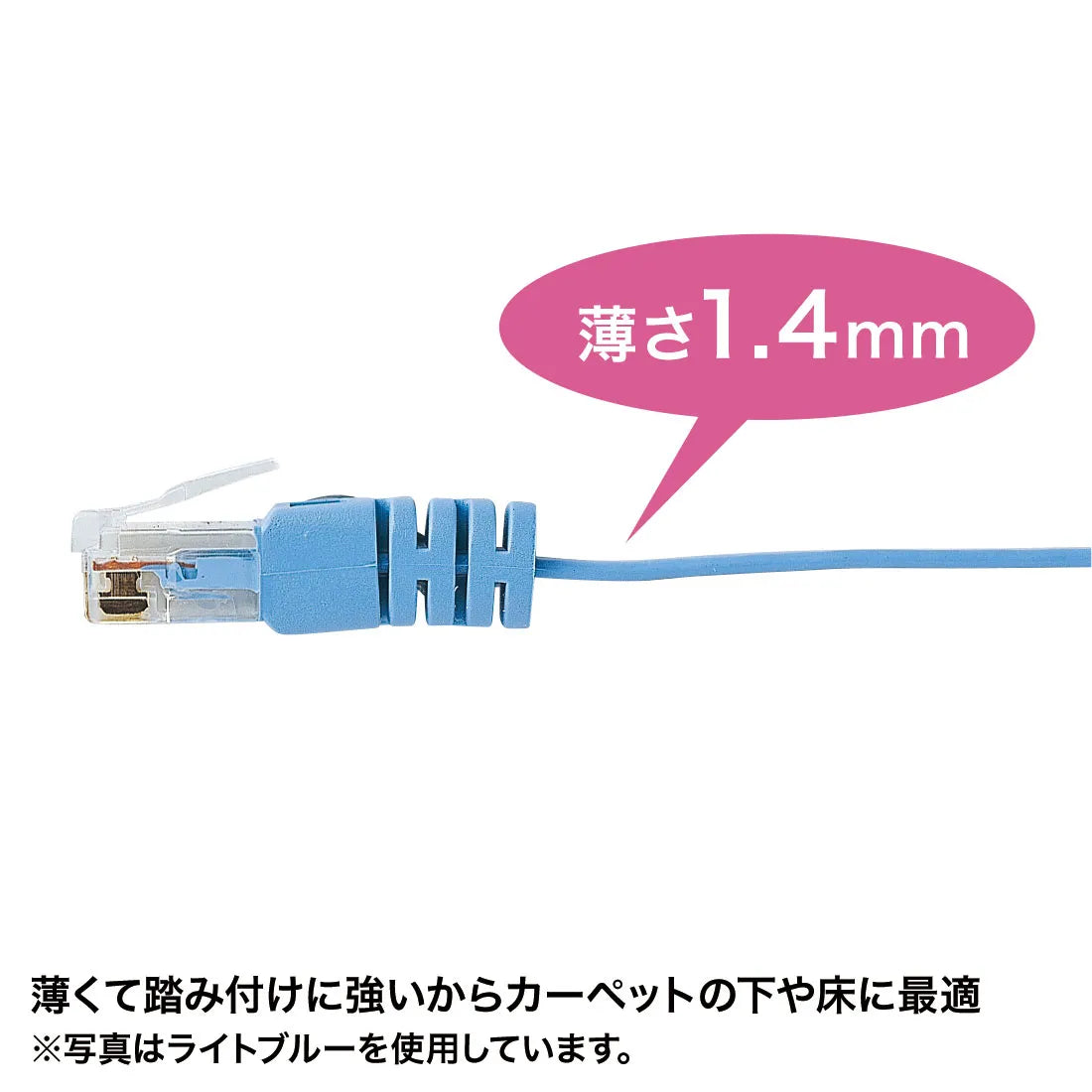

●Ultra-flat design at just 1.4mm thin, allowing for neat wiring under carpets or in narrow gaps.
●Achieves a transmission bandwidth of 250MHz, 2.5 times that of Category 5e.
●Achieves a transmission speed of 1000Mbps (1Gbps).

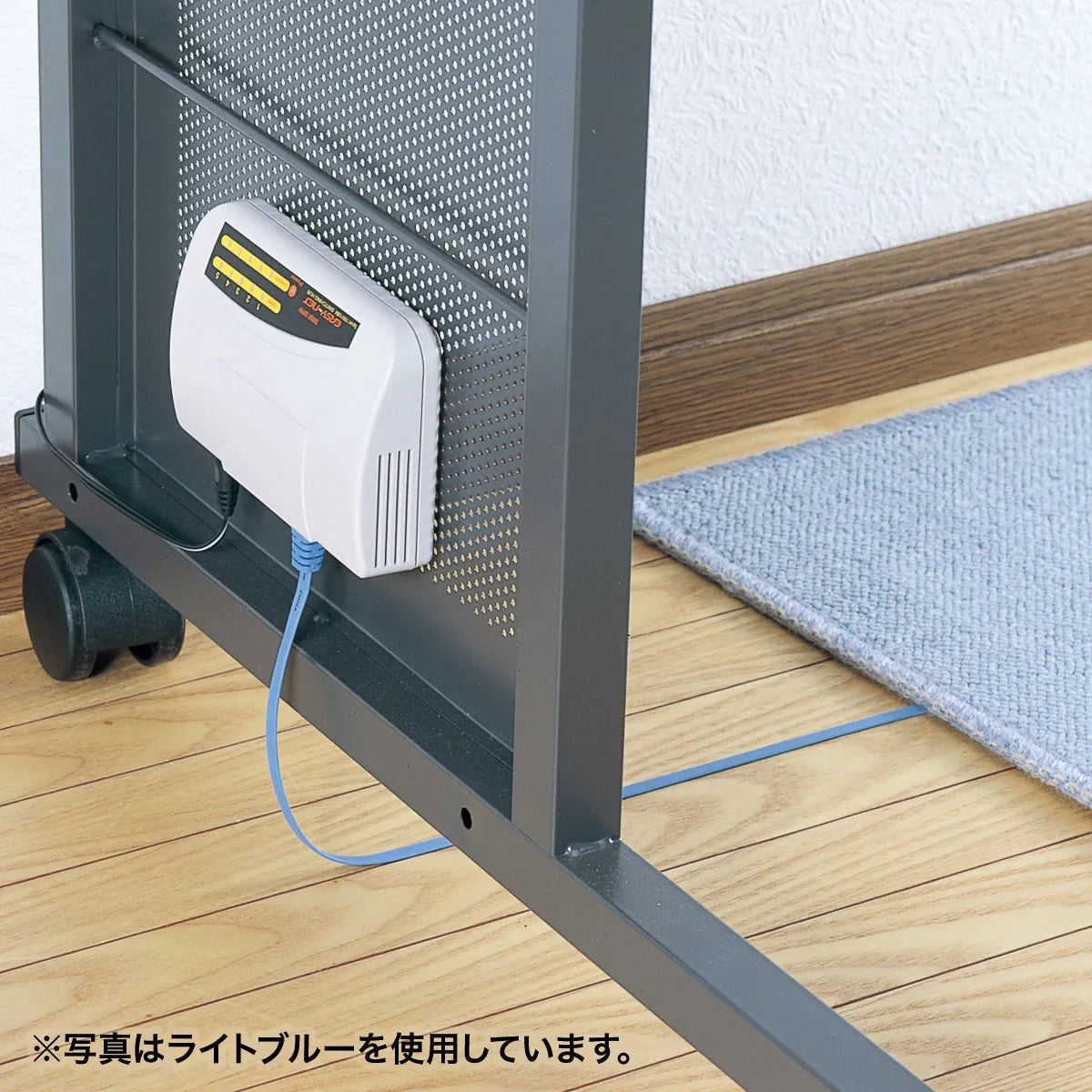

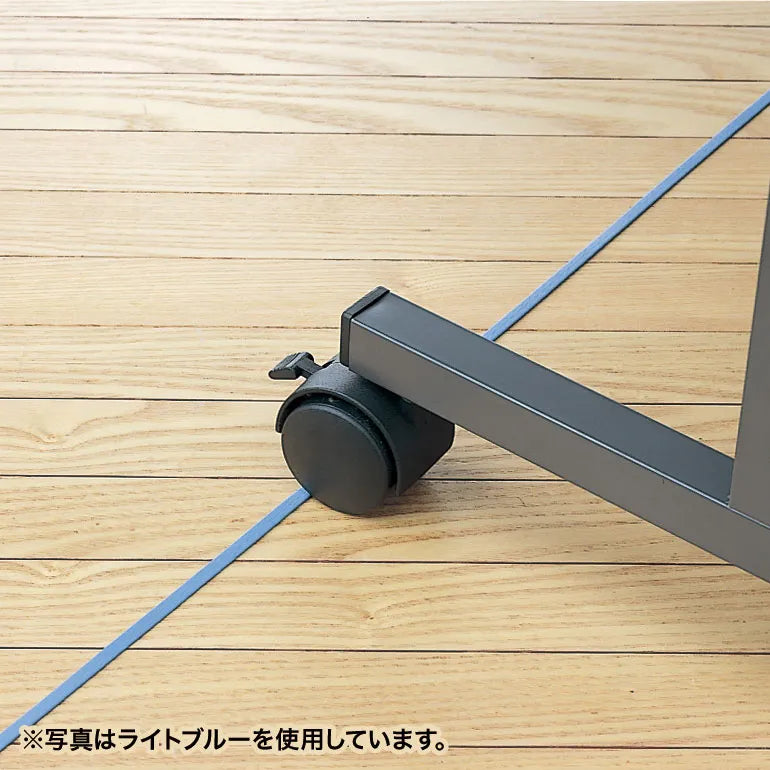

●Thin and resistant to being stepped on, making it ideal for under carpets and on floors.
＜What is Gigabit Ethernet?＞
It is an Ethernet standard that realizes high-speed networks of 1 gigabit (=1000 megabits) per second.
The biggest feature of Gigabit Ethernet is that it is compatible with existing networks, allowing for gradual upgrades to faster network systems. Gigabit Ethernet uses IEEE 802.3z fiber optic or coaxial cables, and IEEE 802.3ab 1000BASE-T uses all four pairs of enhanced Category 5/Category 6 UTP cables, offering the advantage of utilizing already installed UTP cables.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Supported Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length (m): 10m
■Color: Black
■Flat Cable Diameter: 1.4×6.0mm
■Number of Cable Cores: 8 cores (4P)

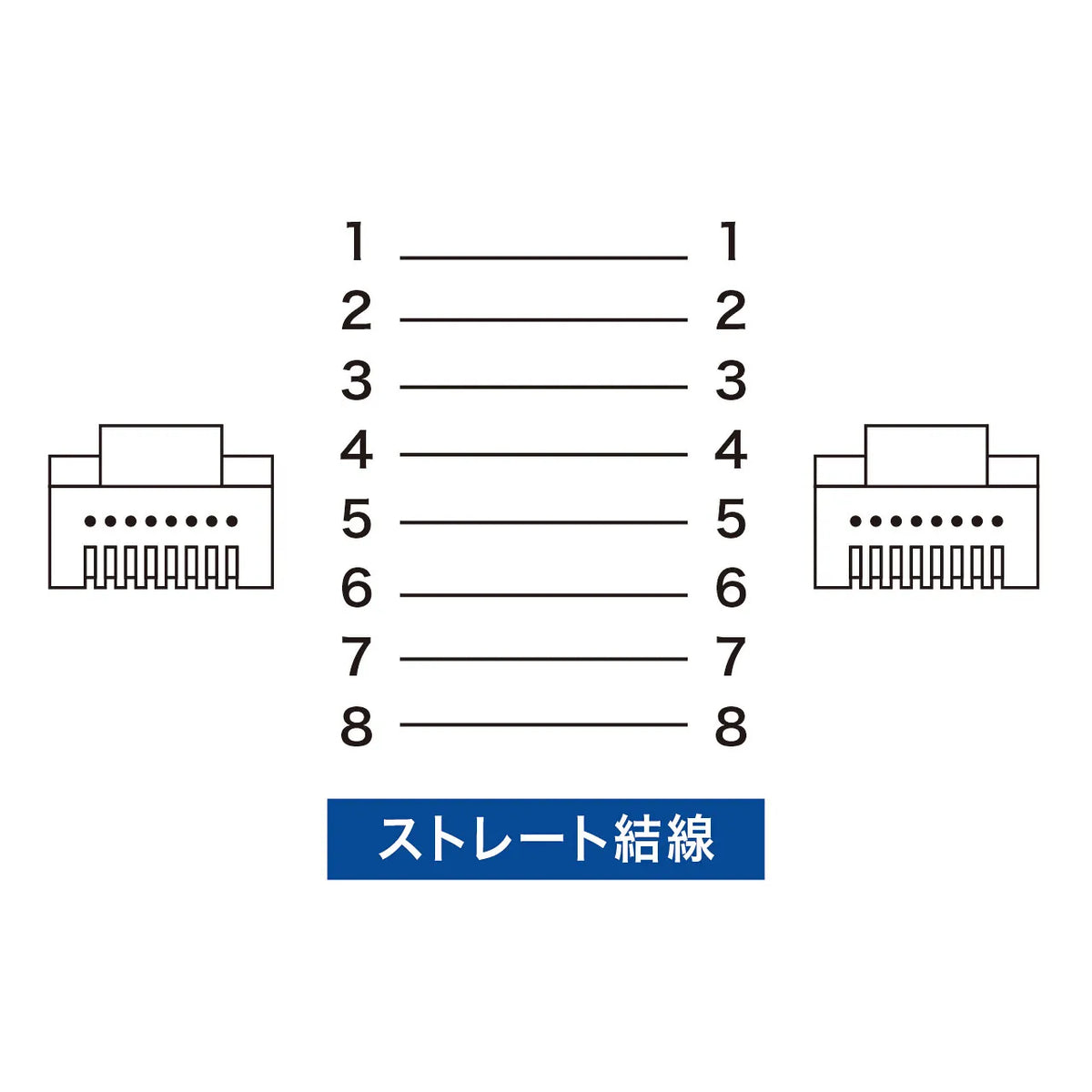

■Wiring Specification: Straight T-connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: Laying/14.0mm, After installation/11.2mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
●Ultra-flat design at just 1.4mm thin, allowing for neat wiring under carpets or in narrow gaps.
●Achieves a transmission bandwidth of 250MHz, 2.5 times that of Category 5e.
●Achieves a transmission speed of 1000Mbps (1Gbps).
●Thin and resistant to being stepped on, making it ideal for under carpets and on floors.
＜What is Gigabit Ethernet?＞
It is an Ethernet standard that realizes high-speed networks of 1 gigabit (=1000 megabits) per second.
The biggest feature of Gigabit Ethernet is that it is compatible with existing networks, allowing for gradual upgrades to faster network systems. Gigabit Ethernet uses IEEE 802.3z fiber optic or coaxial cables, and IEEE 802.3ab 1000BASE-T uses all four pairs of enhanced Category 5/Category 6 UTP cables, offering the advantage of utilizing already installed UTP cables.
■Category: CAT6
■Standard Name: 1000BASE-TX
■Supported Categories/Standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication Speed: 1Gbps
■Frequency Response: 250MHz
■Cable Length (m): 10m
■Color: Black
■Flat Cable Diameter: 1.4×6.0mm
■Number of Cable Cores: 8 cores (4P)
■Wiring Specification: Straight T-connection
■Cable structure: UTP
■Cross separator: None
■Minimum bending radius: Laying/14.0mm, After installation/11.2mm
■Cable conductor: 32AWG
■Cable conductor structure: Stranded wire
■PoE: Not supported
■Sheath material: PVC
■Color wiring: TIA/EIA-568B
■Connector shape: RJ-45 connector
■Slim connector: Yes
■Latch prevention connector: No
■Latch prevention cover: Yes
■Operating temperature range: -10 to 80℃
■Inspection: 100% continuity test
