SANWA SUPPLY
Digital camera cable (2m) (FUJIFILM) KB-DG02-2K
Digital camera cable (2m) (FUJIFILM) KB-DG02-2K
GTIN（JAN）：4969887517666
SKU：KB-DG02-2K
Regular price
¥1,597 JPY
Regular price
Sale price
¥1,597 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

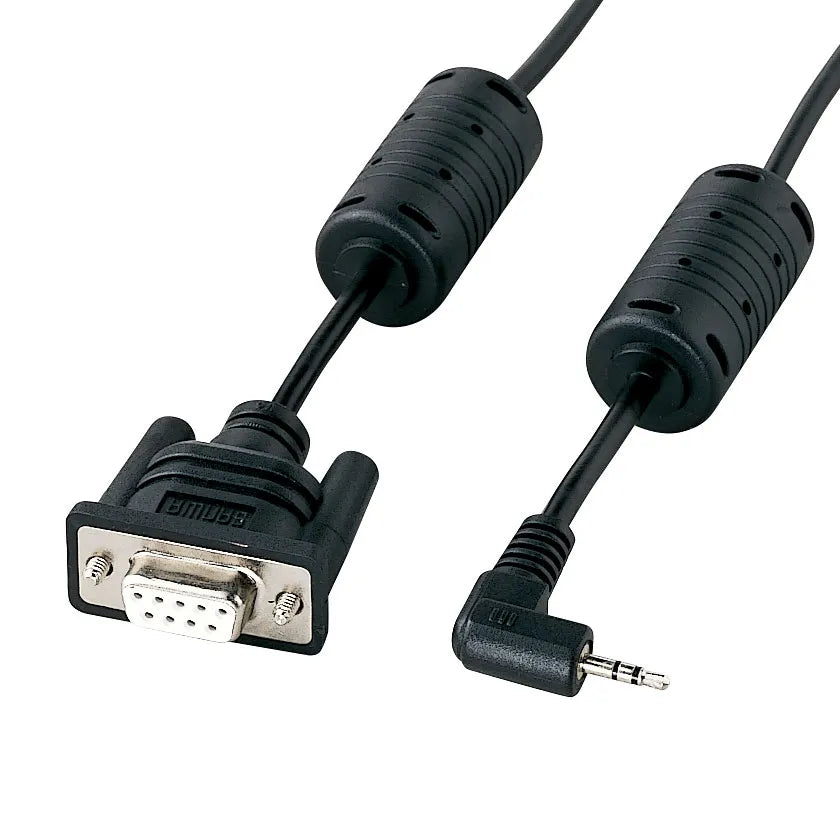

[Cable for connecting FUJIFILM digital cameras and DOS/V PCs.]
●This cable connects FUJIFILM digital cameras and DOS/V PCs.
●Complies with FUJIFILM's genuine cable "IF-DS7/W・CL/W・CL/W3" for DOS/V. ●Double-shielded cable
A sealed aluminum shield is applied inside the high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Molded connector
The inside is solidified with resin molding and further shielded on the entire surface, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance.
●Gold-plated pins (female connector only)
Gold-plated pins (contacts) are used, which are resistant to rust and have less concern about signal degradation due to aging.
●Ferrite core
A ferrite core is attached, which has the function of a noise filter that effectively absorbs noise transmitted from the cable.
■Cable length: 2m

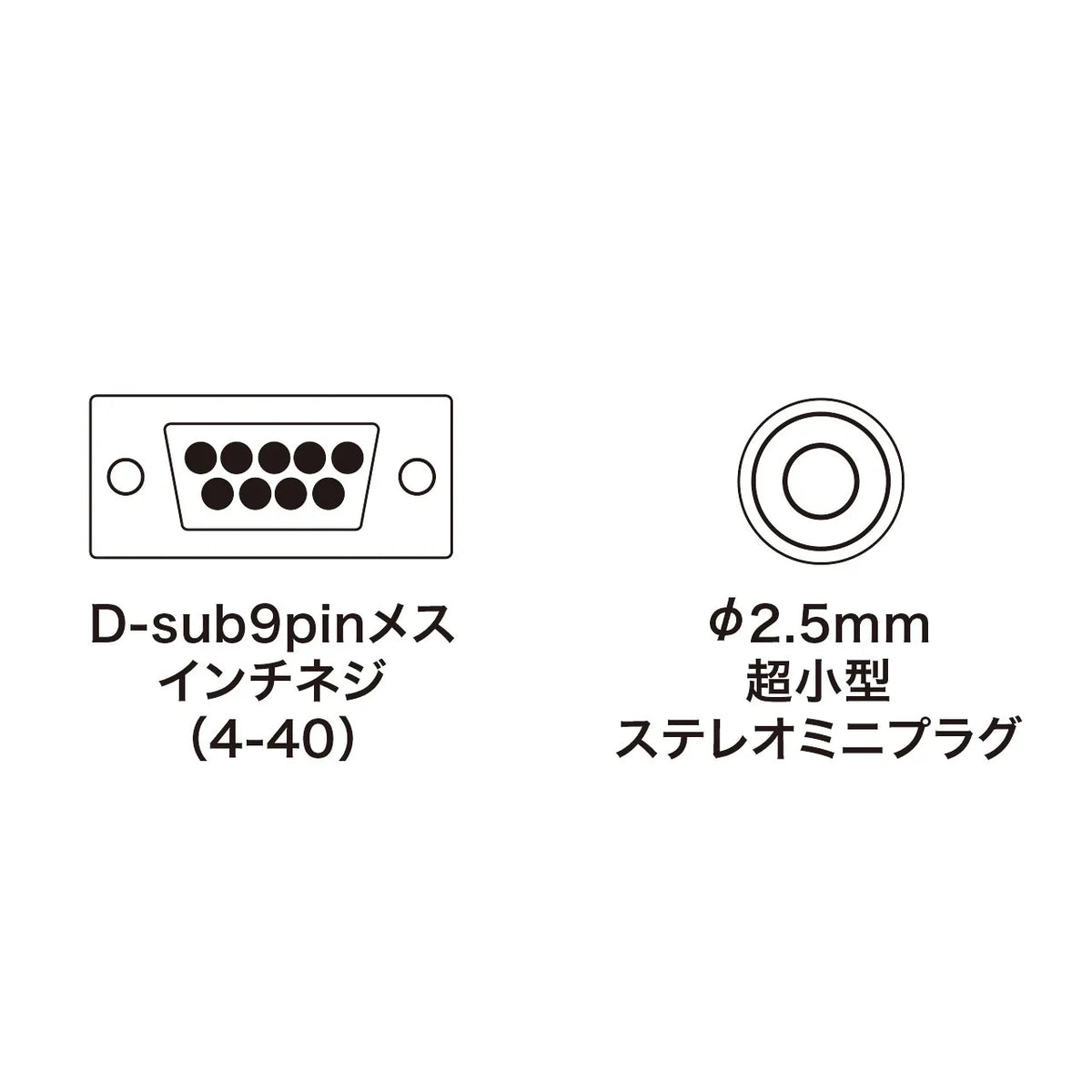

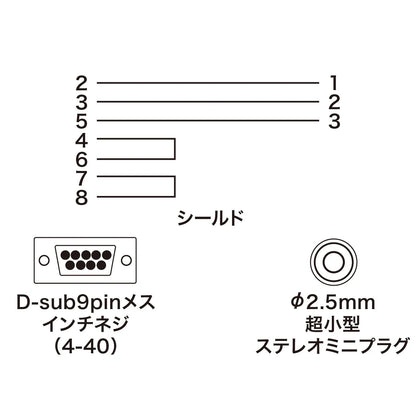

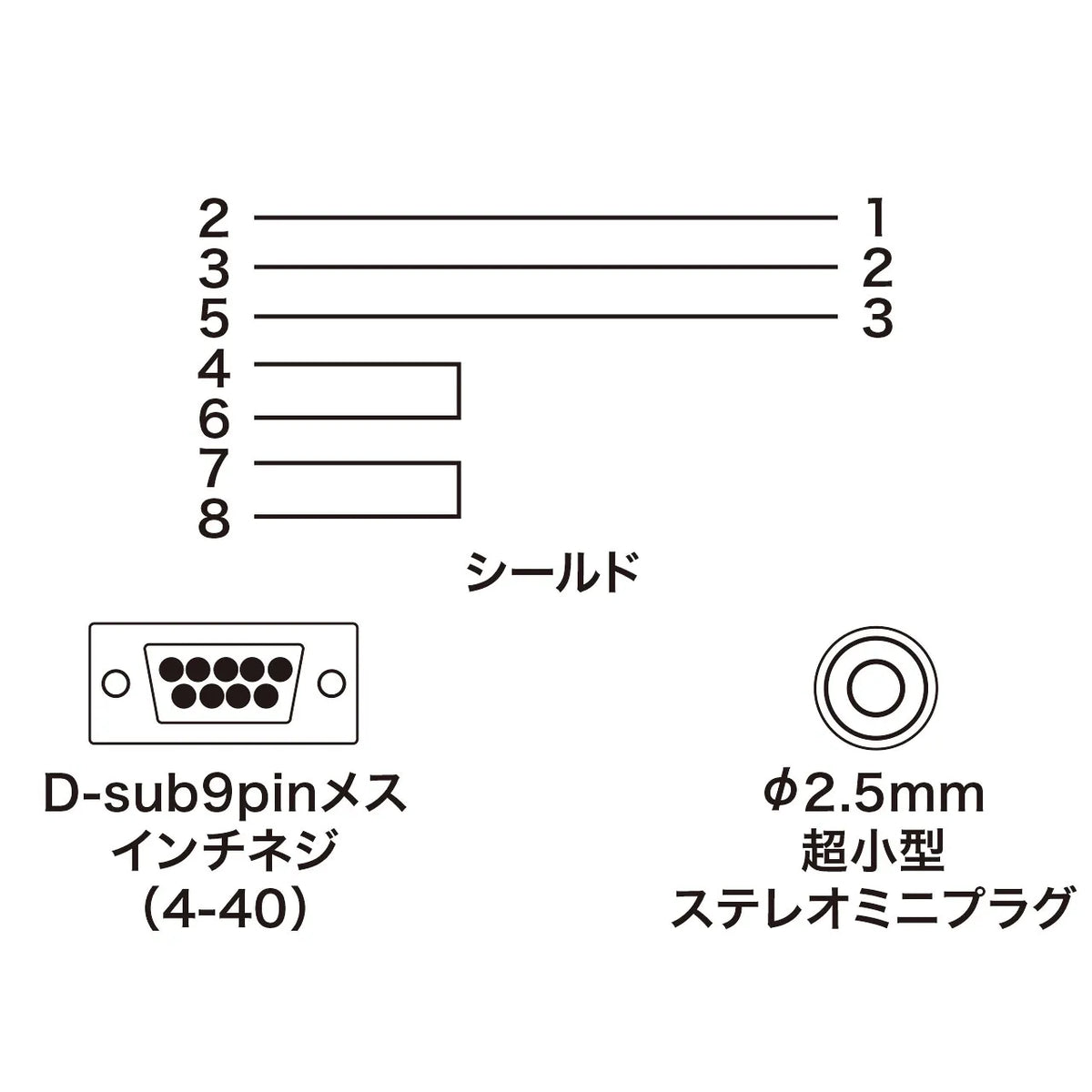

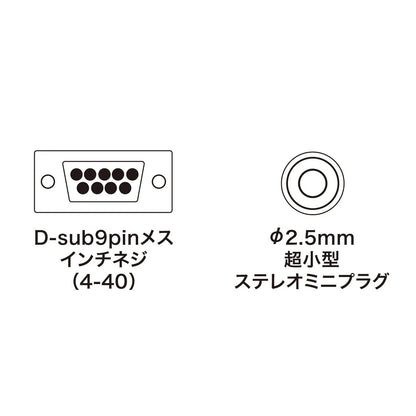

■Connector shape:
D-sub 9-pin female, inch screw (4-40) -
2.5mm diameter ultra-small stereo mini plug
■Cable diameter: 4mm
■Cable standard: UL2725
■Female connector only: gold-plated pins
■Package size: W85 x H210 x D32mm
■Custom orders available
Custom production, such as changing the length, is possible from just one unit.
*For custom orders of one unit or more, the connector material will be the one specified by Sanwa Supply. Custom production of molded or PC98 color connector cables is not possible in small quantities. Please understand. *Click here for custom cable service →
●This cable connects FUJIFILM digital cameras and DOS/V PCs.
●Complies with FUJIFILM's genuine cable "IF-DS7/W・CL/W・CL/W3" for DOS/V. ●Double-shielded cable
A sealed aluminum shield is applied inside the high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●Molded connector
The inside is solidified with resin molding and further shielded on the entire surface, preventing external interference and providing excellent noise protection. It also has excellent vibration and shock resistance.
●Gold-plated pins (female connector only)
Gold-plated pins (contacts) are used, which are resistant to rust and have less concern about signal degradation due to aging.
●Ferrite core
A ferrite core is attached, which has the function of a noise filter that effectively absorbs noise transmitted from the cable.
■Cable length: 2m
■Connector shape:
D-sub 9-pin female, inch screw (4-40) -
2.5mm diameter ultra-small stereo mini plug
■Cable diameter: 4mm
■Cable standard: UL2725
■Female connector only: gold-plated pins
■Package size: W85 x H210 x D32mm
■Custom orders available
Custom production, such as changing the length, is possible from just one unit.
*For custom orders of one unit or more, the connector material will be the one specified by Sanwa Supply. Custom production of molded or PC98 color connector cables is not possible in small quantities. Please understand. *Click here for custom cable service →
