SANWA SUPPLY

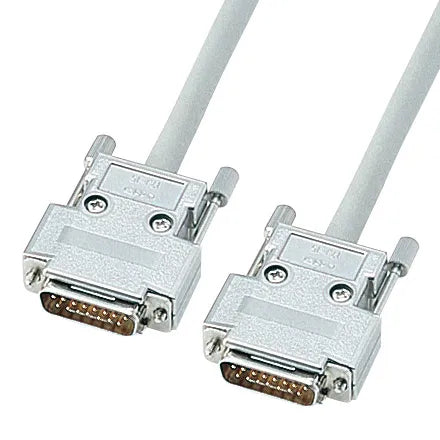

Analog RGB cable KB-D155N
Analog RGB cable KB-D155N
GTIN（JAN）：4969887843369
SKU：KB-D155N
Regular price
¥13,780 JPY
Regular price
Sale price
¥13,780 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Display Cable for NEC PC9821/9801 Series]
●This cable connects NEC PC-9821/9801 series, Epson PC-586/486 series, etc. to a D-sub 15-pin analog RGB display.
●It is a straight-through, fully connected type that connects all 15 pins of the D-sub connector.
●It is a double-shielded cable with a sealed aluminum shield inside a high-density braided copper shield, protecting important data from most noise from low to high frequencies.
●It uses noise-resistant twisted pair wires with two core wires twisted together.
●It is metal-plated, making it highly resistant to external noise and fully compliant with FCC standards for electromagnetic interference (EMI). The metal connector cover provides a high level of shielding.
●By using machined pins compliant with US MIL standards, contact noise is shut out. Of course, it is also gold-plated to resist rust and signal degradation due to aging.
●Simplified, simple packaging reduces waste after use and makes unpacking easy.
■Cable length: 5m

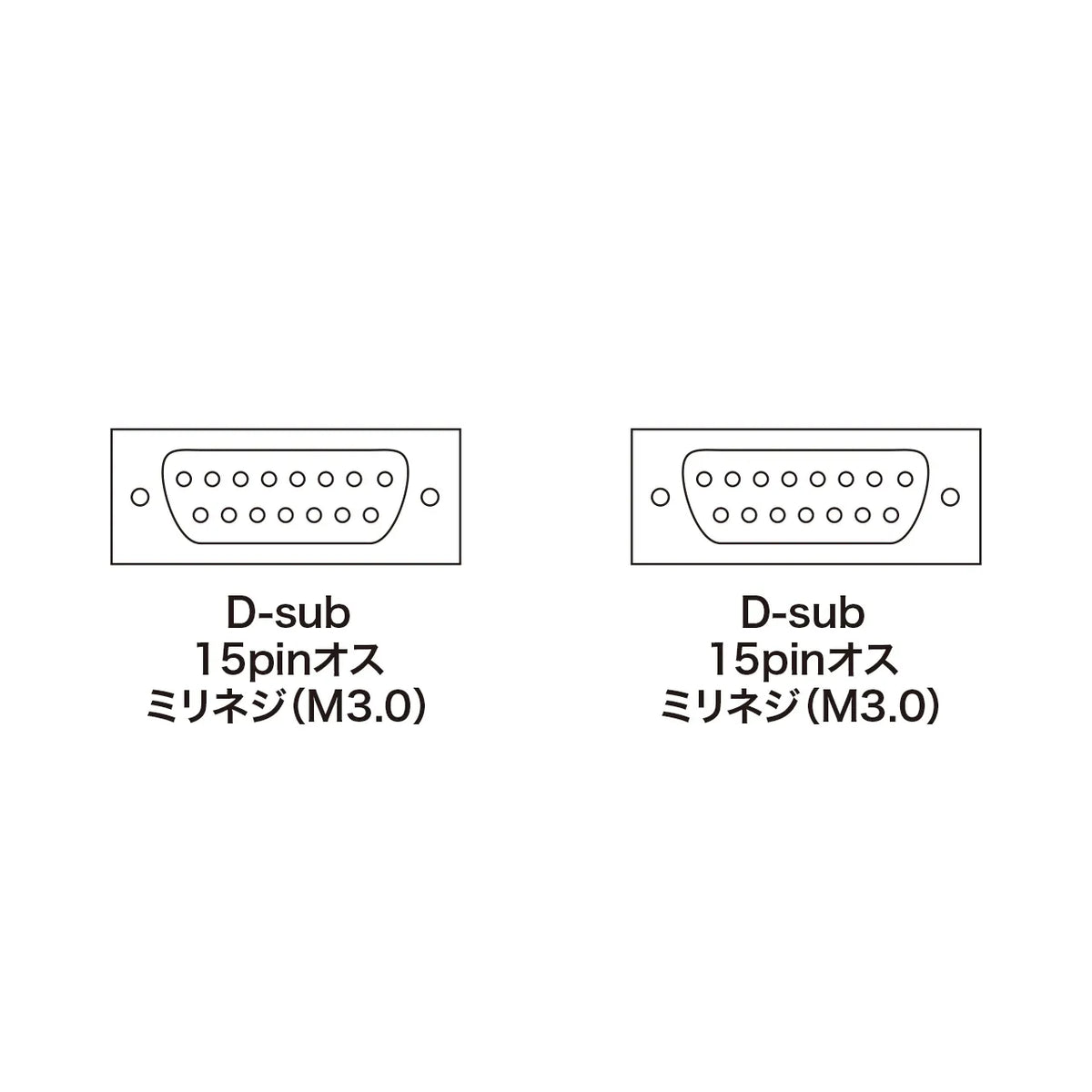

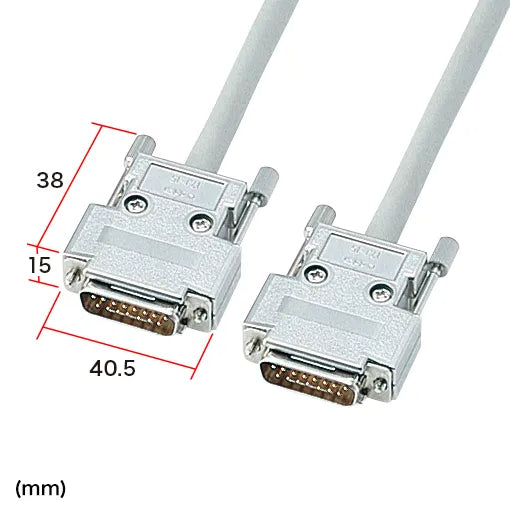

■Connector shape:
D-sub 15-pin male metric screw (M3.0) -
D-sub 15-pin male metric screw (M3.0) (metal-plated connector)
■Cable outer diameter: 8.2mm
■Cable standard: UL2464

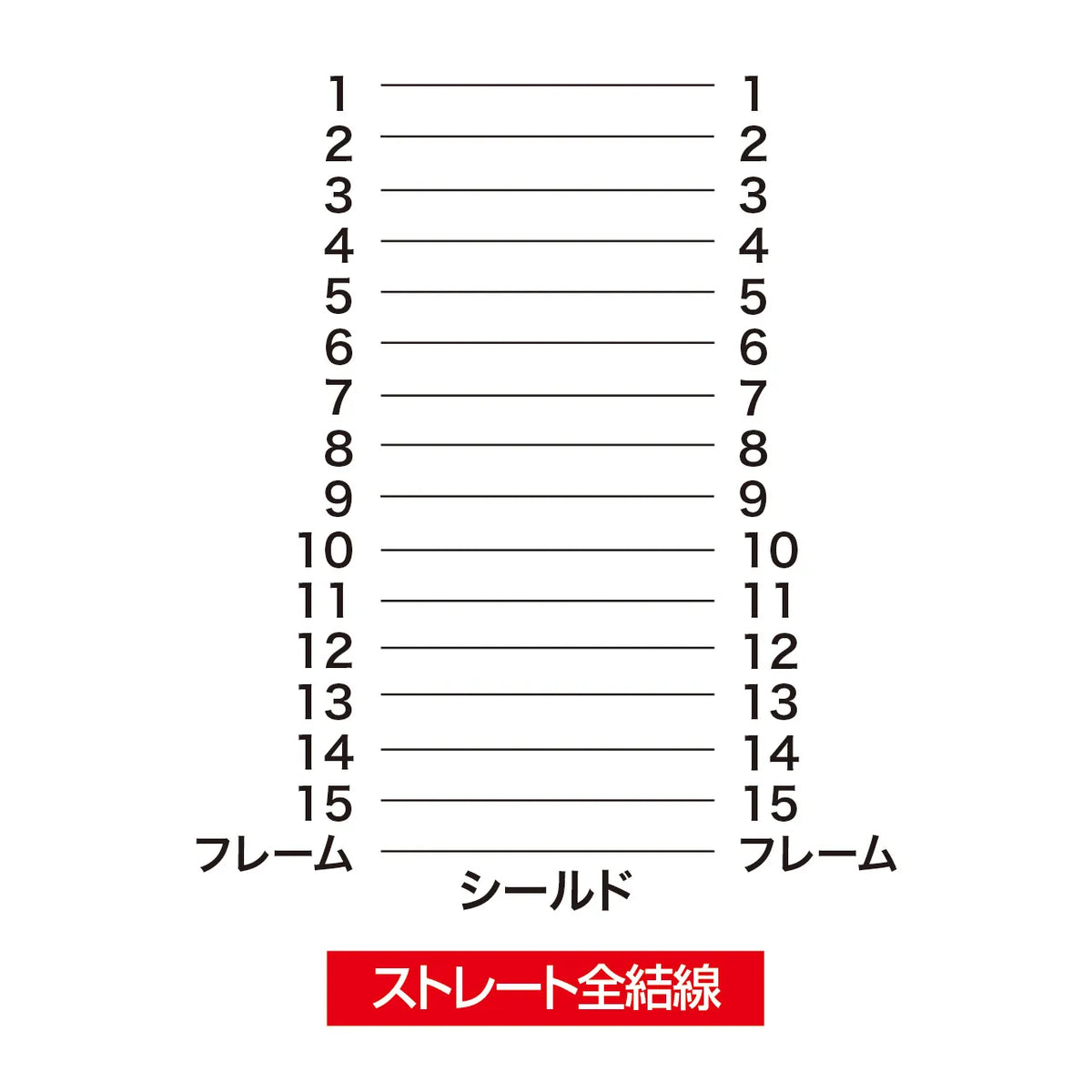

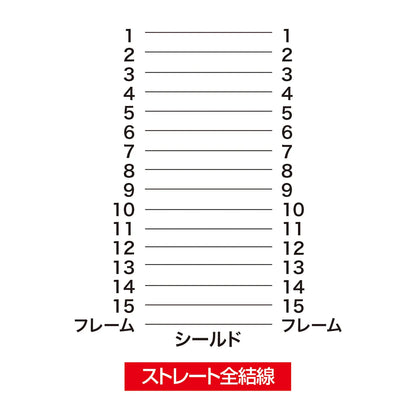

■Wiring: Straight through wiring
≪Custom orders possible≫
Custom production such as changing the length is possible from just one unit.
*For custom orders of one unit or more, the connector material will be the one specified by Sanwa Supply. Custom production of small quantities of molded or PC98 color connector cables is not possible. Please understand.
