SANWA SUPPLY

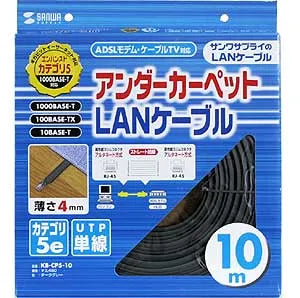

Under-carpet LAN cable (gray, 10m) KB-CP5-10
Under-carpet LAN cable (gray, 10m) KB-CP5-10
GTIN（JAN）：4969887652992
SKU：KB-CP5-10
Regular price
¥3,848 JPY
Regular price
Sale price
¥3,848 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Thin and durable with protective coating, neatly stored under carpets!]
●Thin and strong, making it ideal for installation under carpets.
●Equipped with protection on the side of the cable to protect the cable from being stepped on by casters, etc.
●The protection can be detached and used as a regular flat cable.
■Category: CAT6
■Standard name: 1000BASE-TX
■Compatible categories and standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency response: 250MHz
■Cable length: 10m
■Color: Gray
■Cable diameter: 3.8×19.3mm
■Number of cable cores: 8 cores (4P)
■Wiring specifications: Straight connection ■ Cross separator: None
■ Minimum bending radius:
During laying: 38.5 mm
After installation: 30.8 mm
■ Cable conductor: 24AWG
■ Cable conductor structure: Solid wire
■ PoE: Supported
■ Sheath material: PVC
■ Color wiring: TIA/EIA-568A
■ Connector shape: J-45 connector
■ Slim connector: None
■ Anti-break connector: None
■ Anti-break cover: None
■ Operating temperature range: 10 to 80℃
■ Inspection: 100% continuity test
●Thin and strong, making it ideal for installation under carpets.
●Equipped with protection on the side of the cable to protect the cable from being stepped on by casters, etc.
●The protection can be detached and used as a regular flat cable.
■Category: CAT6
■Standard name: 1000BASE-TX
■Compatible categories and standards: Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
■Communication speed: 1Gbps
■Frequency response: 250MHz
■Cable length: 10m
■Color: Gray
■Cable diameter: 3.8×19.3mm
■Number of cable cores: 8 cores (4P)
■Wiring specifications: Straight connection ■ Cross separator: None
■ Minimum bending radius:
During laying: 38.5 mm
After installation: 30.8 mm
■ Cable conductor: 24AWG
■ Cable conductor structure: Solid wire
■ PoE: Supported
■ Sheath material: PVC
■ Color wiring: TIA/EIA-568A
■ Connector shape: J-45 connector
■ Slim connector: None
■ Anti-break connector: None
■ Anti-break cover: None
■ Operating temperature range: 10 to 80℃
■ Inspection: 100% continuity test
