SANWA SUPPLY
Camera Link Cable 10m KB-CAMSS-10N
Camera Link Cable 10m KB-CAMSS-10N
GTIN（JAN）：4969887769515
SKU：KB-CAMSS-10N
Regular price
¥49,804 JPY
Regular price
Sale price
¥49,804 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Camera Link interface standard compliant camera link cable.]

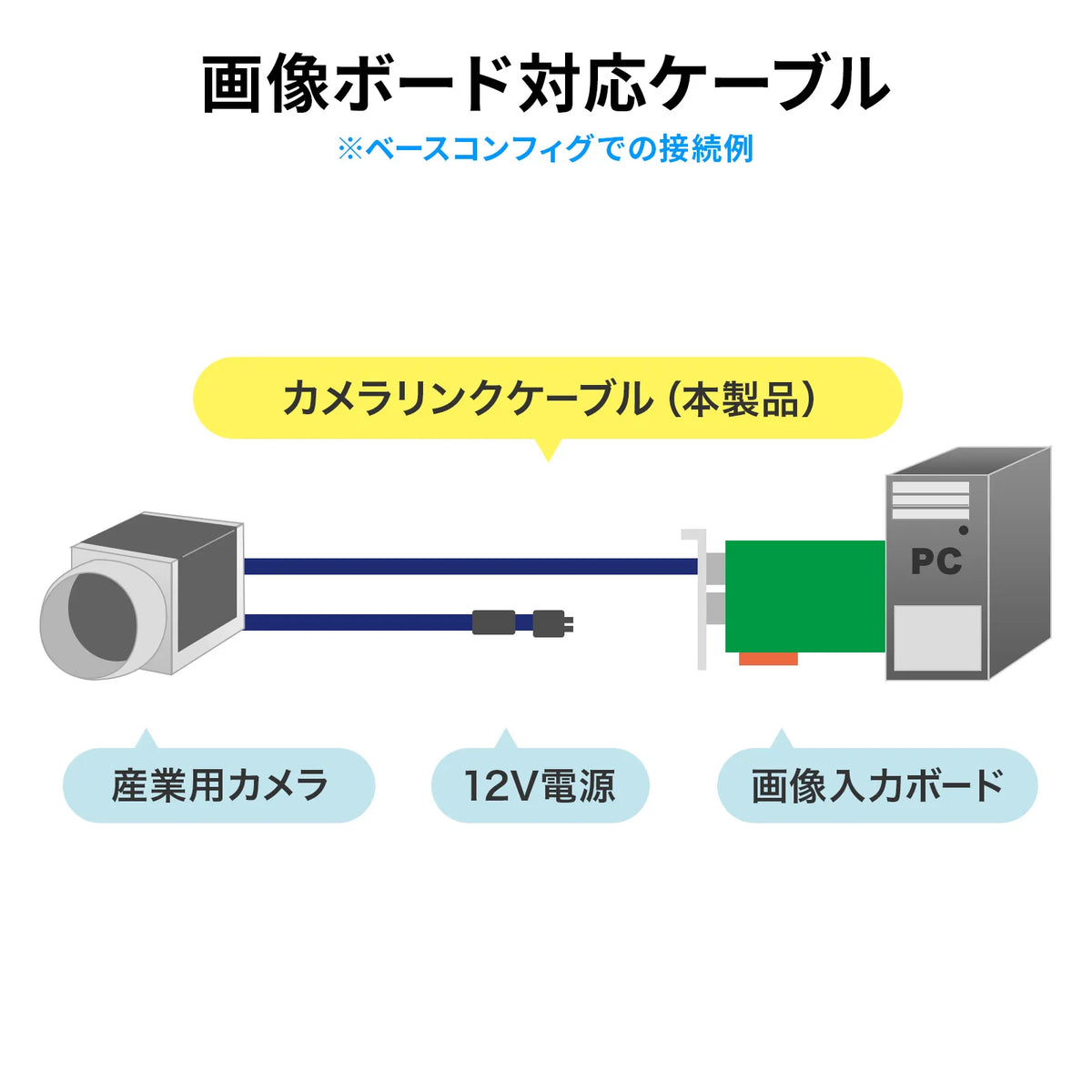

●Compatible with the "Camera Link" interface standard between CCD cameras and frame grabbers.
●Uses highly reliable Sumitomo 3M connectors and secure fastening with a screw lock mechanism.

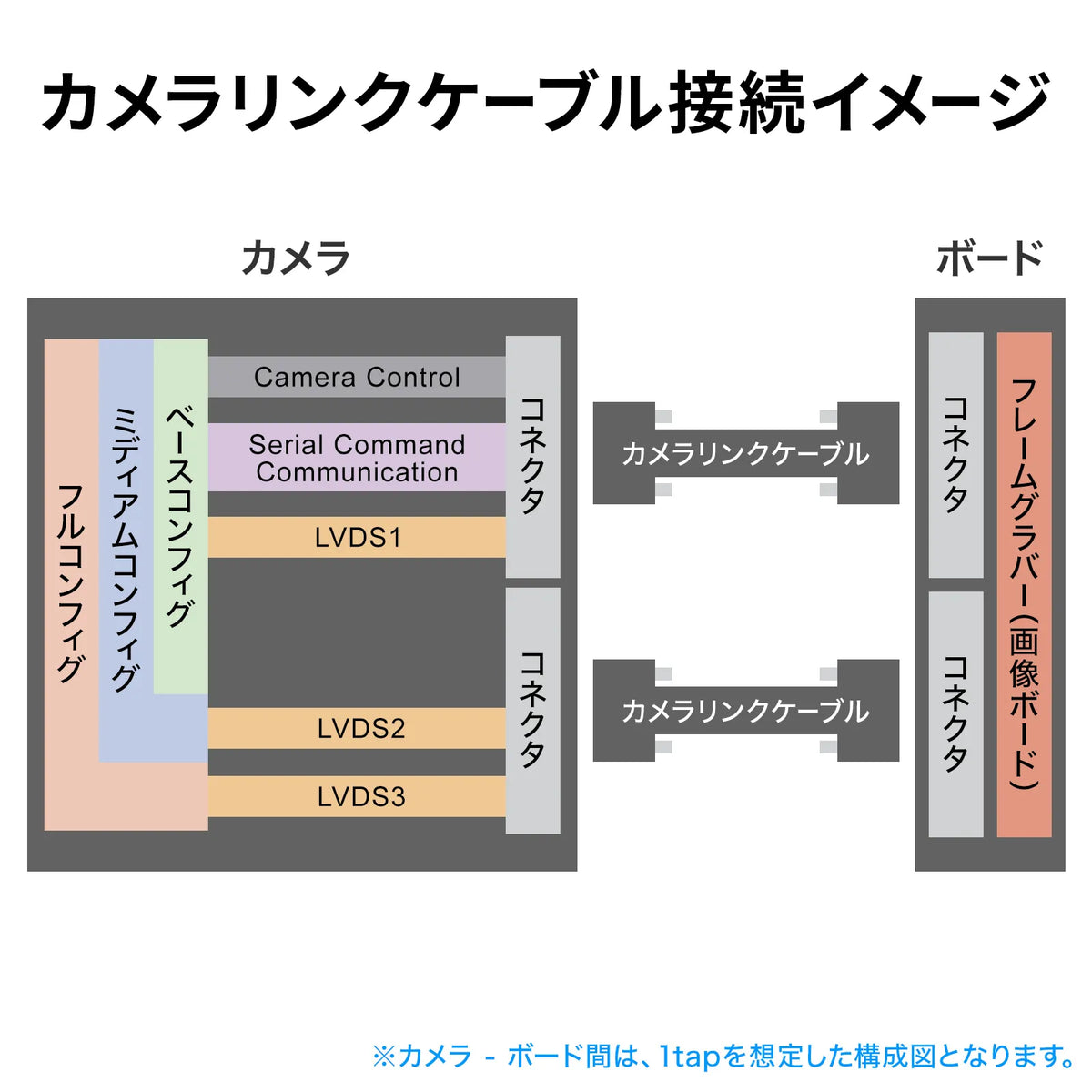

●Supports base configuration, medium configuration, and full configuration.
■Cable length: 10m
■Color: Beige
Beige

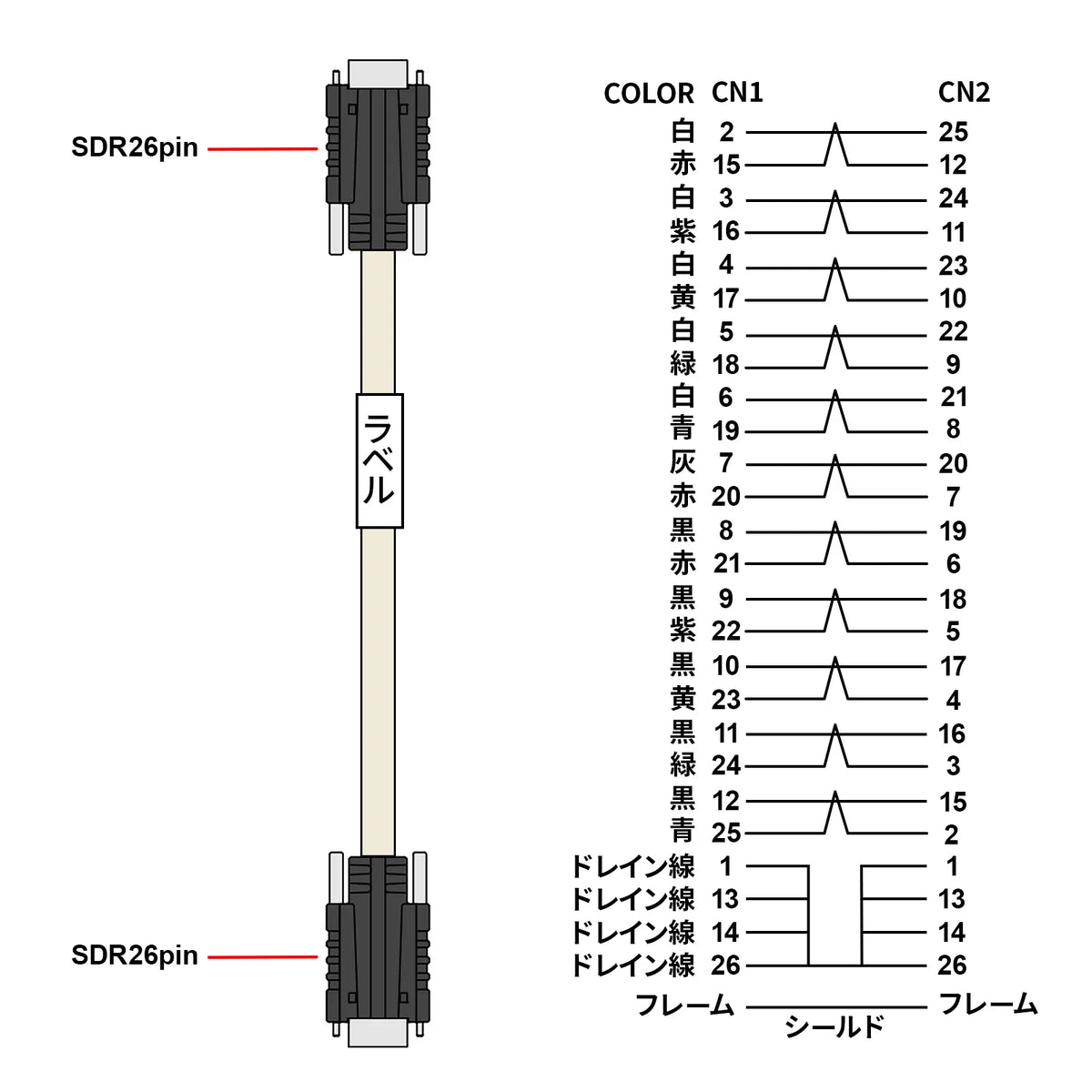

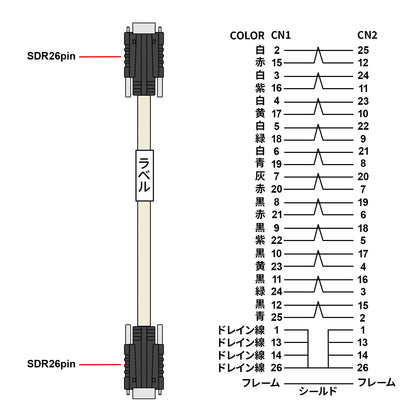

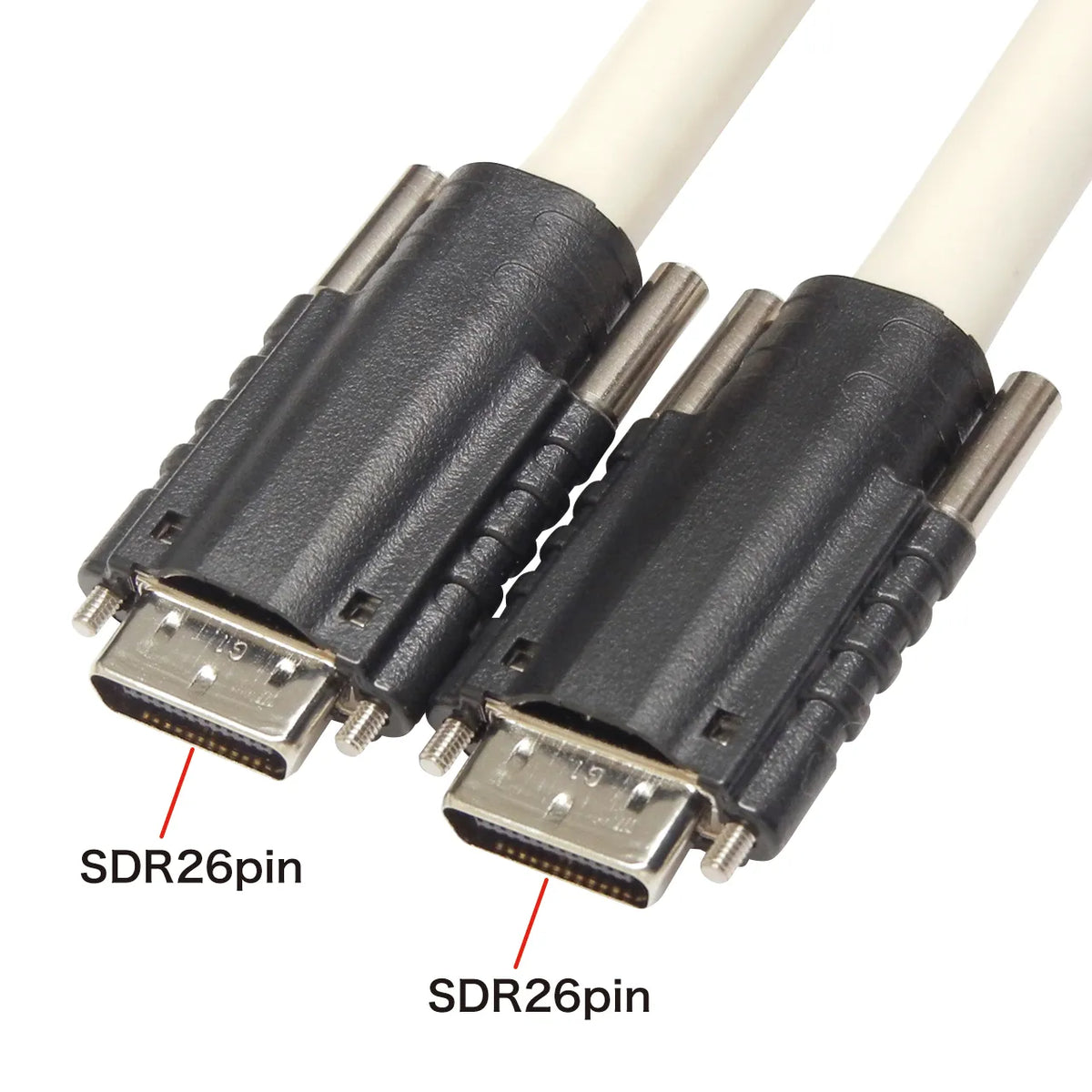

■Connector shape: SDR26pin male - SDR26pin male
Fixing screw: SDR…M2
■Cable conductor: 28AWG
■Cable diameter: 9mm
■Inspection: 100% continuity test
■Compatible environment (equipment): Equipment compatible with Camera Link interface standard
■Characteristic impedance: 100Ω
100±10Ω
■Shape specification type: Other
■Number of cable cores: 22 cores (11P)
■Cable standard: UL20276
■Cable rating: 30V 80 degrees
■Jacket (color): Heat-resistant PVC (beige)
■Characteristic impedance: 100±10Ω (wire core 1 to 22)
■Pair propagation delay time difference: 50ps/m MAX
■Intra-inter
●Compatible with the "Camera Link" interface standard between CCD cameras and frame grabbers.
●Uses highly reliable Sumitomo 3M connectors and secure fastening with a screw lock mechanism.
●Supports base configuration, medium configuration, and full configuration.
■Cable length: 10m
■Color: Beige
Beige
■Connector shape: SDR26pin male - SDR26pin male
Fixing screw: SDR…M2
■Cable conductor: 28AWG
■Cable diameter: 9mm
■Inspection: 100% continuity test
■Compatible environment (equipment): Equipment compatible with Camera Link interface standard
■Characteristic impedance: 100Ω
100±10Ω
■Shape specification type: Other
■Number of cable cores: 22 cores (11P)
■Cable standard: UL20276
■Cable rating: 30V 80 degrees
■Jacket (color): Heat-resistant PVC (beige)
■Characteristic impedance: 100±10Ω (wire core 1 to 22)
■Pair propagation delay time difference: 50ps/m MAX
■Intra-inter
