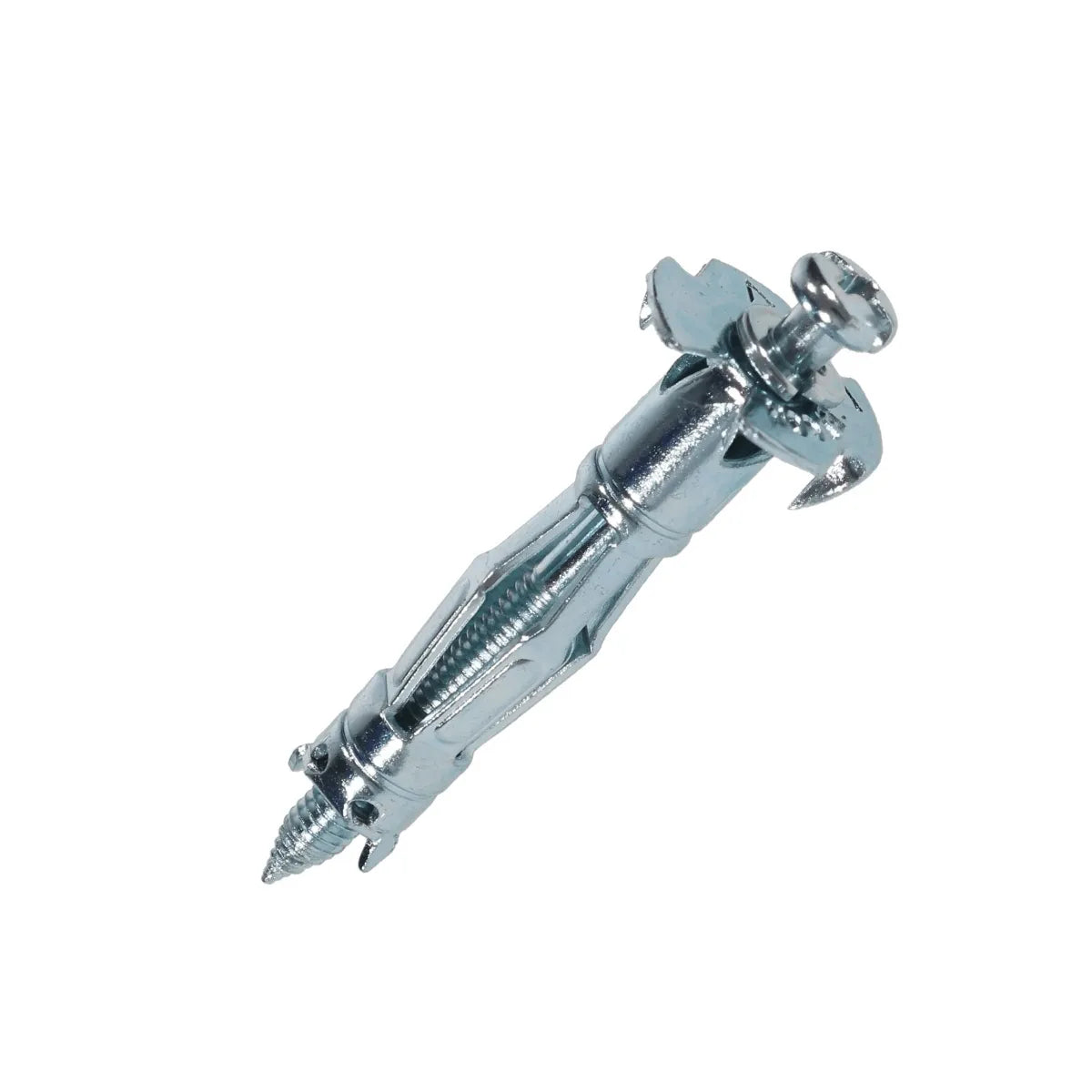

Board anchor with drill bit (partially threaded type) JP-A-409GDM

[Product Features]

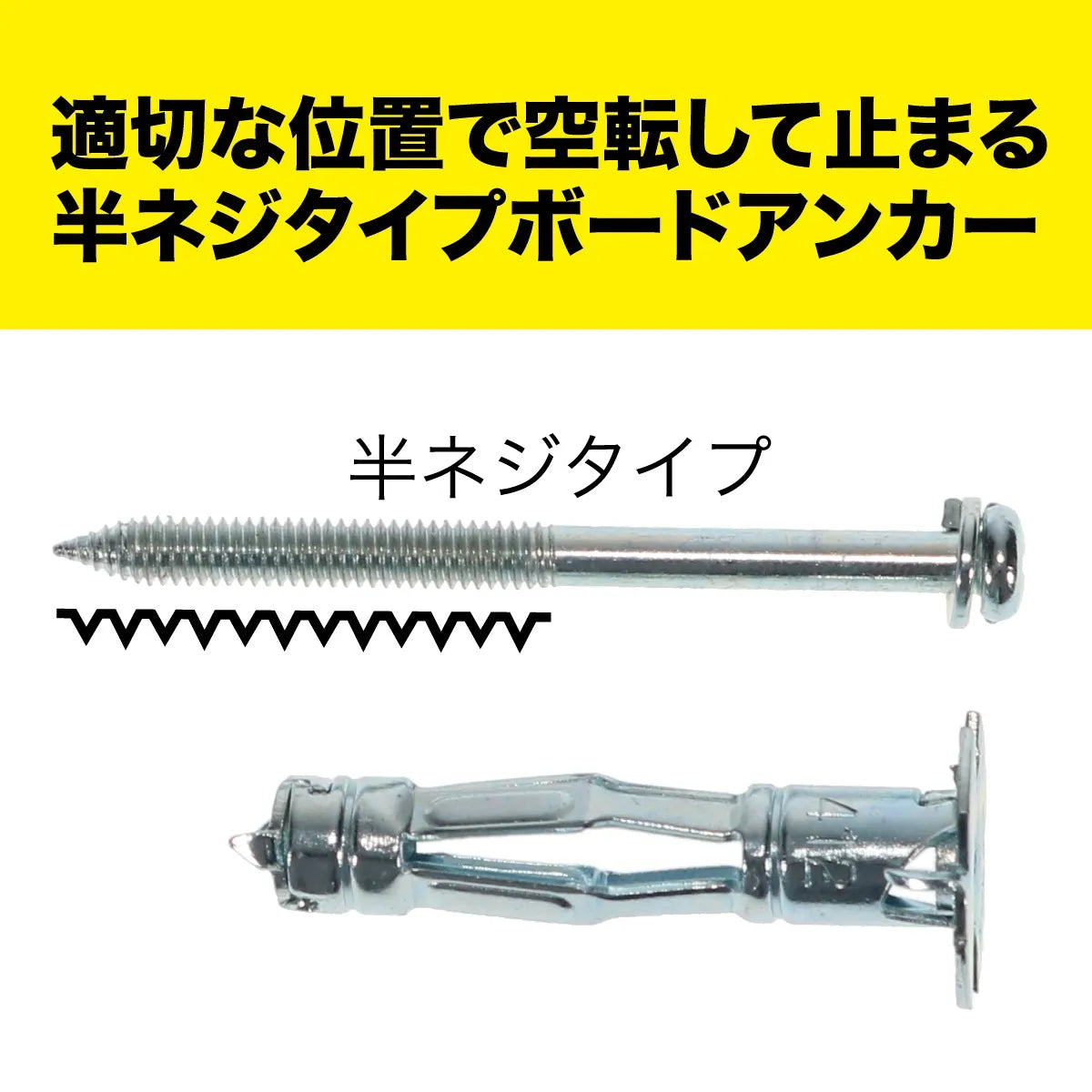

Half-threaded board anchor that spins freely and stops at the appropriate position
●Prevents over-screwing or under-screwing, reducing installation errors
●For attaching fixtures to gypsum board (gypsum board only)
●No pilot hole required for installation (for regular type gypsum board)

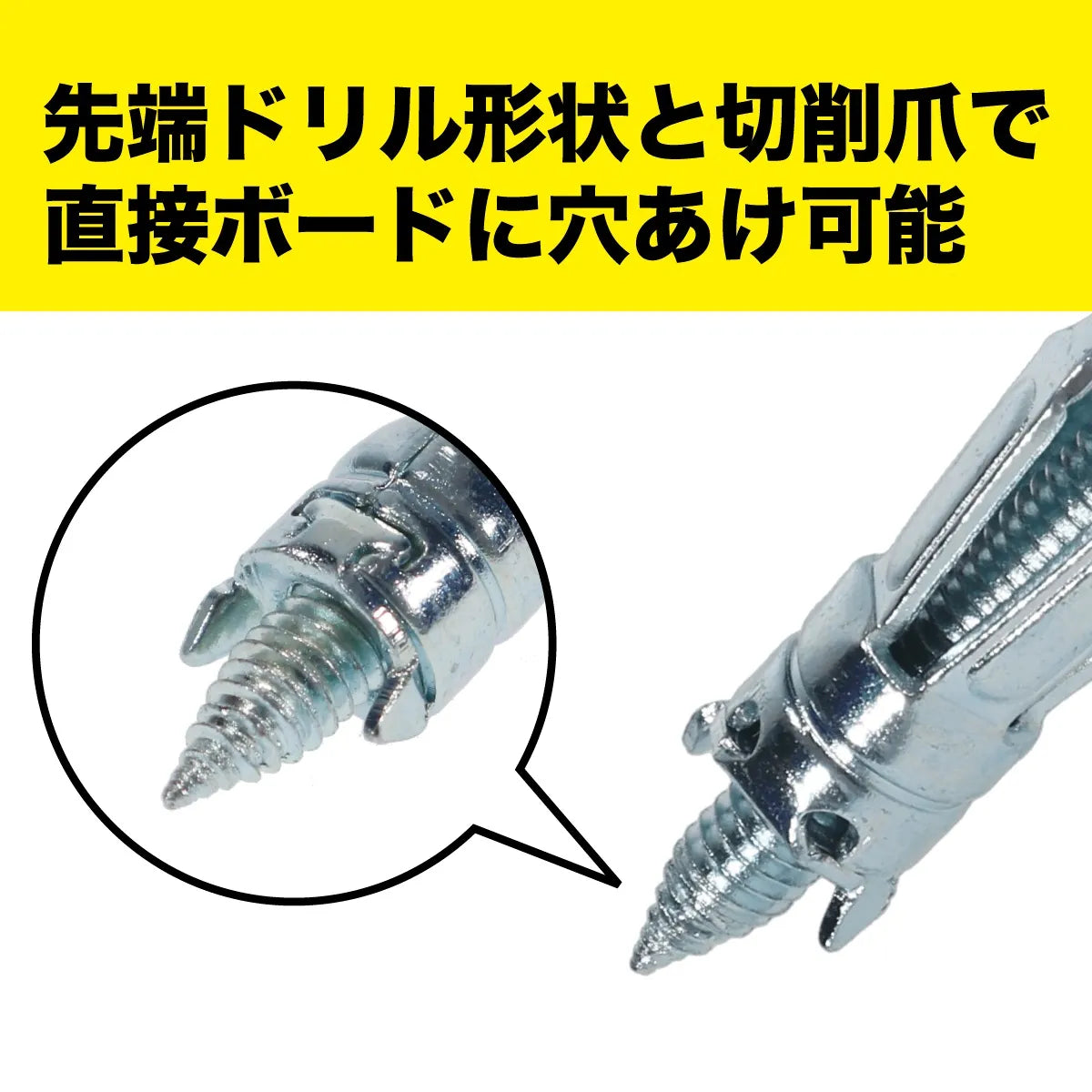

●The tip drill shape and cutting claws allow for direct drilling into the board
●Applications: Installation of indoor air conditioner units, communication equipment, distribution boards, switch boards, shelf brackets, etc.
■ Specifications
・Body size and weight (1 piece): 16mm x 16mm x 50mm・8g
・Applicable board thickness: 8-9.5mm
・Screw diameter: M4
・Material: 9.5mm thick gypsum board
・Maximum pull-out strength (*): 33.3N (3.4kgf)
・Type: Jumbo pack
・Quantity: 700 pieces
*Maximum pull-out strength varies depending on the material and installation conditions.
Please note that this is not a guaranteed load capacity.
*If installed on a board thickness other than the applicable thickness, it may not be installed correctly.
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Individual box and seal
Individual package size and weight: W240 x D230 x H240 mm, 5.92 kg
・1 package
・Country of origin: China
