Speeder One (J3) J3T-56765-50

[Product Features]
Can be used in different ways depending on the wire insertion resistance!
●Ideal for conduit and VE pipes
●Thin at both ends and thick in the middle, so wires can be inserted from either side
Can be used in different ways depending on the length and bends of the conduit
●Measuring type that serves as a guide for the wire insertion distance

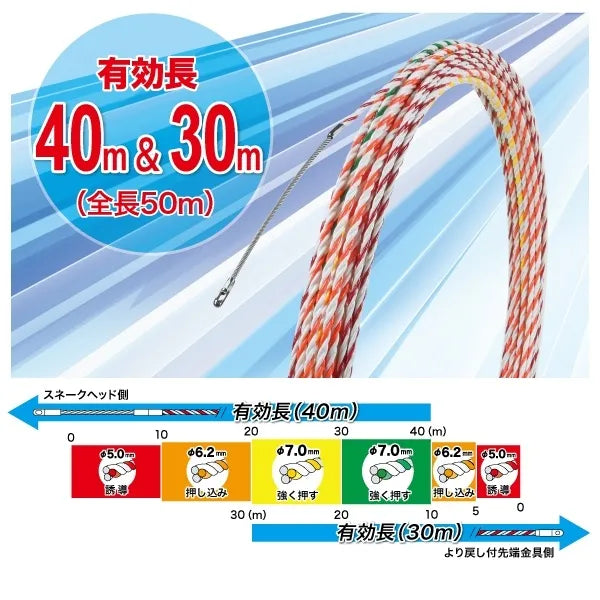

Insertion length is indicated by color (every 10m from one side, every 5m from the other side)
●Effective length: 40m & 30m (total length 50m)
・Snakehead side (effective length: 40m)
・Swivel end fitting side (effective length: 30m)
Speeder One Series (J3T) Features
●No.1 in wire insertion speed and lightness (compared to our company's products), significantly improved bending and pushing performance!!
●Excellent straightness, with a φ6.0mm snakehead & side hole end fitting
It also passes through thin pipes with many bends
●Combined with 3 strands of wire Hybrid Wire Puller
Three-Step Rod from Thin Diameter Rod to Thick Diameter Rod
■ Specifications
●Rod: 3-strand twisted wire (PET)
●Wire Diameter: φ5.0 (10m) + φ6.2 (10m) + φ7.0 (10m) + φ7.0 (10m) + φ6.2 (5m) + φ5.0 (5m)
●Length: 50m
●Weight: 1.57kg
●Overall Breaking Load: 1.1kN (110kgf)

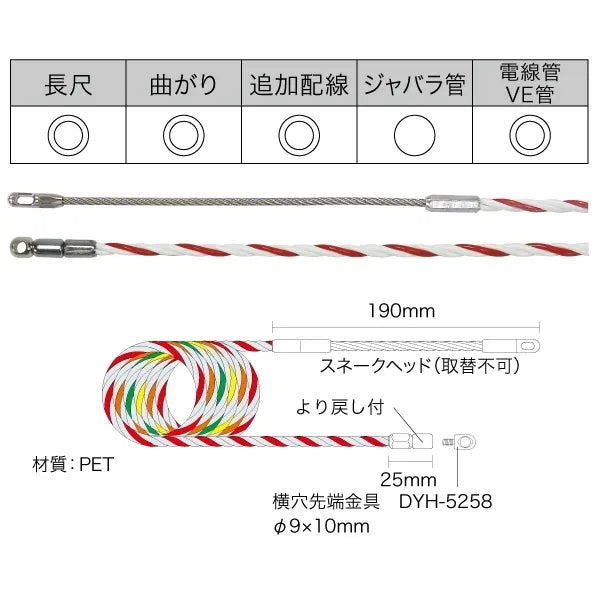

●End Fittings
Snakehead (non-replaceable): φ6 x 190mm
Side Hole End Fitting DYH-5258 (replaceable): φ9 x 10mm Screw Size M5
●Suitability
Long Length: ◎ Bending: ◎ Additional Wiring: ◎ Corrugated Pipe: ◯ Electrical conduit/VE conduit: ◎
Cable puller stand YST-537: △ Cable puller stand YST-414: △
Cable puller reel YR-414: × Cable puller reel YR-320: ×
• Packaging specifications
Individual packaging: Sleeve, wrap packaging
Individual packaging size and weight: W600×D53×H600mm・1.85kg
Inner packaging: Cardboard box・Seal
Inner packaging size and weight: W650×D580×H650mm・14.5kg・1 box
• Country of origin: Taiwan
