Waterproof Robust Fiber Optic Cable (Single 9.2μm, SC×4-SC×4, 50m) HKB-SCSCWPRB1-50
Waterproof Robust Fiber Optic Cable (Single 9.2μm, SC×4-SC×4, 50m) HKB-SCSCWPRB1-50
GTIN（JAN）：4969887751398
SKU：HKB-SCSCWPRB1-50
Regular price
¥172,425 JPY
Regular price
Sale price
¥172,425 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A waterproof fiber optic cable that combines high strength, high reliability, and flexibility.]
●A waterproof fiber optic cable that combines high strength, high reliability, and flexibility.

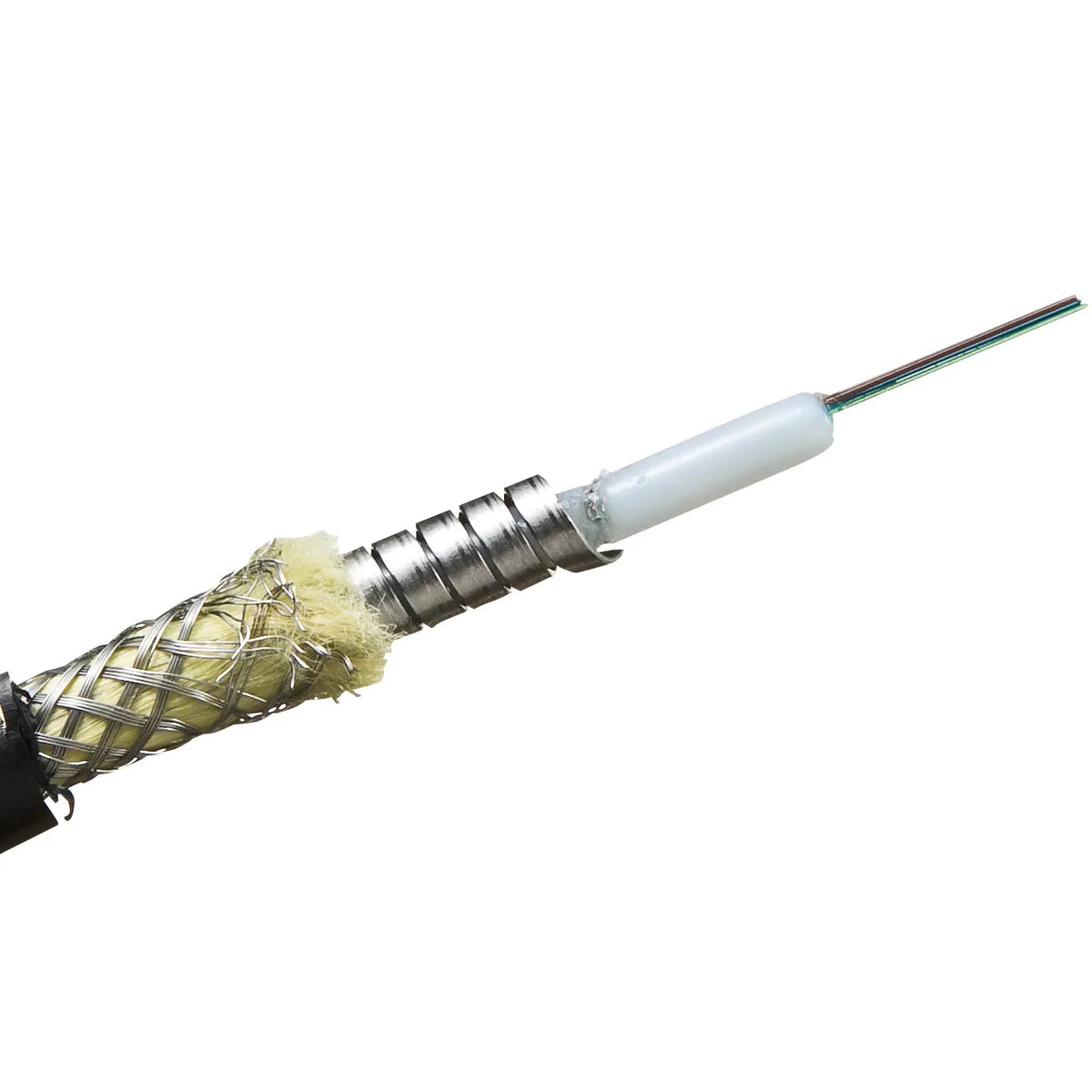

●Uses a PBT tube to protect the fiber from water ingress.
●Stainless steel tubing provides high-strength protection and prevents improper twisting.
●Excellent tensile strength and pressure resistance.
●Prevents damage from rodents and ants.
●Complies with UL standards.
●A combination of LC, SC, and FC connectors is available.
■Optical fiber core diameter: SM
9.2um
■Optical fiber cladding diameter: 125um
■Fiber type: Single mode
■Number of cores: 4 cores
■Cable length: 50m

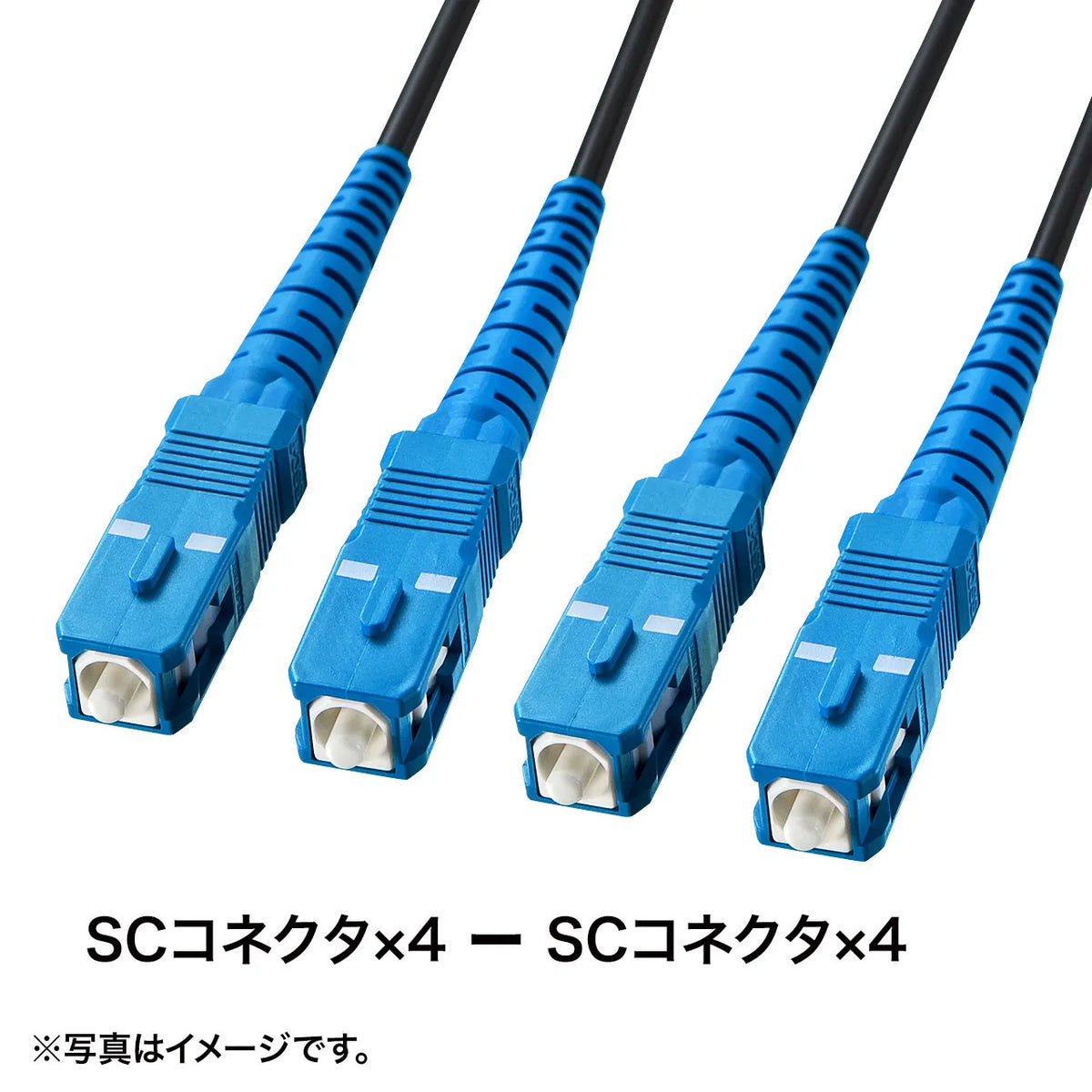

■Connector shape: SC connector x 4 - SC connector x 4
■Connector polishing: SPC polishing
■Cable characteristics:
・Supported standards: 1000BASE-LX, 1000BASE-ZX, 10GBASE-LR, 10GBASE-ER, 10GBASE-ZR
・Wavelength: 1310nm, 1550nm
・Transmission loss: 0.4dB/km or less (131 (0nm, 1550nm)
■Standard outer diameter: 6.0mm
■Cable color: Black
■Shape specification type: Round reinforced
■Optical fiber TIA standard: OS1
■Usage environment: Outdoor use
■Optical fiber classification: General-purpose single mode (SM)
■Optical wavelength: 1310nm, 1550nm
■Compliant standards: 1000BASE-LX, 1000BASE-ZX, 10GBASE-LR, 10GBASE-ER, 10GBASE-ZR
■Wavelength: 1310nm, 1550nm
■Transmission loss: 0.4dB/km or less (1310nm, 1550nm)
●A waterproof fiber optic cable that combines high strength, high reliability, and flexibility.
●Uses a PBT tube to protect the fiber from water ingress.
●Stainless steel tubing provides high-strength protection and prevents improper twisting.
●Excellent tensile strength and pressure resistance.
●Prevents damage from rodents and ants.
●Complies with UL standards.
●A combination of LC, SC, and FC connectors is available.
■Optical fiber core diameter: SM
9.2um
■Optical fiber cladding diameter: 125um
■Fiber type: Single mode
■Number of cores: 4 cores
■Cable length: 50m
■Connector shape: SC connector x 4 - SC connector x 4
■Connector polishing: SPC polishing
■Cable characteristics:
・Supported standards: 1000BASE-LX, 1000BASE-ZX, 10GBASE-LR, 10GBASE-ER, 10GBASE-ZR
・Wavelength: 1310nm, 1550nm
・Transmission loss: 0.4dB/km or less (131 (0nm, 1550nm)
■Standard outer diameter: 6.0mm
■Cable color: Black
■Shape specification type: Round reinforced
■Optical fiber TIA standard: OS1
■Usage environment: Outdoor use
■Optical fiber classification: General-purpose single mode (SM)
■Optical wavelength: 1310nm, 1550nm
■Compliant standards: 1000BASE-LX, 1000BASE-ZX, 10GBASE-LR, 10GBASE-ER, 10GBASE-ZR
■Wavelength: 1310nm, 1550nm
■Transmission loss: 0.4dB/km or less (1310nm, 1550nm)
