[OM4 optical fiber cable compatible with 10GBASE-SR/SW standards, capable of 10 Gigabit transmission.]

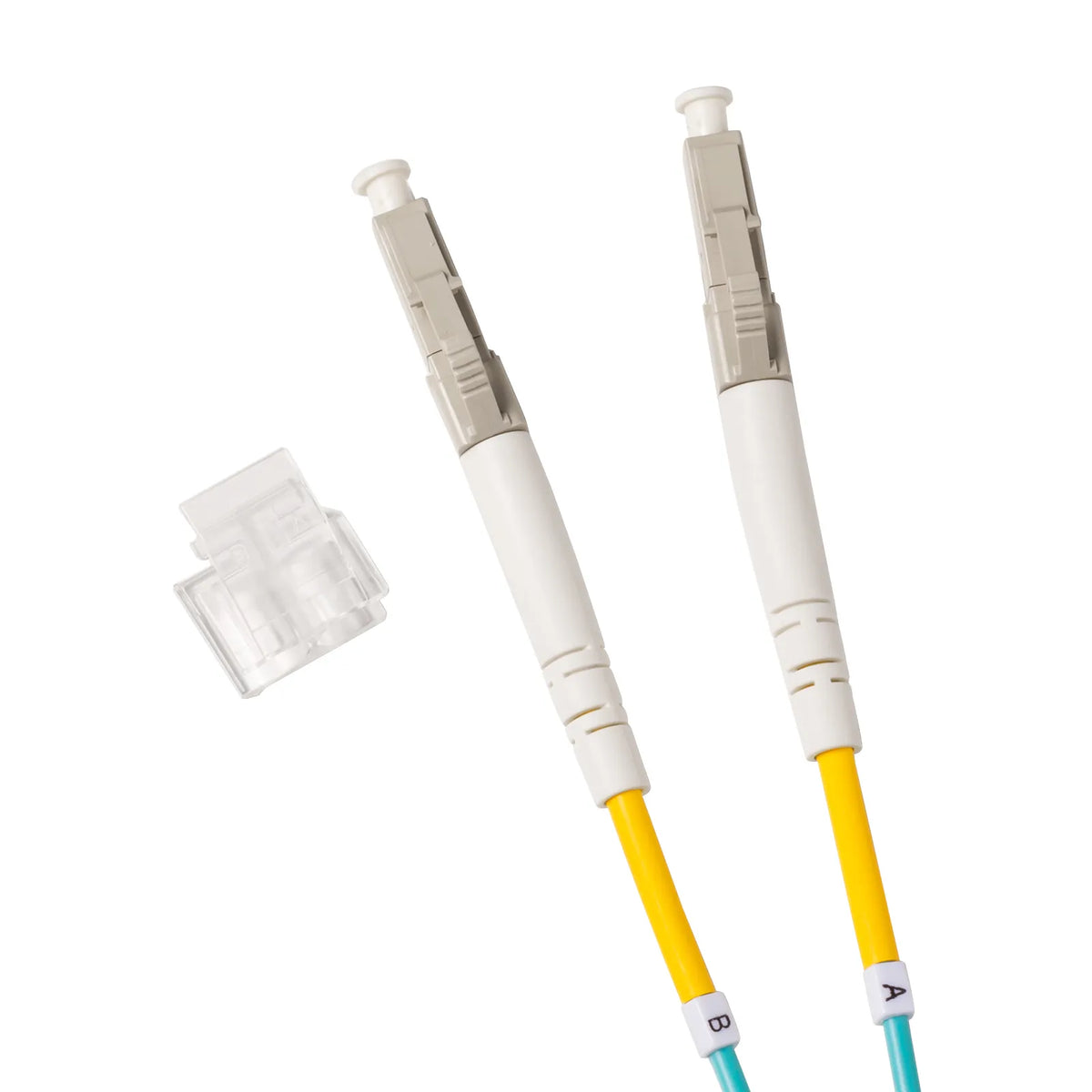

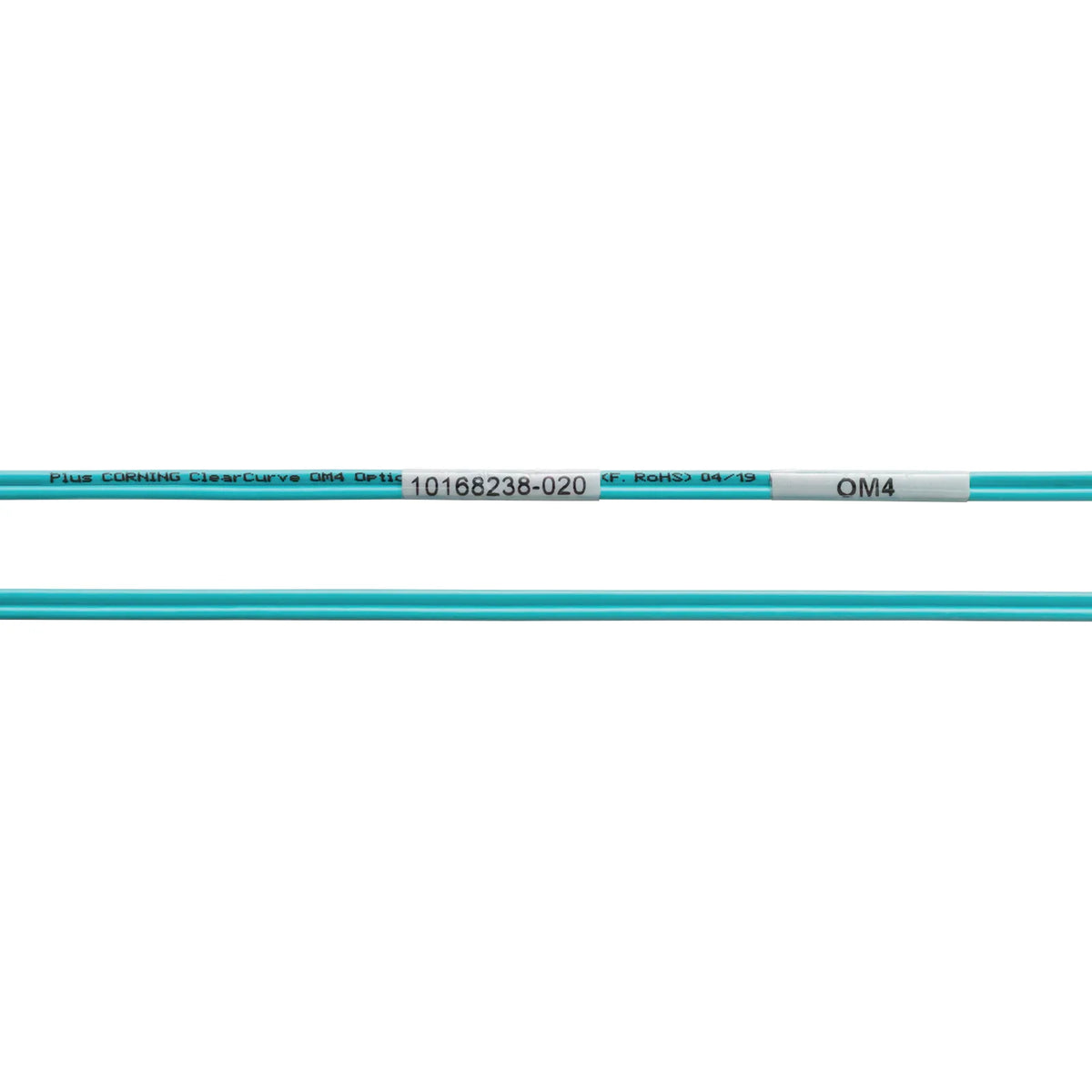

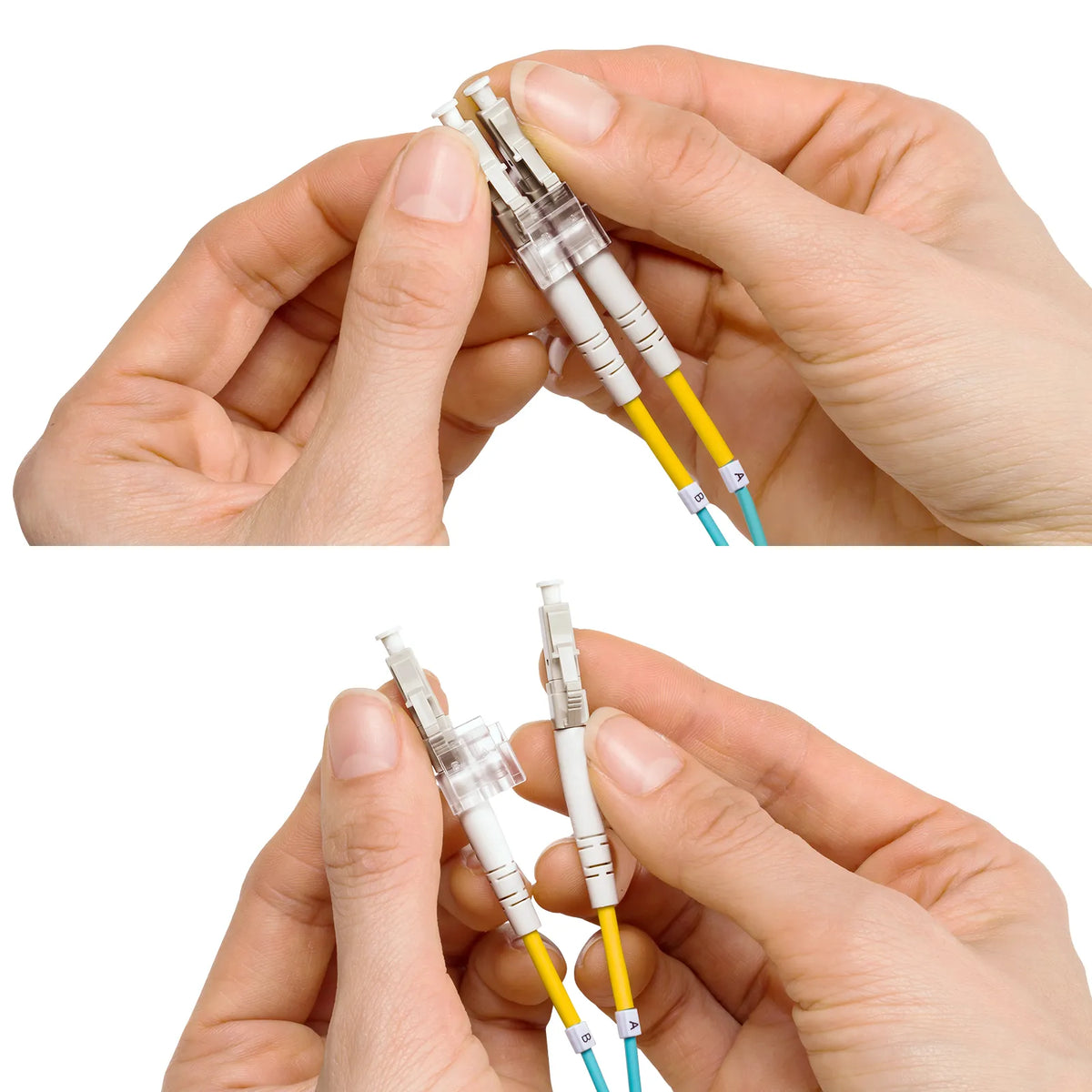

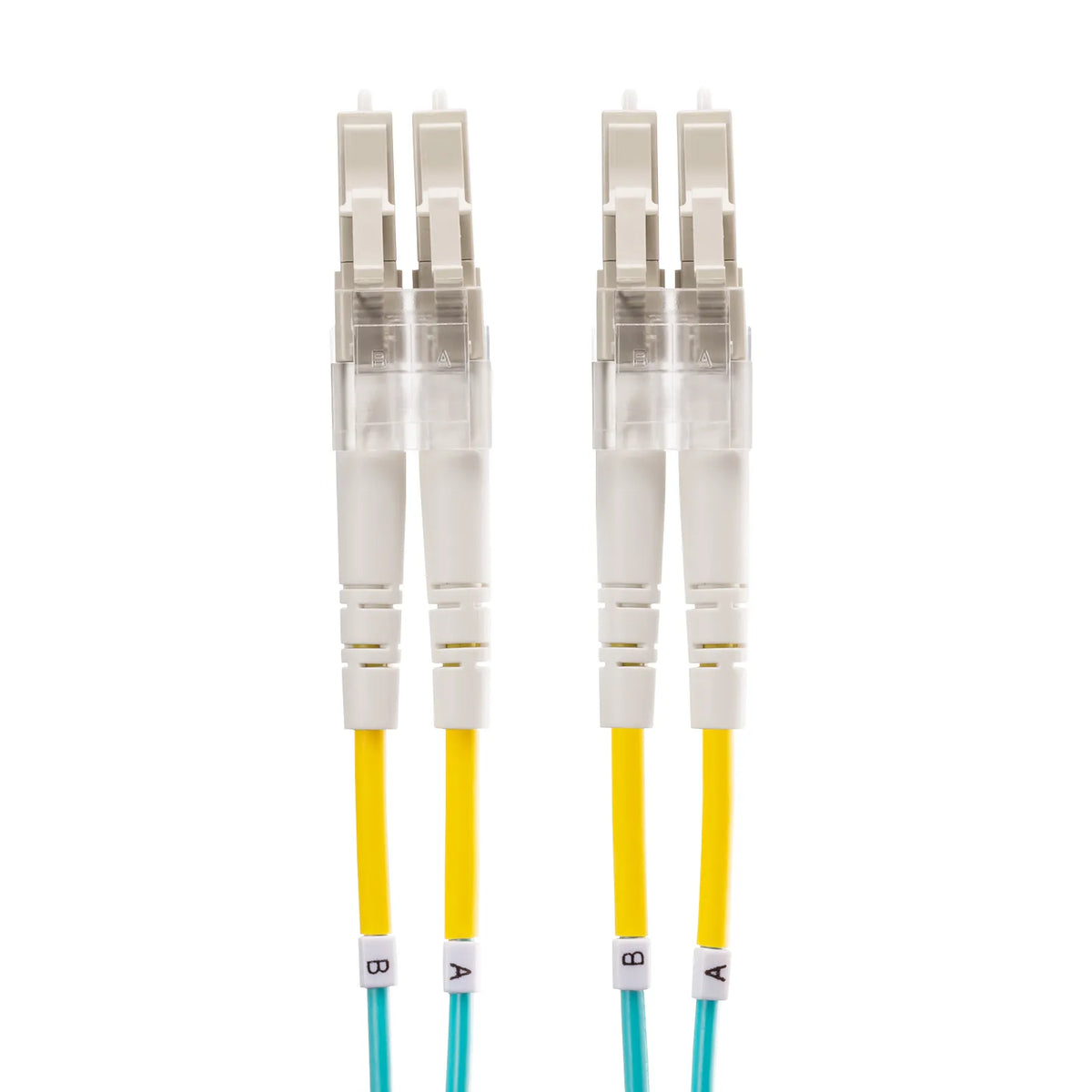

●This optical fiber cable conforms to the OM4 specification and can be used with 10 Gigabit Ethernet and Fiber Channel, which are compatible with 10GBASE-SR/SW standard transmission. ●Ideal for long-distance communication (up to 400m) of 10GBASE-S in data centers and other locations. ●With a detachable LC connector, it can also be used for single-core (simplex) connections. ●Serial numbers are affixed to facilitate early troubleshooting in the event of any problems. ●Uses flame-retardant NEC OFNR cable.

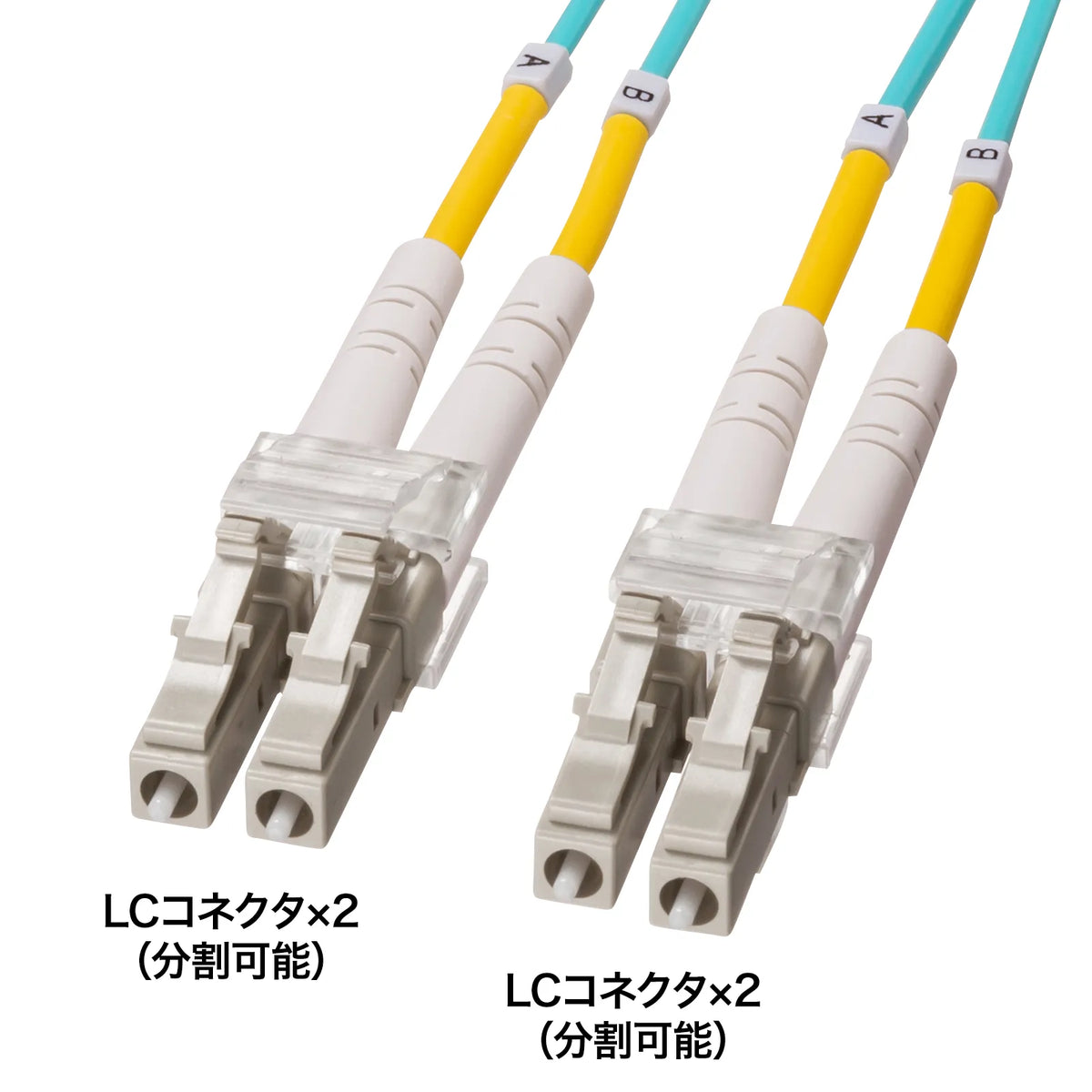

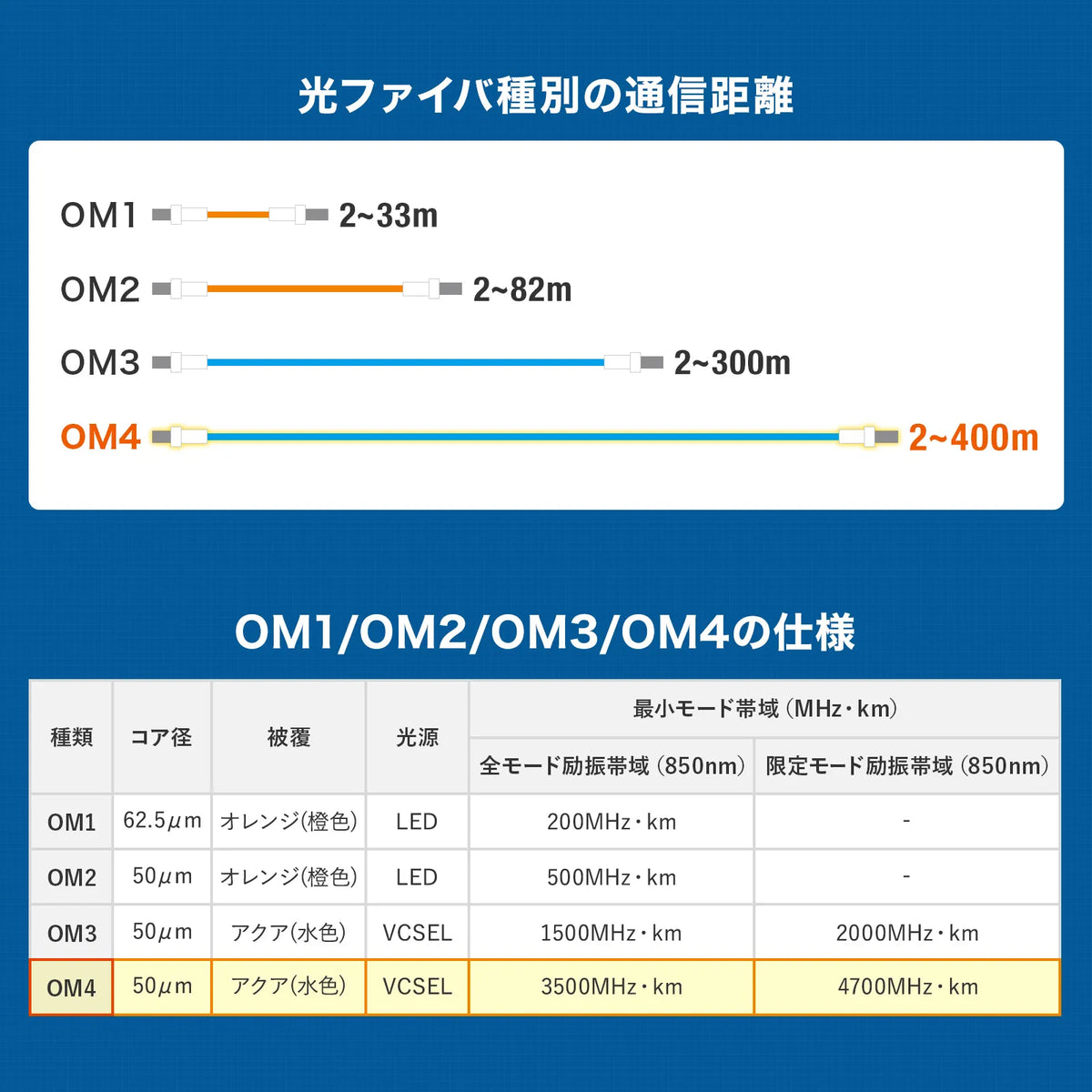

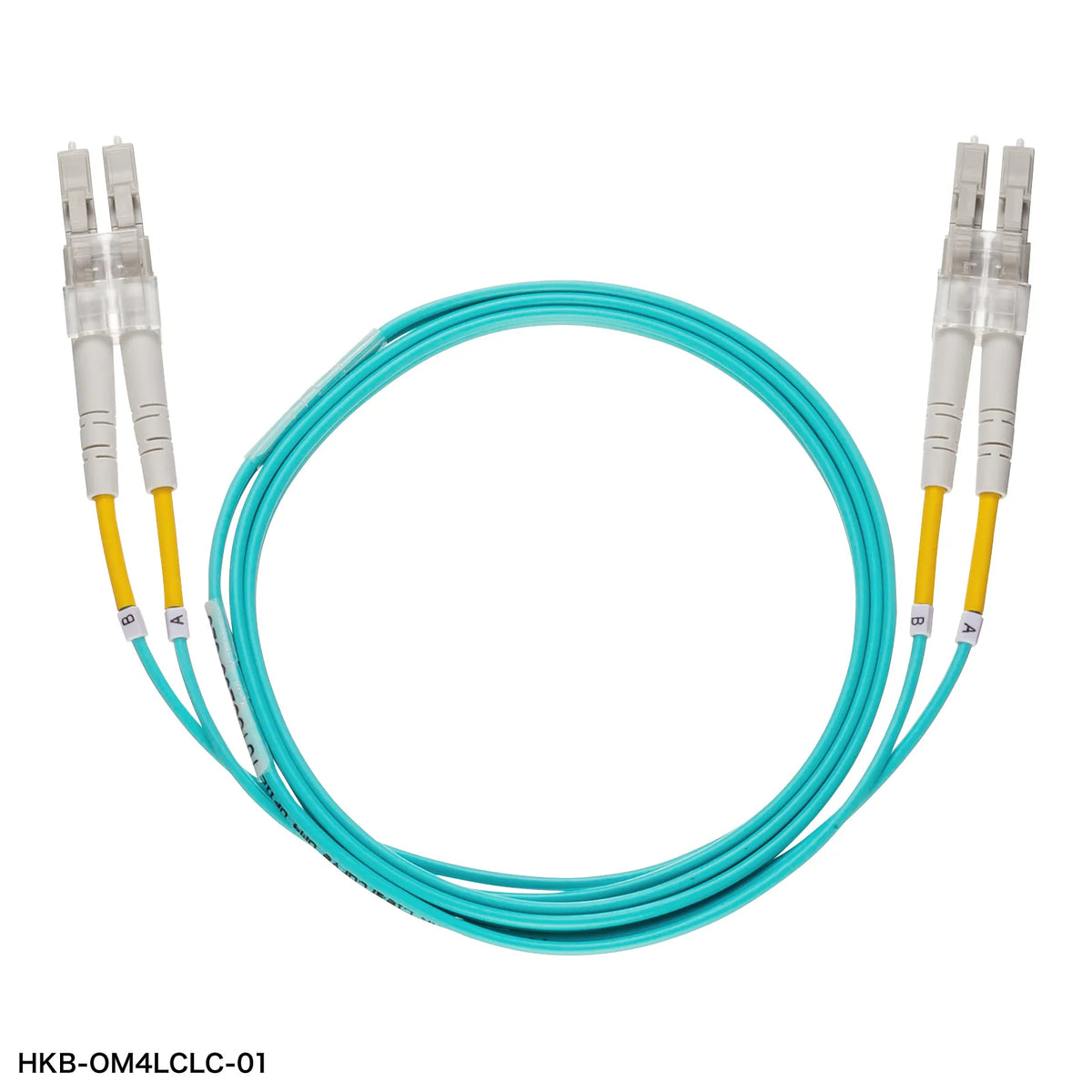

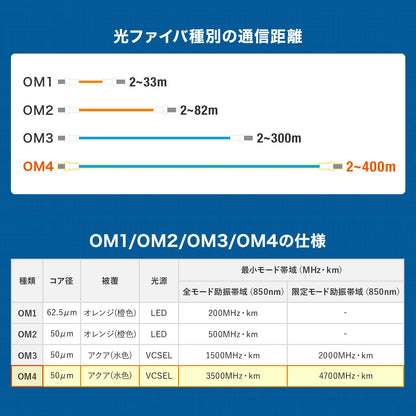

■Optical fiber core diameter: 50um ■Optical fiber cladding diameter: 125um ■Fiber type: Multimode ■Number of cores: 2 cores ■Cable length: 1m ■Connector shape: LC connector x 2 - LC connector x 2 Duplex type, separable ■Connector polishing: PC polishing ■Cable characteristics: ・Wavelength: 850nm, 1300nm ・Transmission loss: 3.0dB/km or less, 1.0dB/km or less ・All-mode excitation bandwidth: 3500MHz・km or more, 500MHz・km or more ・Limited-mode excitation bandwidth: 4700MHz・km, - ■Standard outer diameter: 2.0mm x 4.0mm ■Cable color: Aqua (light blue) ■Shape specification type: Spectacle type ■Optical fiber TIA standard: OM4 ■Usage environment: Indoor use ■Optical fiber classification: Great Index (GI) ■Optical wavelength: 850nm, 1300nm ■Wavelength: 850nm, 1300nm ■Transmission loss: 3.0dB/km or less, 1.0dB/km or less ■All-mode excitation bandwidth: 3500MHz・km or more, 500MHz・km or more ■Limited-mode excitation bandwidth: 4700MHz・km, -
