SANWA SUPPLY
Spectacle-type optical fiber cable (multi 50μm OM3, LC×2-LC×2, 50m) HKB-OM3LCLC-50N
Spectacle-type optical fiber cable (multi 50μm OM3, LC×2-LC×2, 50m) HKB-OM3LCLC-50N
GTIN（JAN）：4969887773574
SKU：HKB-OM3LCLC-50N
Regular price
¥27,298 JPY
Regular price
Sale price
¥27,298 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[OM3 Fiber Optic Cable Compatible with 10GBASE-SR/SW Standards, 10 Gigabit Transmission]
●This fiber optic cable conforms to the OM3 specification, enabling 10 Gigabit high-speed communication compatible with 10GBASE-SR/SW standard transmission.
●Ideal for long-distance communication (up to 300m) of 10GBASE-S in data centers and other locations.

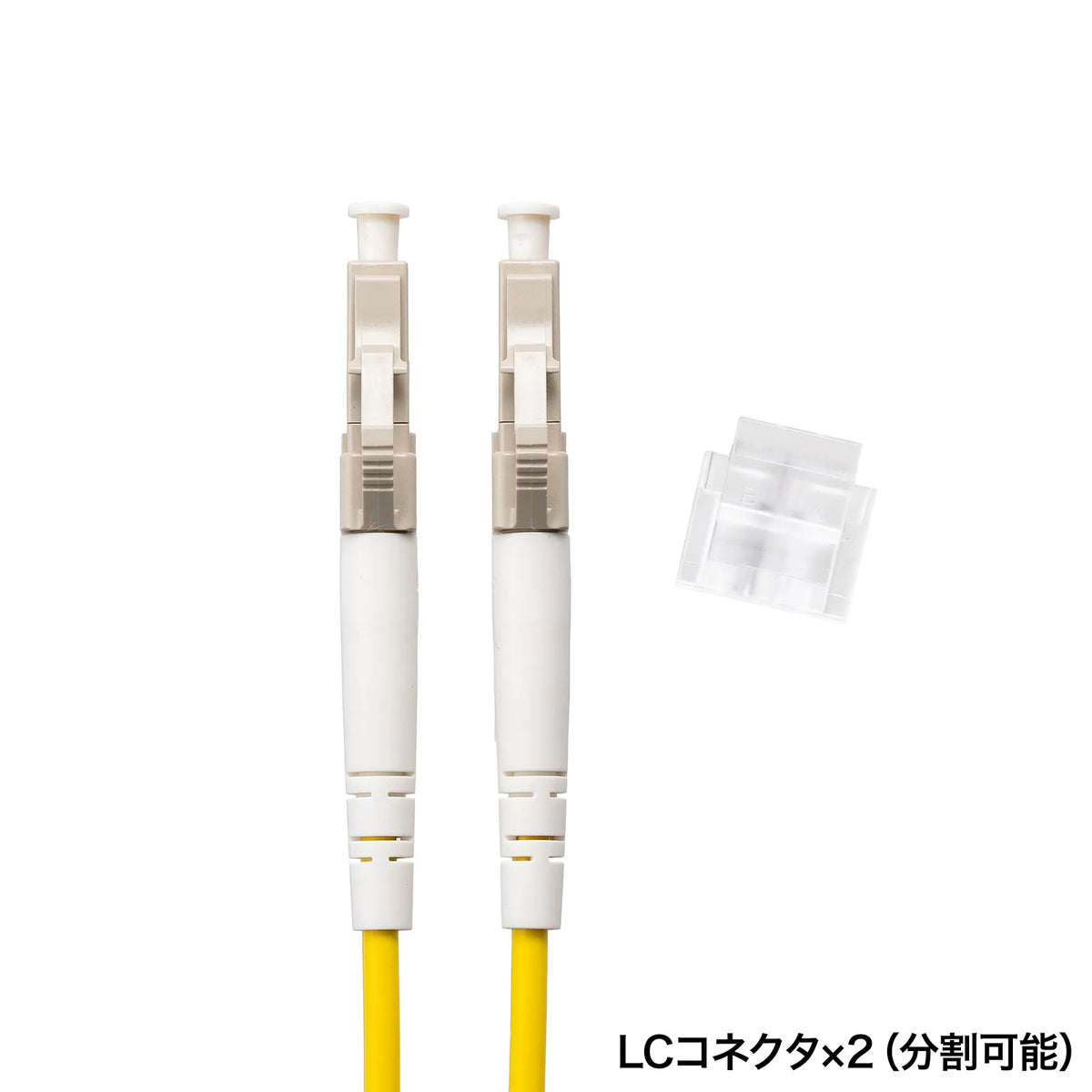

●With a detachable LC connector, it can also be used for single-core (simplex) connections.

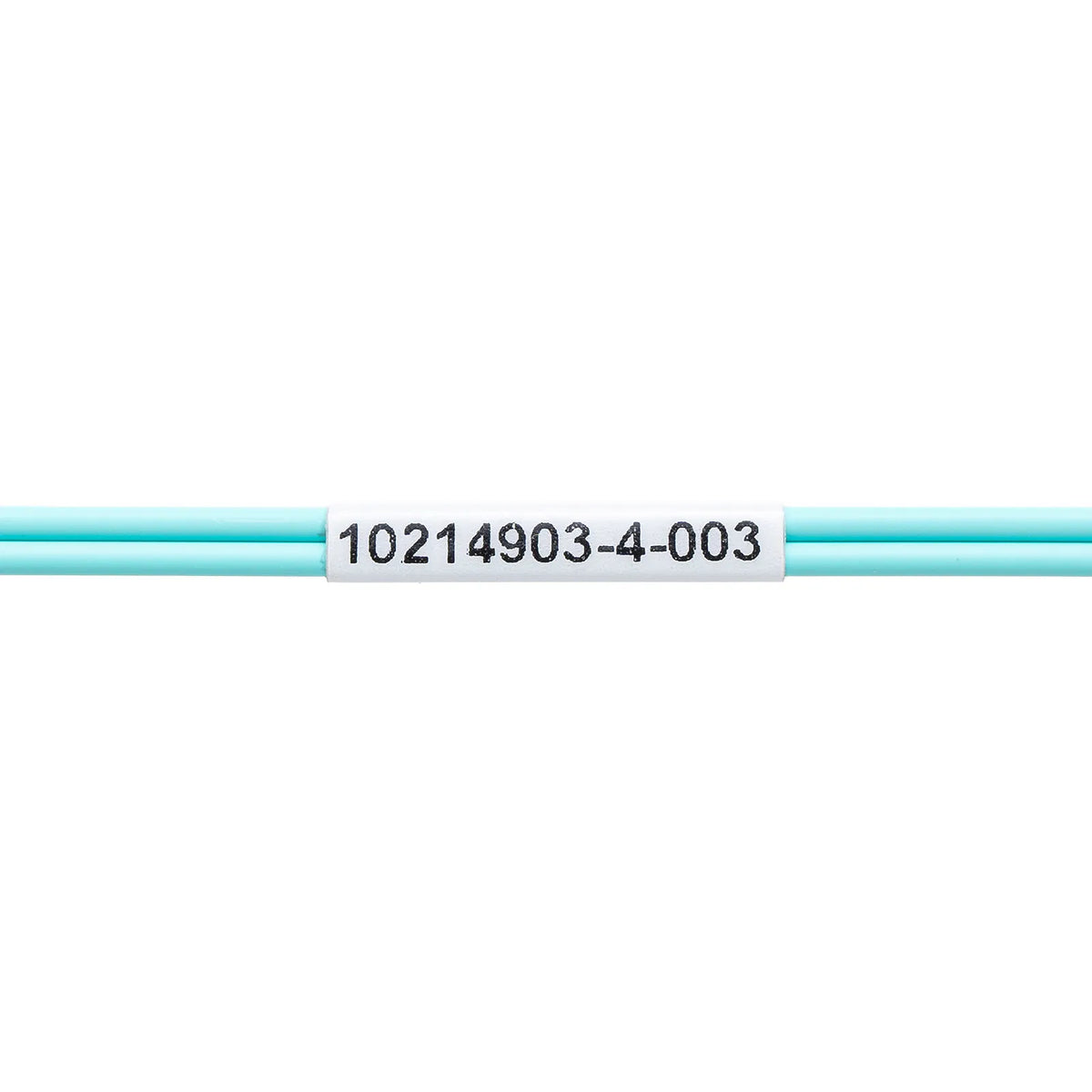

●Serial numbers are affixed to facilitate early troubleshooting in the event of any problems.

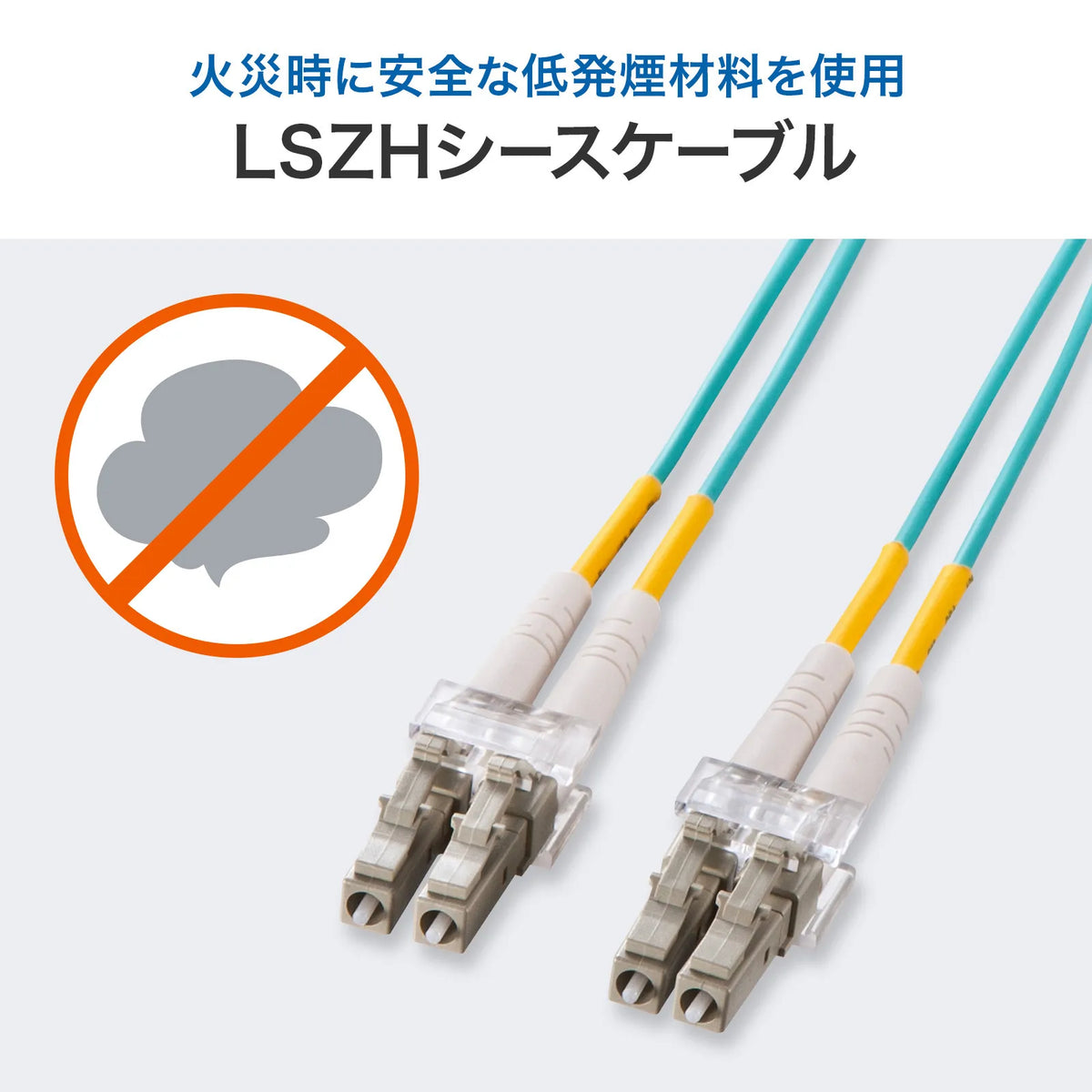

●Uses LSZH sheathing and low-smoke material that does not contain highly toxic gases called halogens.
■Optical fiber core diameter: 50um
■Optical fiber cladding diameter: 125um
■Fiber type: Multimode
■Number of cores: 2 cores
■Cable length: 50m

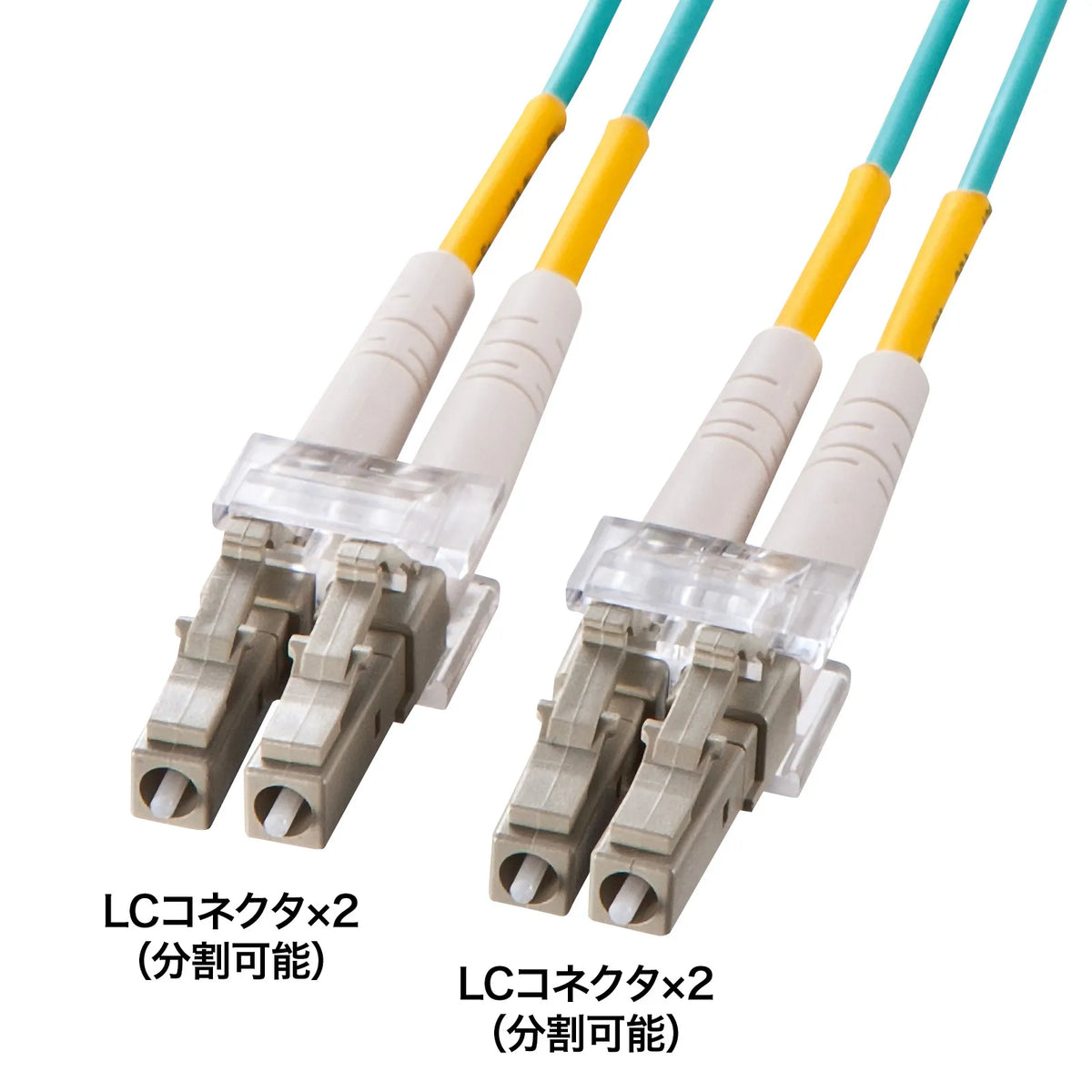

■Connector shape: LC connector ☐2-LC connector ☐2
Duplex type, separable
■Connector polishing: PC polishing
■Cable characteristics:
・Wavelength: 850nm, 1300nm
・Transmission loss: 3.0dB/km or less, 1.0dB/km or less
・All-mode excitation bandwidth: 1500MHz・km or more, 500MHz・km or more
・Limited-mode excitation Bandwidth: 2000MHz・km, -
■Standard outer diameter: 2.0mm - 4.0mm
■Cable color: Aqua (light blue)
■Shape specification type: Spectacle type

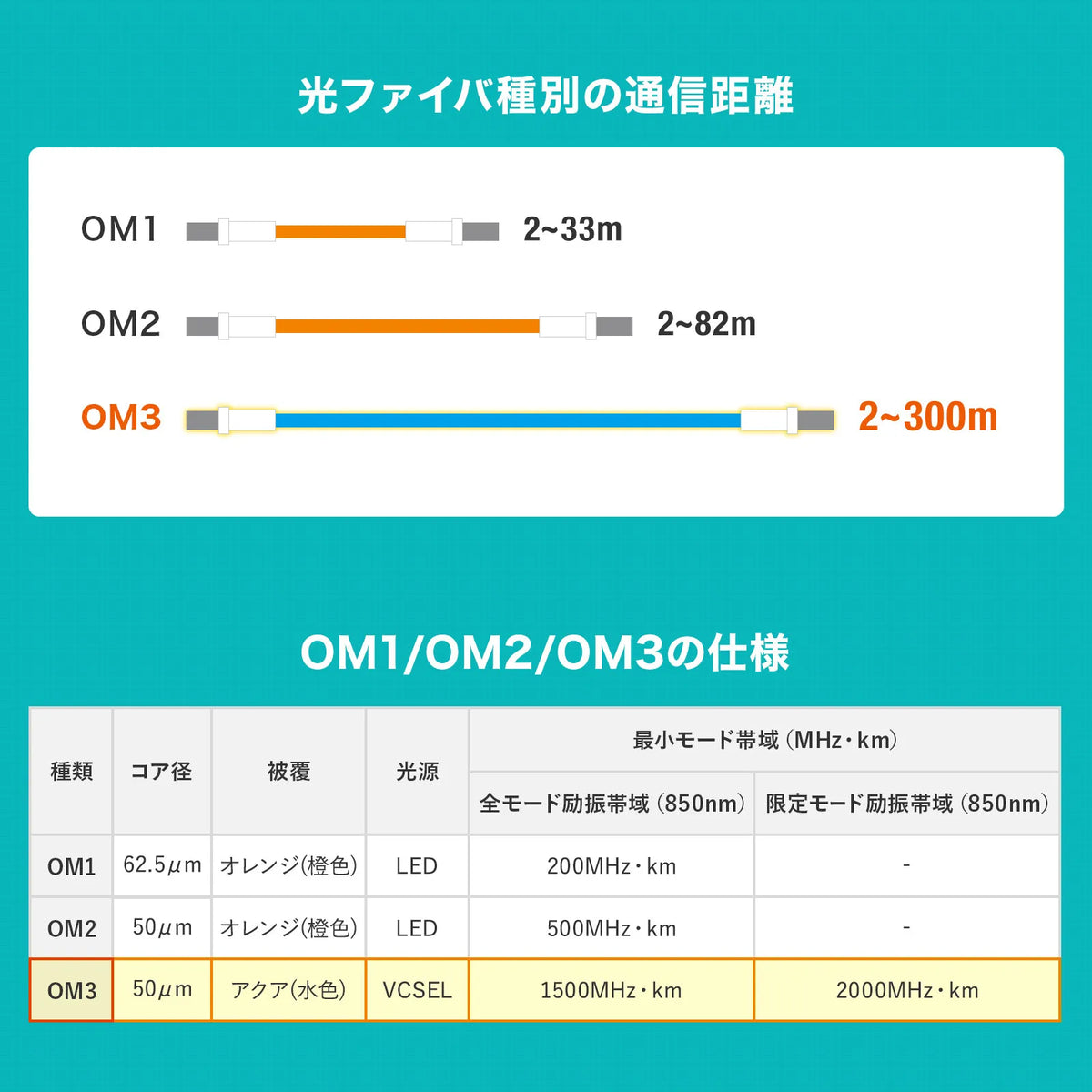

■Optical fiber TIA standard: OM3
■Usage environment: Indoor use
■Optical fiber classification: Great Index (GI)
■Optical wavelength: 850nm, 1300nm
■Wavelength: 850nm, 1300nm
■Transmission loss: 3.0dB/km or less, 1.0dB/km or less
■All-mode excitation bandwidth: 1500MHz・km or more, 500MHz・km or more
■Limited-mode excitation bandwidth: 2000MHz・km, -
●This fiber optic cable conforms to the OM3 specification, enabling 10 Gigabit high-speed communication compatible with 10GBASE-SR/SW standard transmission.
●Ideal for long-distance communication (up to 300m) of 10GBASE-S in data centers and other locations.
●With a detachable LC connector, it can also be used for single-core (simplex) connections.
●Serial numbers are affixed to facilitate early troubleshooting in the event of any problems.
●Uses LSZH sheathing and low-smoke material that does not contain highly toxic gases called halogens.
■Optical fiber core diameter: 50um
■Optical fiber cladding diameter: 125um
■Fiber type: Multimode
■Number of cores: 2 cores
■Cable length: 50m
■Connector shape: LC connector ☐2-LC connector ☐2
Duplex type, separable
■Connector polishing: PC polishing
■Cable characteristics:
・Wavelength: 850nm, 1300nm
・Transmission loss: 3.0dB/km or less, 1.0dB/km or less
・All-mode excitation bandwidth: 1500MHz・km or more, 500MHz・km or more
・Limited-mode excitation Bandwidth: 2000MHz・km, -
■Standard outer diameter: 2.0mm - 4.0mm
■Cable color: Aqua (light blue)
■Shape specification type: Spectacle type
■Optical fiber TIA standard: OM3
■Usage environment: Indoor use
■Optical fiber classification: Great Index (GI)
■Optical wavelength: 850nm, 1300nm
■Wavelength: 850nm, 1300nm
■Transmission loss: 3.0dB/km or less, 1.0dB/km or less
■All-mode excitation bandwidth: 1500MHz・km or more, 500MHz・km or more
■Limited-mode excitation bandwidth: 2000MHz・km, -
