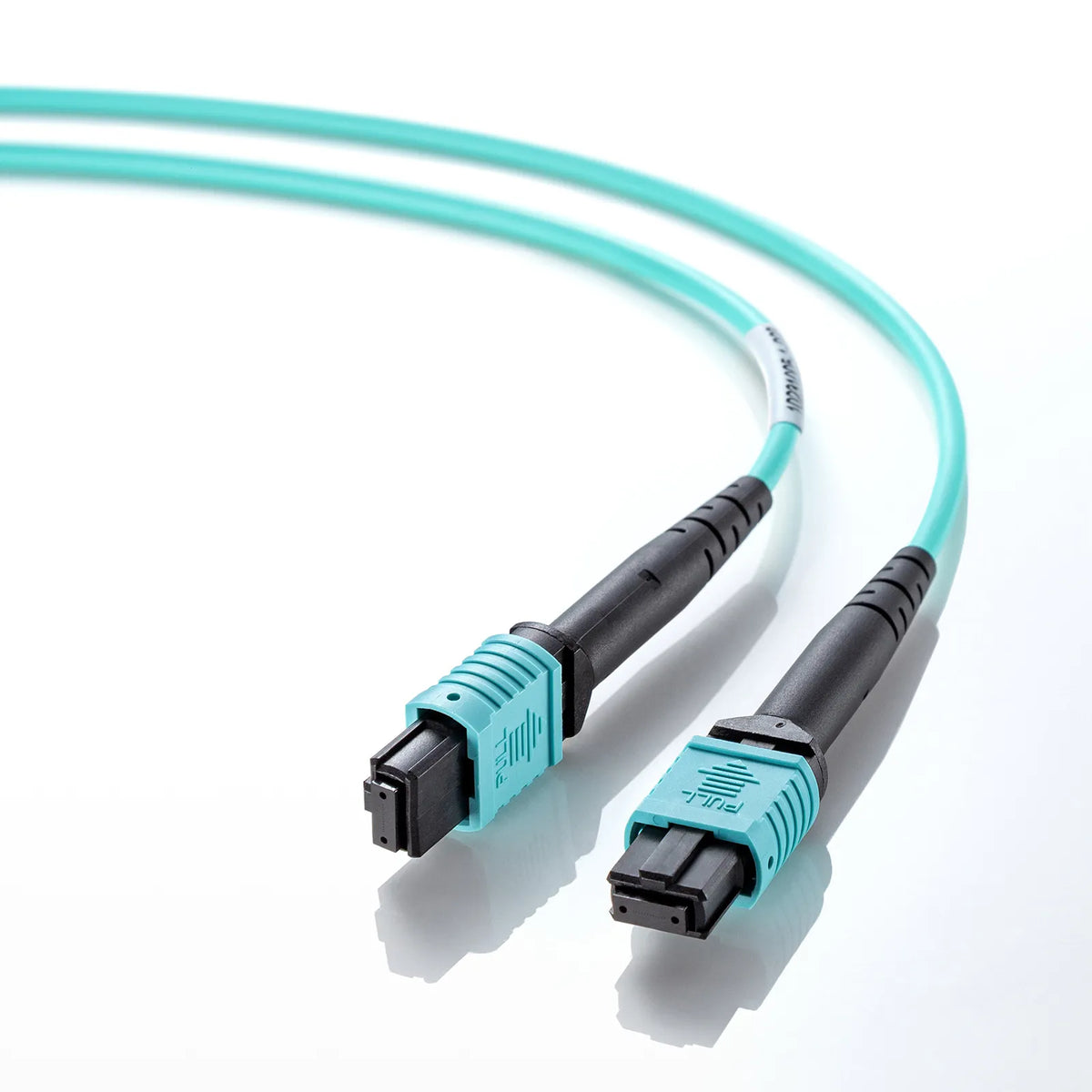

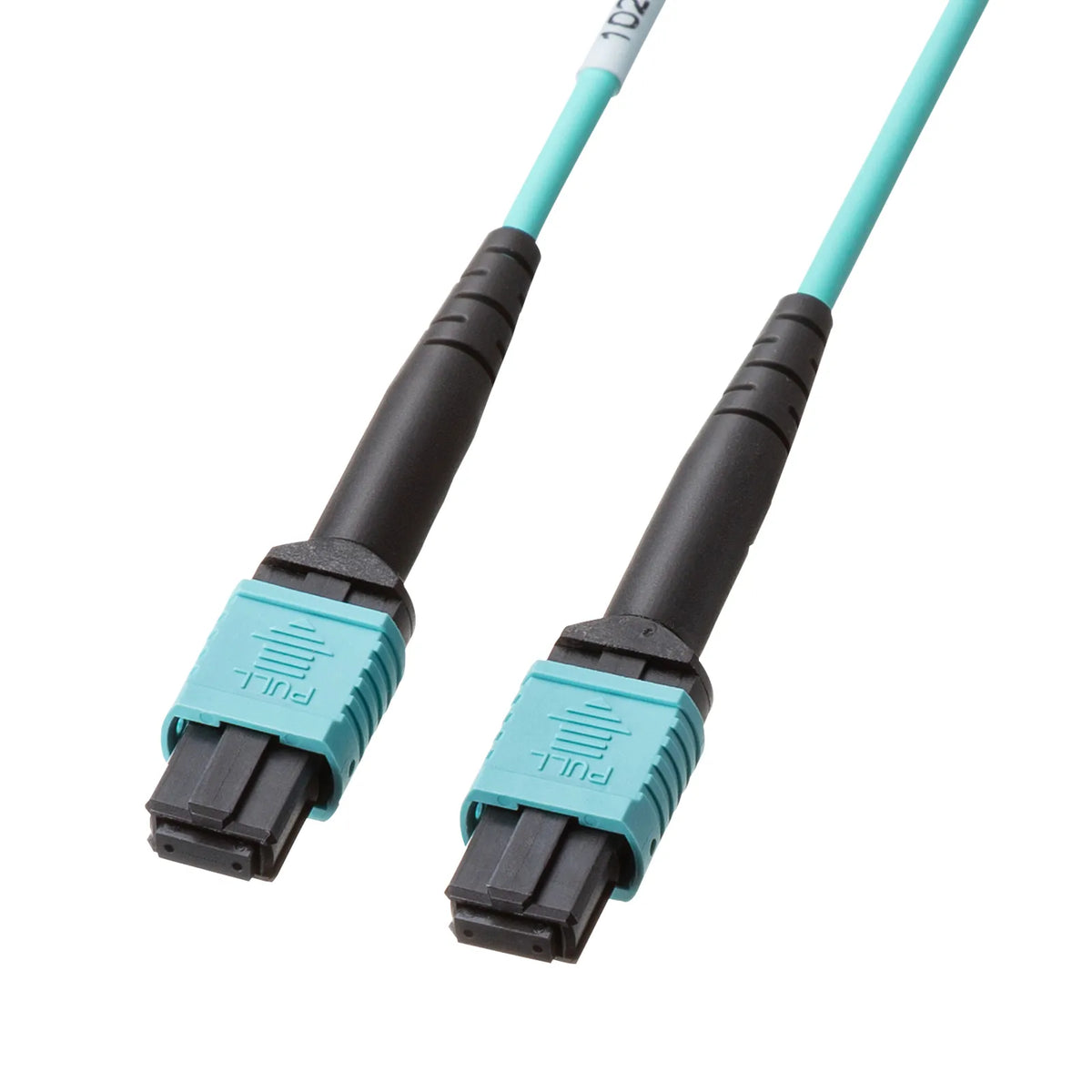

MPO Fiber Optic Cable (OM4, 12-core, B-wire, 3m) HKB-MPO12M4B-03

[OM4 optical fiber cable with MPO connector compatible with 40G BASE-SR4 and 100GBASE-SR4.]

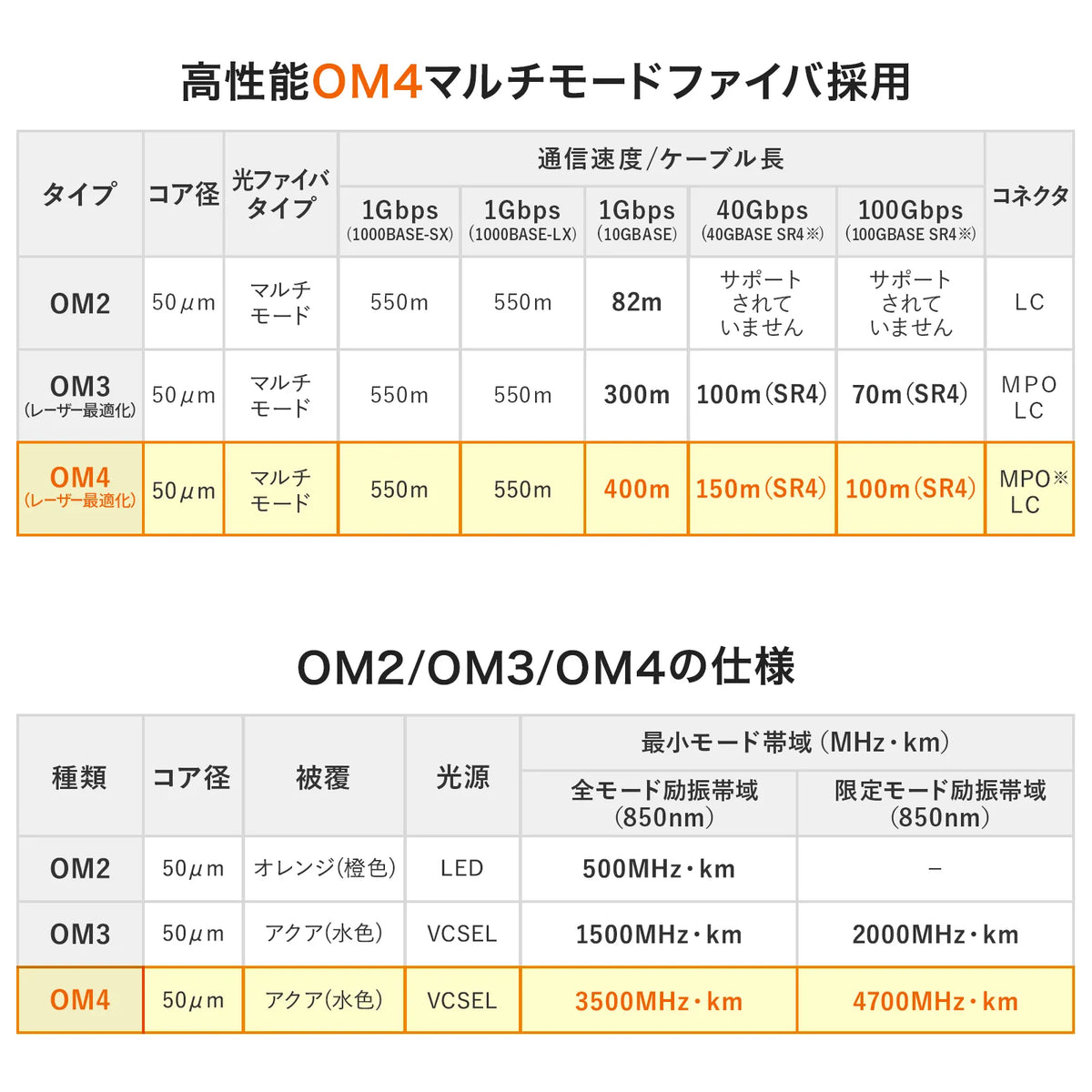

• High-performance OM4 multimode fiber
Supports 100Gbps high-speed data transmission, ideal for data centers and high-bandwidth networks.
Stable communication is possible up to a maximum transmission distance of 100m at 100Gbps.

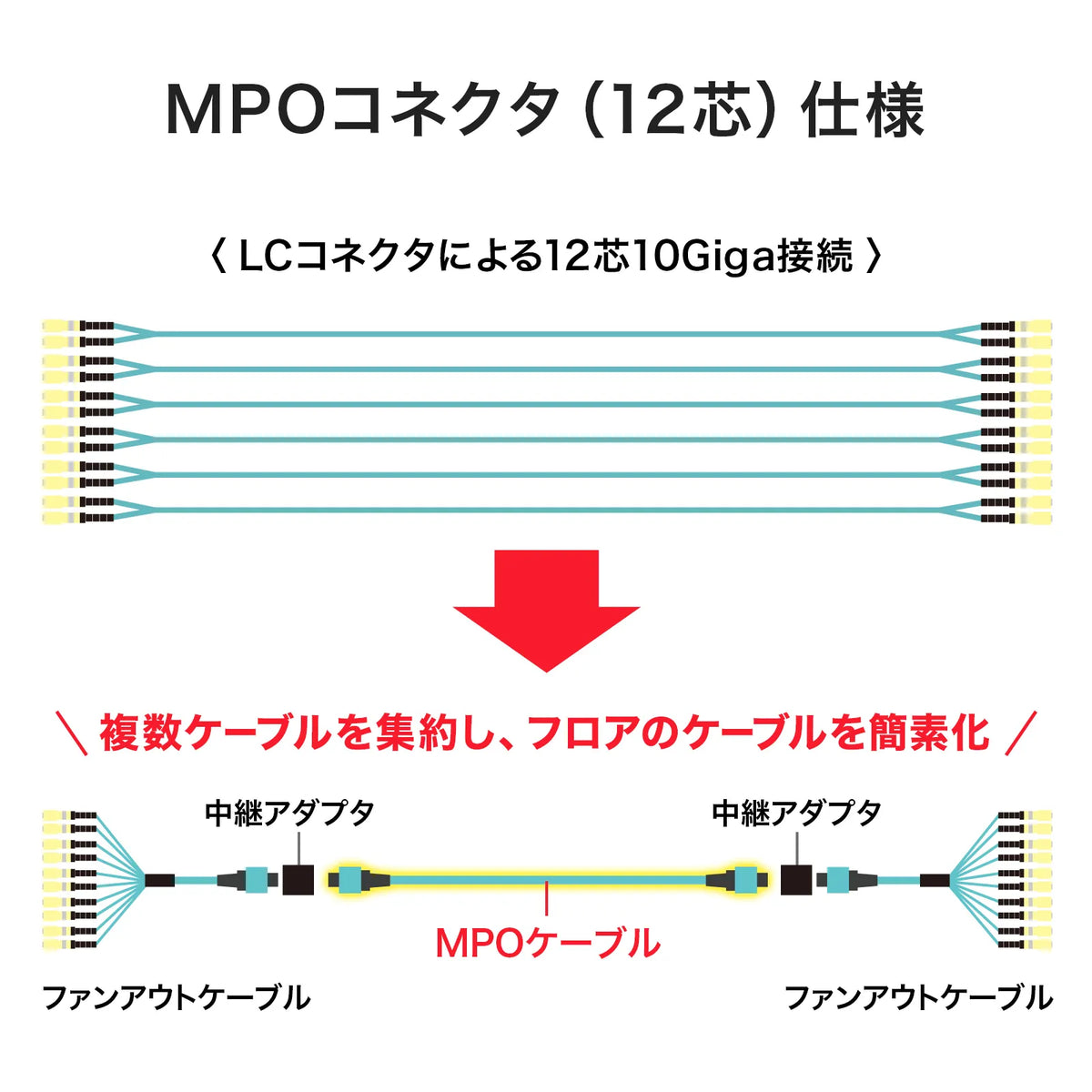

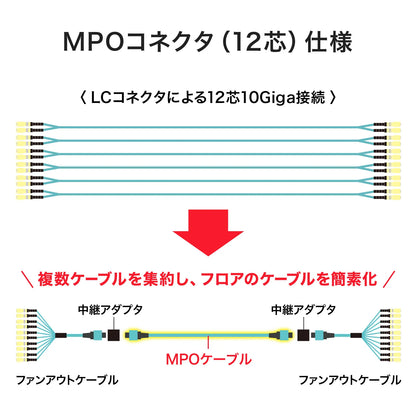

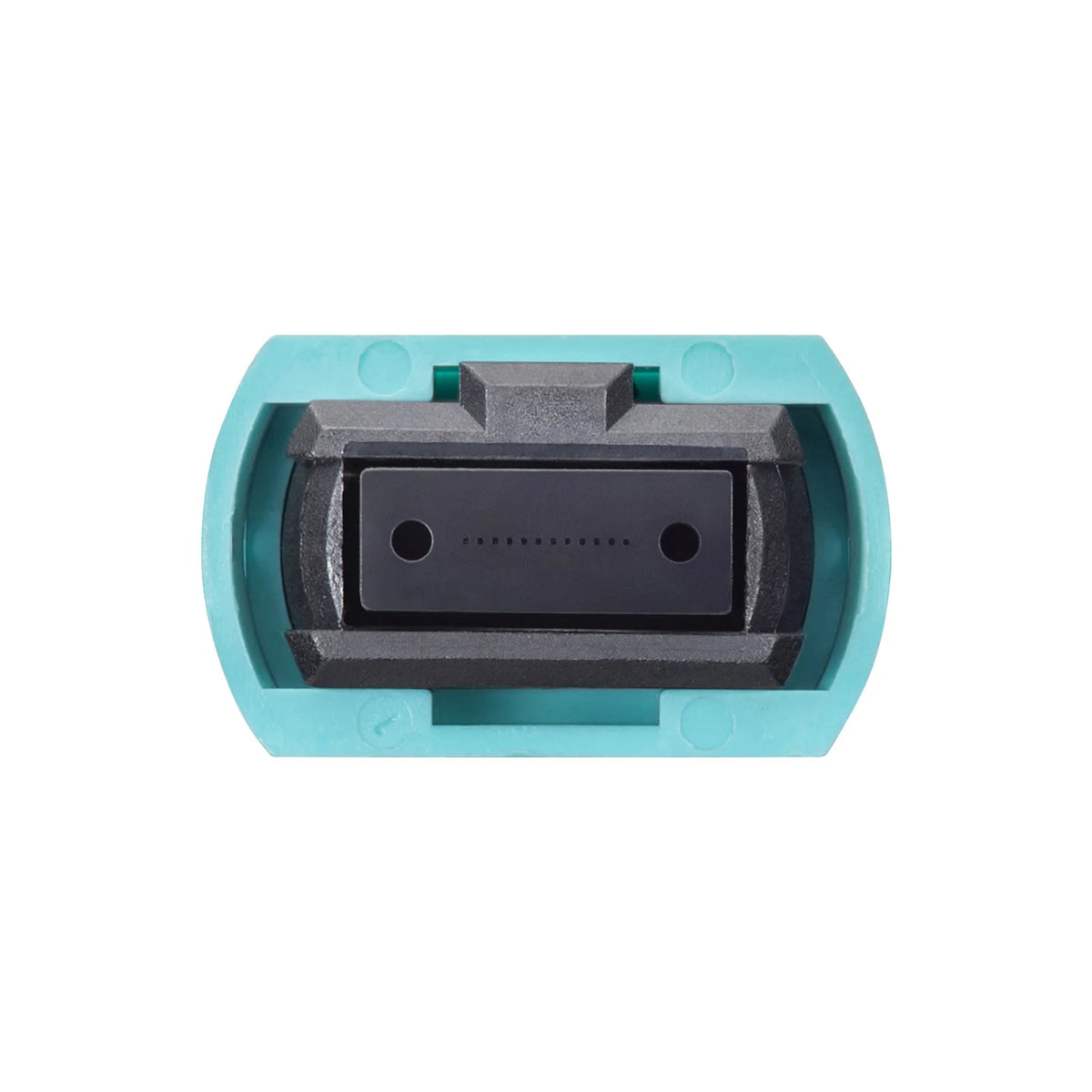

• MPO connector (12 cores) specification
12 cores can be connected in one cable, saving space and reducing installation time.
• Type B wiring (cross-connection) compatible
The Type B configuration, which cross-connects the signals at both ends, supports parallel transmission systems and 40G/100G communication standards (SR4, etc.).
• Low-loss design (IL≦0.75dB, RL≧20dB)
Minimizes transmission loss and maintains high-quality communication even in long-distance, high-density connections.

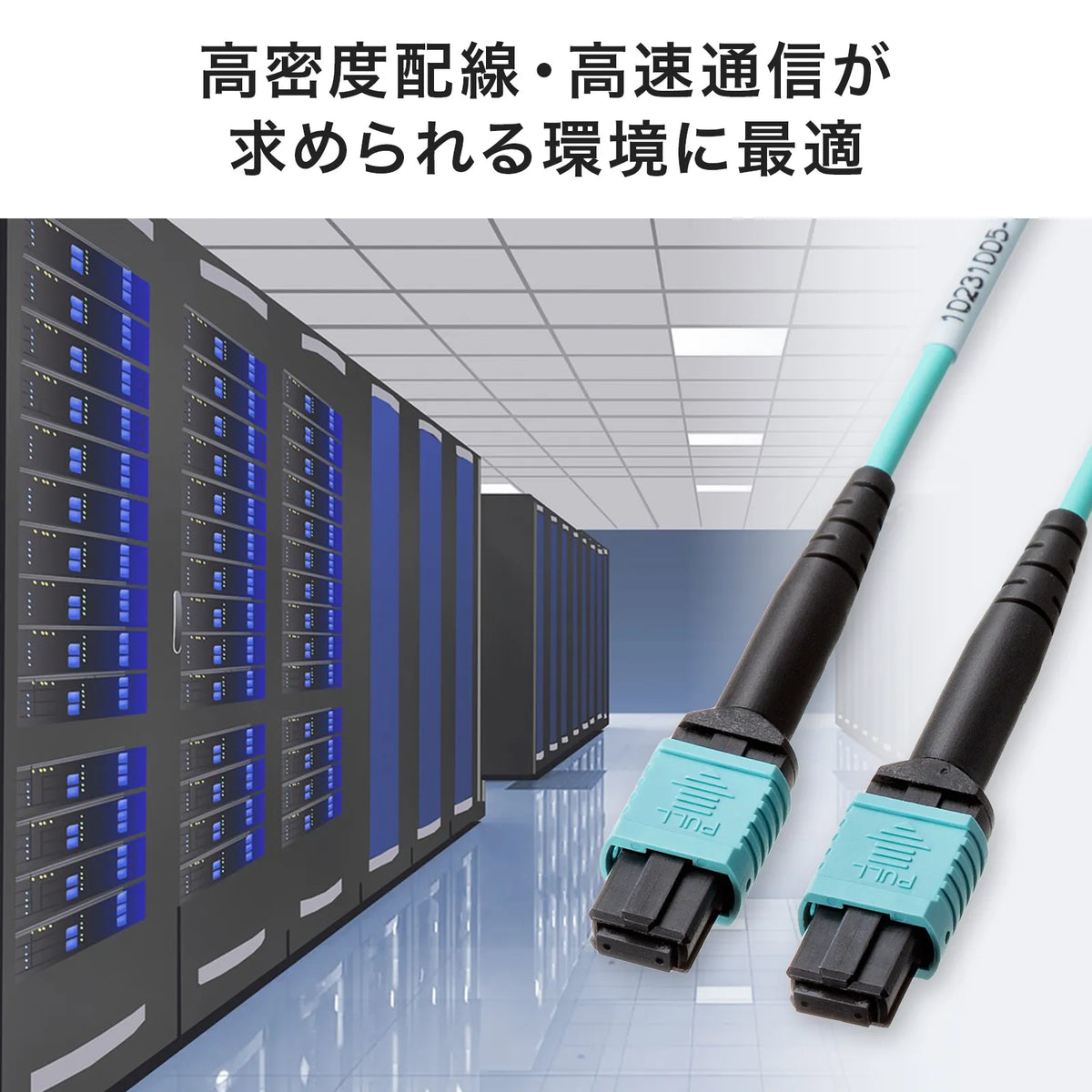

• Ideal for data centers and server rooms
An ideal optical fiber solution for environments requiring high-density wiring and high-speed communication.
?Traceability available
Double inspection is performed with 100% inspection at the factory and 100% inspection before shipment, and the cables are labeled with serial numbers for traceability.
?Custom length available
Can be manufactured with any cable length and specifications to suit your application.


■Optical fiber core diameter: 50um
■Optical fiber cladding diameter: 125um
■Fiber type: Multimode
■Number of cores: 12 cores
■Cable length: 3m

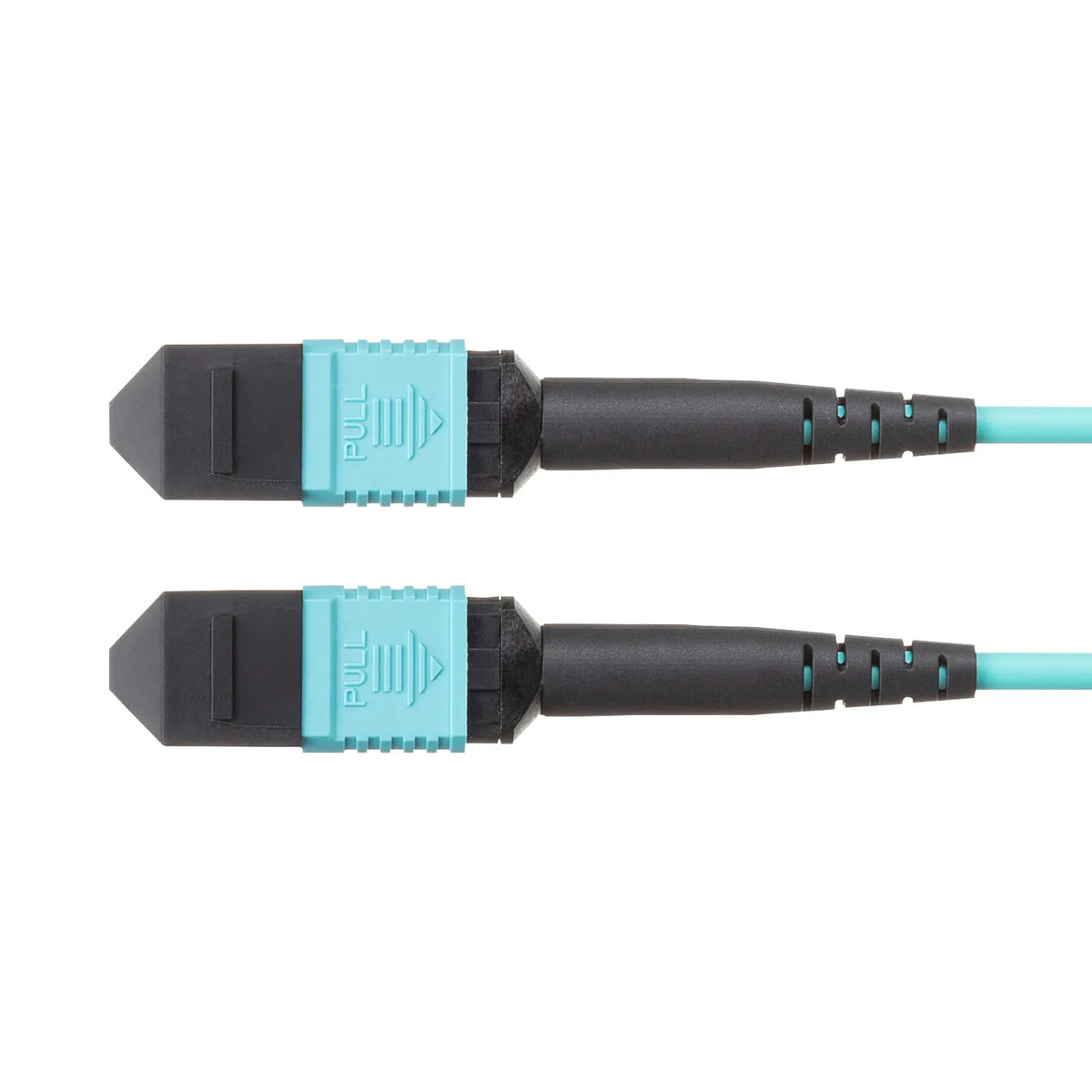

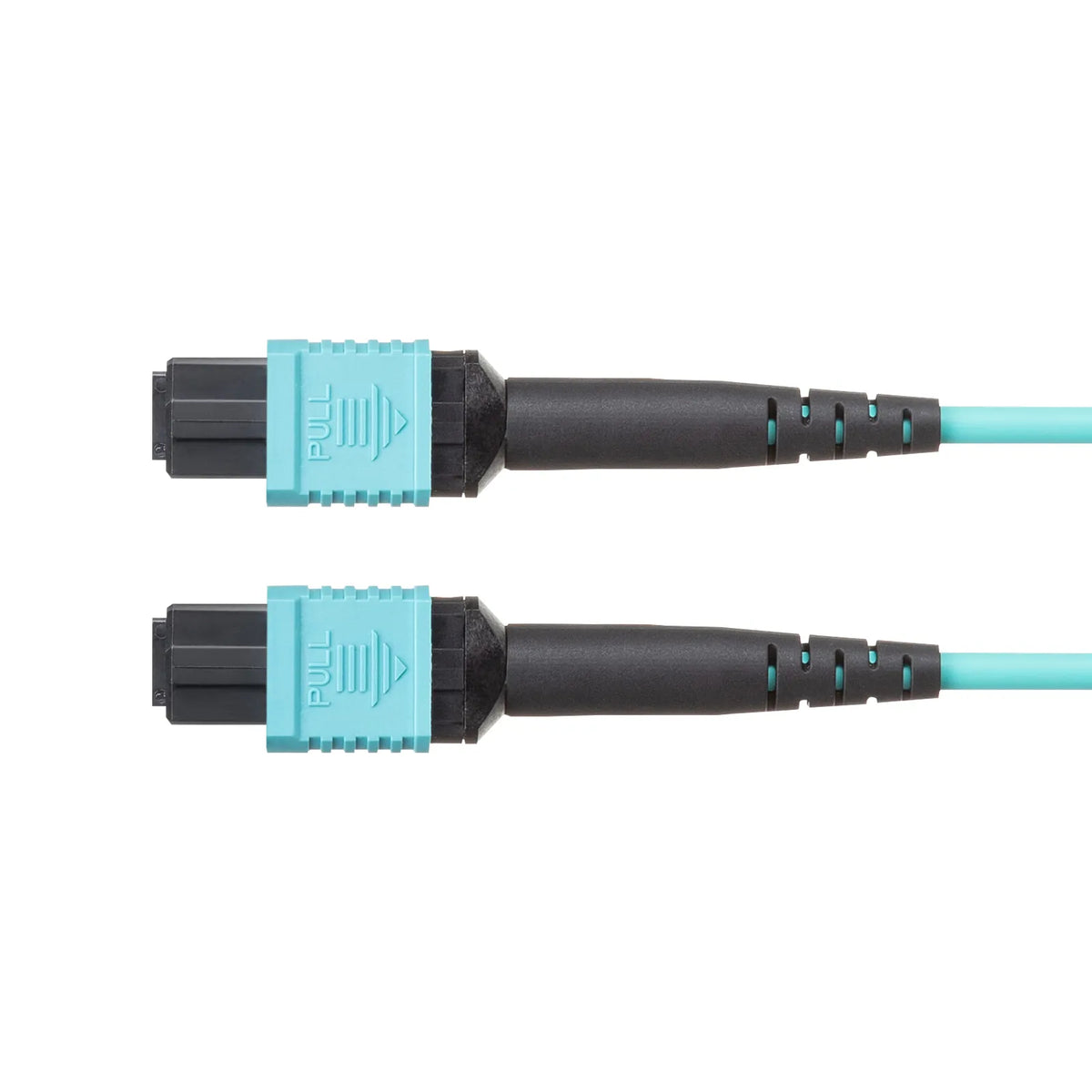

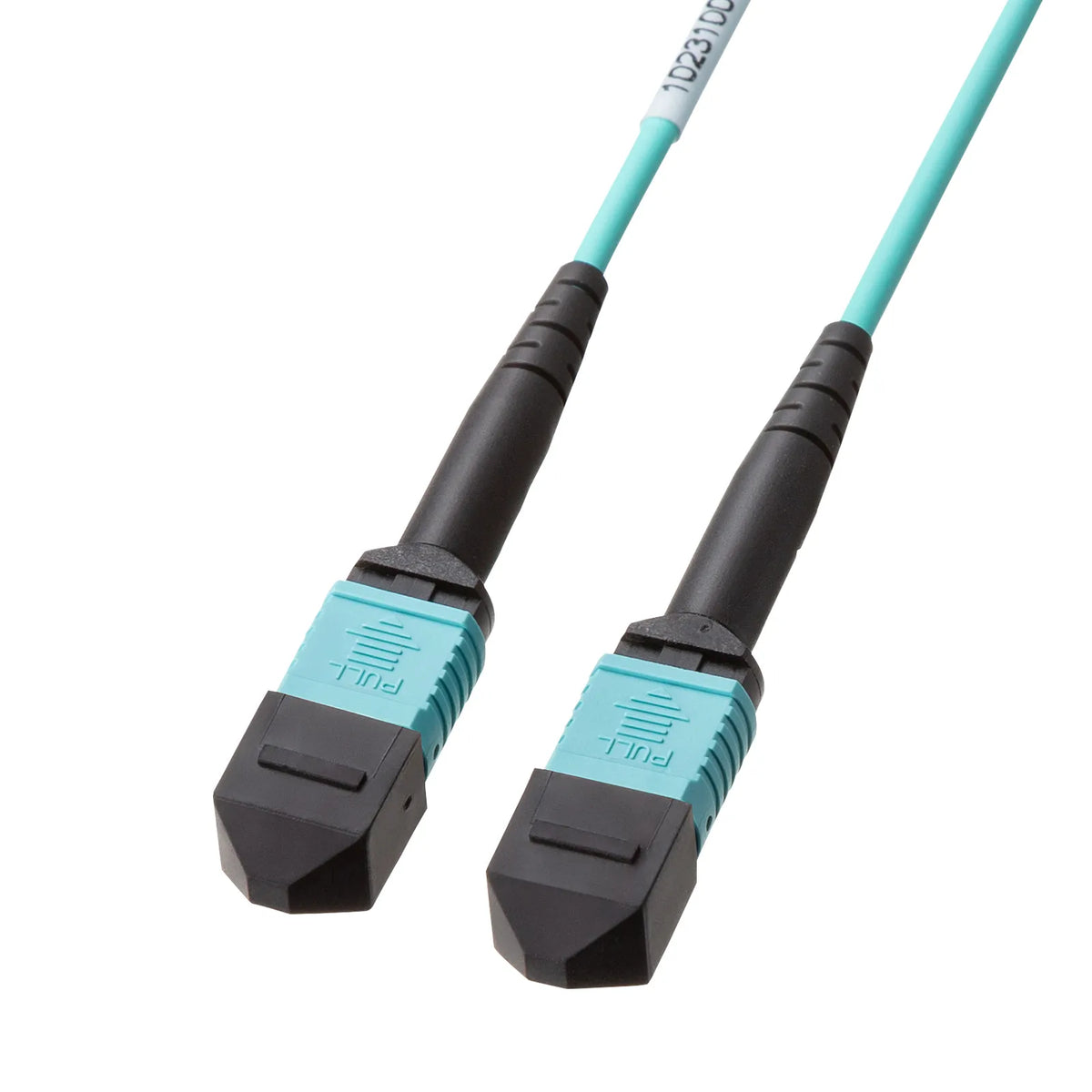

■Connector shape: MPO connector-MPO connector
JIS C 5982 (F13)
IEC 61754-7 Compliance
■Connector polishing: Flat PC polishing
■Cable characteristics:
・Wavelength: 850nm, 1300nm
・Transmission loss: 3.0dB/km or less, 1.0dB/km or less
・All-mode excitation bandwidth: 3500MHz・km or more, 500MHz・km or more
・Limited-mode excitation bandwidth: 4700MHz・km, -
■Standard outer diameter: 3.0mm
■Cable color: Aqua (light blue)
■Shape specification type: Other
Round type

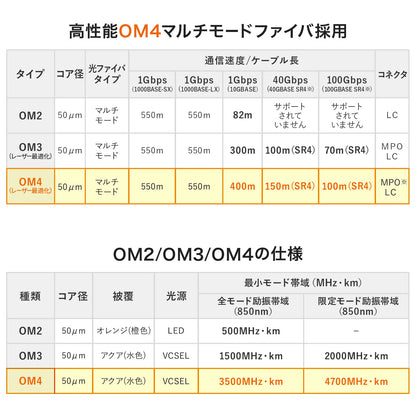

■Optical fiber TIA standard: OM4
■Usage environment: Indoor use
■Optical fiber classification: Great Index (GI)
■Optical wavelength: 850nm, 1300nm

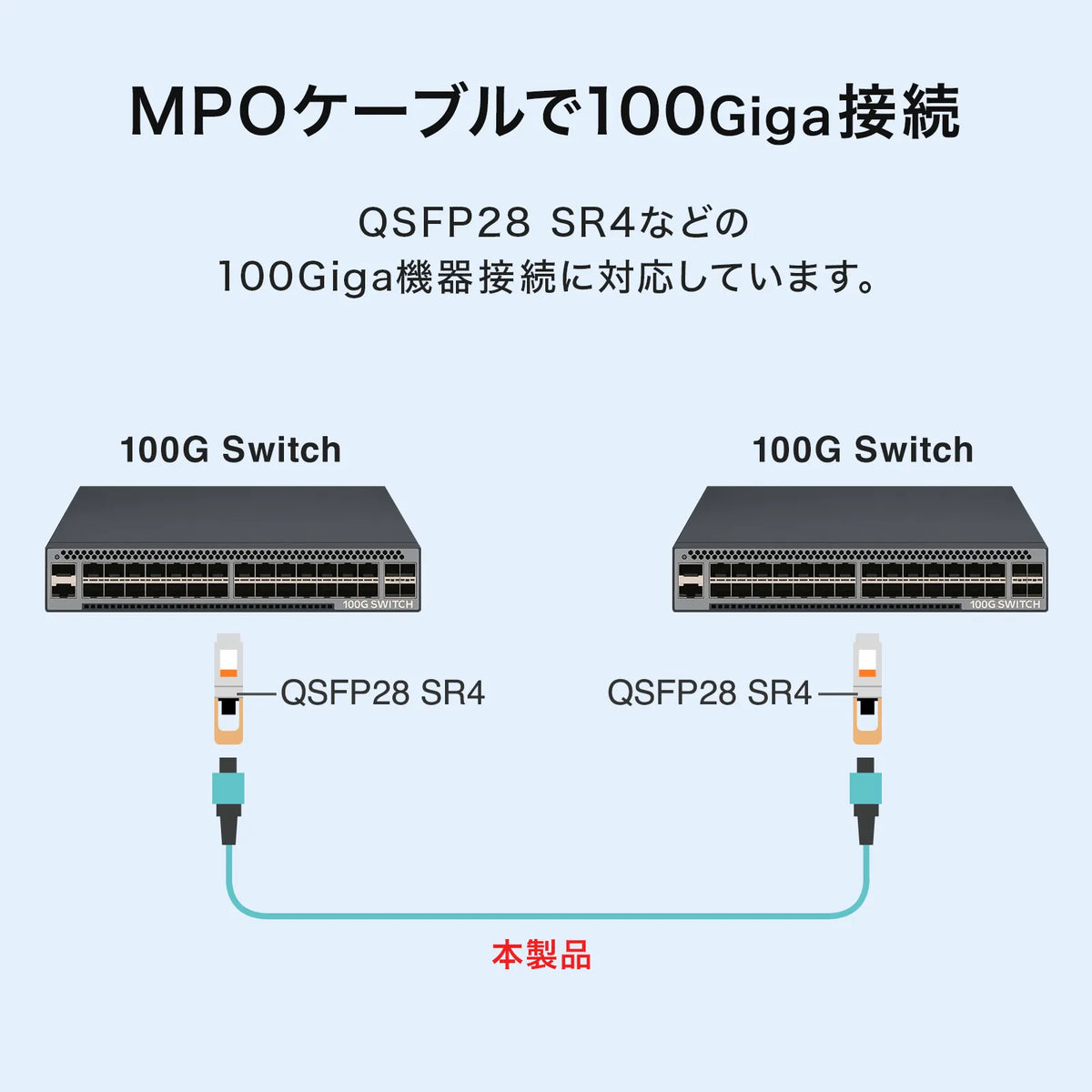

■Compliant standards: 40G BASE-SR4, 100GBASE-SR4 compatible
■Transmission speed/maximum transmission distance: 100Gbps/100m, 40Gbps/150m, 10Gbps/400m
■Connector standard: JIS C 5982 (F13)
Compliant with IEC 61754-7
■Connector loss dB: Wavelength 850nm 0.75 or less
1300nm 0.75 or less
■Connector return loss dB: 25 or more
■Flame retardancy: LSZH
■Cable sheath: PVC
■Allowable bending radius: 60mm or more during installation
30mm or more after installation
■Tensile strength N: 70 or less
■Operating temperature range: -20 to 60 degrees
■Storage temperature range: -40 to 70 degrees
■Operating humidity range: 20 to 80% (non-condensing)
■Storage humidity range: 20 to 80% (non-condensing)
■Notes: No guide pins
