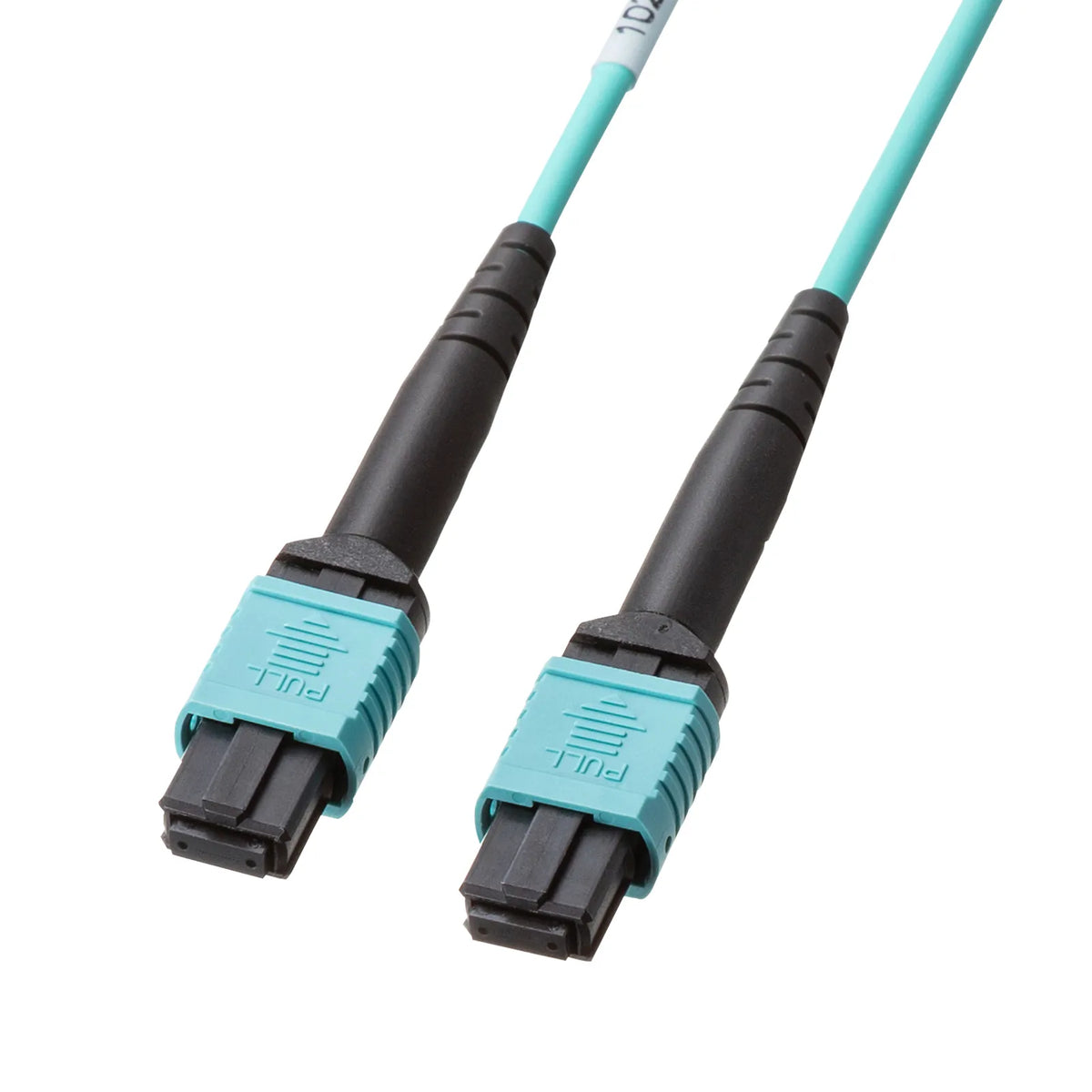

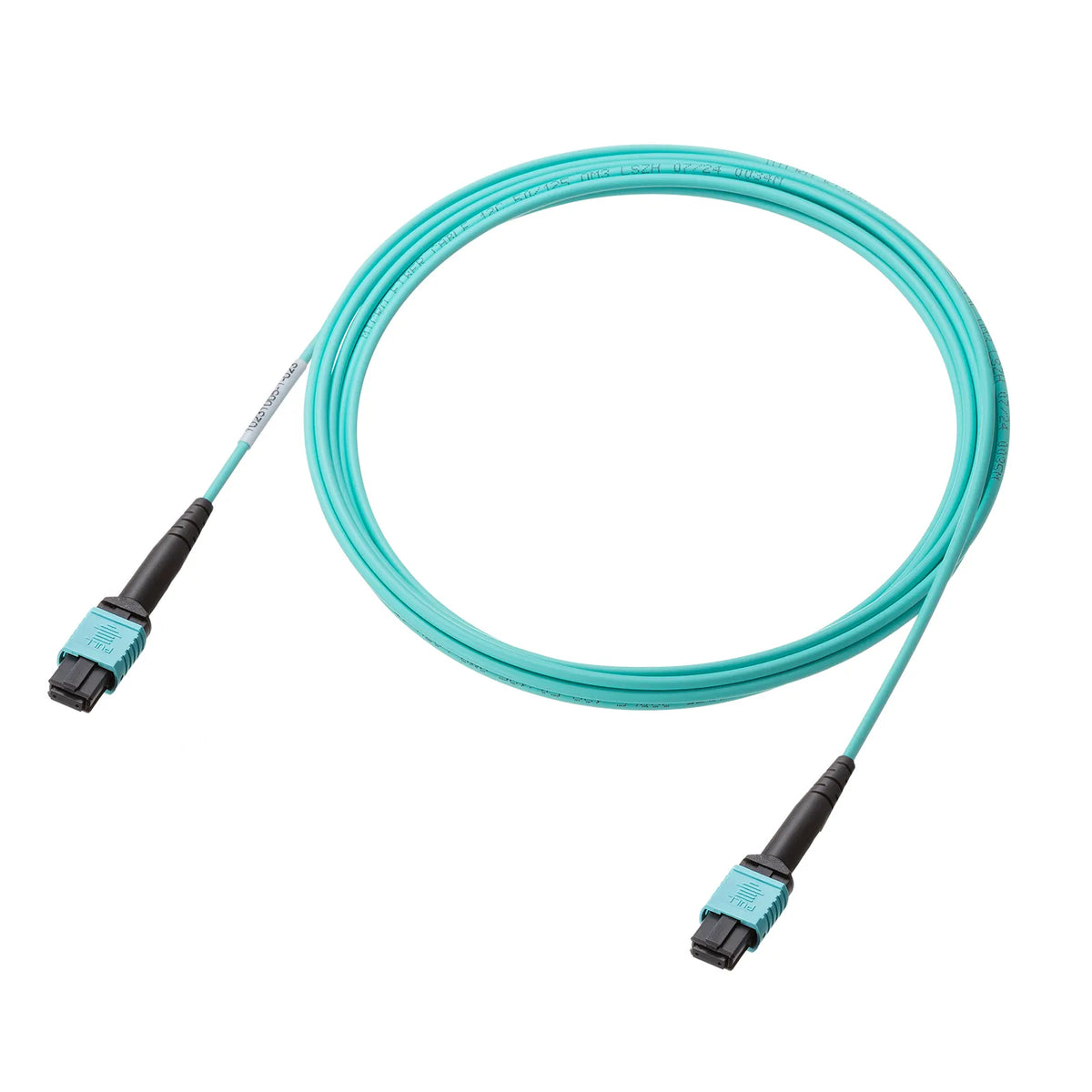

MPO Fiber Optic Cable (OM3, 12-core, B-wire, 3m) HKB-MPO12M3B-03

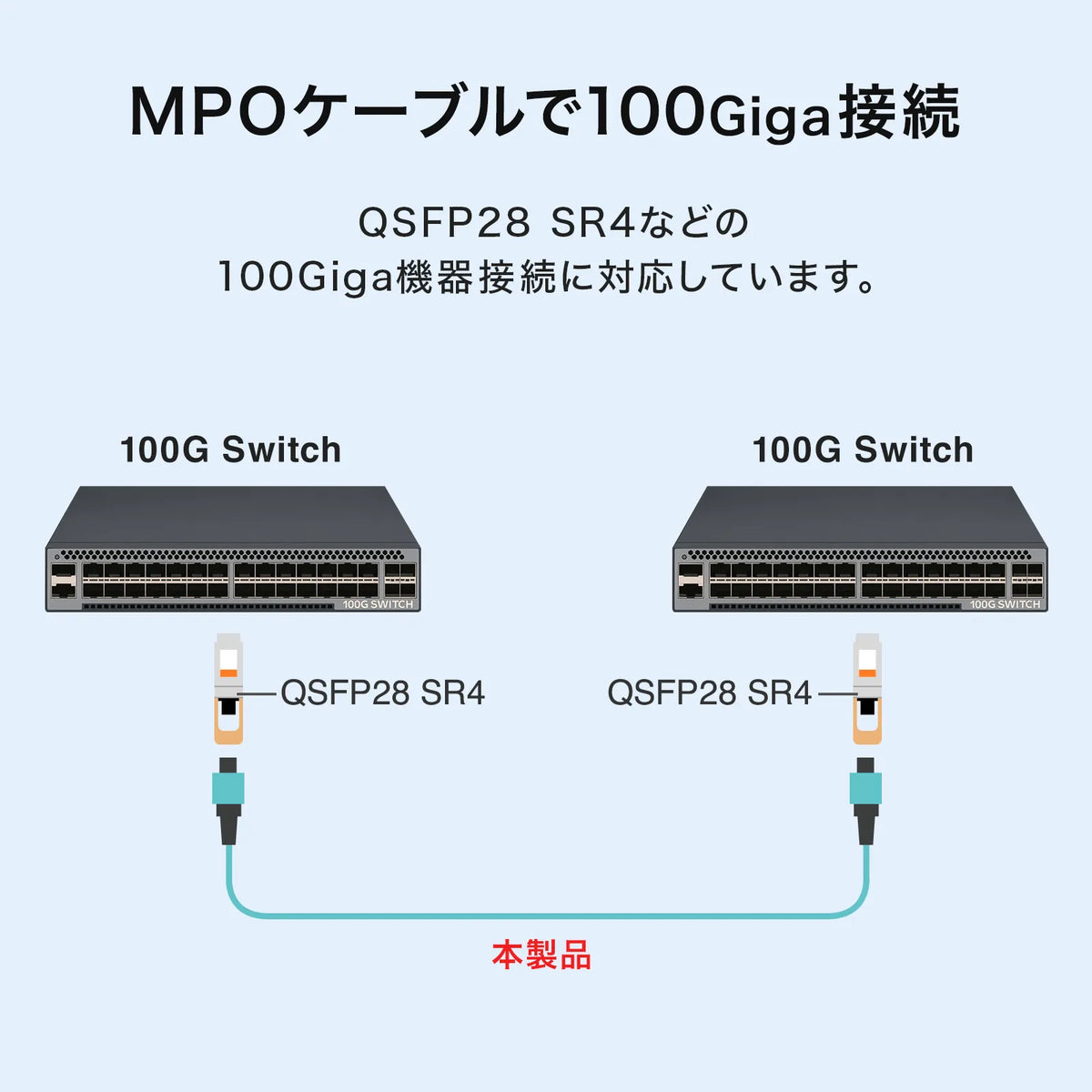

[OM3 optical fiber cable with MPO connector, compatible with 40G BASE-SR4 and 100GBASE-SR4.]

? Uses OM3 multimode fiber
Supports 100Gbps high-speed data transmission, ideal for 100G/40G/10G networks.
Stable communication is possible up to a maximum transmission distance of 70m at 100Gbps.

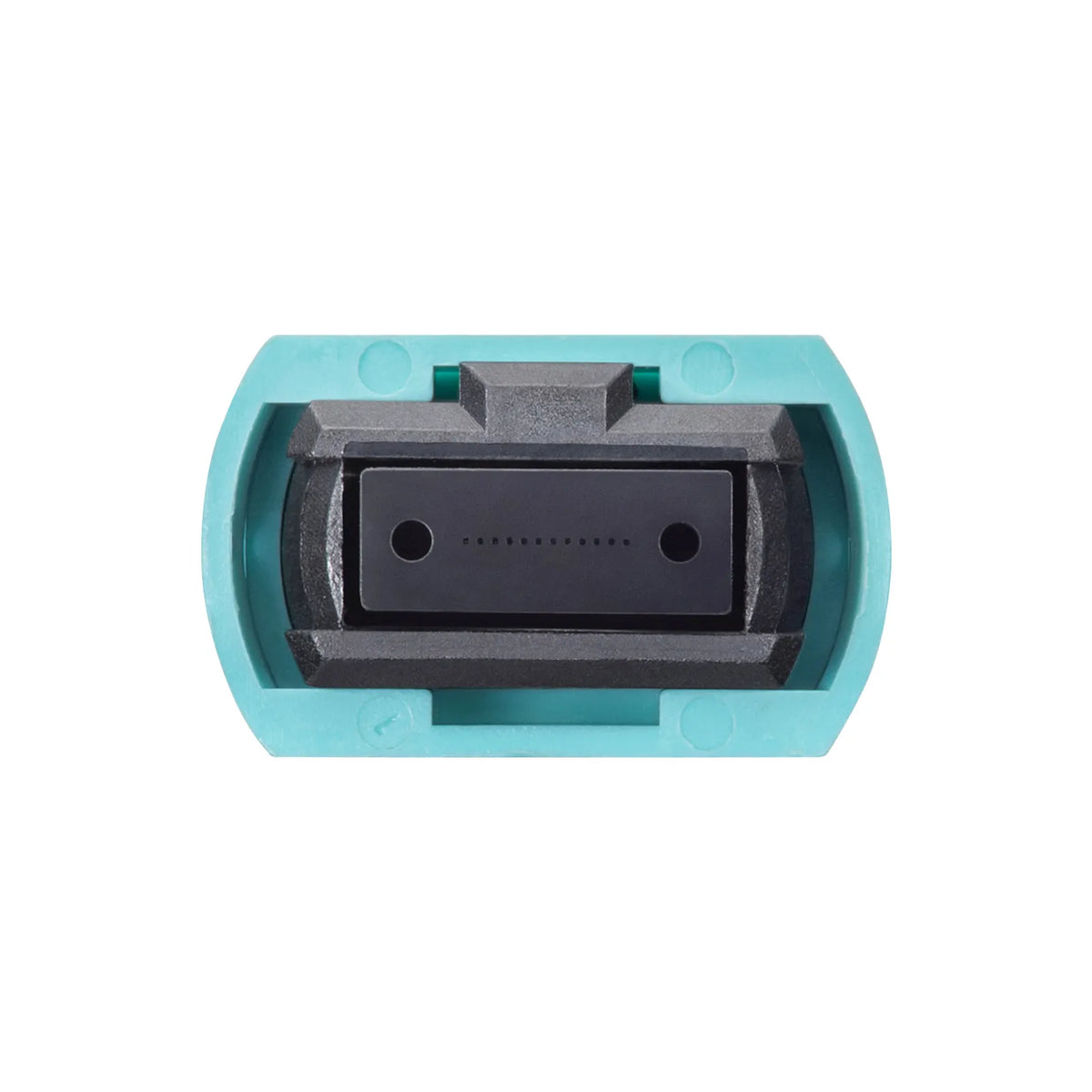

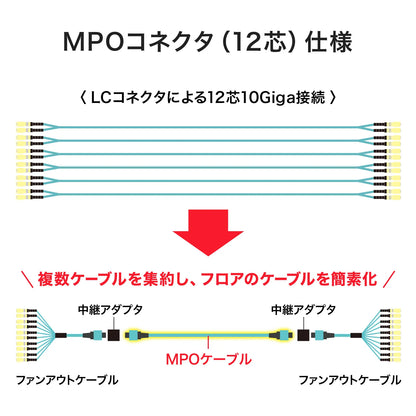

? High-density connection with MPO connector (12 cores)

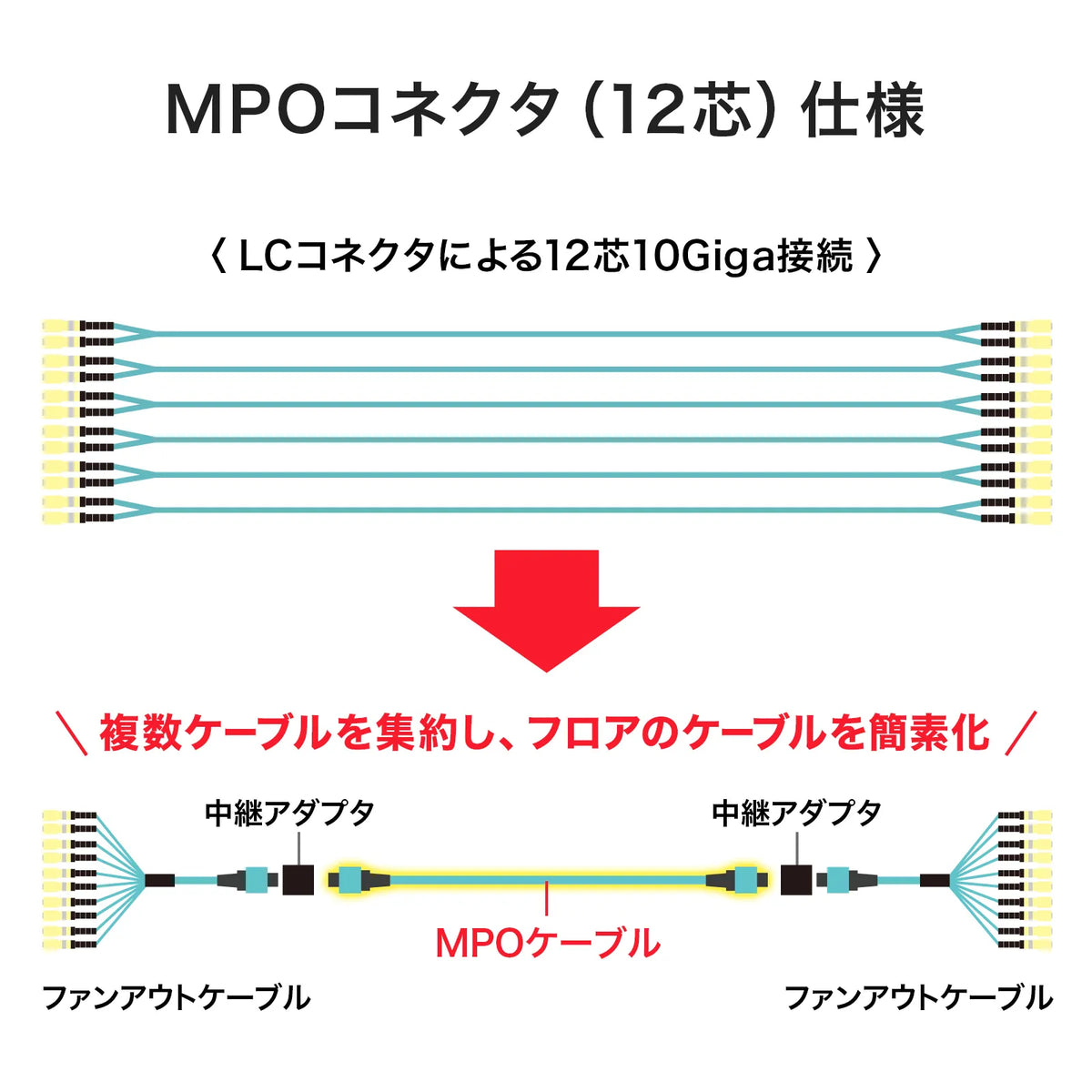

12 cores can be connected together in one cable, saving space and improving wiring efficiency.

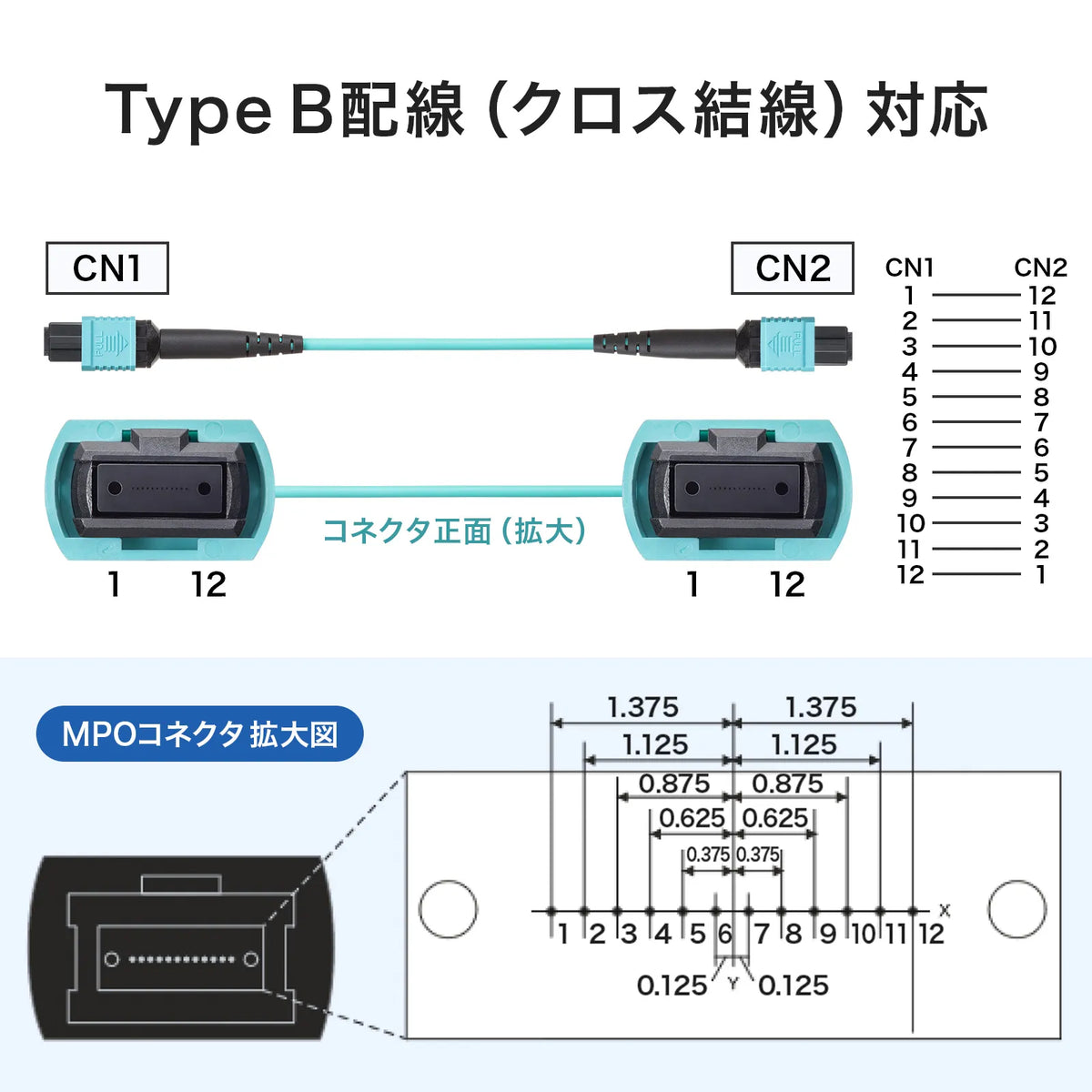

? Supports Type B wiring (crossover connection)
Employs the wiring method best suited for parallel transmission systems such as QSFP+/QSFP28.
? High reliability and low loss design
Achieves insertion loss (IL) ≤ 0.75dB and return loss (RL) ≥ 20dB, providing stable optical communication.
? Ideal for high-density networks
Compatible with high-speed, highly integrated environments such as data centers, server rooms, and patch panels. **Flexible and easy-to-handle cable structure:** Can be smoothly laid even in narrow spaces or inside racks. **Traceable reliability:** Double inspection is performed, with 100% inspection at the factory and 100% inspection before shipment. Cables are labeled with serial numbers for traceability. **Cost-effective high-speed communication cable:** More economical than OM4, ideal for short to medium distance high-speed communication applications. **Custom length orders available:** Can be manufactured to the optimal length to suit the installation environment. **■Optical fiber core diameter: 50um
■Optical fiber cladding diameter: 125um
■Fiber type: Multimode
■Number of cores: 12 cores
■Cable length: 3m

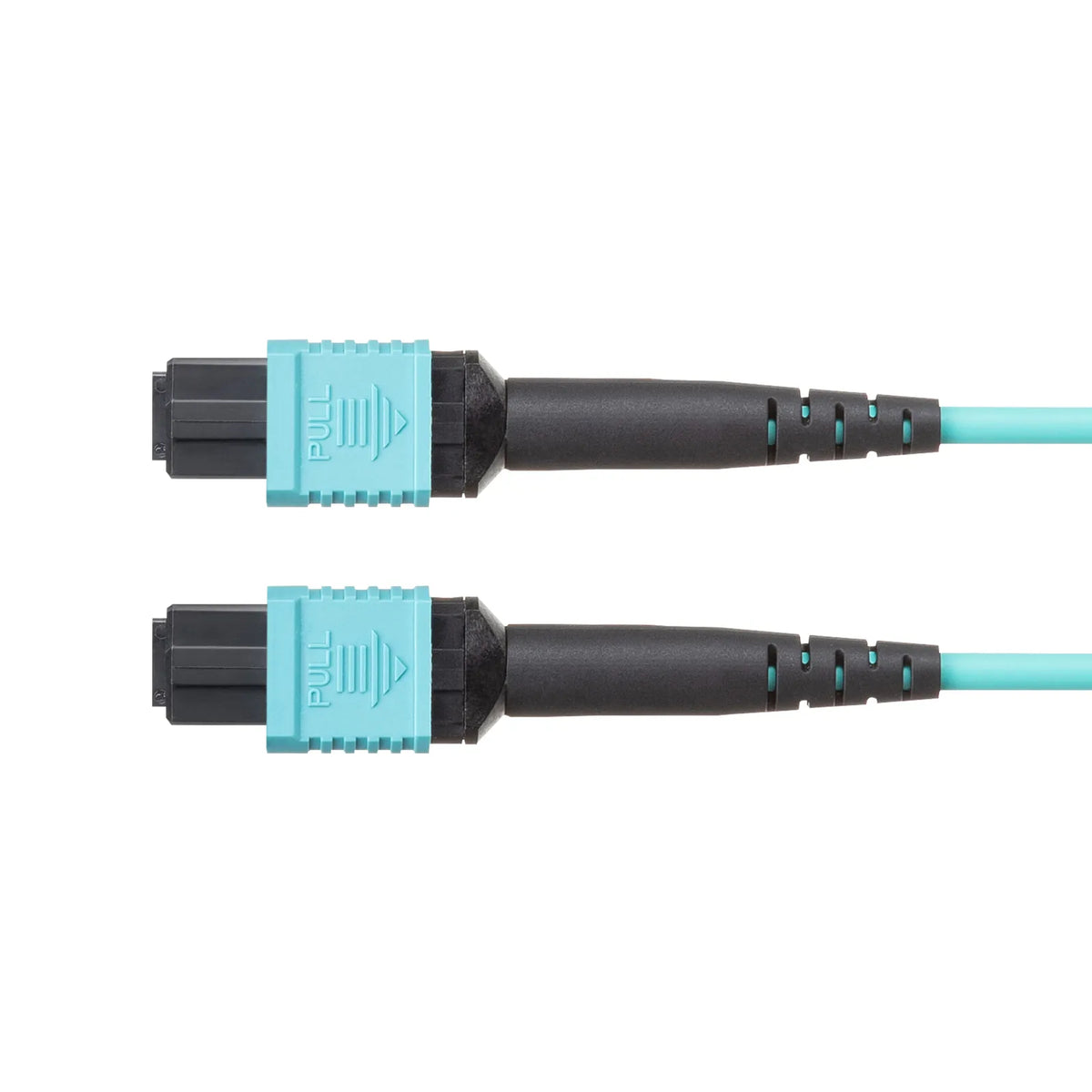

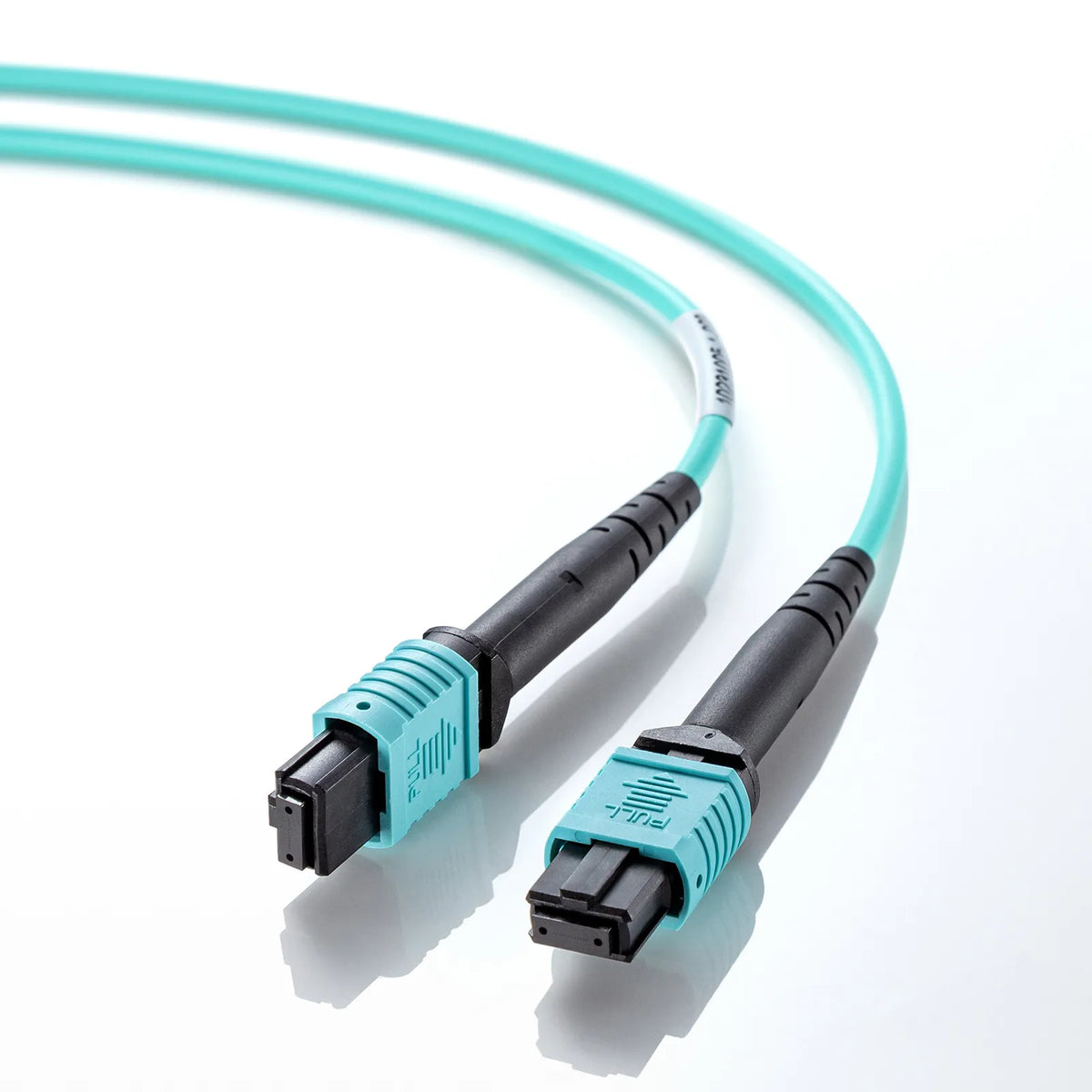

■Connector shape: MPO connector - MPO connector
JIS C 5982 (F13)
IEC 61754-7 Compliant
■Connector polishing: Flat PC polishing
■Cable characteristics:・Wavelength: 850nm, 1300nm
・Transmission loss: 3.0dB/km or less, 1.0dB/km or less
・All-mode excitation bandwidth: 1500MHz・km or more, 500MHz・km or more
・Limited-mode excitation bandwidth: 2000MHz・km, -
■Standard outer diameter: 3.0mm
■Cable color: Aqua (light blue)
■Shape specification type: Other
Round type
■Optical fiber TIA standard: OM3
■Usage environment: Indoor use
■Optical fiber classification: Great Index (GI)
■Optical wavelength: 850nm, 1300nm
■Compliant standards: 40G BASE-SR4, 100GBASE-SR4 compatible

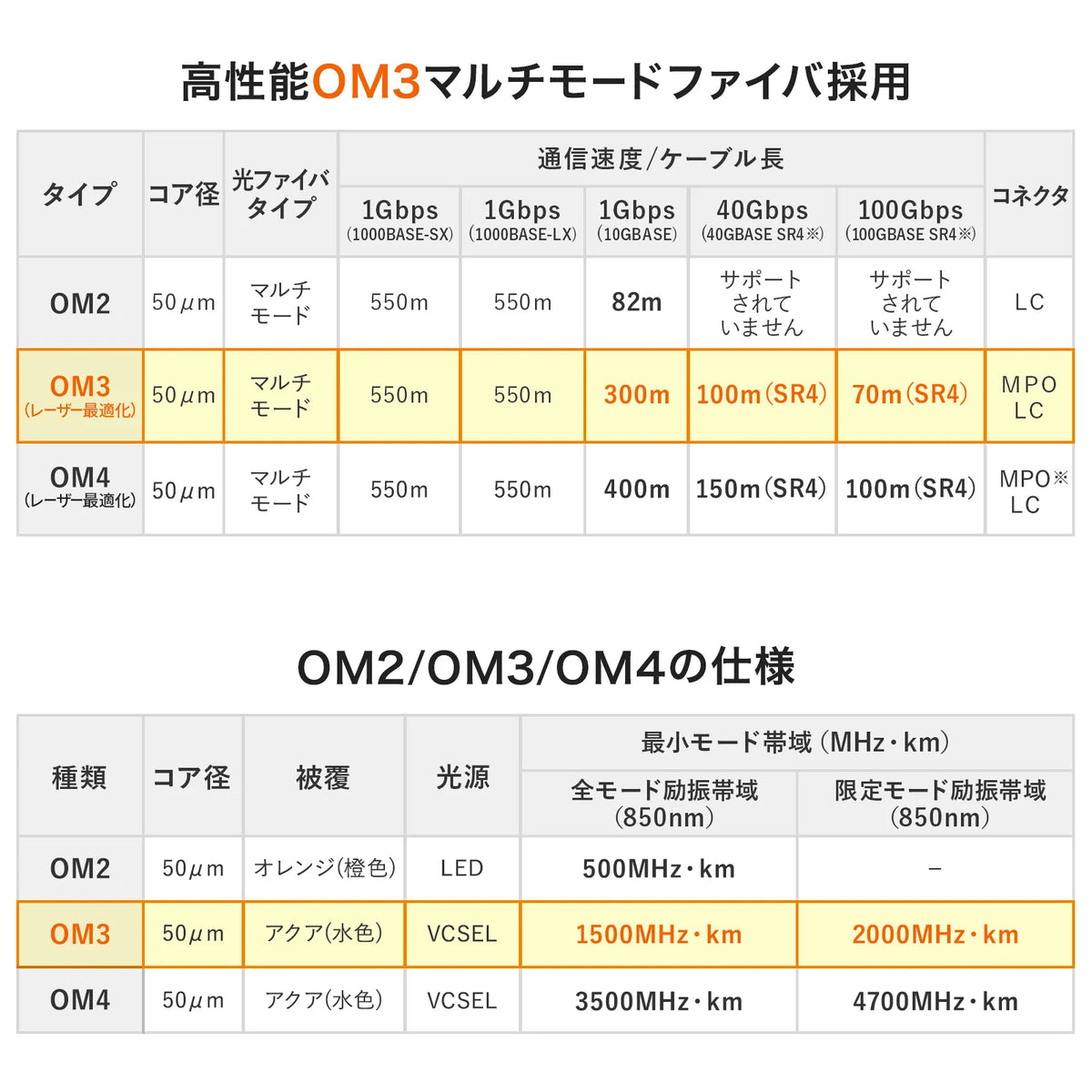

■Transmission speed/maximum transmission distance: 100Gbps/70m, 40Gbps/100m, 10Gbps/300m
■Connector standard: JIS C 5982 (F13)
Compliant with IEC 61754-7
■Connector loss dB: Wavelength 850nm 0.75 or less
1300nm 0.75 or less
■Connector return loss dB: 25 or more
■Flame retardancy: LSZH
■Cable sheath: PVC
■Allowable bending radius: 60mm or more during installation
30mm or more after installation
■Tensile strength N: 70 or less
■Operating temperature range: -20 to 60 degrees
■Storage temperature range: -40 to 70 degrees
■Operating humidity range: 20 to 80% (non-condensing)
■Storage humidity range: 20 to 80% (non-condensing)
■Notes: No guide pins
