[Gigabit Ethernet compatible, fiber optic cable with complete noise suppression.]

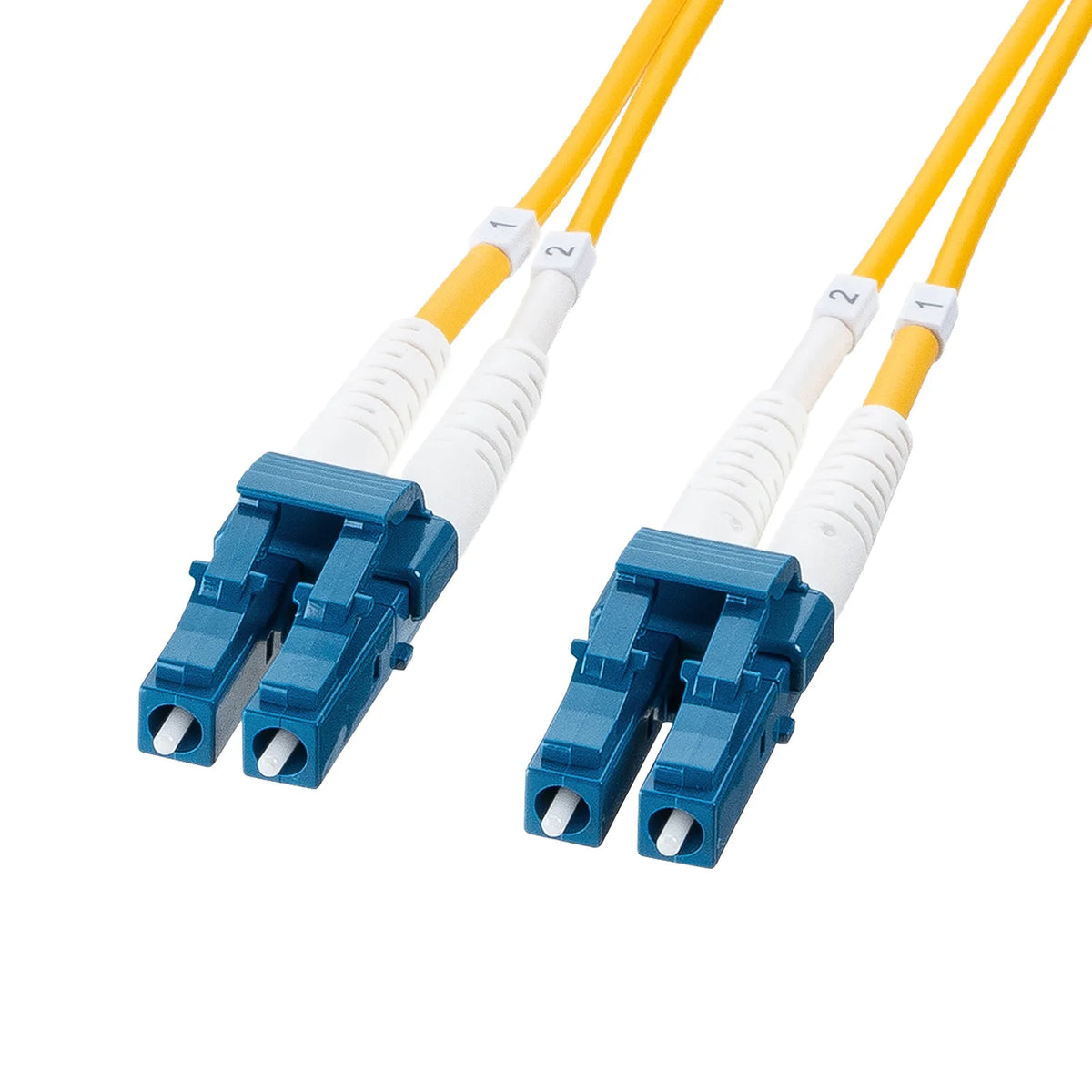

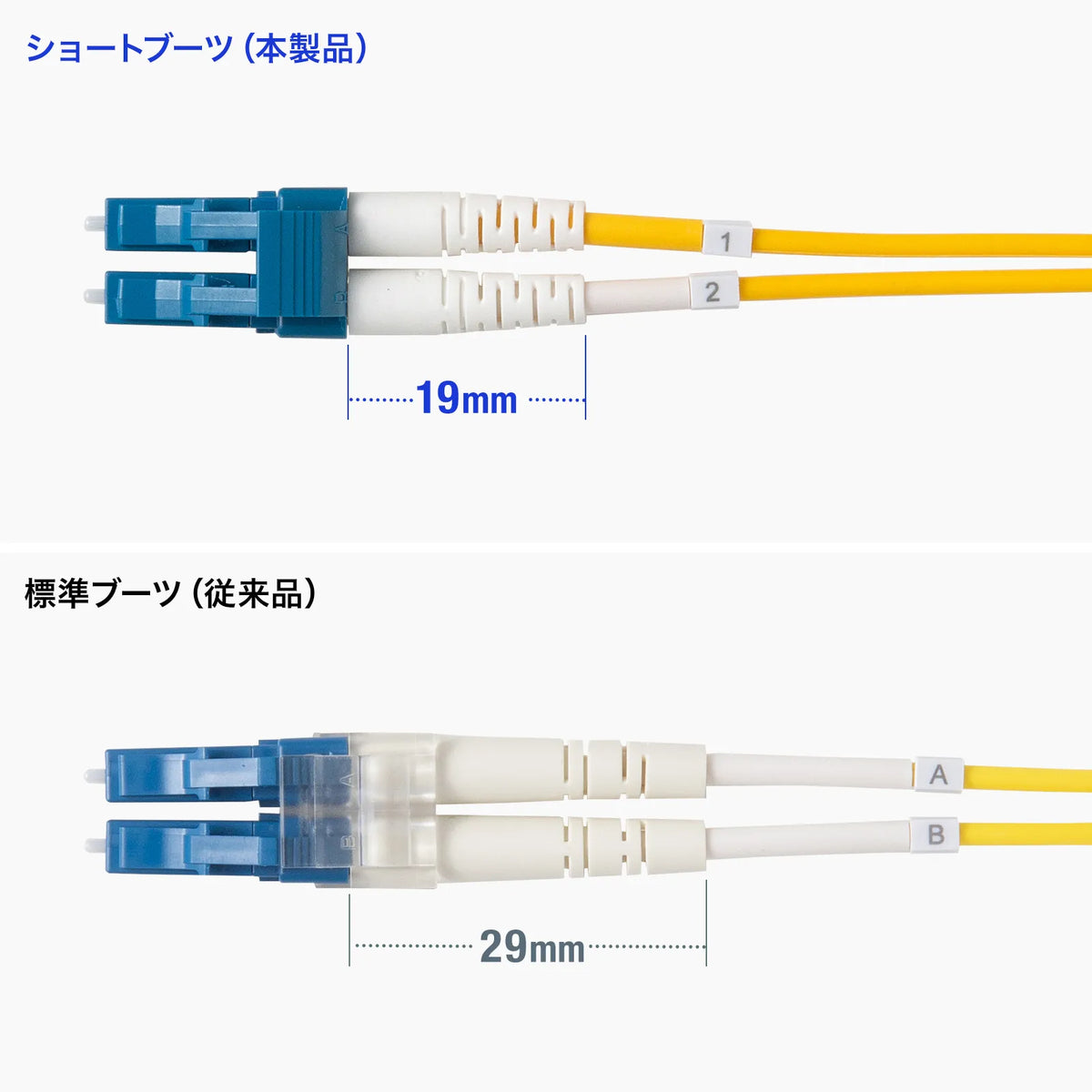

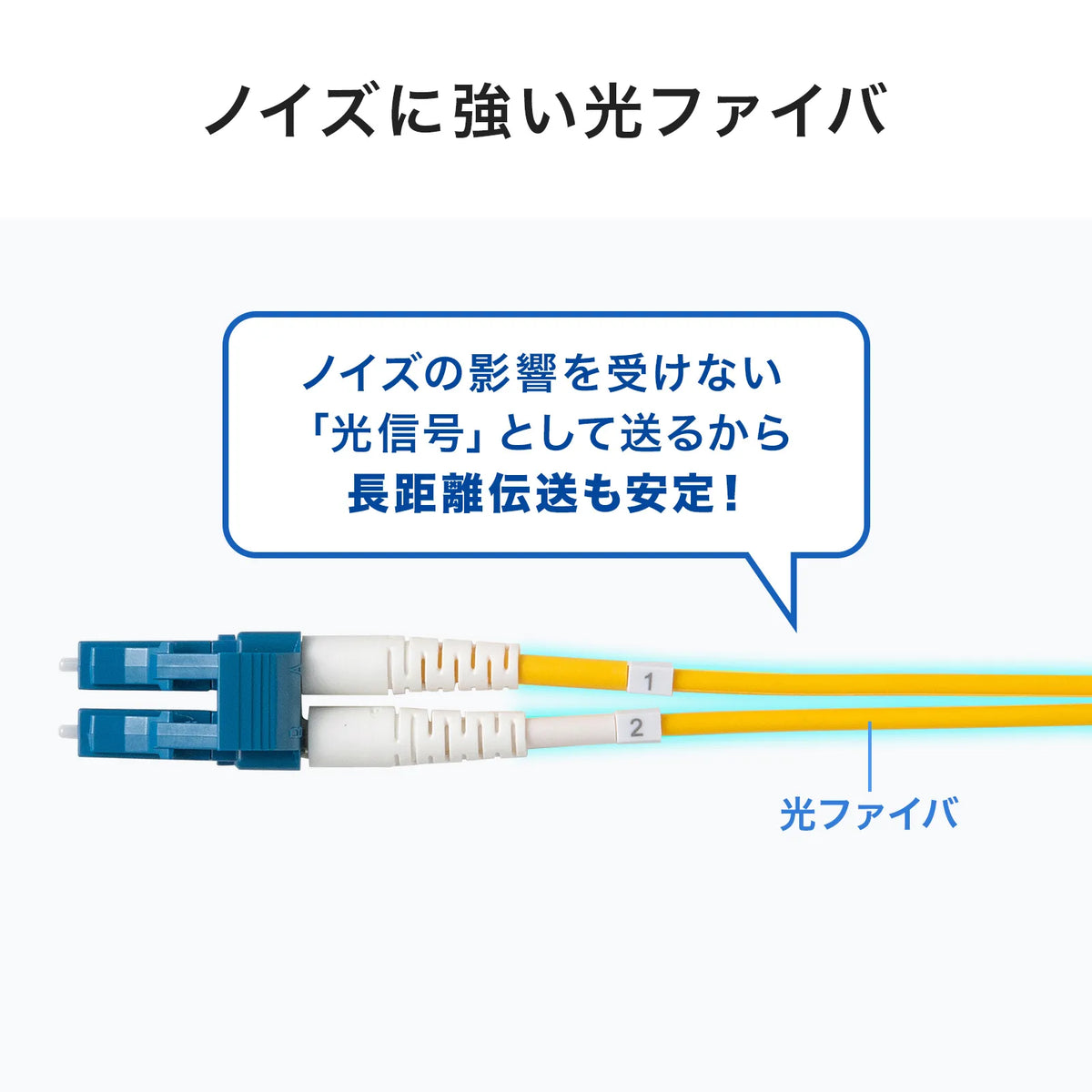

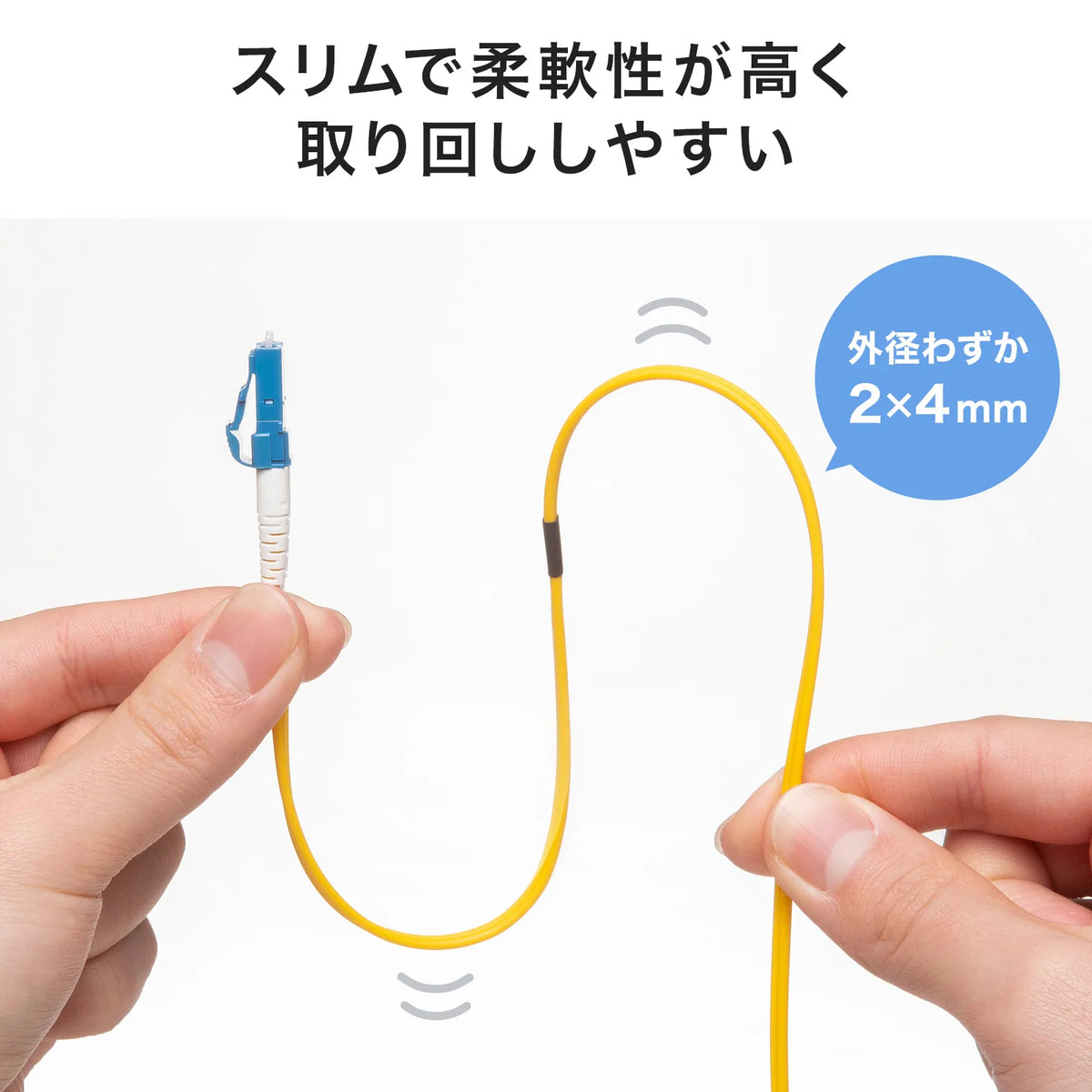

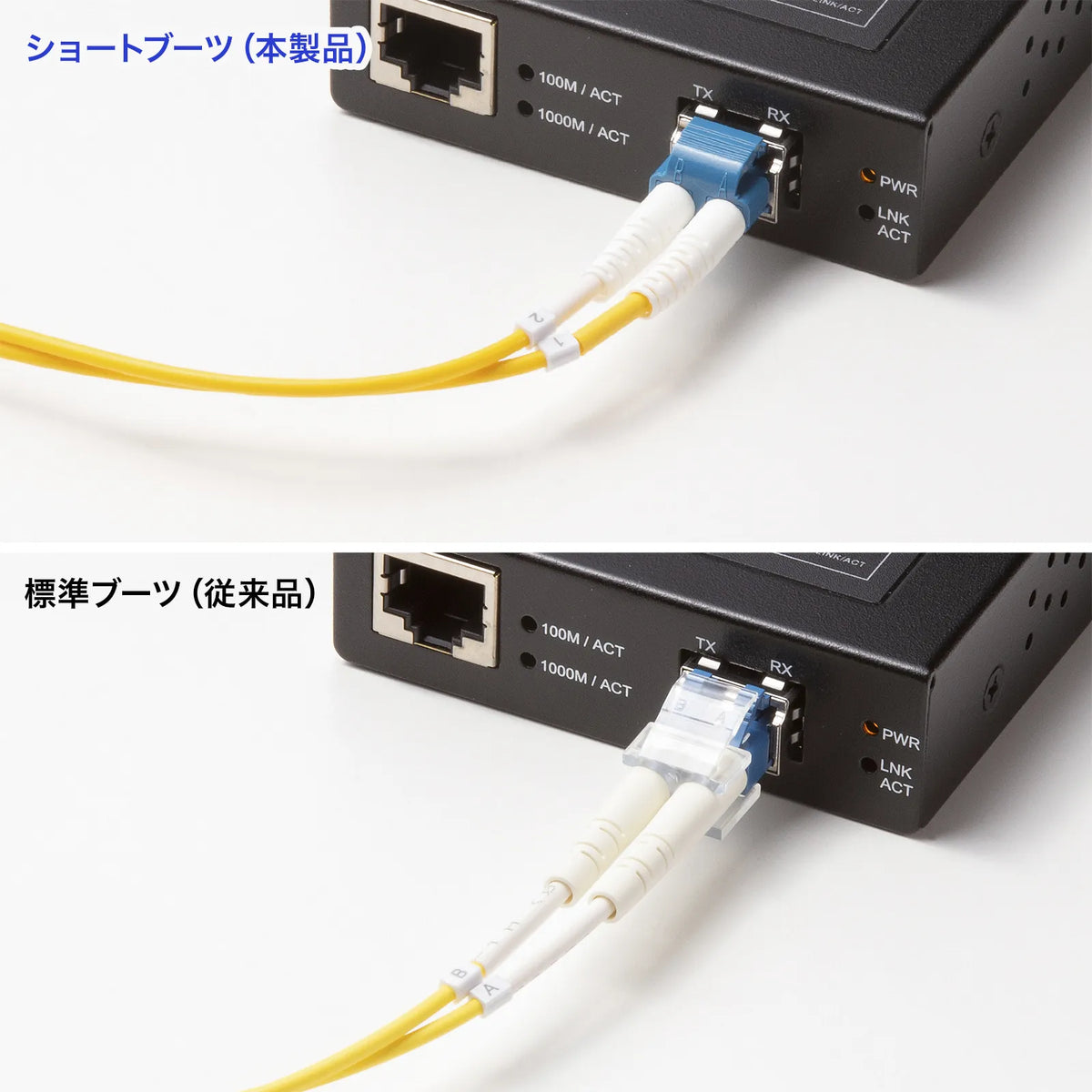

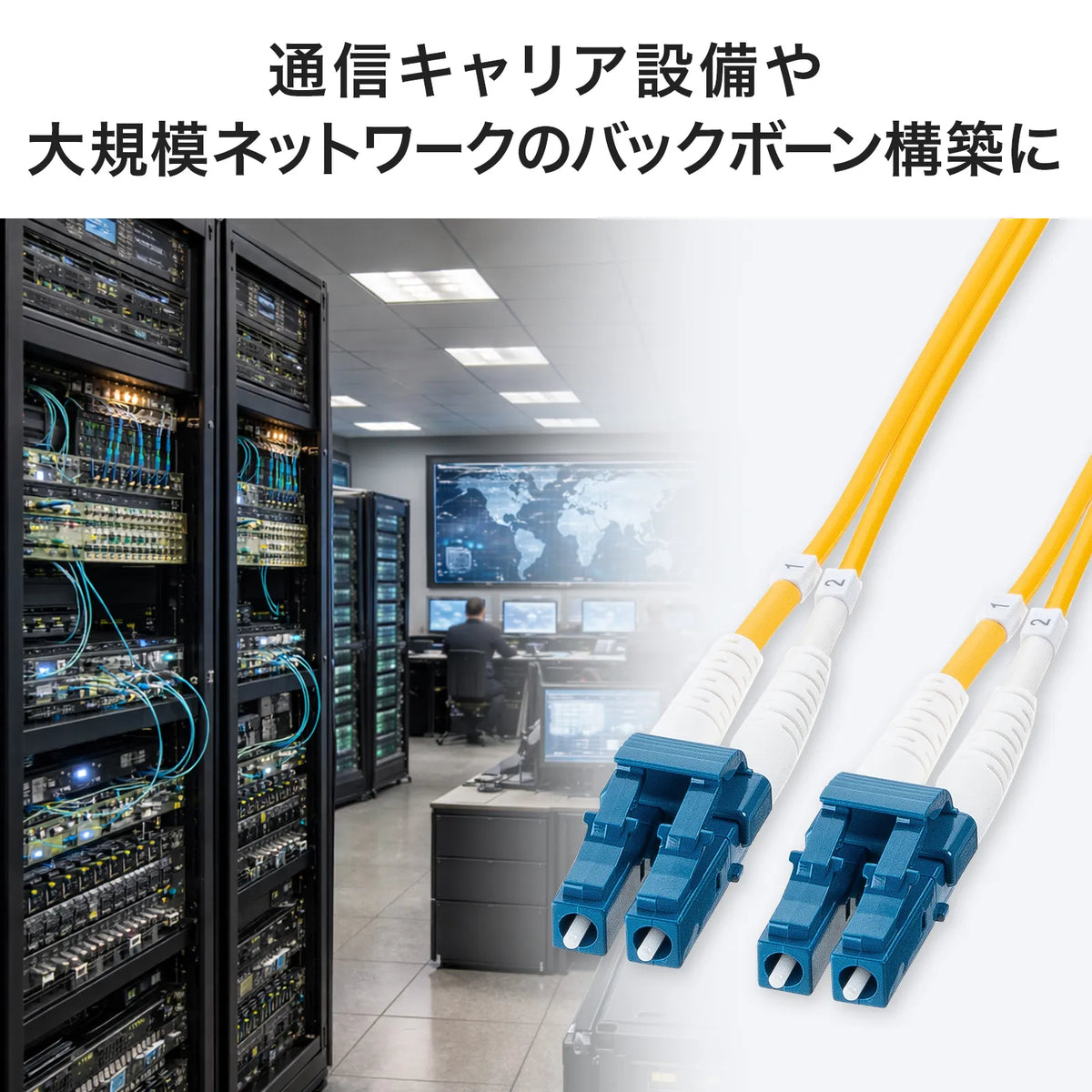

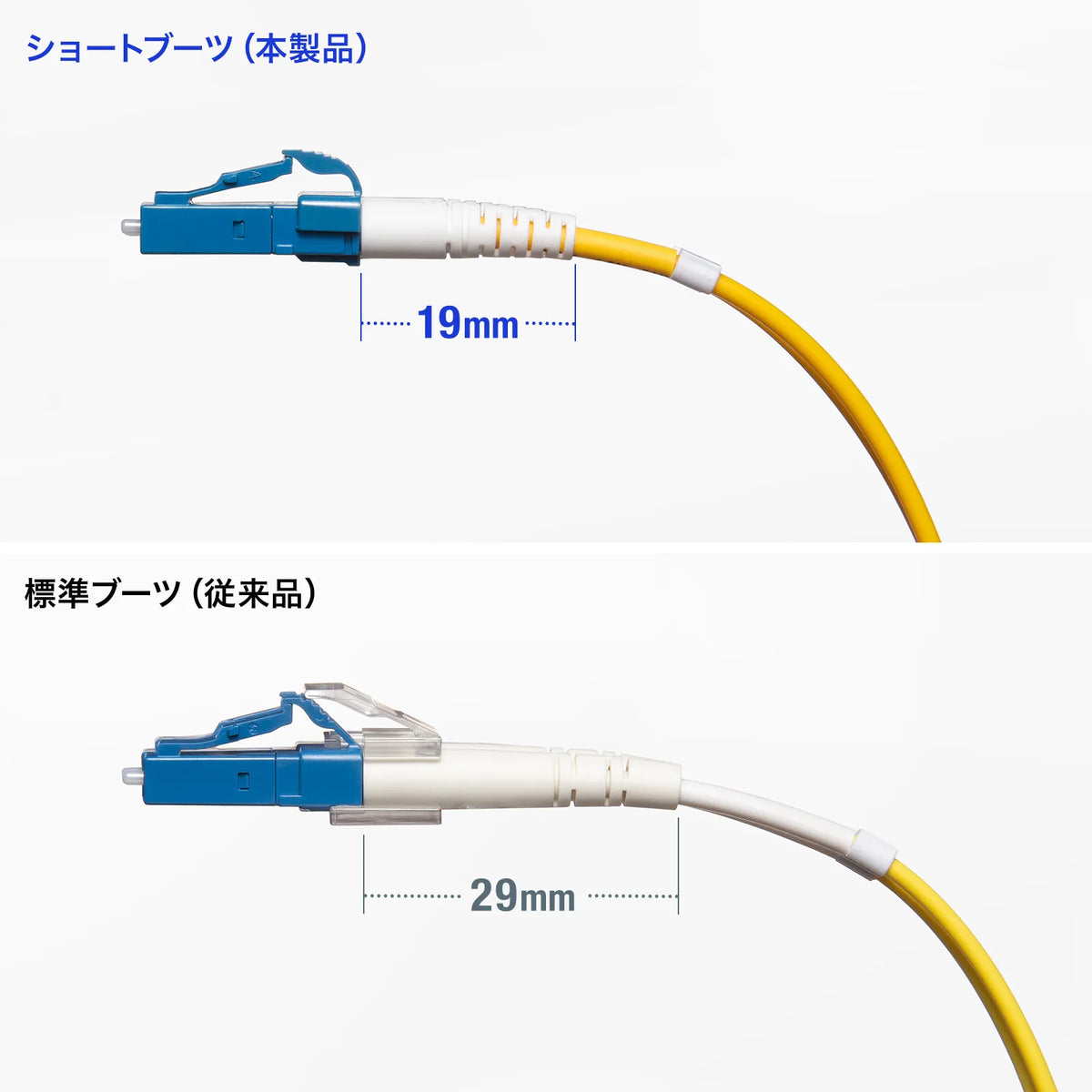

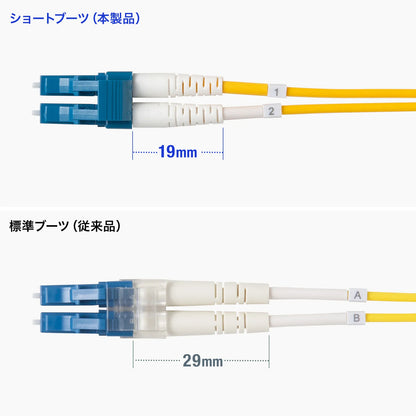

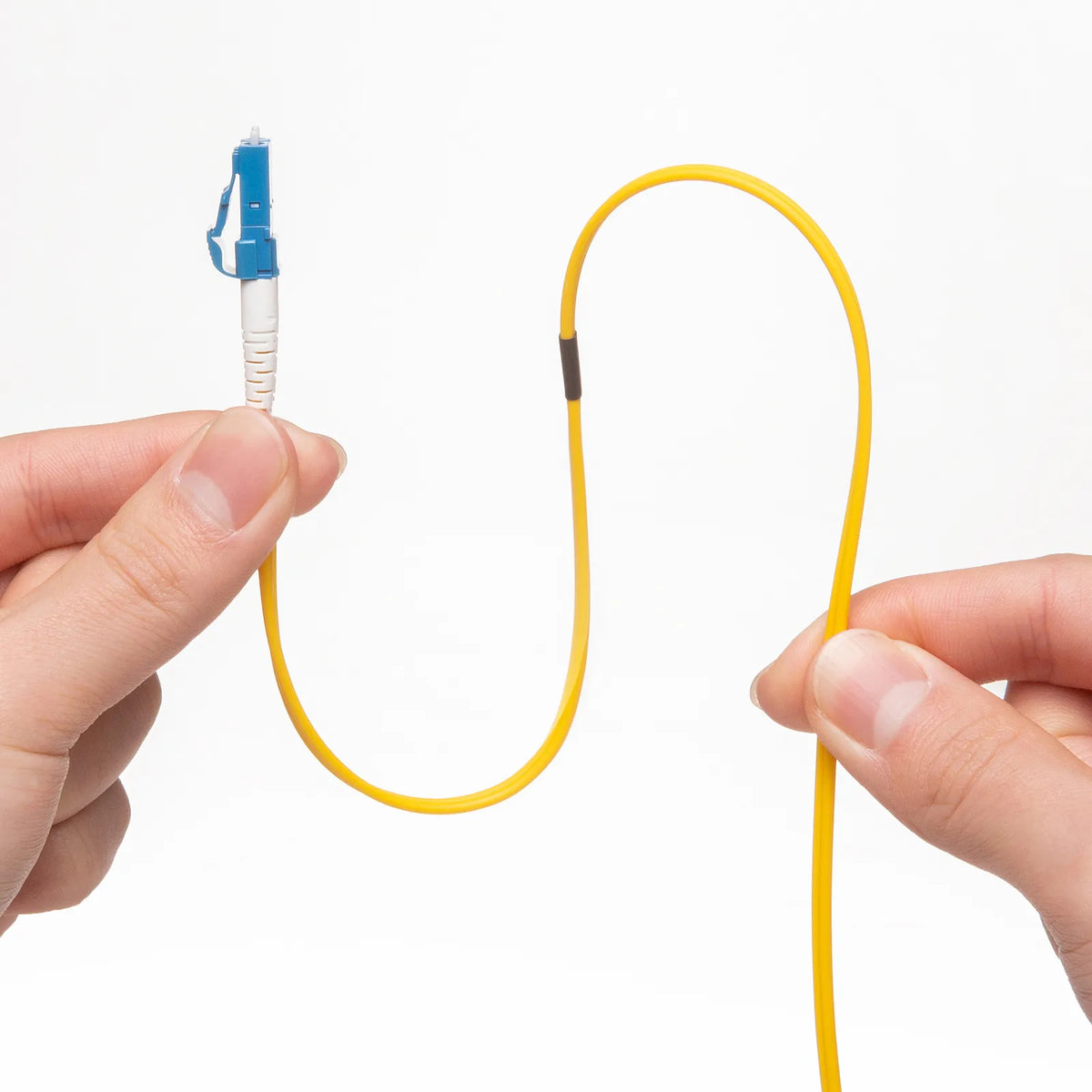

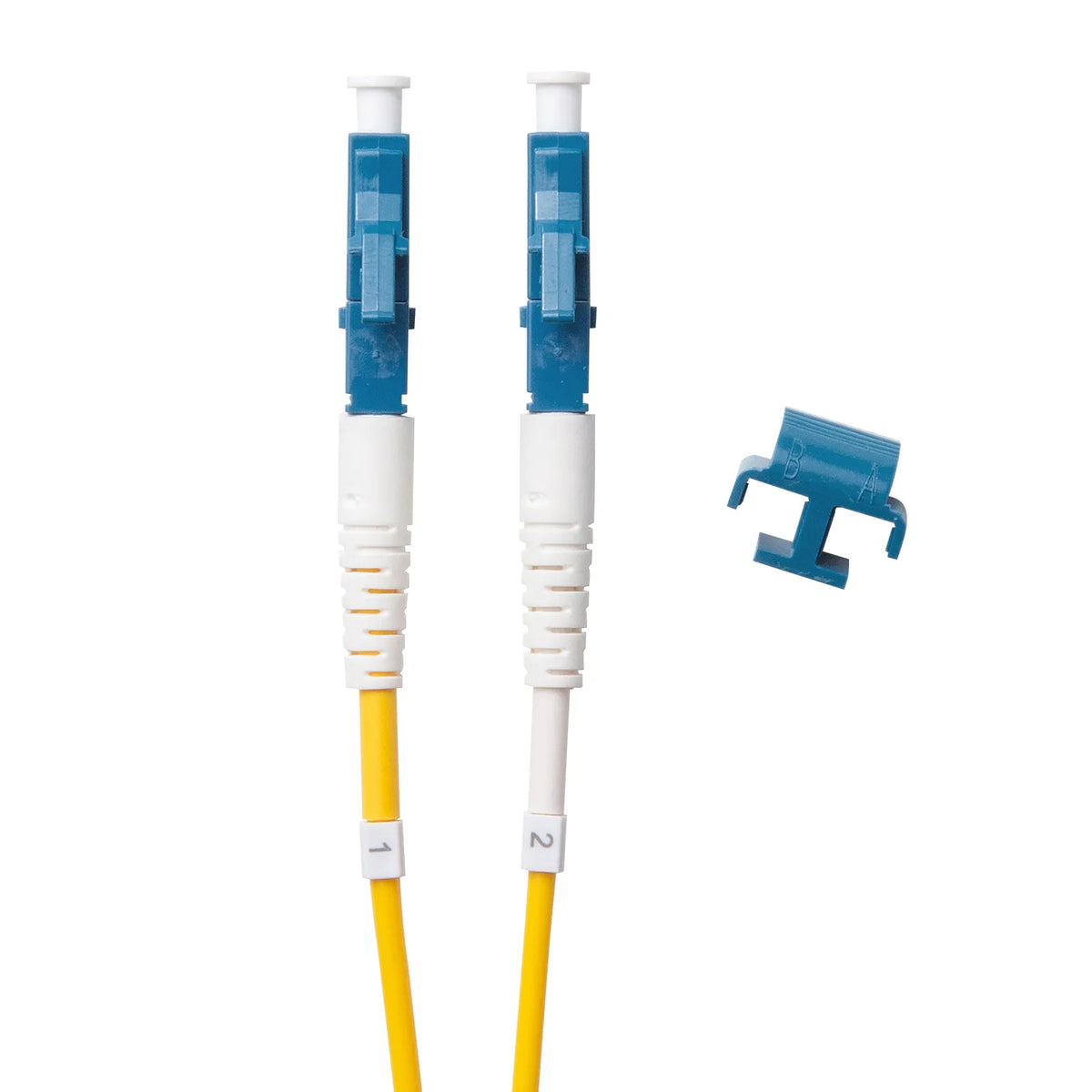

●OS2 single-mode fiber optic cable capable of 10 Gigabit high-speed communication compatible with 10GBASE-LR/ER/ZR standard transmission ●Can be used with 10 Gigabit such as 10GBASE-LR and Gigabit such as 1000BASE-LX ●Low loss specifications enable high-quality, long-distance communication even over long distances ●No electromagnetic induction from external sources, ensuring complete noise suppression ●Flexible and slim spectacle-type structure makes it easy to handle in racks and wiring ducts ●Features a divisible duplex LC connector, which can also be used as a single-core (simplex) connection ●Short Adopts a boot design to reduce protrusion when the cable is bent. ●Uses LSZH outer sheath, a low-smoke material that does not contain highly toxic gases called halogens. ●Suitable for telecommunications carrier equipment and backbone construction of large-scale networks.

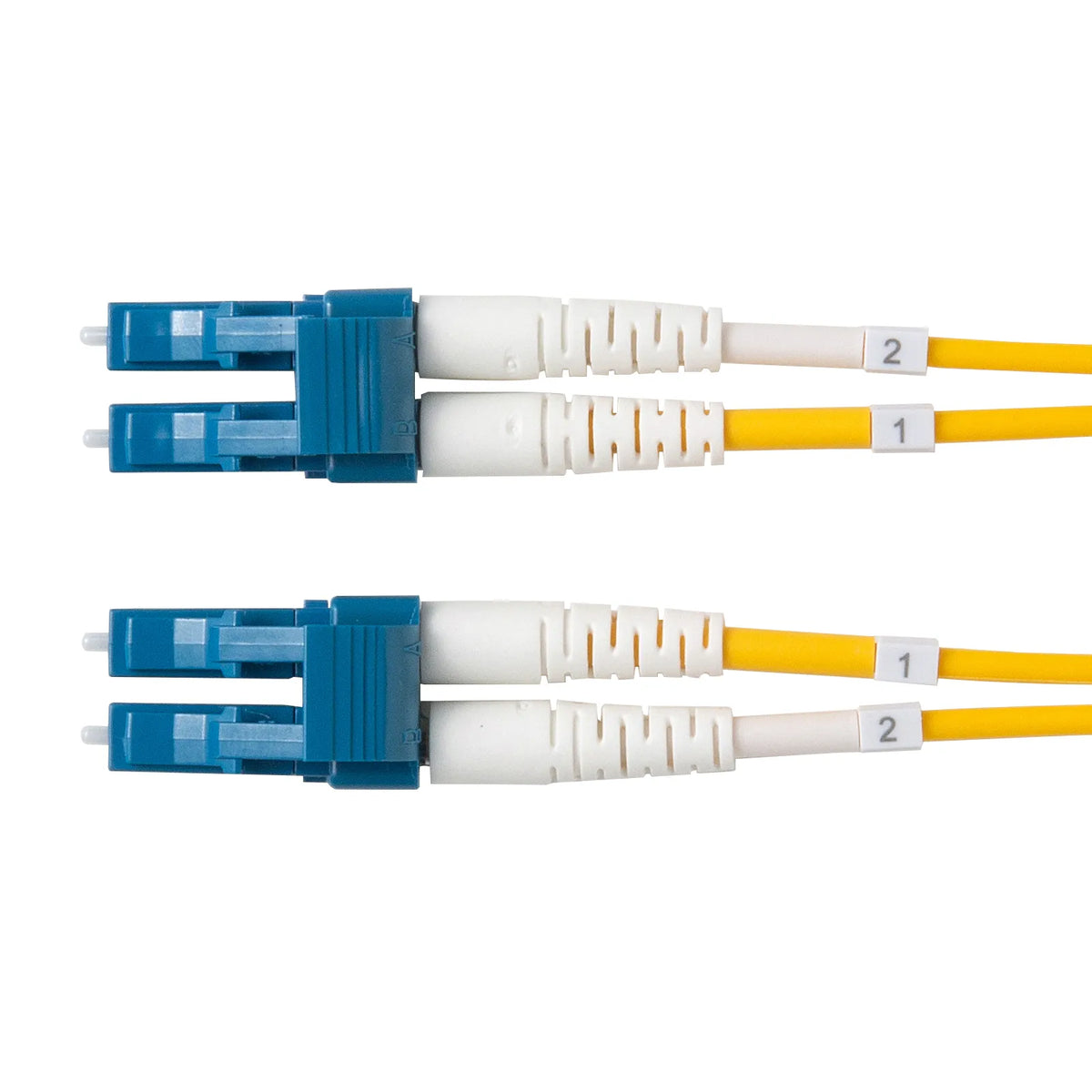

■Optical fiber core diameter: SM 9um ■Optical fiber cladding diameter: 125um ■Fiber type: Single mode ■Number of cores: 2 cores ■Cable length: 20m ■Connector shape: LC connector x 2 - LC connector x 2 Duplex type, separable TIA/EIA-604-10 compliant IEC 61754-20 compliant Short boot shape (LC 19mm) ■Connector polishing: UPC polishing Connector return loss 30dB or more ■Cable characteristics: ・Applicable standards: 1000BASE-LX, 1000BASE-ZX, 10GBASE-LR, 10GBASE-ER, 10GBASE-ZR ・Buffer core diameter: 900 microns ・Type: Indoor use ■Standard outer diameter: 2.0mm x 4.0mm ■Cable color: Yellow ■Shape specification type: Spectacle type ■Optical fiber TIA standard: OS2 ■Usage environment: Indoor use ■Optical fiber classification: General-purpose single mode (SM) ■Optical wavelength: 1310nm, 1550nm ■Material: LSZH ■Flame retardancy: IEC 60332-1 ■Sheath material: LSZH ■Allowable bending radius: 40mm (20D) or more during installation 20mm (10D) or more after installation ■Operating temperature range: -10°C to 60°C ■Storage temperature range: -20°C to 70°C
