Waterproof Robust Fiber Optic Cable (Single 9μm, LC×4-LC×4, 5m) HKB-LCLCWPRB1-05

[A waterproof fiber optic cable that combines high strength, high reliability, and flexibility.]

●A waterproof fiber optic cable that combines high strength, high reliability, and flexibility.

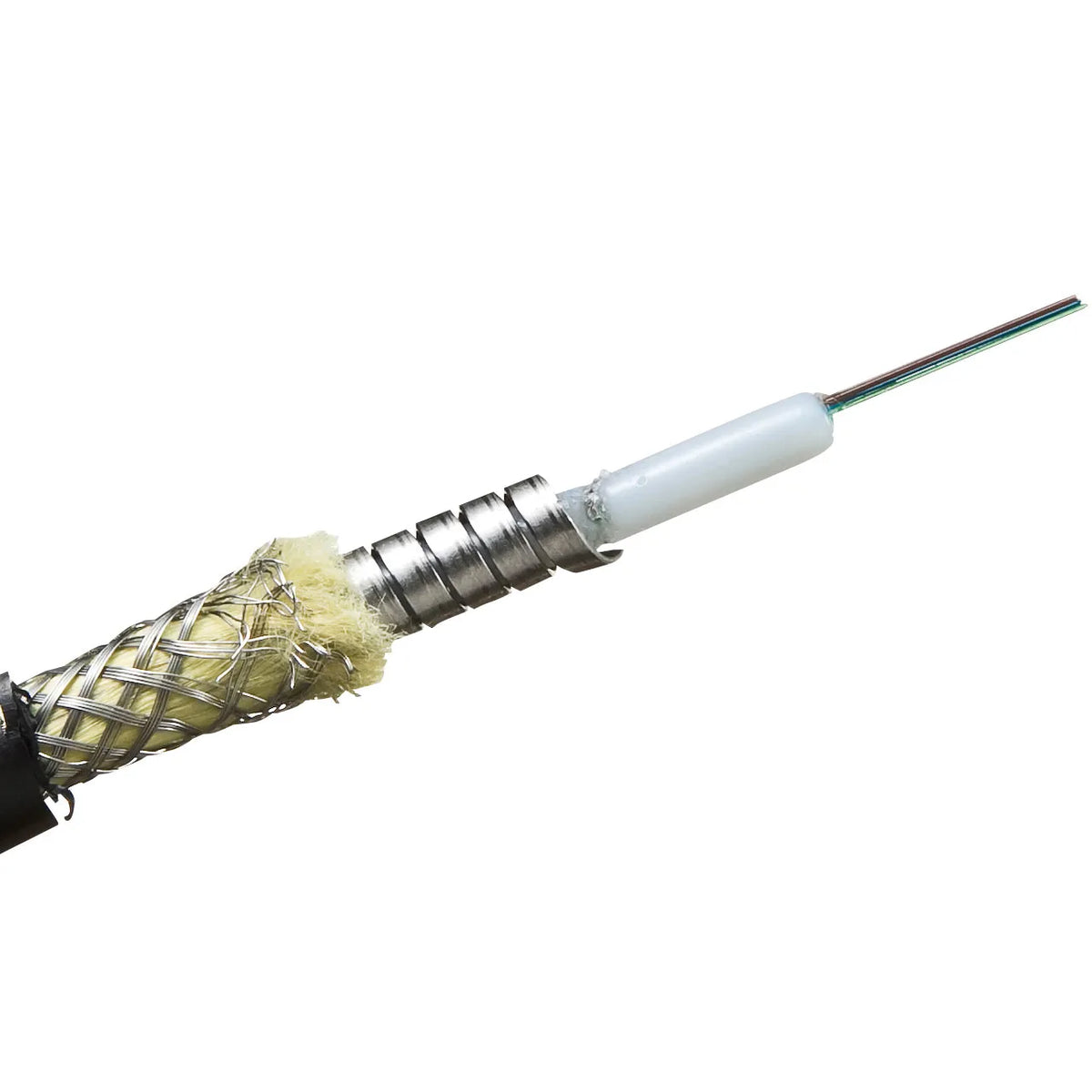

●Uses a PBT tube to protect the fiber from water ingress.
●High-strength protection is achieved with a stainless steel tube, preventing improper twisting.
●Excellent tensile strength and pressure resistance.
●Prevents damage from rodents and ants.
●Complies with UL standards.
●A combination of LC, SC, and FC connectors is available.
●LC and SC connectors are designed to be separable.

■Optical fiber core diameter: SM
9.2um
■Optical fiber cladding diameter: 125um
■Fiber type: Single mode
■Number of cores: 4 cores
■Cable length: 5m

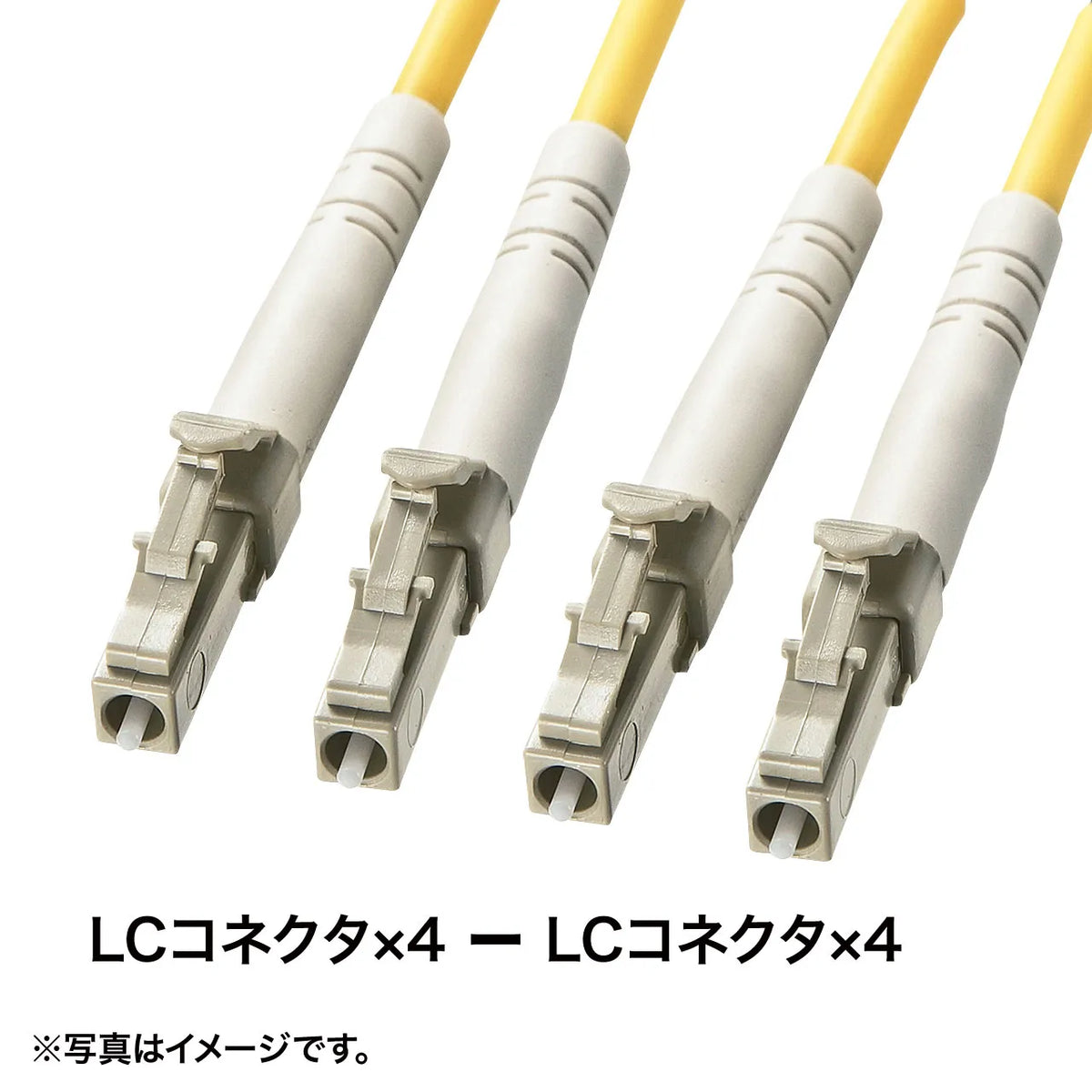

■Connector shape: LC connector x 4 - LC connector x 4
■Connector polishing: SPC polishing
■Cable characteristics:
・Supported standards: 1000BASE-LX, 1000BASE-ZX, 10GBASE-LR, 10GBASE-ER, 10GBASE-ZR
・Wavelength: 1310nm, 1550nm
・Transmission loss: 0.4dB/km or less (131 (0nm, 1550nm)
■Standard outer diameter: 6.0mm
■Cable color: Black
■Shape specification type: Round reinforced
■Optical fiber TIA standard: OS1
■Usage environment: Outdoor use
■Optical fiber classification: General-purpose single mode (SM)
■Optical wavelength: 1310nm, 1550nm
■Compliant standards: 1000BASE-LX, 1000BASE-ZX, 10GBASE-LR, 10GBASE-ER, 10GBASE-ZR
■Wavelength: 1310nm, 1550nm
■Transmission loss: 0.4dB/km or less (1310nm, 1550nm)
