SANWA SUPPLY

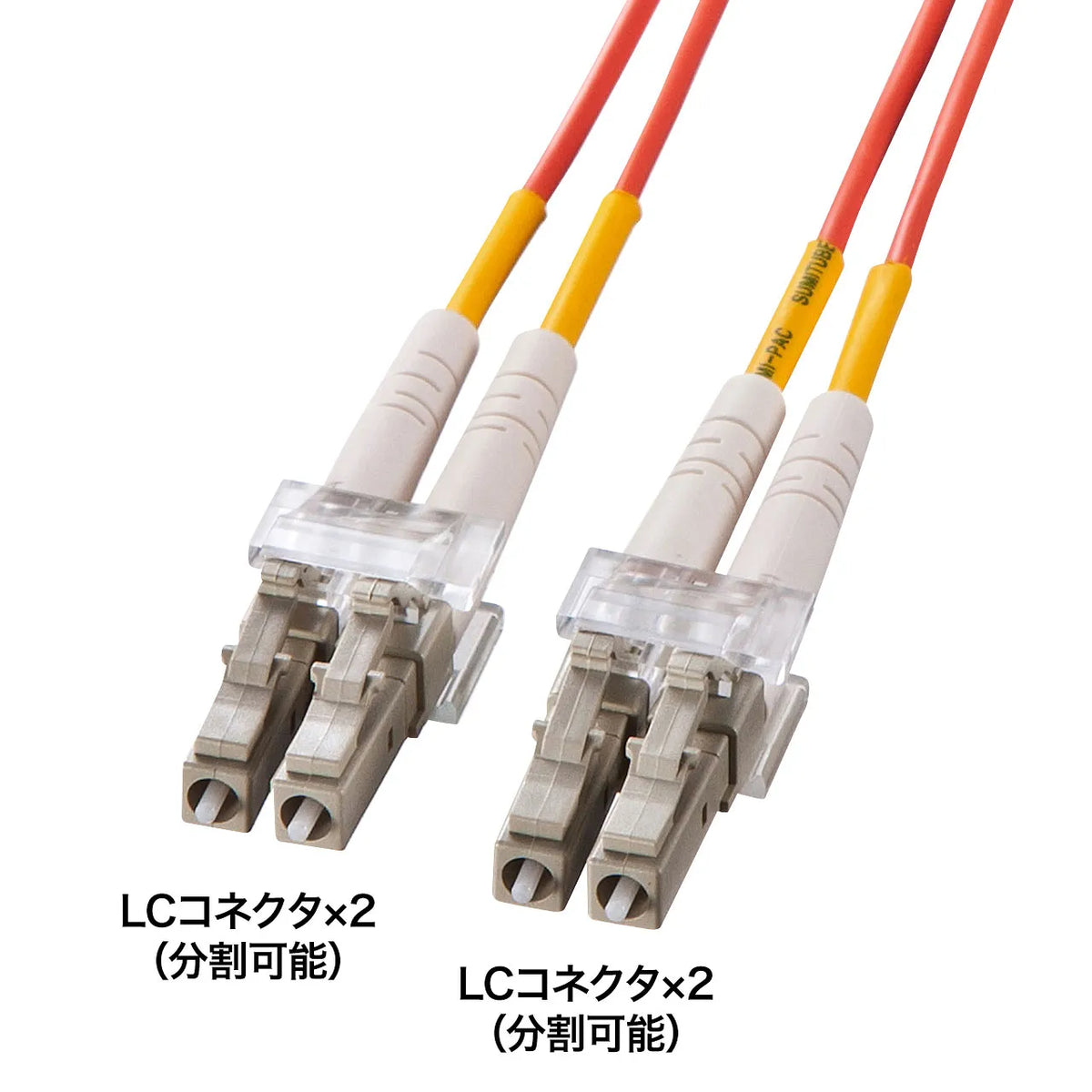

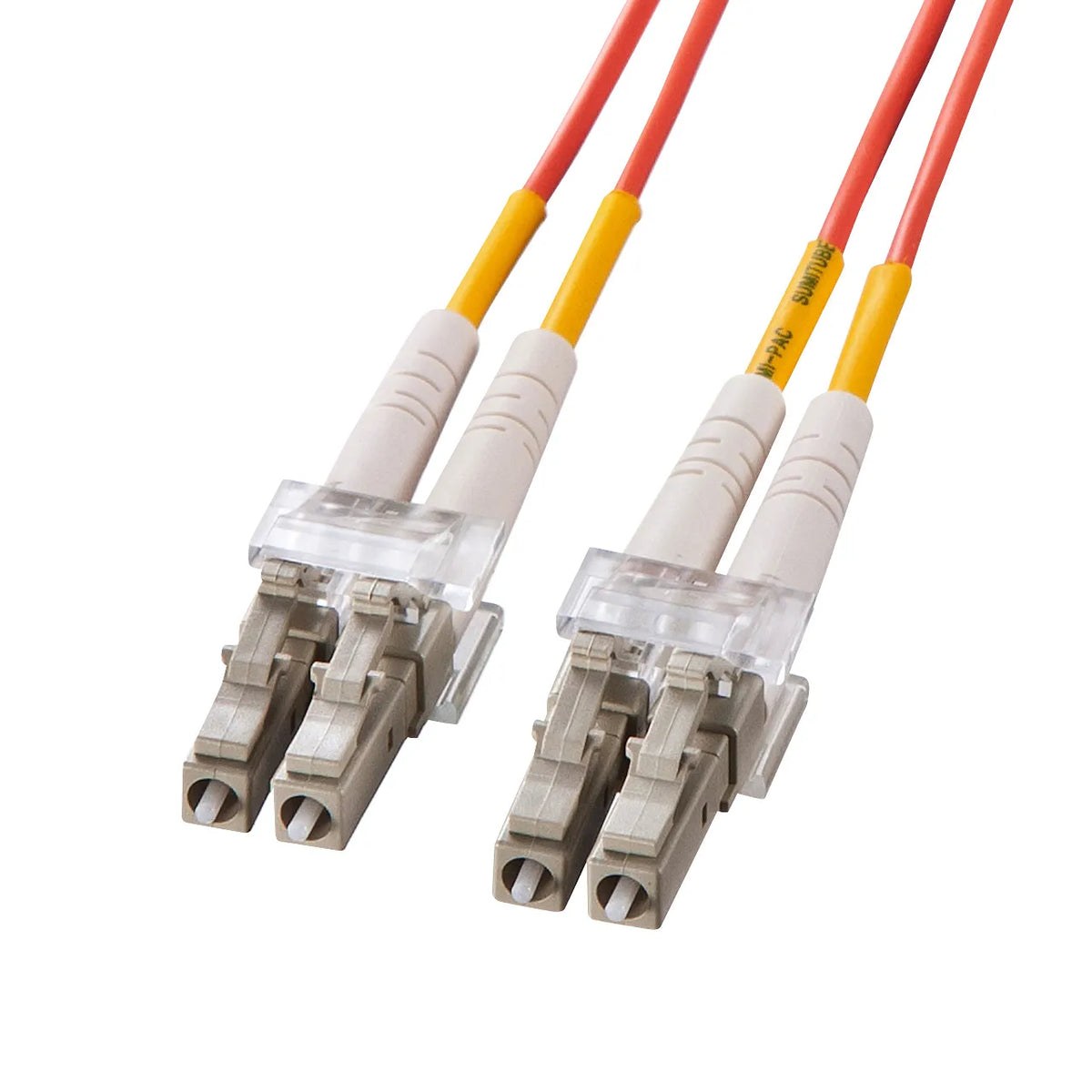

Spectacle-type optical fiber cable (multi-type 62.5μm, LC×2-LC×2, 3m) HKB-LCLC6-03L
Spectacle-type optical fiber cable (multi-type 62.5μm, LC×2-LC×2, 3m) HKB-LCLC6-03L
GTIN（JAN）：4969887840023
SKU：HKB-LCLC6-03L
Regular price
¥4,574 JPY
Regular price
Sale price
¥4,574 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Gigabit Ethernet compatible, fiber optic cable with complete noise suppression.]
● Compatible with Gigabit Ethernet 1000BASE-LX/1000BASE-SX.
● Enables long-distance transmission with low loss.
● Enables high-frequency signal transmission with wide bandwidth.
● Complete noise suppression as there is no electromagnetic induction from external sources.
● Thin and lightweight, making it very advantageous when laying.
■Optical fiber core diameter: 62.5μm
■Optical fiber cladding diameter: 125μm
■Fiber type: Multimode
■Number of cores: 2 cores
■Cable length: 3m
■Connector shape: LC connector x 2 - LC connector x 2
Duplex type, separable
■Connector polishing: PC polishing
■Cable characteristics:
Compliant standards: 1000BASE-LX, 1000BASE-SX, 100BASE-FX
Buffer core diameter: 900 microns
Type: Indoor use
■Standard outer diameter: 2.0mm x 4.0mm
■Cable color: Orange
■Shape specification type: Spectacle type
■Optical fiber TIA standard: OM1
■Usage environment: Indoor use
■Optical fiber classification: Great Index (GI)
■Optical wavelength: 850nm, 1300nm
● Compatible with Gigabit Ethernet 1000BASE-LX/1000BASE-SX.
● Enables long-distance transmission with low loss.
● Enables high-frequency signal transmission with wide bandwidth.
● Complete noise suppression as there is no electromagnetic induction from external sources.
● Thin and lightweight, making it very advantageous when laying.
■Optical fiber core diameter: 62.5μm
■Optical fiber cladding diameter: 125μm
■Fiber type: Multimode
■Number of cores: 2 cores
■Cable length: 3m
■Connector shape: LC connector x 2 - LC connector x 2
Duplex type, separable
■Connector polishing: PC polishing
■Cable characteristics:
Compliant standards: 1000BASE-LX, 1000BASE-SX, 100BASE-FX
Buffer core diameter: 900 microns
Type: Indoor use
■Standard outer diameter: 2.0mm x 4.0mm
■Cable color: Orange
■Shape specification type: Spectacle type
■Optical fiber TIA standard: OM1
■Usage environment: Indoor use
■Optical fiber classification: Great Index (GI)
■Optical wavelength: 850nm, 1300nm
