SANWA SUPPLY

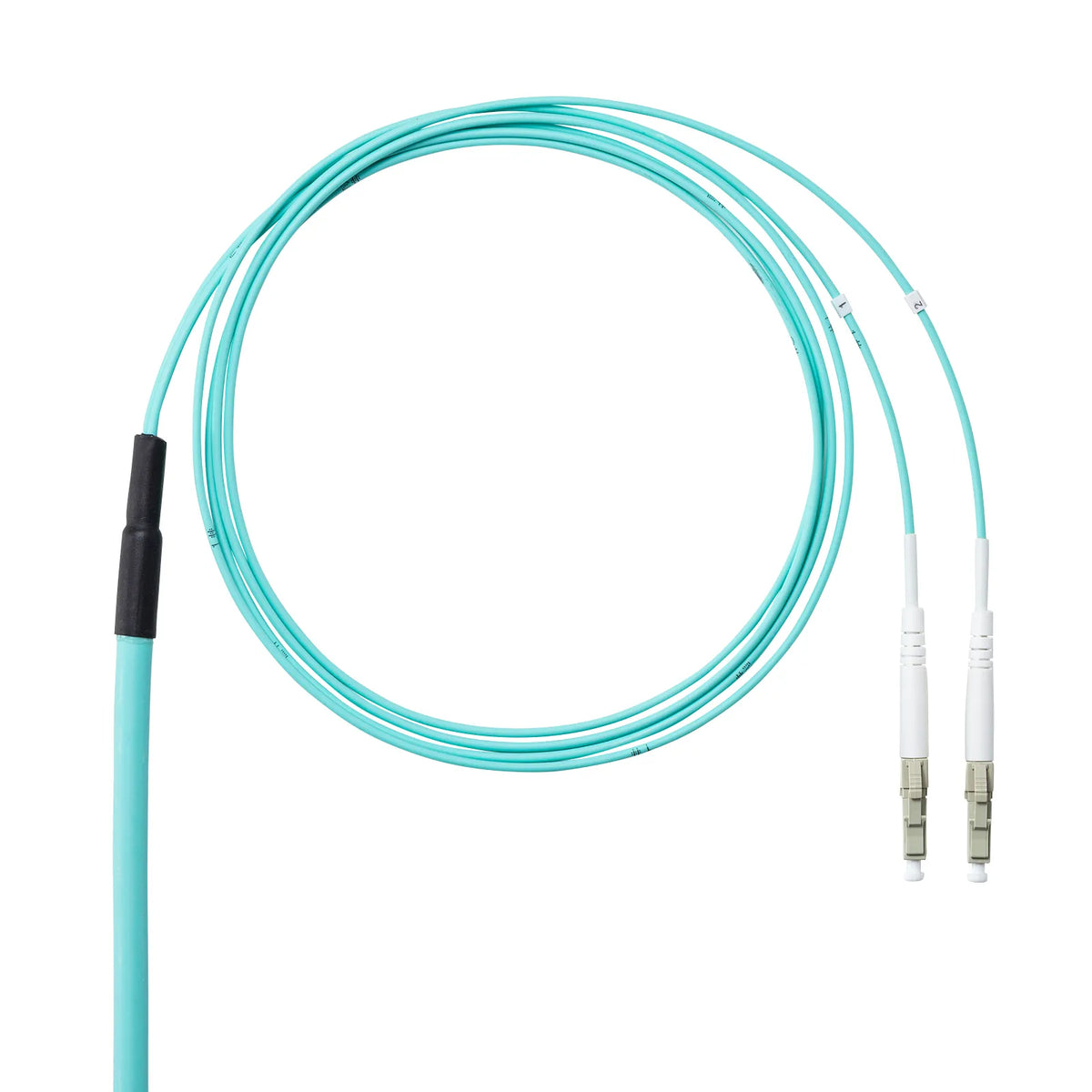

Code bundle type fiber optic cable (multi 50um OM3, LCx2-LCx2, 300m) HKB-CSOM3LCLC-300
Code bundle type fiber optic cable (multi 50um OM3, LCx2-LCx2, 300m) HKB-CSOM3LCLC-300
GTIN（JAN）：4969887774229
SKU：HKB-CSOM3LCLC-300
Regular price
¥152,460 JPY
Regular price
Sale price
¥152,460 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A bundled fiber optic cable compliant with OM3, usable with 10 Gigabit Ethernet such as 10GBASE-S and Fibre Channel]

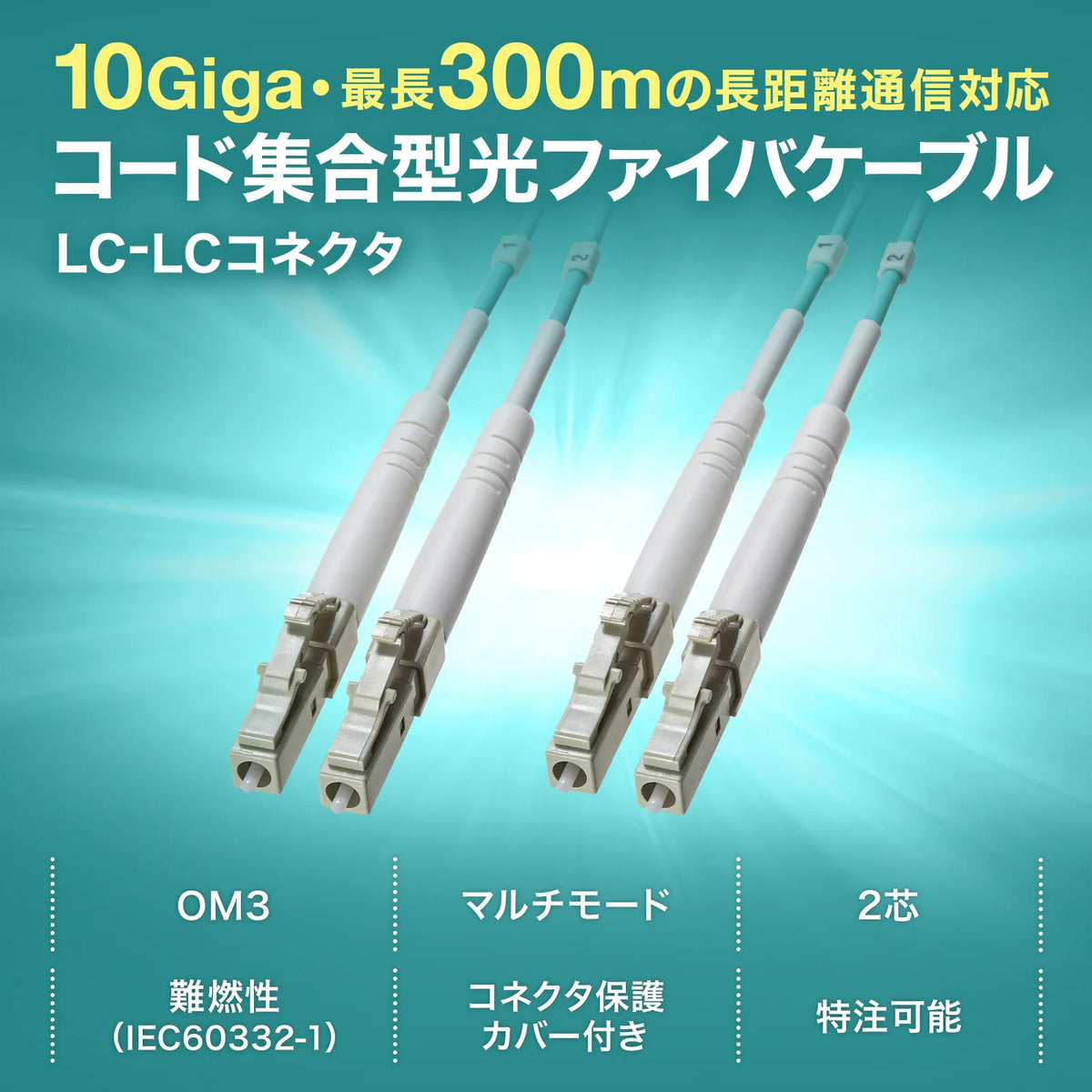

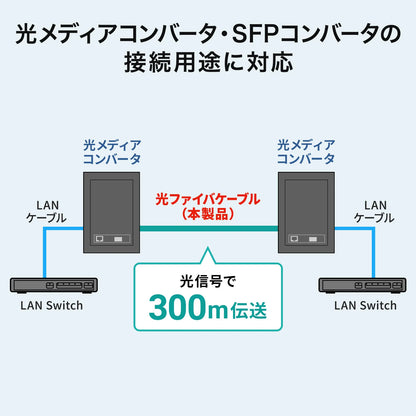

●This fiber optic cable complies with OM3 specifications, enabling 10 Gigabit high-speed communication compatible with 10GBASE-SR/SW standard transmission.

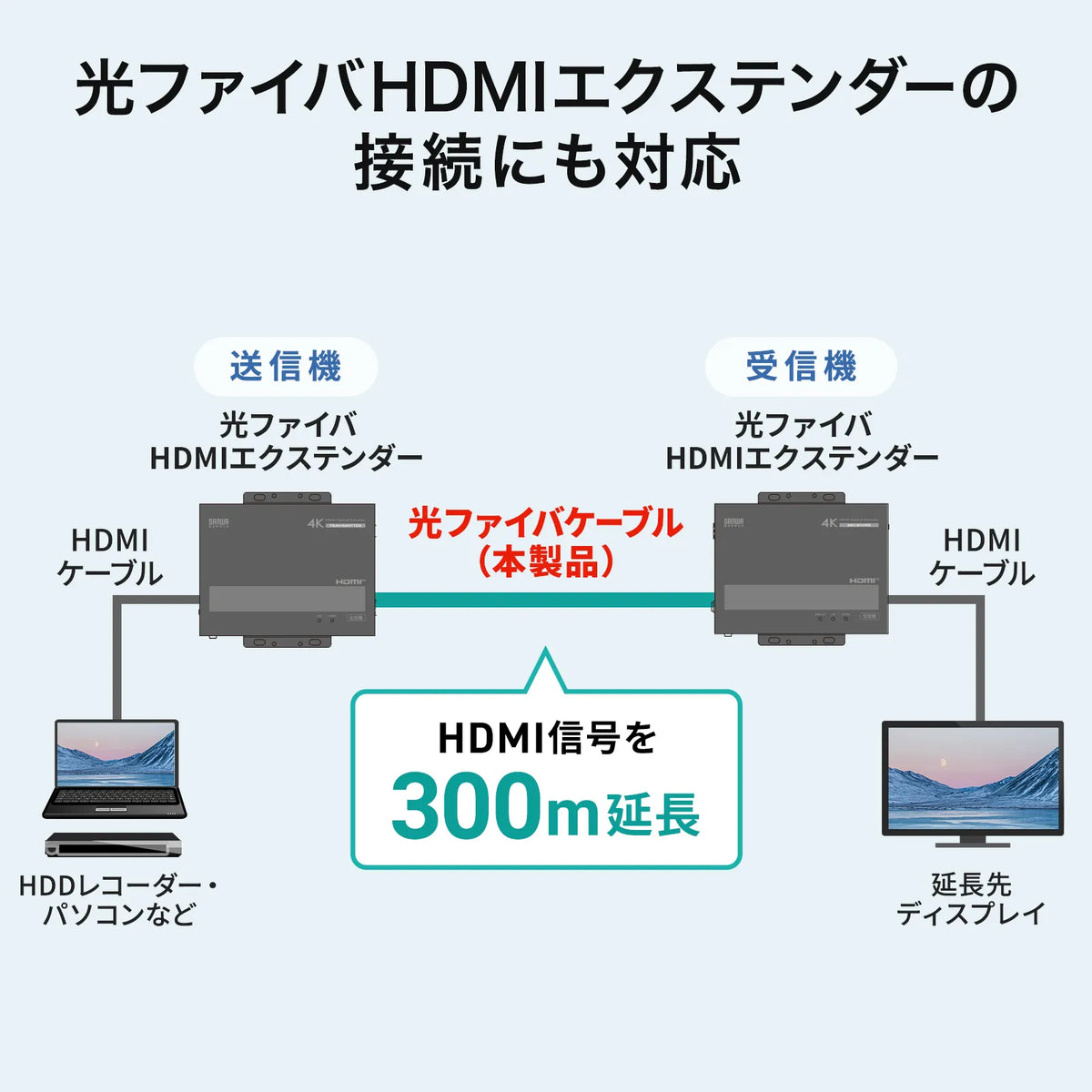

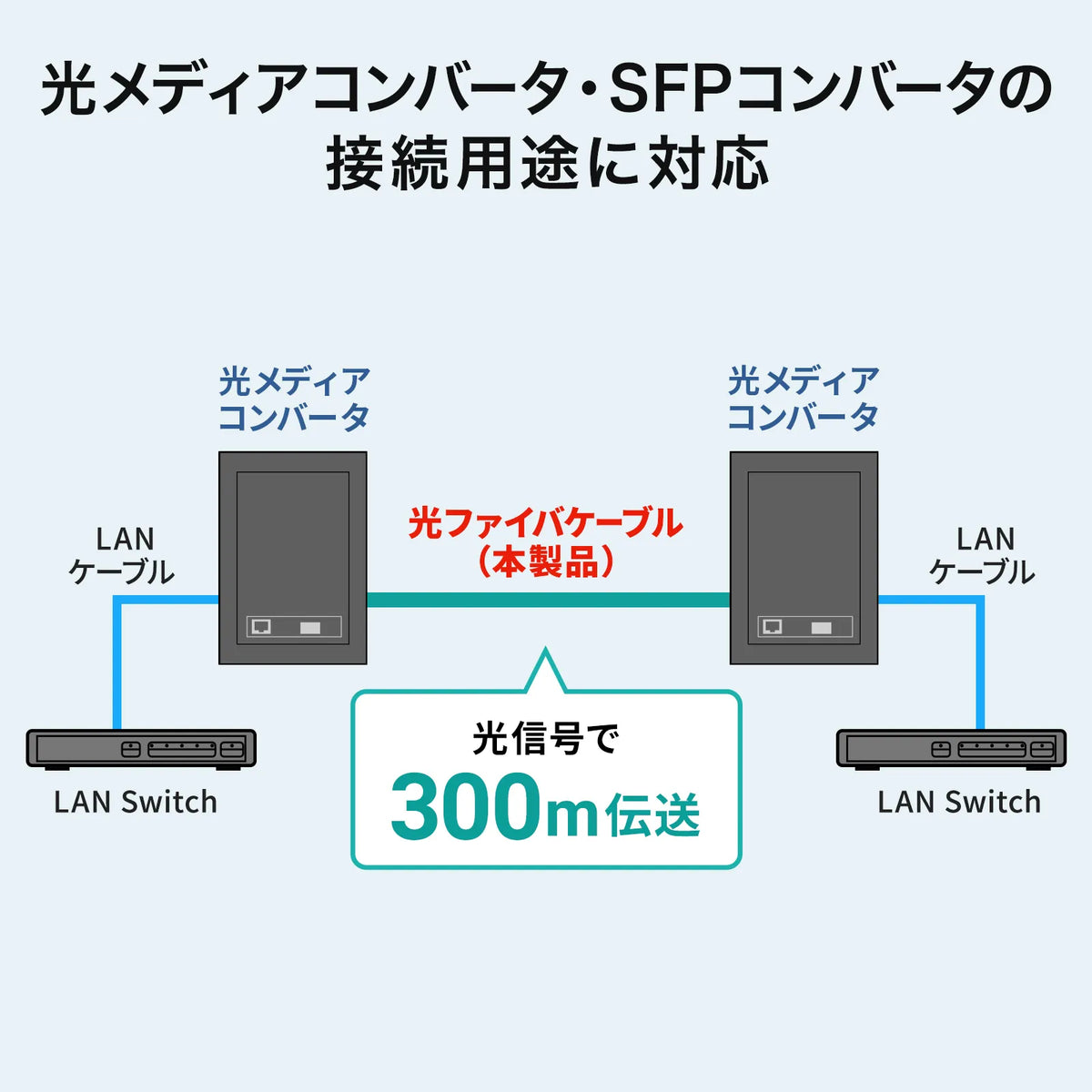

●This fiber optic cable is usable with 10 Gigabit Ethernet such as 10GBASE-S and Fibre Channel, and is ideal for long-distance communication (up to 300m).
●It supports VCSEL (Surface Emitting Laser) light sources and defines a "limited mode excitation bandwidth" that is not specified in conventional OM1 and OM2.
●By passing a tension member through the cable, the structure prevents tensile tension from being directly applied to the optical fiber itself.

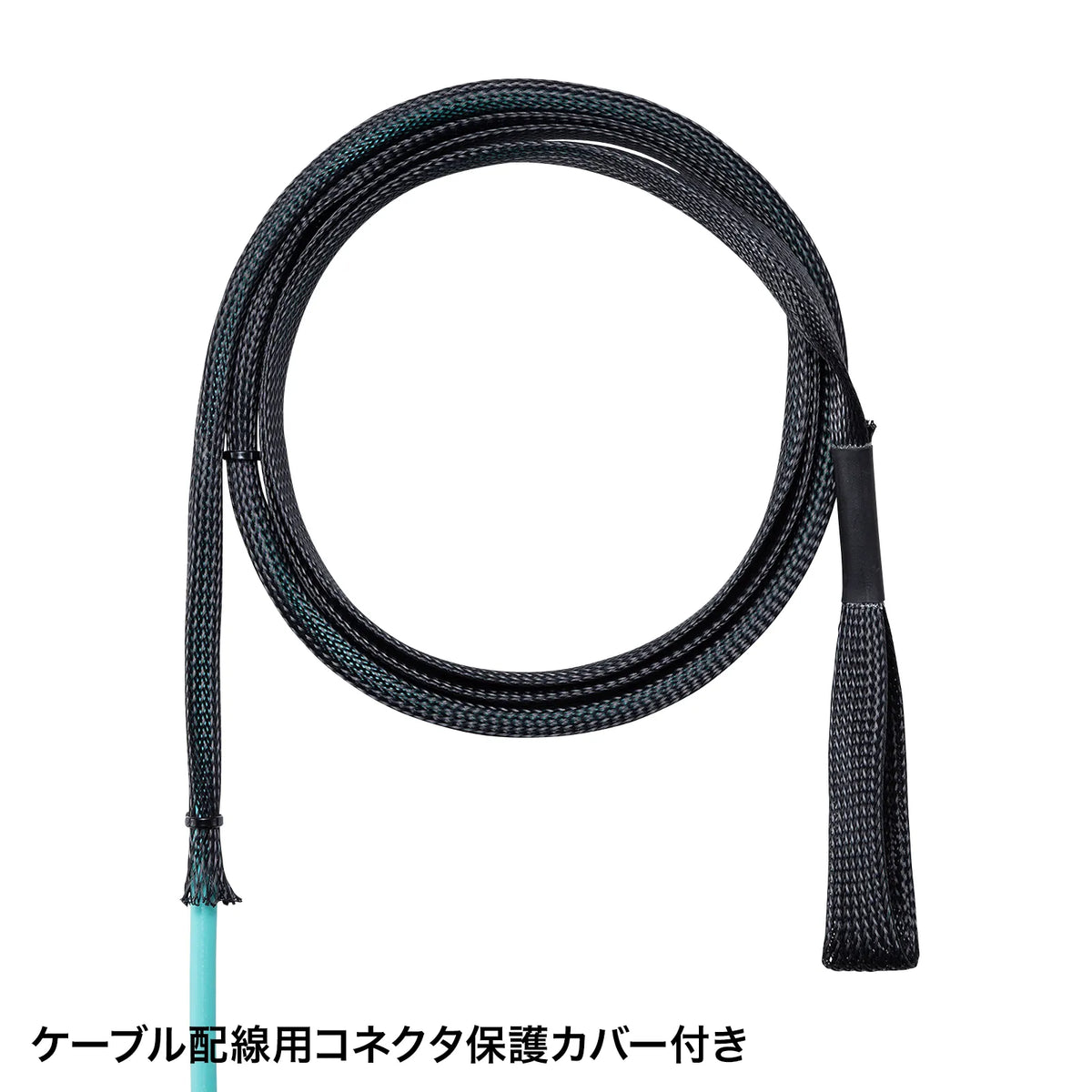

●Connector protection covers are included on both ends for convenient wiring and to prevent damage to the connectors.

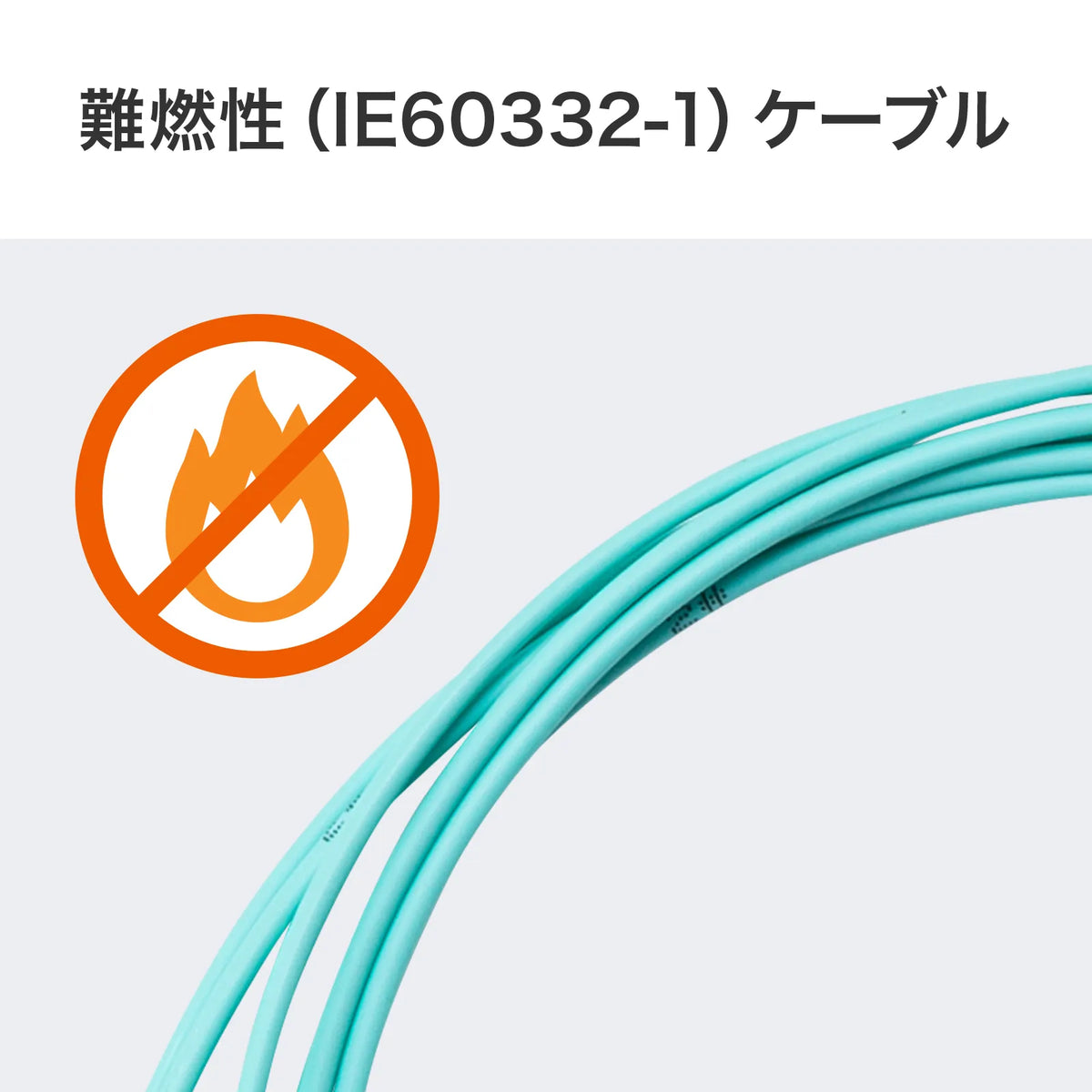

●The cable sheath uses flame-retardant material that is less likely to cause the spread of fire.
*This product uses flame-retardant material, so white streaks may appear on the surface of the cable, but this does not affect its performance at all.
■Optical fiber core diameter: 50um
■Optical fiber cladding diameter: 125um
■Fiber type: Multimode
■Number of cores: 2 cores
■Cable length: 300m

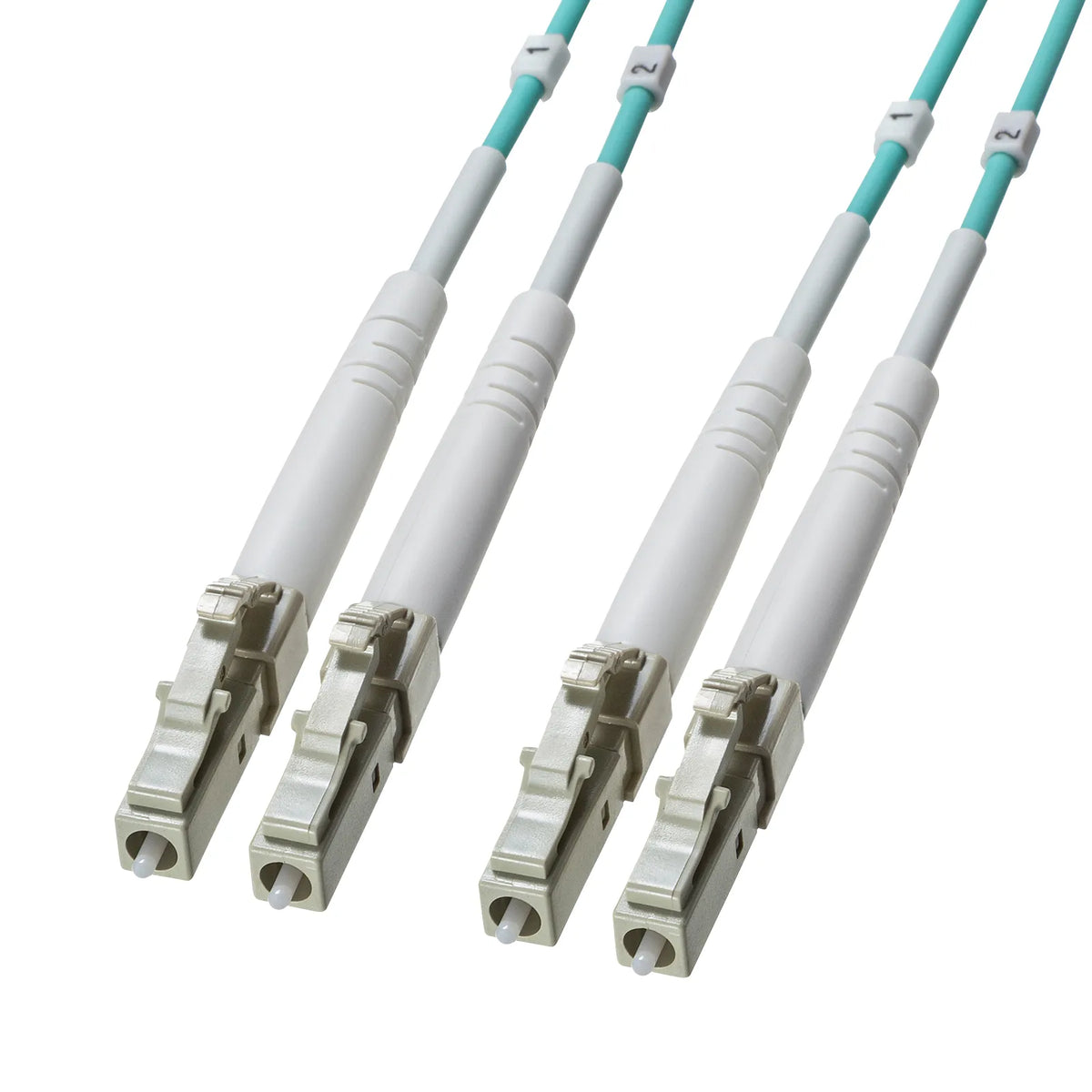

■Connector shape: LC connector x2-LC connector x2
■Connector polishing: PC polishing
■Cable characteristics:
・Wavelength: 850nm, 1300nm
・Transmission loss: 3.0dB/km at 850um, 1.0dB/km at 1300um
・All-mode excitation bandwidth: 1500MHz/km at 850um, 500MHz/km at 1300um
・Limited-mode excitation bandwidth: 2000MHz/km at 850um
・TIA standard: OM3
・Standard name: 10GBASE-SR/SW
・With protective cover for cable wiring connector

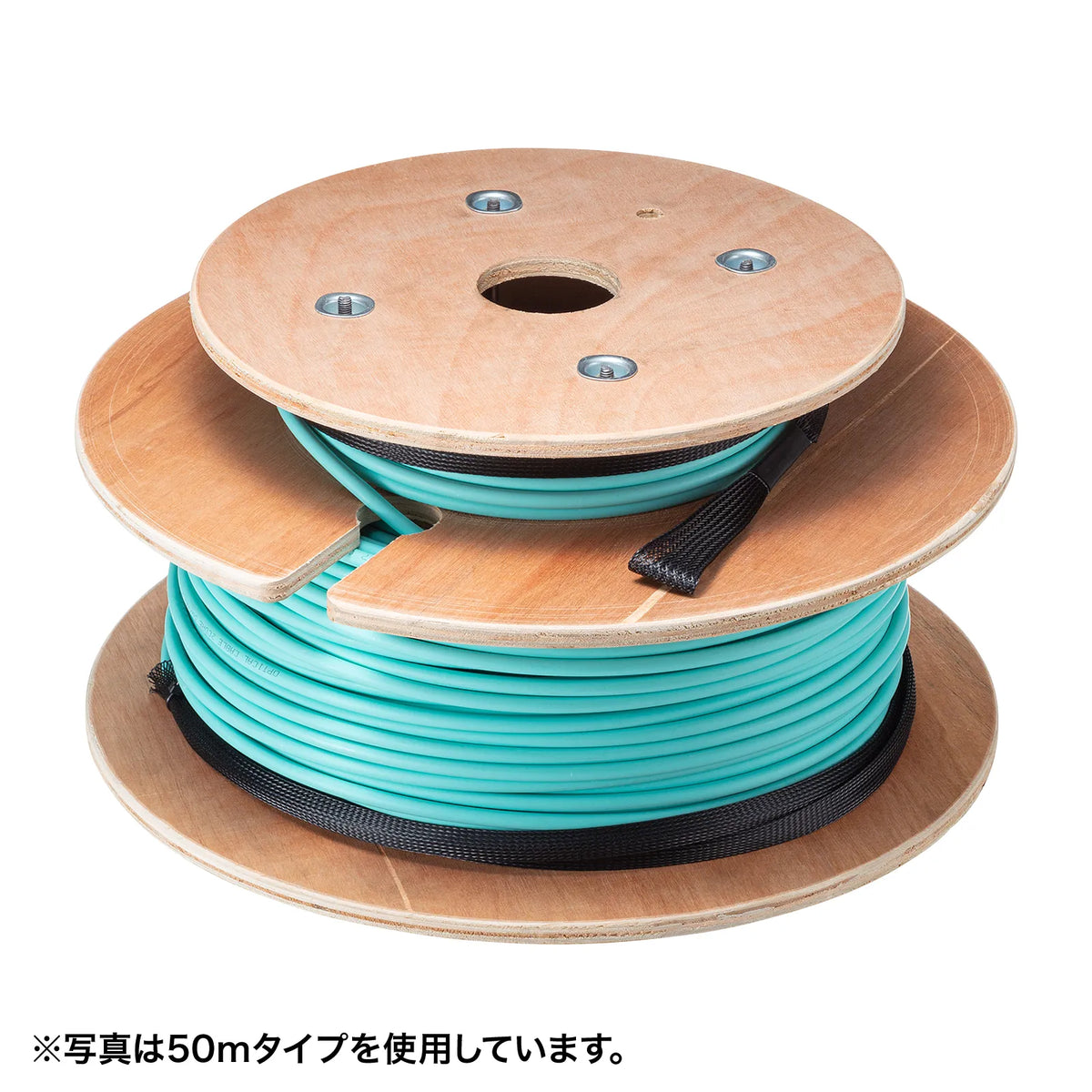

・Drum wound
■Standard outer diameter: 7.3mm
■Cable color: Aqua (light blue)
■Shape specification type: Round reinforced
■Optical fiber TIA standard: OM3
■Usage environment: Indoor use
■Optical fiber classification: Great Index (GI)
■Optical wavelength: 850nm, 1300nm
■Wavelength: 850nm, 1300nm
■Transmission loss: 3.0dB/km at 850um, 1.0dB/km at 1300um
■All-mode excitation bandwidth: 1500MHz/km at 850um, 500MHz/km at 1300um
■Limited-mode excitation bandwidth: 2000MHz/km at 850um
■TIA standard: OM3
■Standard name: 10GBASE-SR/SW
■With protective cover for cable wiring connector
■Drum wound
●This fiber optic cable complies with OM3 specifications, enabling 10 Gigabit high-speed communication compatible with 10GBASE-SR/SW standard transmission.
●This fiber optic cable is usable with 10 Gigabit Ethernet such as 10GBASE-S and Fibre Channel, and is ideal for long-distance communication (up to 300m).
●It supports VCSEL (Surface Emitting Laser) light sources and defines a "limited mode excitation bandwidth" that is not specified in conventional OM1 and OM2.
●By passing a tension member through the cable, the structure prevents tensile tension from being directly applied to the optical fiber itself.
●Connector protection covers are included on both ends for convenient wiring and to prevent damage to the connectors.
●The cable sheath uses flame-retardant material that is less likely to cause the spread of fire.
*This product uses flame-retardant material, so white streaks may appear on the surface of the cable, but this does not affect its performance at all.
■Optical fiber core diameter: 50um
■Optical fiber cladding diameter: 125um
■Fiber type: Multimode
■Number of cores: 2 cores
■Cable length: 300m
■Connector shape: LC connector x2-LC connector x2
■Connector polishing: PC polishing
■Cable characteristics:
・Wavelength: 850nm, 1300nm
・Transmission loss: 3.0dB/km at 850um, 1.0dB/km at 1300um
・All-mode excitation bandwidth: 1500MHz/km at 850um, 500MHz/km at 1300um
・Limited-mode excitation bandwidth: 2000MHz/km at 850um
・TIA standard: OM3
・Standard name: 10GBASE-SR/SW
・With protective cover for cable wiring connector
・Drum wound
■Standard outer diameter: 7.3mm
■Cable color: Aqua (light blue)
■Shape specification type: Round reinforced
■Optical fiber TIA standard: OM3
■Usage environment: Indoor use
■Optical fiber classification: Great Index (GI)
■Optical wavelength: 850nm, 1300nm
■Wavelength: 850nm, 1300nm
■Transmission loss: 3.0dB/km at 850um, 1.0dB/km at 1300um
■All-mode excitation bandwidth: 1500MHz/km at 850um, 500MHz/km at 1300um
■Limited-mode excitation bandwidth: 2000MHz/km at 850um
■TIA standard: OM3
■Standard name: 10GBASE-SR/SW
■With protective cover for cable wiring connector
■Drum wound
