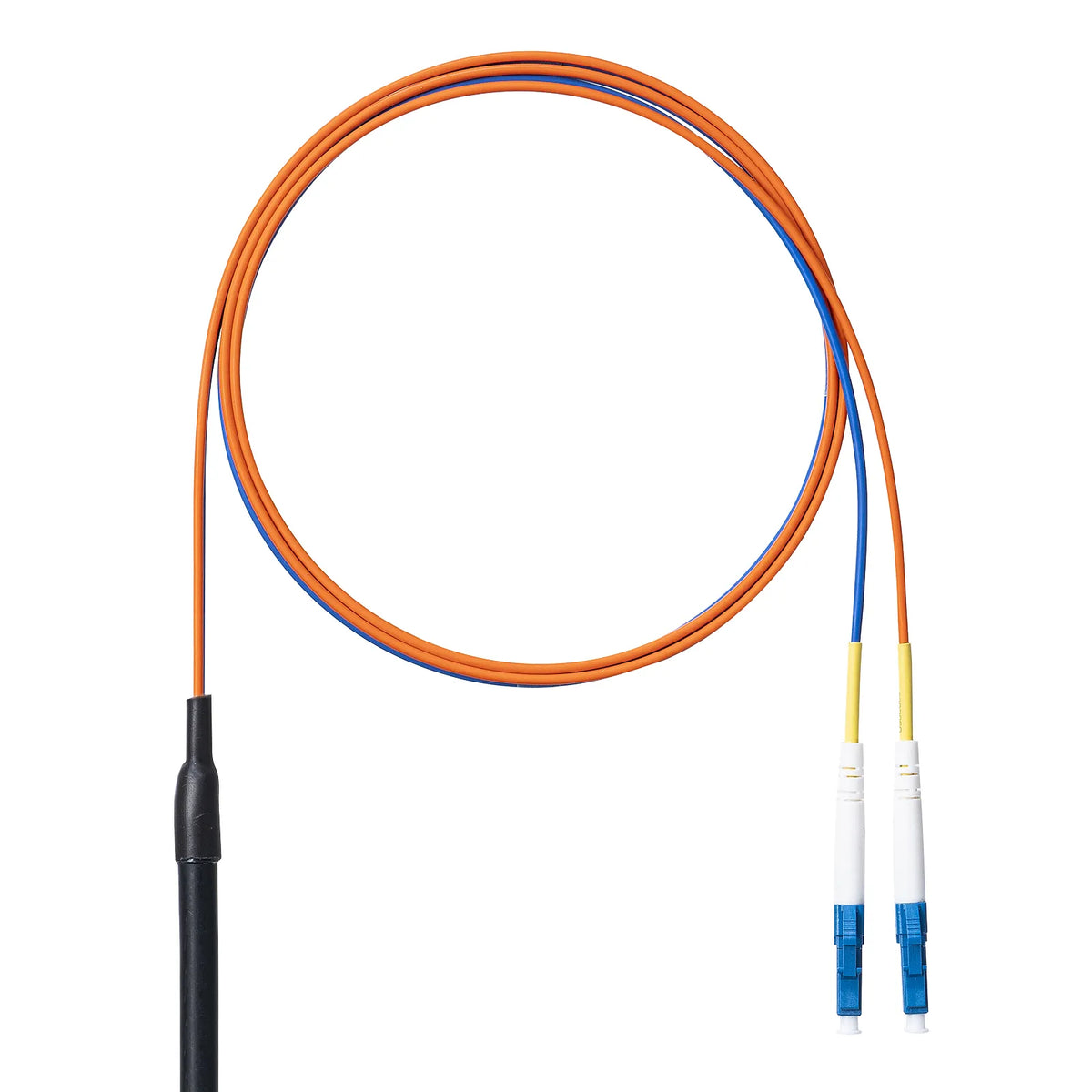

Code bundle type fiber optic cable (single mode, LCx2-LCx2, 50m) HKB-CSLCLC1-050

[A bundled fiber optic cable usable with 10GBASE-LR/ER/ZR and 10 Gigabit Ethernet.]

●This is a single-mode fiber optic cable capable of 10 Gigabit Ethernet, compatible with 10GBASE-LR/ER/ZR standard transmission.
●It can be used with 10 Gigabit Ethernet such as 10GBASE-LR and Gigabit Ethernet such as 1000BASE-LX, making it ideal for long-distance communication.
●The cable has a structure that prevents tensile force from being directly applied to the optical fiber itself by passing a tension member through the cable.

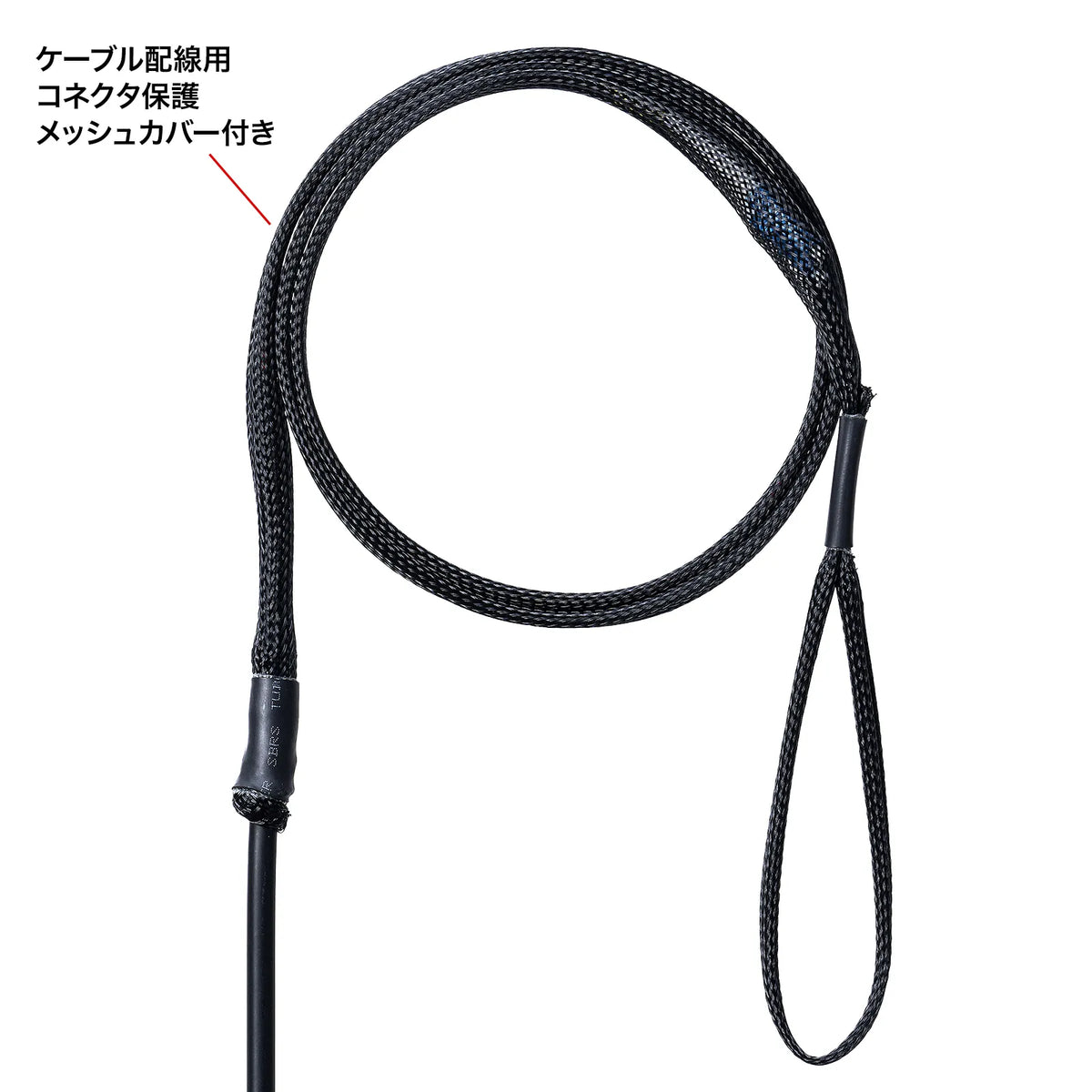

●Convenient connector protection mesh covers are included on both ends, making wiring easier and less likely to damage the connectors.
●LSZH non-halogen material, which does not generate toxic halogen gases, is used for the cable sheath.
※Because this product uses LSZH material, white streaks may appear on the surface of the cable, but this does not affect its performance at all.

■Optical fiber core diameter: SM
9um
■Optical fiber cladding diameter: 125um
■Fiber type: Single mode
■Number of cores: 2 cores
■Cable length: 50m

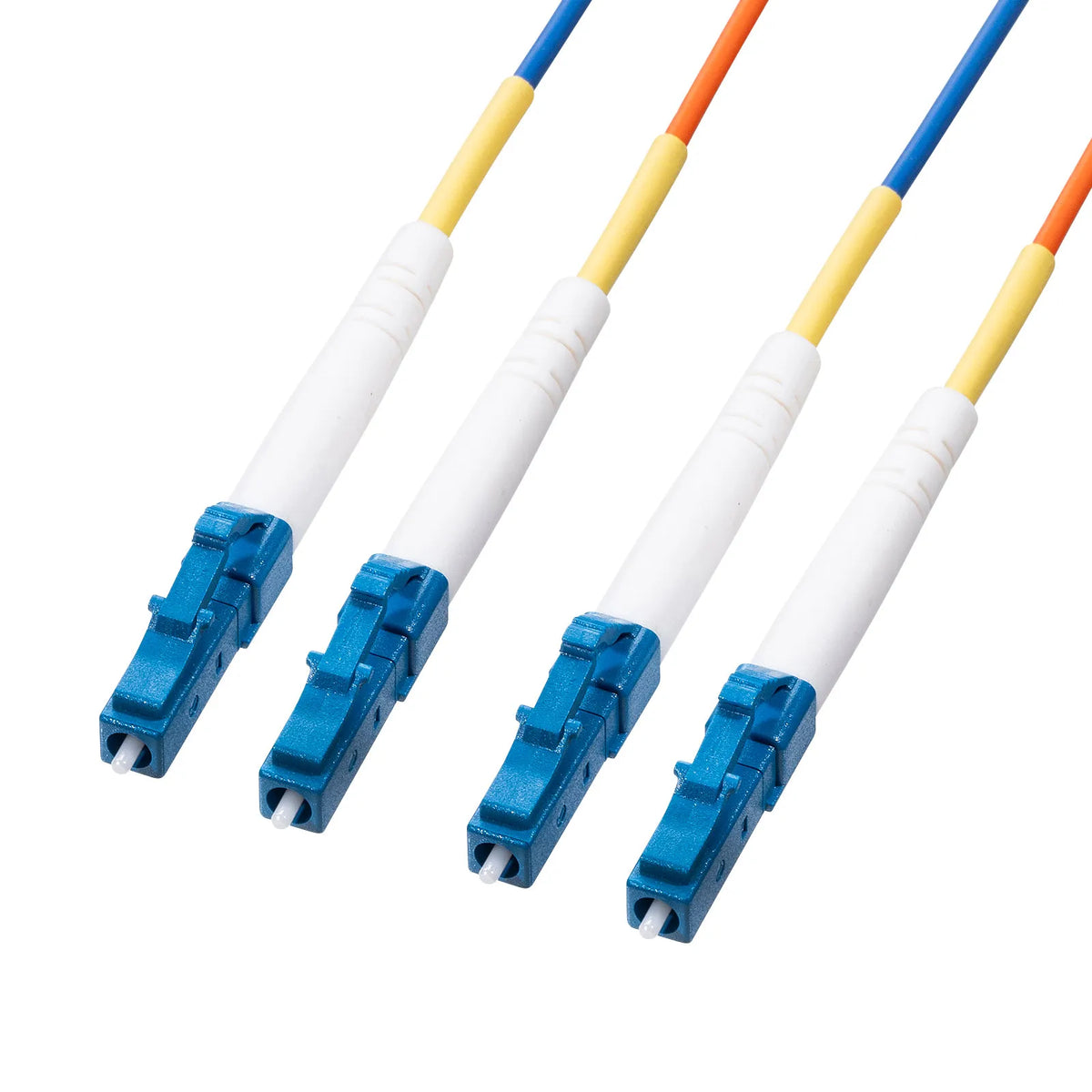

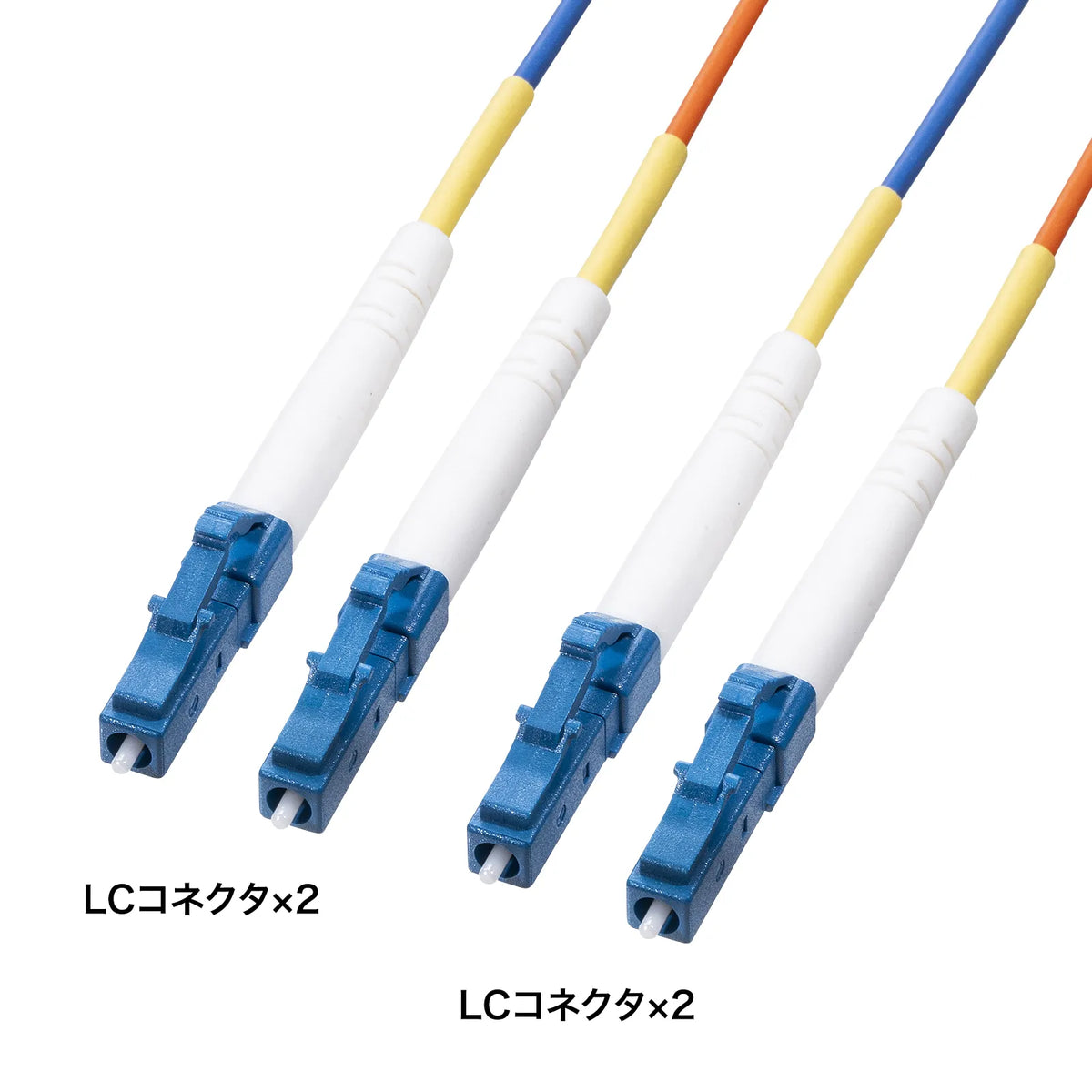

■Connector shape: LC connector x2-LC connector x2
■Connector polishing: UPC polishing
■Cable characteristics:
・Wavelength: 1310nm, 1550nm
・Transmission loss:
0.32dB/km or less (1310nm)
0.315dB/km or less (1550nm)
・TIA standard: OS2
・Standard name: 1000BASE-LX/ZX, 10GBASE-LR/ER/ZR
・With protective cover for cable wiring connector

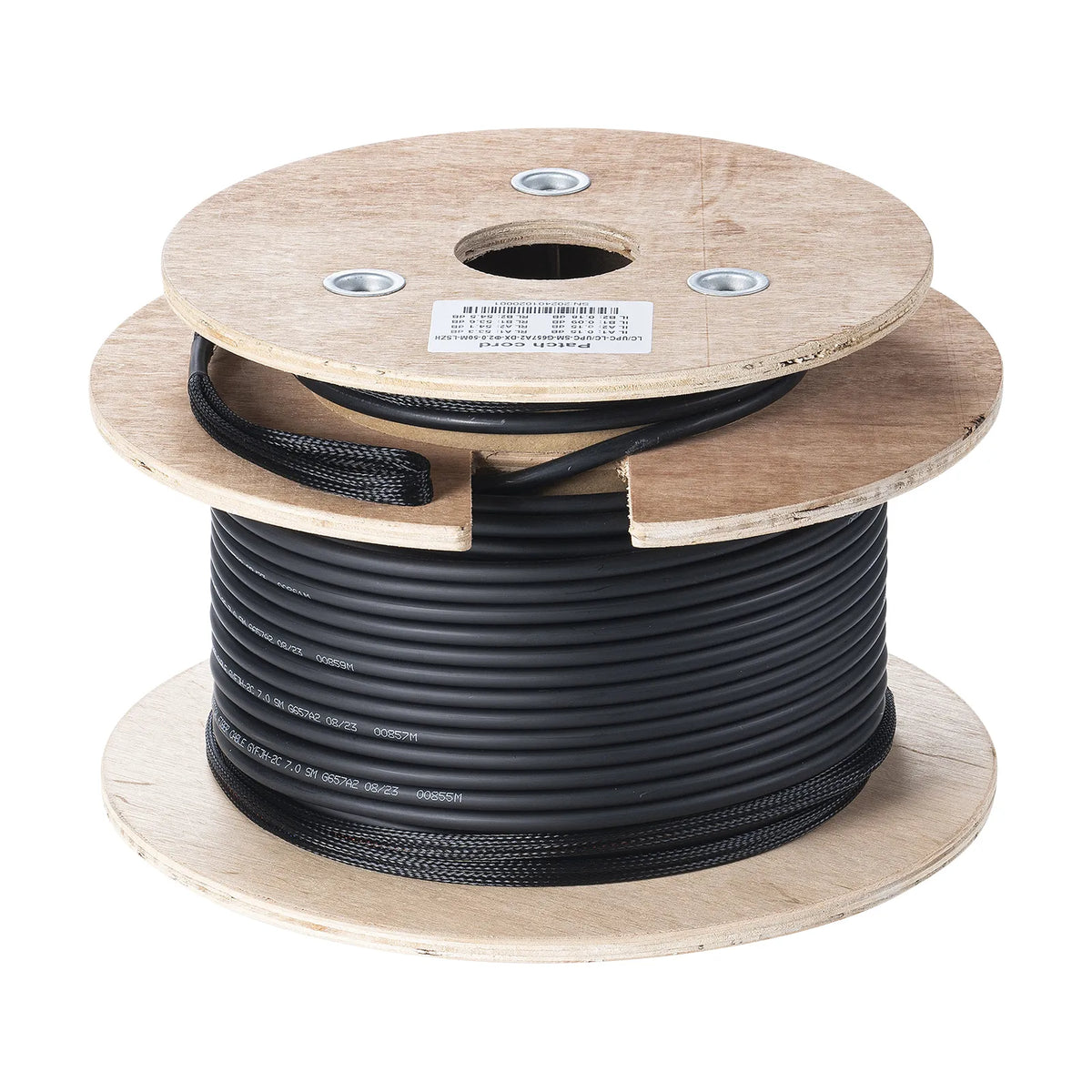

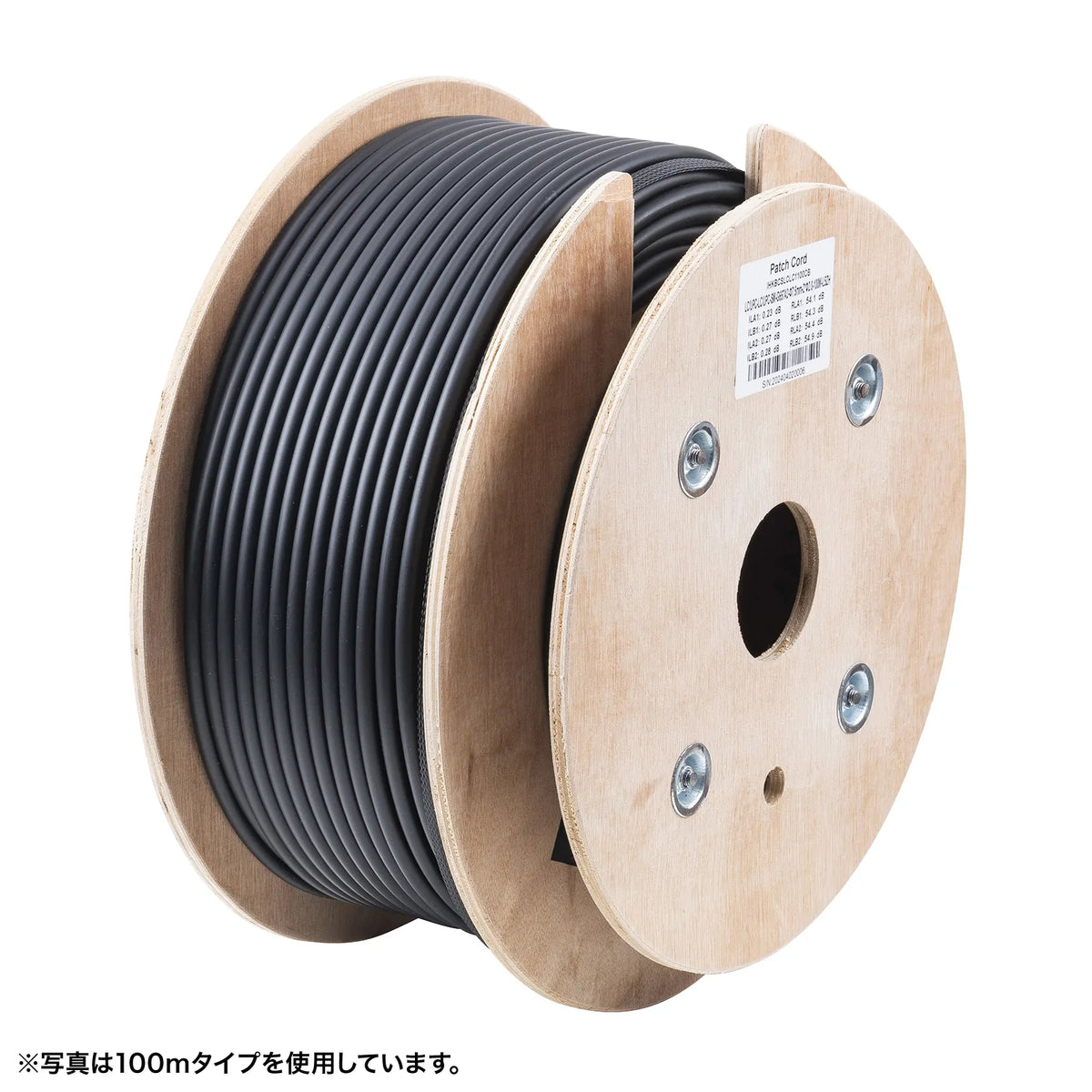

・Drum wound
■Standard outer diameter: 7.5mm
■Cable color: Black
■Shape specification type: Round reinforced
■Optical fiber TIA standard: OS2
■Usage environment: Indoor use
■Optical fiber classification: General-purpose single mode (SM)
■Optical wavelength: 1310nm, 1550nm
Optical wavelength range: 1260nm to 1625nm
■Material: LSZH
■Operating temperature range: -20°C to 70°C
■Cable sheath: LSZH
