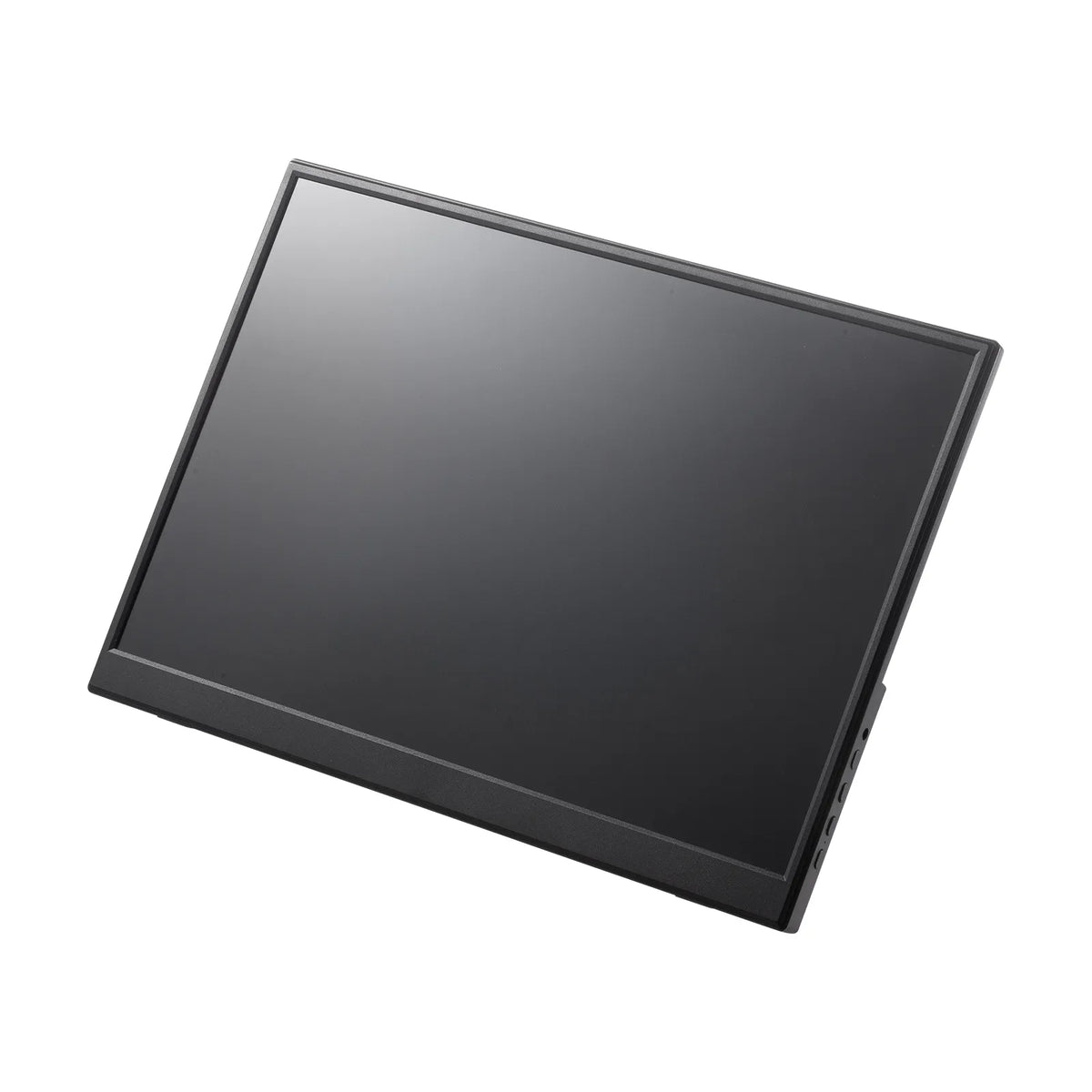

Touchscreen-equipped mobile monitor (14-inch) DP-08

[A 14-inch mobile monitor with touch capabilities that easily creates a dual-display setup with just one USB Type-C cable.]

●This mobile monitor supports "DisplayPort Alternate Mode" and can be connected with just one USB Type-C cable.
●Equipped with a 10-point multi-touch capacitive touch panel, it can be operated by directly touching the screen, increasing convenience and improving work efficiency.

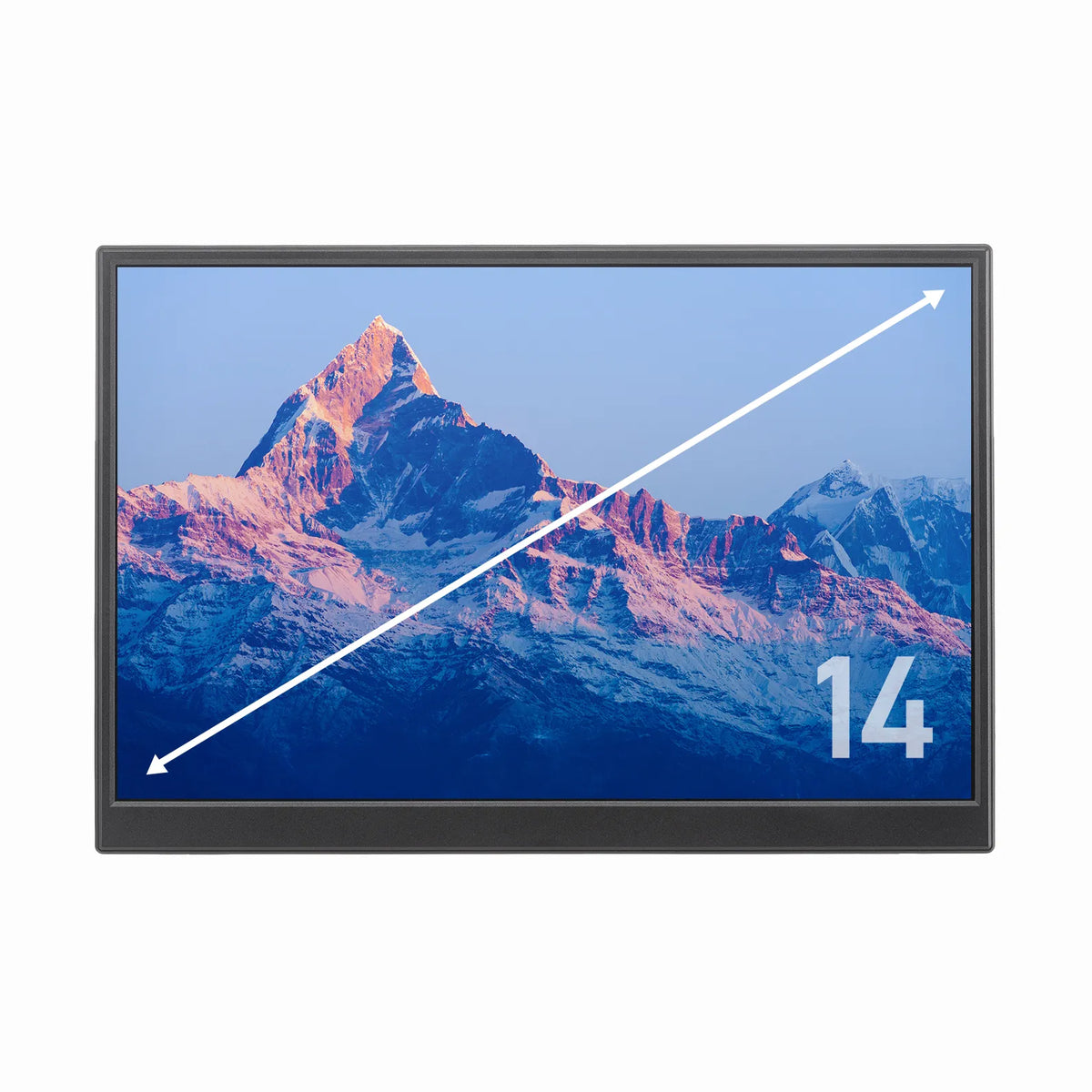

●With an aspect ratio of 16:10 and a maximum resolution of 1920x1200 (WUXGA), it is displayed more vertically than Full HD, increasing the amount of information that can be displayed and improving work efficiency.
●With an IPS panel and a wide viewing angle of 178 degrees vertically and horizontally, it is easy to see from any angle, making presentations and work screens comfortable.

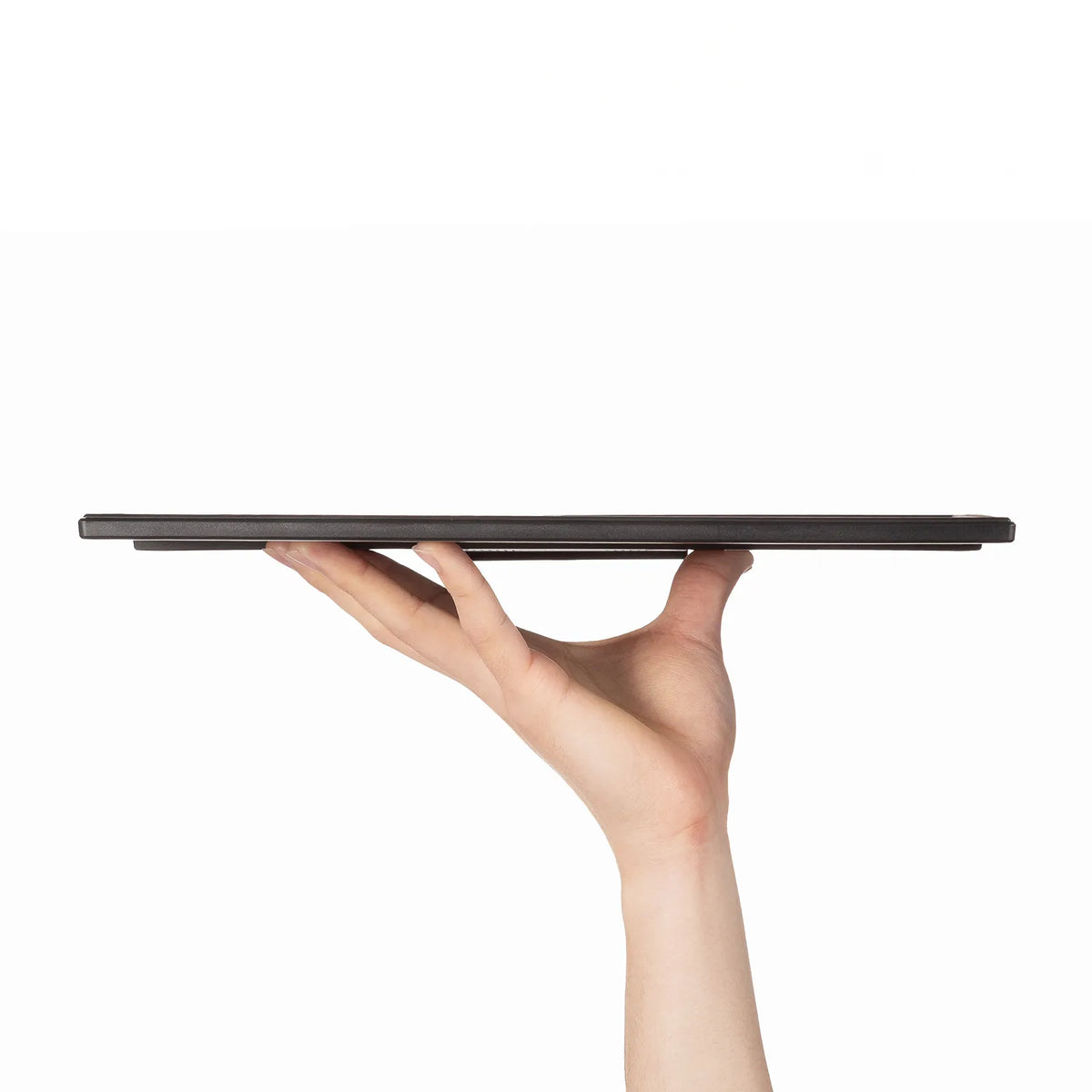

●Its 14-inch size and lightweight 600g design make it easy to carry in a bag and suitable as a secondary display for business trips or teleworking.
●It also supports HDMI input, so even devices that do not support USB-C can be connected using the included mini HDMI cable. *However, a separate power supply is required when connecting via HDMI.
●Supports USB PD pass-through function, so by connecting a PD-compatible AC adapter to the Type-C port, you can supply power to your PC at up to 45W through this product.
*Operation is not guaranteed with all devices. Operation and power supply may vary depending on the combination of power adapter, cable, and connected device.
*Please connect an AC adapter that supports PD100W.
*The maximum output of USB PD varies depending on the connected device.

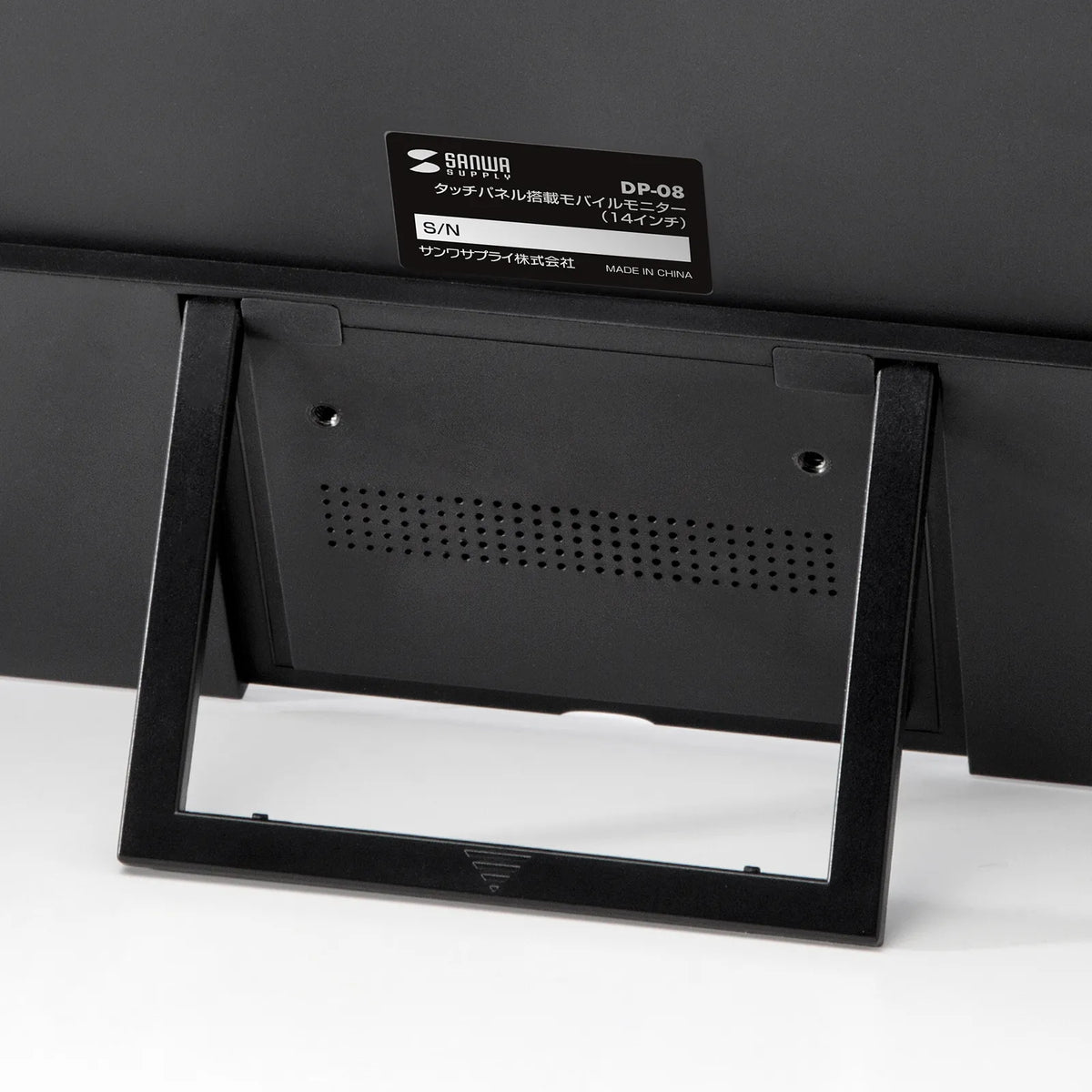

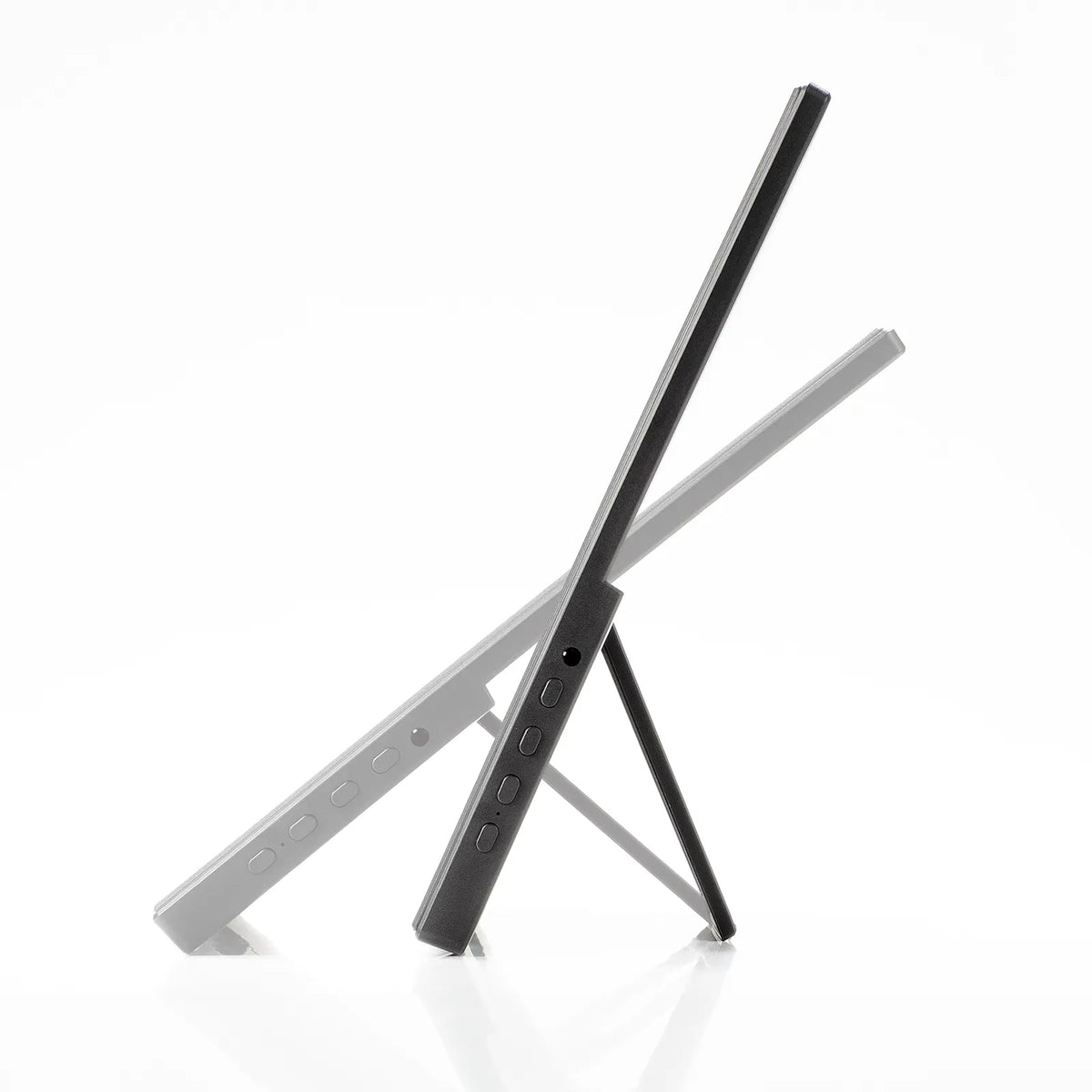

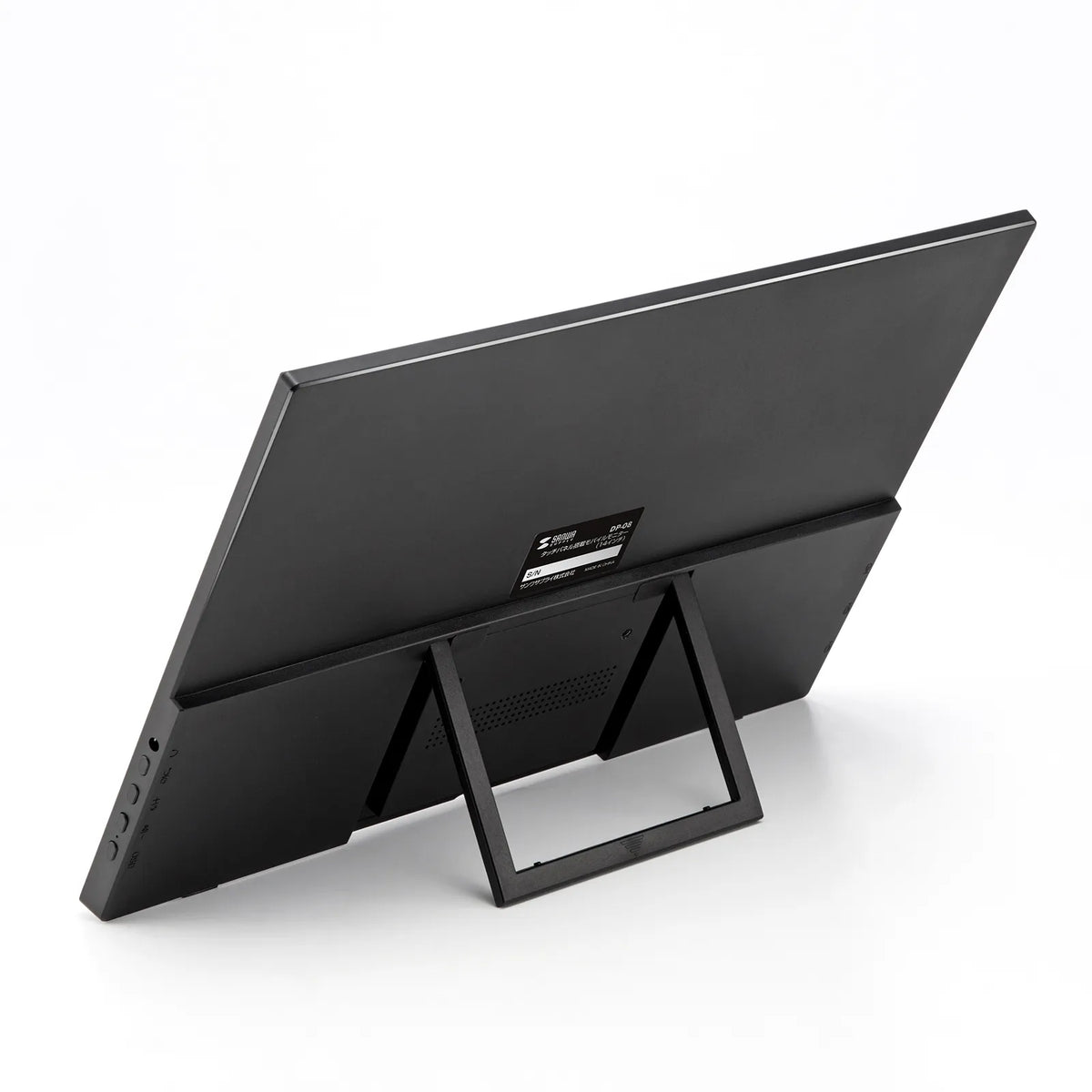

●Since it has an integrated stand, it can be used standing on its own without a separate stand.
●It has a built-in speaker, so it is possible to output audio without connecting a separate external speaker.

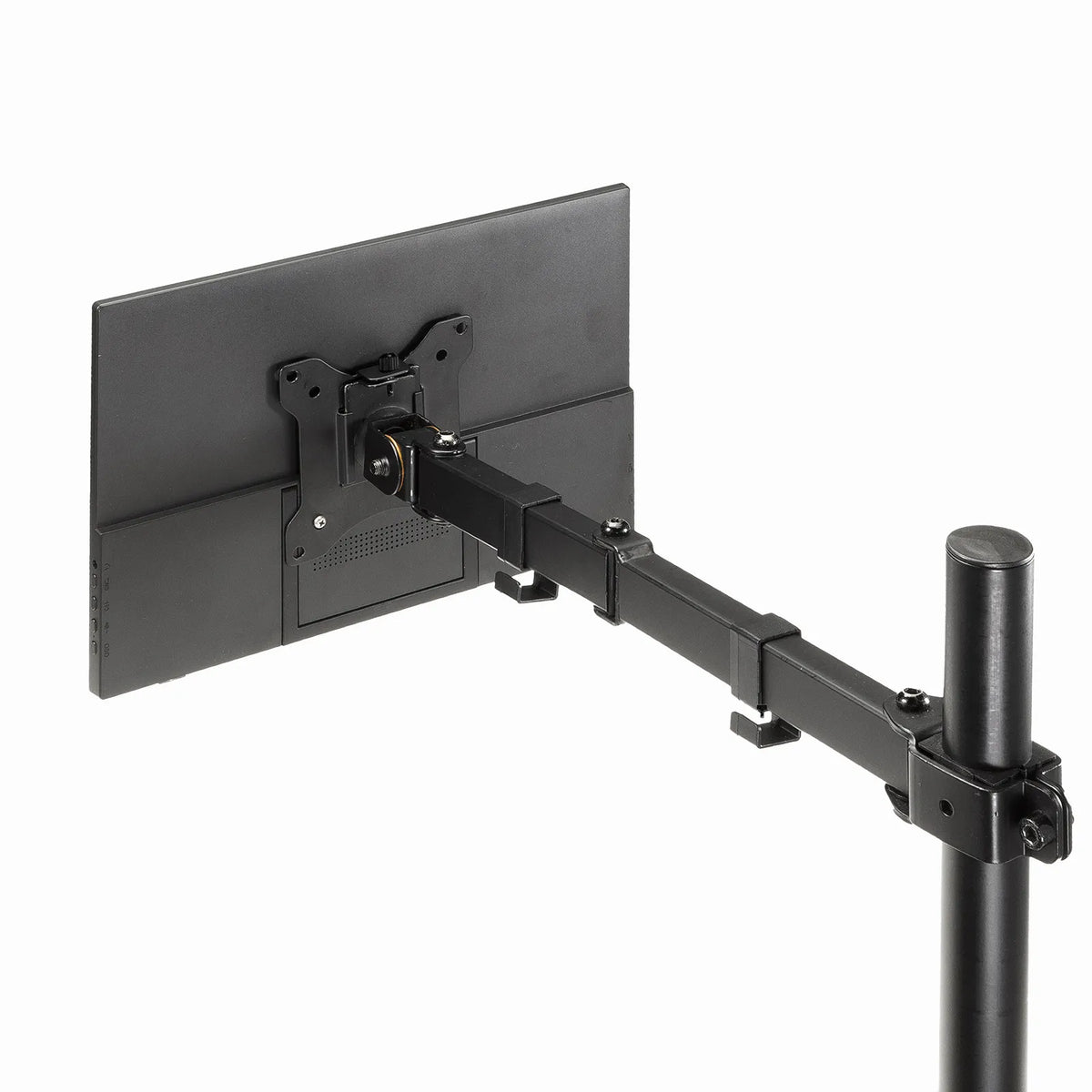

●It supports VESA mount 75mm, so it can be attached to a monitor arm.
*The monitor is attached with two screws (M4x5mm). (Not included)
*If the screws included with the monitor attachment are too long, there is a risk of damaging the monitor, so please be careful when attaching it.

≪Caution≫
*Touch panel operation requires that the connected device supports touch panel operation on the external display.
Also, the connected device and this product must be connected using the included Type-C to Type-C cable or Type-A to Type-C cable.
*When outputting from a smartphone in "DisplayPort Alternate Mode", the monitor needs to be powered separately.
*When connecting this product via Type-C, it cannot be used via a Type-C hub, Type-C docking station, or Type-C conversion adapter. HDMI connection is possible.


■Speaker: Yes

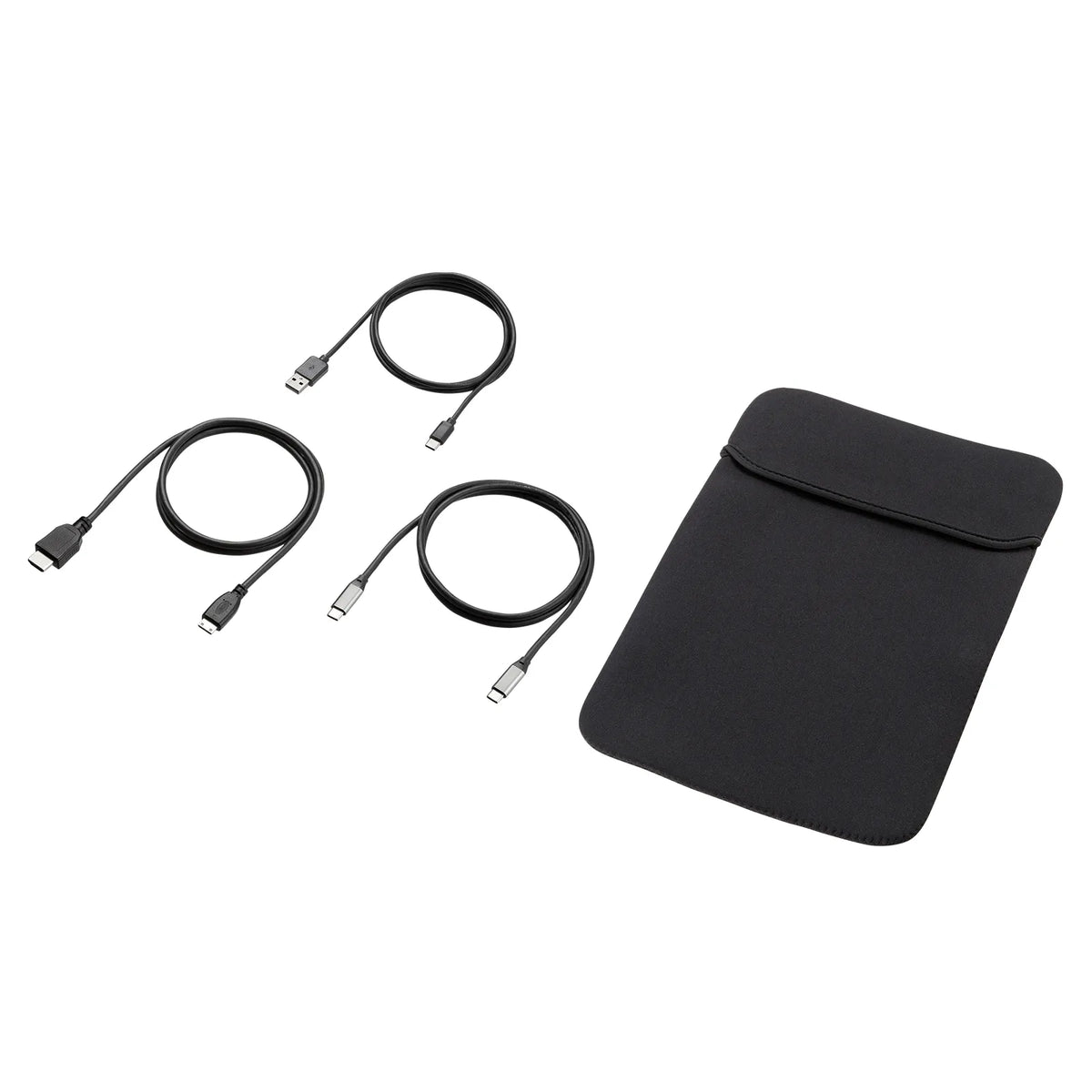

■Set contents:
Product body
HDMI-miniHDMI cable (1.5m)
Type-C to Type-C cable (1.2m)
Type-A to Type-C cable (1.2m)

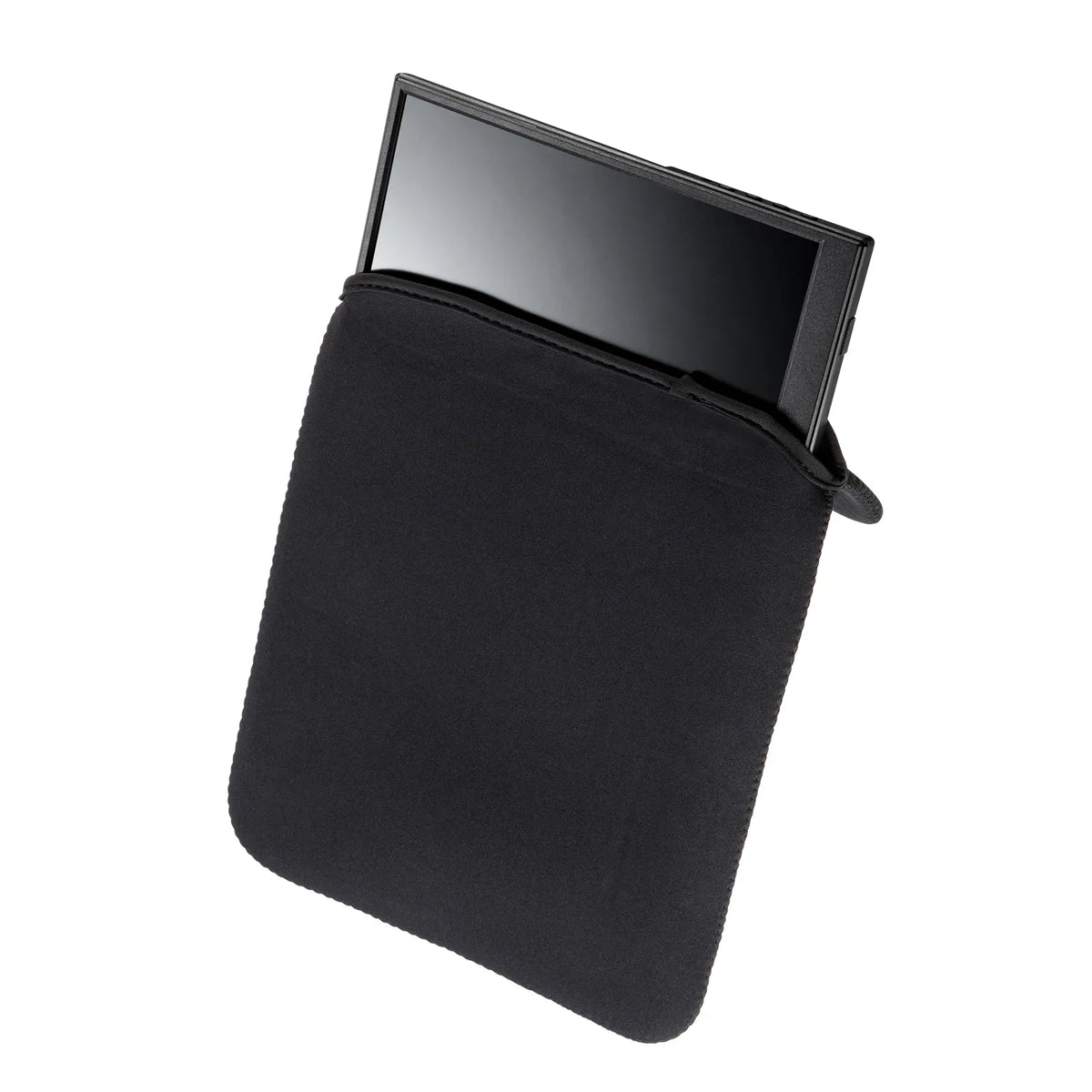

Storage case
Instruction manual
■Camera type: Mobile display
■LCD panel Panel type: IPS 14-inch/non-glare panel
■Touch panel: Capacitive method 10-point multi-touch
■Maximum display resolution: 1920x1200
■Display area: 301.594x188.496mm
■Maximum display colors: 16.77 million colors
■Viewing angle: 178 degrees vertically and 178 degrees horizontally
■Brightness: 300cd/mm2
■Contrast ratio: 800:1
■Response time: 25ms
■Refresh rate: 60Hz
■Adjustment function: Brightness adjustment
■Maximum power consumption: 15W
■Speakers: 1W x2 (stereo)
■Input terminals: USB Type-C (DP alternate) x2, mini HDMI

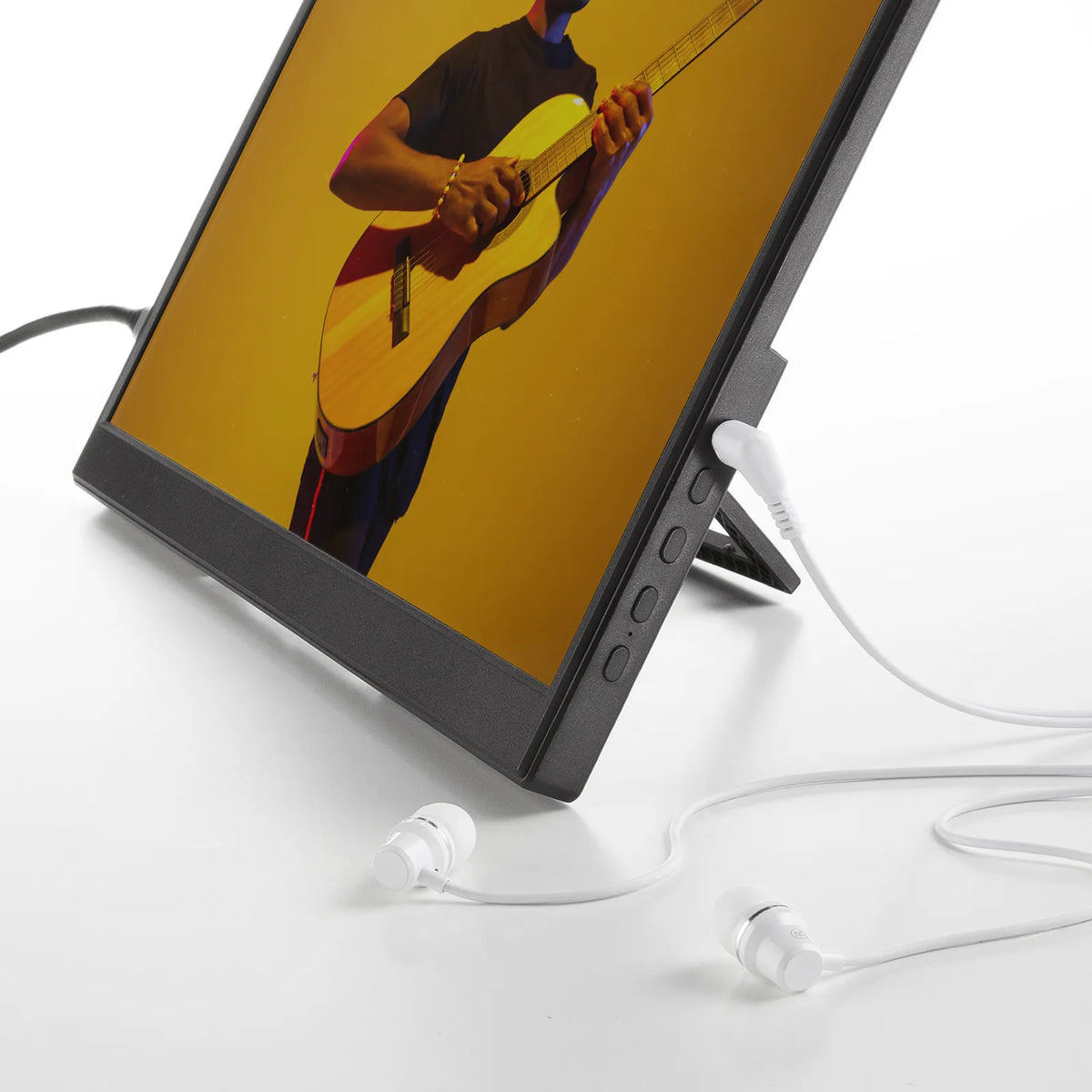

■Output terminal: 3.5mm stereo mini jack x1 (microphone cannot be used)
