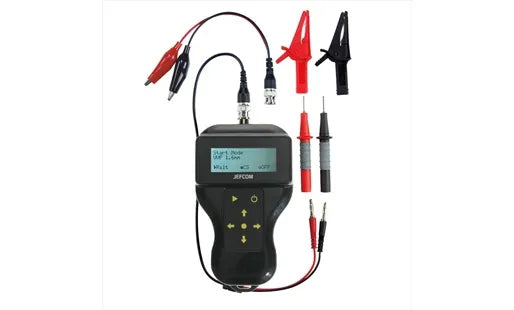

Digital Cable Measurer DMJ-1000AB

[Product Features]
Digital Cable Length Measuring Instrument
●Quickly measure cable length up to 1000m*1
●Up to 50 user modes can be registered*2
●Simple operation: just connect the unit to one end of the cable and press the button.
●More accurate length measurement is possible in user mode.
It is also possible to measure cables not listed in the menu.*2
●Aluminum CV cables can be measured in user mode.
●Backlit LCD for easy viewing even in dark places.
(Backlight stays on for about 5 seconds after switch operation)
●Included cables can be selected according to your application.

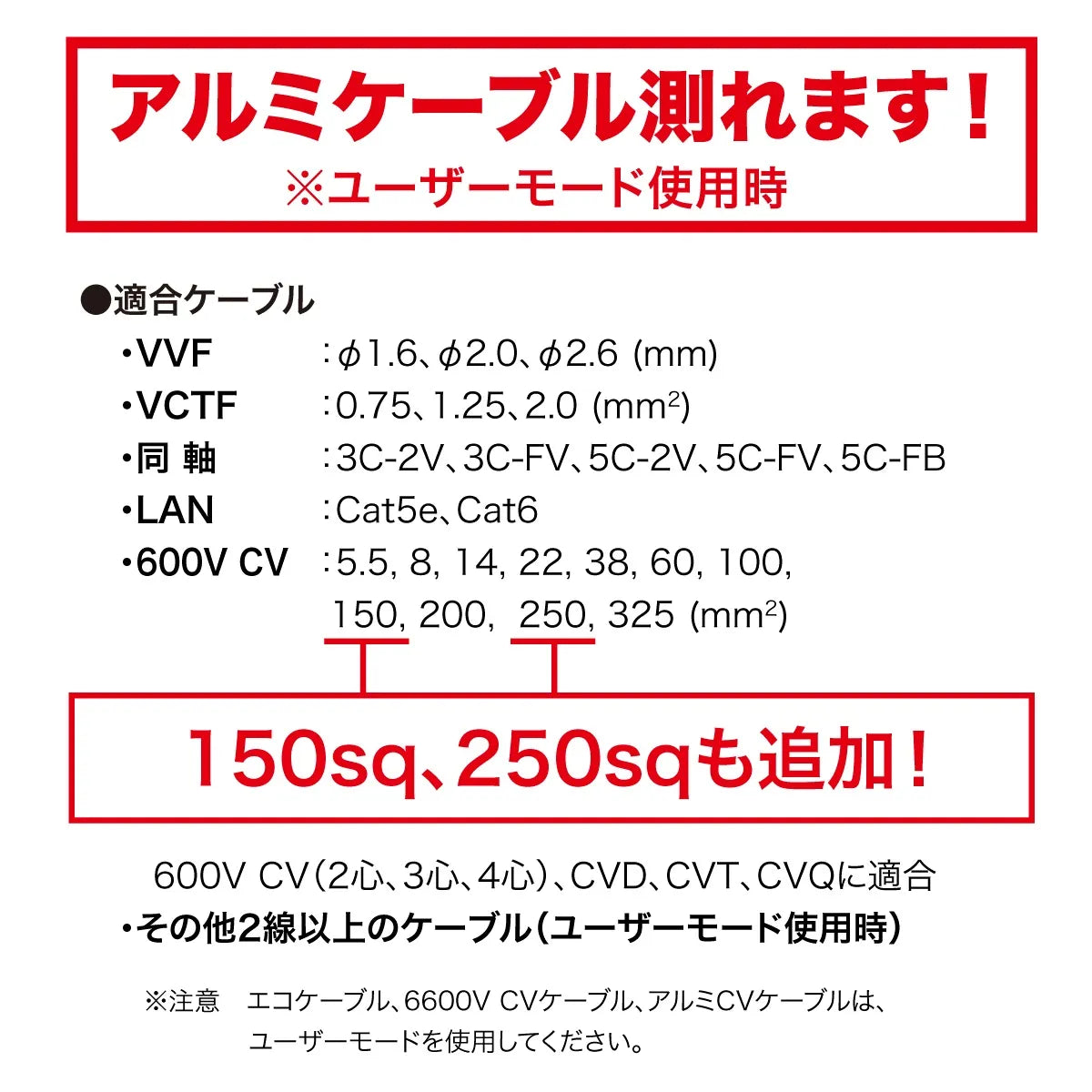

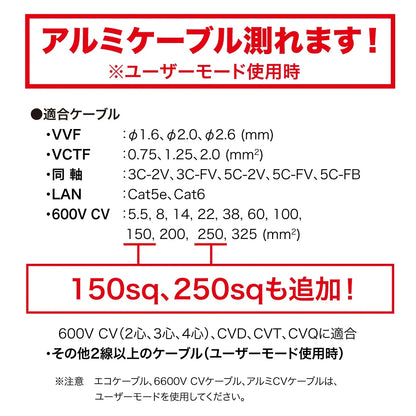

●Compatible Cables (150sq and 250sq now available!)
・VVF: φ1.6, φ2.0, φ2.6 (mm)
・VCTF: 0.75, 1.25, 2.0 (mm)
・Coaxial: 3C-2V, 3C-FV, 5C-2V, 5C-FV, 5C-FB
・LAN: Cat5e, Cat6
・600V CV: 5.5, 8, 14, 22, 38, 60, 100, 150, 200, 250, 325 (mm)
Compatible with 600V CV (2-core, 3-core, 4-core), CVD, CVT, CVQ
・Other cables with 2 or more wires (when using user mode)
※Note
Eco cable, 6600V For CV cables and aluminum CV cables, please use user mode. *Not suitable for live wires. *1 Cables that branch midway, or cables connected with crimp terminals, sleeves, etc., cannot be measured. *2 A "reference cable" of known length and specifications is required.

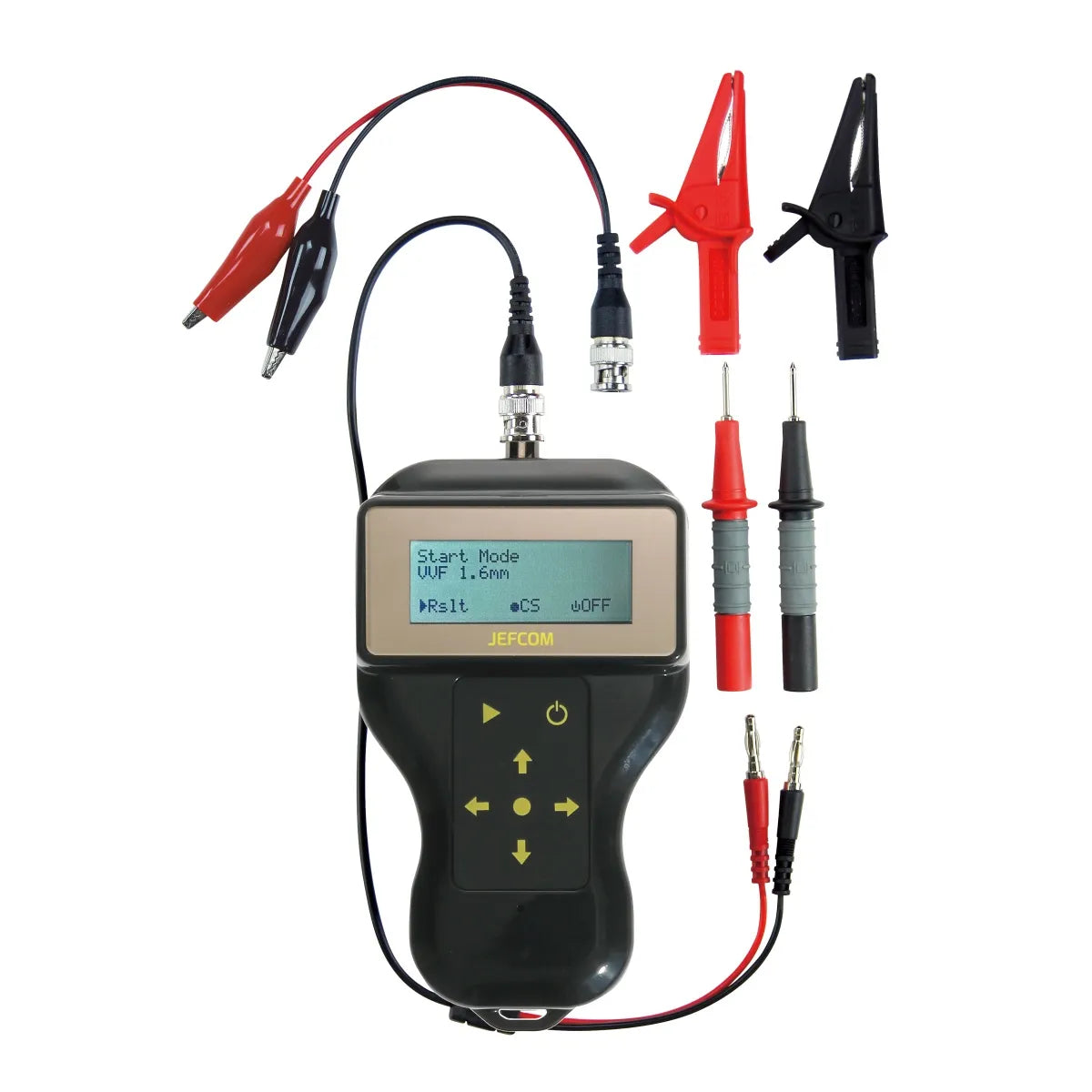

●Set Contents
・Main Unit
・Clip (Small)
・Clip (Large)
・Test Probe
・Cable 1
・Cable 2

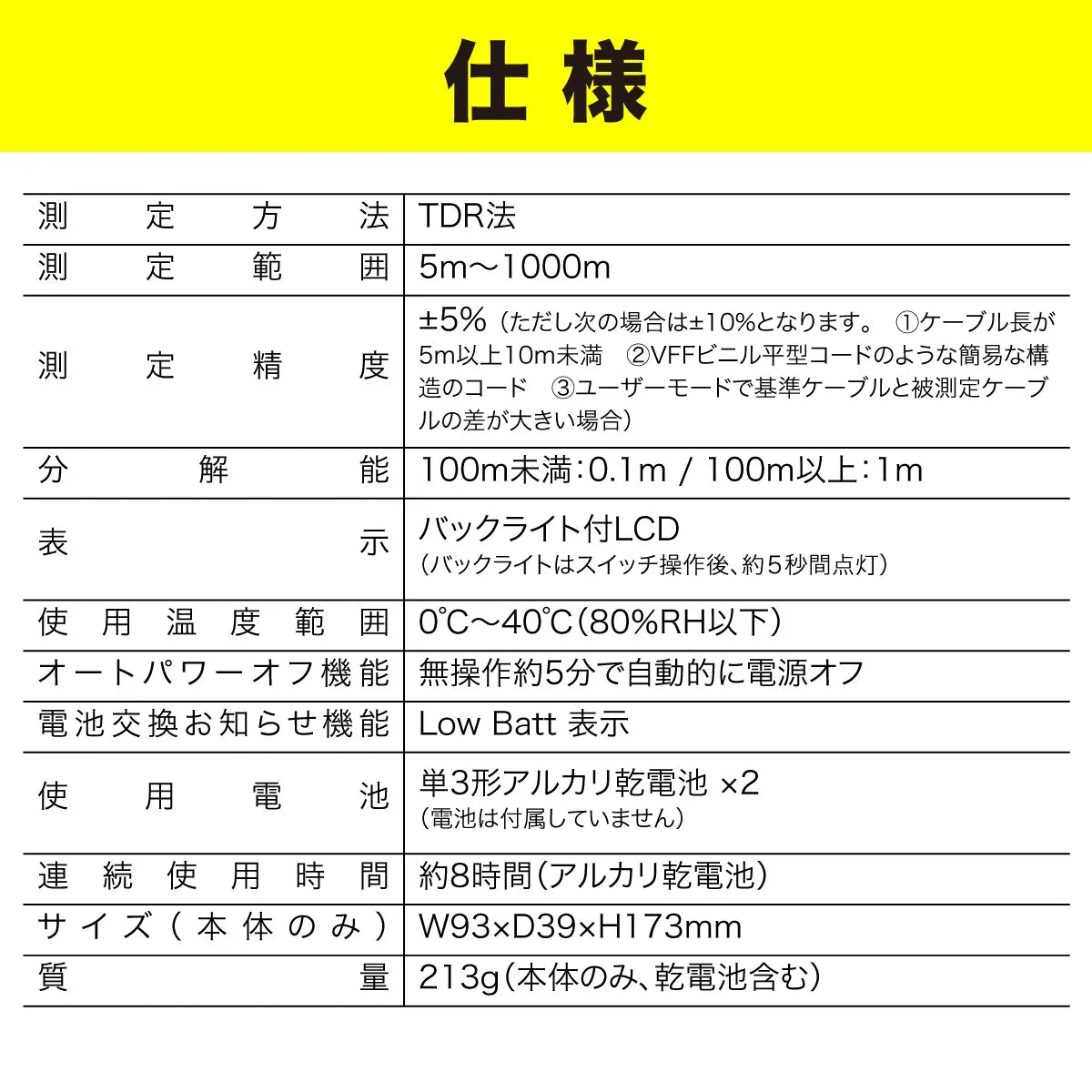

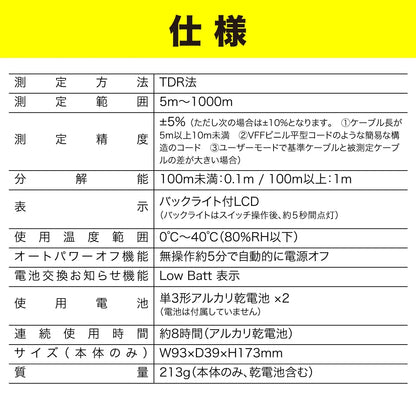

■Specifications
・Main Unit Size and Weight (Main Unit Only, Including Dry Batteries): 93mm x 39mm x 173mm・213g
・Measurement Method: TDR Method
・Measurement Range: 5m to 1000m
・Measurement Accuracy: ±5% (However, in the following cases 1 to 3, it will be ±10%)
1. Cable length is 5m or more but less than 10m
2. Simple structure cord such as VFF vinyl flat cord
3. When the difference between the reference cable and the cable under test is large in user mode
・Resolution: Less than 100m: 0.1m / 100m or more: 1m
・Display: Backlit LCD (Backlight lights up for approximately 5 seconds after switch operation)
・Operating temperature range: 0°C to 40°C (80% RH or less)
・Auto power off function: Automatically turns off after approximately 5 minutes of inactivity
・Battery replacement notification function: Low Batt display
・Battery used: 2 x AA alkaline batteries (batteries not included)
・Continuous use time: Approximately 8 hours (alkaline batteries)
・Material
Case: ABS, LCD cover: Acrylic, BNC connector: Brass + nickel plating, Battery terminals: Piano wire, Switch cover: Chloroprene rubber
・Packaging specifications
Individual packaging: Individual box
Individual package size and weight: W195 x D55 x H245mm, 650g
・1 box
・Country of origin: Japan
