JEFCOM
Pocket Digital Meter DM-700S
Pocket Digital Meter DM-700S
GTIN（JAN）：4937897056413
SKU：DM-700S
Regular price
¥5,940 JPY
Regular price
Sale price
¥5,940 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]

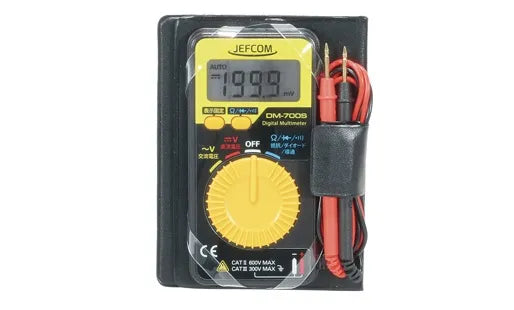

Convenient carrying case
Includes a notebook-style carrying case
●Display hold function
●Auto power off function
●Comes with a notebook-style carrying case

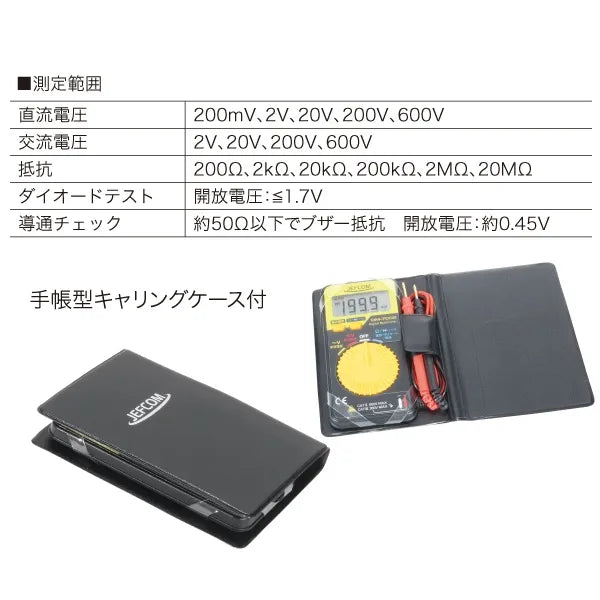

●Measurement range
・DC voltage: 200mV, 2V, 20V, 200V, 600V
・AC voltage: 2V, 20V, 200V, 600V
・Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
・Continuity check: Buzzer at approximately 50Ω or less Open circuit voltage: Approximately 0.45V
・Diode test: Open circuit voltage: ≤1.7V
■ Specifications
・Body size and weight (including carrying case): 81mm x 16mm x 121mm / 100g
・Display panel (LCD): 2000 counts, character height 12mm
・Range switching: Auto range
・Sampling speed: 3 times / second
・Polarity indicator: Automatic (only "-" indicator lights up)
・Over-range indicator: OL lights up
・Battery low indicator: BAT sign lights up when approx. 2.4V or less
・Operating temperature and humidity: 0°C to 40°C, 80%RH or less (no condensation)
・Storage temperature and humidity: -20°C to 60°C, 70%RH or less (no condensation)
・Power supply: 1 x 3V CR2032 battery
・Current consumption: Approx. 2mA
・Included functions: Display hold, auto power off
・Accessories: Battery (built-in / (For testing purposes), notebook-type carrying case, instruction manual
・Material
ABS
・Packaging specifications
Individual packaging: blister pack and cardboard backing
Individual package size and weight: W122×D25×H195mm・135g
・1 package
・Country of origin: China
Convenient carrying case
Includes a notebook-style carrying case
●Display hold function
●Auto power off function
●Comes with a notebook-style carrying case
●Measurement range
・DC voltage: 200mV, 2V, 20V, 200V, 600V
・AC voltage: 2V, 20V, 200V, 600V
・Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
・Continuity check: Buzzer at approximately 50Ω or less Open circuit voltage: Approximately 0.45V
・Diode test: Open circuit voltage: ≤1.7V
■ Specifications
・Body size and weight (including carrying case): 81mm x 16mm x 121mm / 100g
・Display panel (LCD): 2000 counts, character height 12mm
・Range switching: Auto range
・Sampling speed: 3 times / second
・Polarity indicator: Automatic (only "-" indicator lights up)
・Over-range indicator: OL lights up
・Battery low indicator: BAT sign lights up when approx. 2.4V or less
・Operating temperature and humidity: 0°C to 40°C, 80%RH or less (no condensation)
・Storage temperature and humidity: -20°C to 60°C, 70%RH or less (no condensation)
・Power supply: 1 x 3V CR2032 battery
・Current consumption: Approx. 2mA
・Included functions: Display hold, auto power off
・Accessories: Battery (built-in / (For testing purposes), notebook-type carrying case, instruction manual
・Material
ABS
・Packaging specifications
Individual packaging: blister pack and cardboard backing
Individual package size and weight: W122×D25×H195mm・135g
・1 package
・Country of origin: China
