JEFCOM

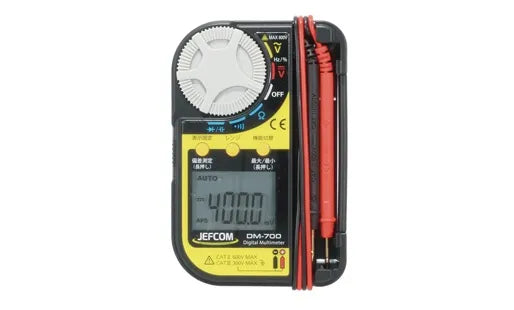

Pocket Digital Meter DM-700
Pocket Digital Meter DM-700
GTIN（JAN）：4937897056406
SKU：DM-700
Regular price
¥8,168 JPY
Regular price
Sale price
¥8,168 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
【Product Features】
Integrated Case Tester
Comprehensive Measurement Items and Convenient Functions
●Display Hold Function
●Range Hold Function
●Deviation Measurement Function
●Maximum/Minimum Value Measurement Function
●Auto Power Save Function
●Case Cover Included

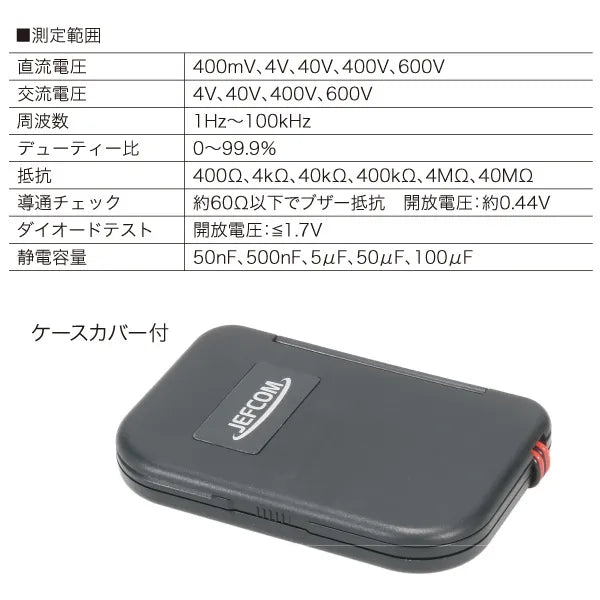

●Measurement Range
・DC Voltage: 400mV, 4V, 40V, 400V, 600V
・AC Voltage: 4V, 40V, 400V, 600V
・Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
・Frequency: 1Hz～100kHz
・Duty Cycle: 0～99.9%
・Continuity Check: Buzzer Resistance at approximately 60Ω or less Open circuit voltage: approx. 0.44V
・Diode test: Open circuit voltage: ≤1.7V
・Capacitance: 50nF, 500nF, 5μF, 50μF, 100μF
■ Specifications
・Body size and weight: 78mm x 16mm x 118mm, 110g
・Display panel (LCD): 4000 counts, character height 14mm
・Range switching: Auto / Manual range (automatic / manual)
・Sampling rate: 3 times / second
・Polarity indicator: Automatic (only "-" indicator lights up)
・Over-range indicator: OL lights up (except for DC/AC 600V)
・Battery depletion indicator: BAT sign lights up when approx. 2.4V or less
・Operating temperature and humidity: 0°C to 40°C, 80%RH or less (no condensation)
・Storage temperature and humidity: -20°C to 60°C, 80% RH or less (non-condensing)
・Power supply: 1 x 3V CR2032 battery
・Power consumption: 4.5mW standard
・Included functions: display hold, range hold, deviation measurement, maximum/minimum value, auto power save
・Accessories: battery (built-in / for operation check), instruction manual
・Material
ABS
・Packaging specifications
Individual packaging: blister pack and cardboard backing
Individual package size and weight: W111 x D26 x H193mm, 135g
・1 package
・Country of origin: China
Integrated Case Tester
Comprehensive Measurement Items and Convenient Functions
●Display Hold Function
●Range Hold Function
●Deviation Measurement Function
●Maximum/Minimum Value Measurement Function
●Auto Power Save Function
●Case Cover Included
●Measurement Range
・DC Voltage: 400mV, 4V, 40V, 400V, 600V
・AC Voltage: 4V, 40V, 400V, 600V
・Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
・Frequency: 1Hz～100kHz
・Duty Cycle: 0～99.9%
・Continuity Check: Buzzer Resistance at approximately 60Ω or less Open circuit voltage: approx. 0.44V
・Diode test: Open circuit voltage: ≤1.7V
・Capacitance: 50nF, 500nF, 5μF, 50μF, 100μF
■ Specifications
・Body size and weight: 78mm x 16mm x 118mm, 110g
・Display panel (LCD): 4000 counts, character height 14mm
・Range switching: Auto / Manual range (automatic / manual)
・Sampling rate: 3 times / second
・Polarity indicator: Automatic (only "-" indicator lights up)
・Over-range indicator: OL lights up (except for DC/AC 600V)
・Battery depletion indicator: BAT sign lights up when approx. 2.4V or less
・Operating temperature and humidity: 0°C to 40°C, 80%RH or less (no condensation)
・Storage temperature and humidity: -20°C to 60°C, 80% RH or less (non-condensing)
・Power supply: 1 x 3V CR2032 battery
・Power consumption: 4.5mW standard
・Included functions: display hold, range hold, deviation measurement, maximum/minimum value, auto power save
・Accessories: battery (built-in / for operation check), instruction manual
・Material
ABS
・Packaging specifications
Individual packaging: blister pack and cardboard backing
Individual package size and weight: W111 x D26 x H193mm, 135g
・1 package
・Country of origin: China
