JEFCOM
Cable gauge DI-CVIV131
Cable gauge DI-CVIV131
GTIN（JAN）：4937897023477
SKU：DI-CVIV131
Regular price
¥3,878 JPY
Regular price
Sale price
¥3,878 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]
Wire size can be seen at a glance
●31 sizes can be measured

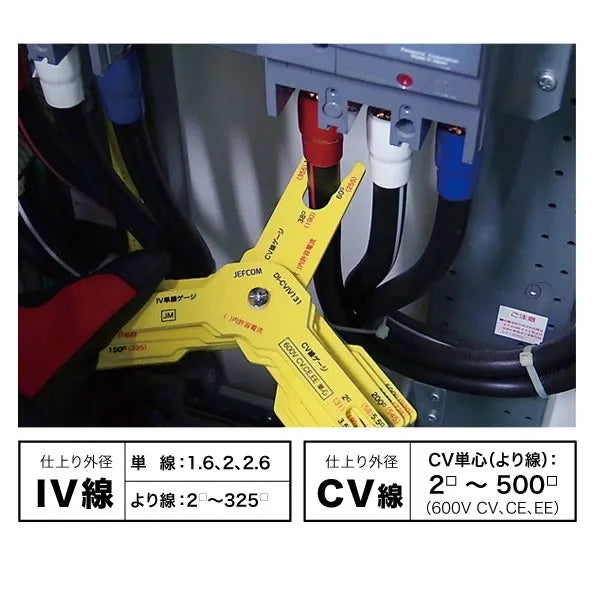

●Measurement in narrow spaces is possible
●6 pieces per set
●Finished outer diameter IV wire
・Single wire: 1.6, 2, 2.6
・Stranded wire: 2
□
～325
□
●Finished outer diameter CV wire
・CV single core (stranded wire): 2
□
～500
□
(600V CV, CE, EE)
■ Specifications

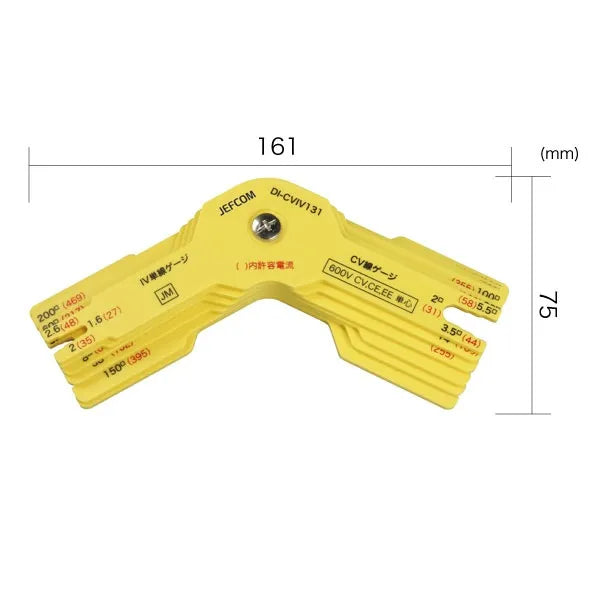

●Size: 161×75mm
●Thickness: 24mm
●Weight: 76g
●Material: ABS
●Measurement wire type and measurement range (finished outer diameter)
・IV single wire (mm): 1.6, 2.0 , 2.6
・IV stranded wire: 2SQ, 3.5SQ, 5.5SQ, 8SQ, 14SQ, 22SQ, 38SQ, 60SQ, 100SQ, 150SQ, 200SQ, 250SQ, 325SQ
・CV (single core) stranded wire: 2SQ, 3.5SQ, 5.5SQ, 8SQ, 14SQ, 22SQ, 38SQ, 60SQ, 100SQ, 150SQ, 200SQ, 250SQ, 325SQ, 400SQ, 500SQ
・Material
ABS
・Packaging specifications
Individual packaging: Header and poly bag
Individual package size and weight: W95×D30×H270mm・80g
・1 package
・Country of origin: China
Wire size can be seen at a glance
●31 sizes can be measured
●Measurement in narrow spaces is possible
●6 pieces per set
●Finished outer diameter IV wire
・Single wire: 1.6, 2, 2.6
・Stranded wire: 2
□
～325
□
●Finished outer diameter CV wire
・CV single core (stranded wire): 2
□
～500
□
(600V CV, CE, EE)
■ Specifications
●Size: 161×75mm
●Thickness: 24mm
●Weight: 76g
●Material: ABS
●Measurement wire type and measurement range (finished outer diameter)
・IV single wire (mm): 1.6, 2.0 , 2.6
・IV stranded wire: 2SQ, 3.5SQ, 5.5SQ, 8SQ, 14SQ, 22SQ, 38SQ, 60SQ, 100SQ, 150SQ, 200SQ, 250SQ, 325SQ
・CV (single core) stranded wire: 2SQ, 3.5SQ, 5.5SQ, 8SQ, 14SQ, 22SQ, 38SQ, 60SQ, 100SQ, 150SQ, 200SQ, 250SQ, 325SQ, 400SQ, 500SQ
・Material
ABS
・Packaging specifications
Individual packaging: Header and poly bag
Individual package size and weight: W95×D30×H270mm・80g
・1 package
・Country of origin: China
