JEFCOM

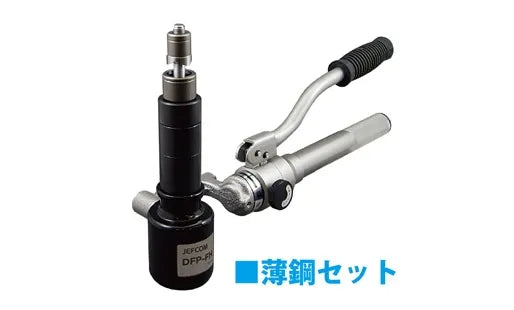

Hydraulic Free Punch (Thin Steel Set) DFP-1951
Hydraulic Free Punch (Thin Steel Set) DFP-1951
GTIN（JAN）：4937897061004
SKU：DFP-1951
Regular price
¥156,750 JPY
Regular price
Sale price
¥156,750 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
【Product Features】
Compact hydraulic free punch that allows for burr-free punching
●Maximum punching capacity: 3.2mm thick φ19.8~φ60.5mm, 1.6mm thick φ88.9~φ115.5mm
●Head rotates freely 360°, allowing work at any angle
●Hoseless pump integrated design prevents head from falling after punching
●Set contents
・Hydraulic free punch
・5 types of punch dies for thin-walled conduit pipes
(DFP-A19, DFP-A25, DFP-CP31, DFP-CP39, DFP-CP51)
■ Specifications
●Main Unit (DFP-FH) Specifications
・Output: 73kN (7.4tonf)
・Size: W66×L356×H136mm
・Main Unit Weight: 2.6kg
・Capacity
: Nominal 63 (φ64.5) × 3.2mm
: Nominal 75 (φ77.2) × 2.3mm
: Nominal 104 (φ115.5) × 1.6mm
(For thick steel 92 and above, 1-2 large shafts sold separately are required)
・Maximum Plate Thickness: Based on SS400
*The drilling capacity for stainless steel (SUS304) is limited to half of the maximum plate thickness for SS400.
・Accessories: F large shaft x 1, set bolt 3/8 (small shaft) x 1, collar large, medium, small x 1 each, safety cap x 1, iron case x 1
・Packaging specifications
Individual packaging: Outer box
Individual package size and weight: W400 x D250 x H130 mm, 7 kg
・1 package
・Country of origin: Japan
Compact hydraulic free punch that allows for burr-free punching
●Maximum punching capacity: 3.2mm thick φ19.8~φ60.5mm, 1.6mm thick φ88.9~φ115.5mm
●Head rotates freely 360°, allowing work at any angle
●Hoseless pump integrated design prevents head from falling after punching
●Set contents
・Hydraulic free punch
・5 types of punch dies for thin-walled conduit pipes
(DFP-A19, DFP-A25, DFP-CP31, DFP-CP39, DFP-CP51)
■ Specifications
●Main Unit (DFP-FH) Specifications
・Output: 73kN (7.4tonf)
・Size: W66×L356×H136mm
・Main Unit Weight: 2.6kg
・Capacity
: Nominal 63 (φ64.5) × 3.2mm
: Nominal 75 (φ77.2) × 2.3mm
: Nominal 104 (φ115.5) × 1.6mm
(For thick steel 92 and above, 1-2 large shafts sold separately are required)
・Maximum Plate Thickness: Based on SS400
*The drilling capacity for stainless steel (SUS304) is limited to half of the maximum plate thickness for SS400.
・Accessories: F large shaft x 1, set bolt 3/8 (small shaft) x 1, collar large, medium, small x 1 each, safety cap x 1, iron case x 1
・Packaging specifications
Individual packaging: Outer box
Individual package size and weight: W400 x D250 x H130 mm, 7 kg
・1 package
・Country of origin: Japan
