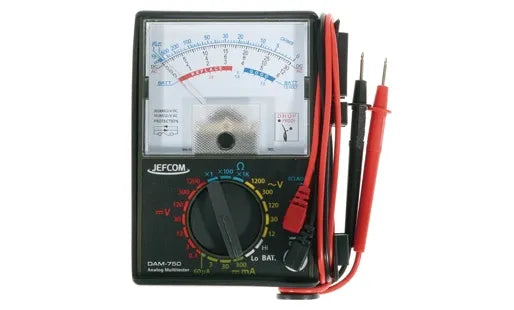

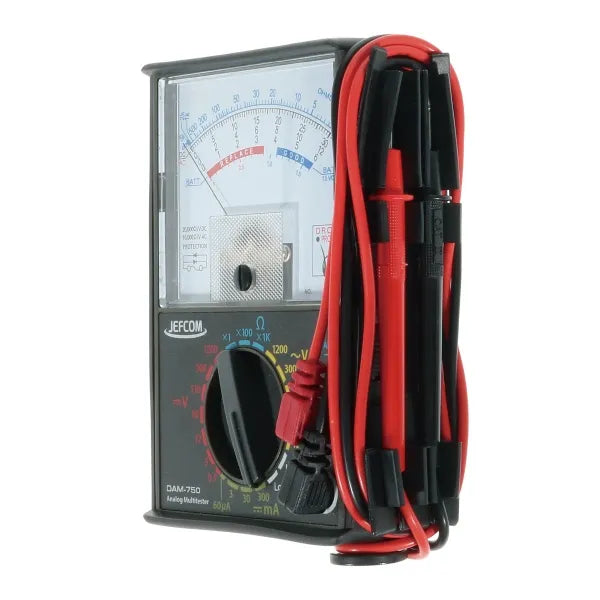

Analog tester DAM-750

【Product Features】
Comprehensive measurement items and convenient functions
●1.5V AA, AAA, C, C, and AAA battery check function
●Holster with test lead storage
●Spare battery and spare fuse (inside the main unit case)
●DC voltage
●AC voltage
●DC current
●Resistance
●Battery check
■ Specifications
・Body size and weight: 108mm x 38mm x 145mm・280g
・Power supply: 1 x 1.5V R6P (AA) battery
・Accessories
Holster,
1 set of test leads,
1 x 1.5V R6P (AA) battery (built into the main unit),
1 spare battery,
Spare fuse (0.3A / 250V) 1 battery (inside the main unit case),
Instruction manual
*The included battery is for testing purposes only.
■Measurement Specifications
・DC Voltage
Range: 0.3V / 3V / 12V / 30V / 120V / 300V / 1200V
Internal Resistance: 20kΩ/V (16.7kΩ/V for 0.3V range)
Accuracy: ±3% of maximum scale value
・AC Voltage
Range: 12V / 30V / 120V / 300V / 1200V
Internal Resistance: 10kΩ/V
Accuracy: ±4% of maximum scale value
・DC Current
Range: 60μA / 3mA / 30mA / 300mA
Accuracy: ±3% of maximum scale value
・Resistance
Range: 5kΩ / 500kΩ / 5MΩ
Accuracy: ±3% of scale length
•Battery check
Range:
1.5V AA, AAA, C, D, AAA batteries
1.5V 250mA (Hi range)
1.5V 50mA (Lo range)
•Material
ABS
•Packaging specifications
Individual packaging: Blister pack and cardboard backing
Individual package size and weight: W145×D50×H225mm・385g
•1 package
•Country of origin: China
