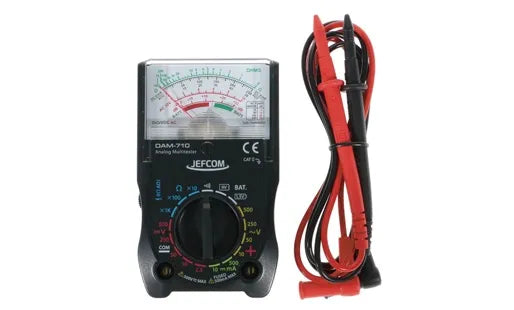

Analog tester DAM-710

[Product Features]
Pocket-sized and highly functional
●Continuity check function
●1.5V AA, AAA, 9V 6F22 battery check function
●Spare fuse included
●DC voltage
●AC voltage
●DC current
●Resistance
●Continuity check
●Battery check
●Low frequency output
■Specifications
・Body size and weight: 70mm x 34mm x 113mm・140g
・Power supply: 1 x 1.5V R6P (AA) battery
・Accessories
1 set of test leads,
1 x 1.5V R6P (AA) battery (built into the unit),
1 x spare fuse (0.5A / 250V),
Instruction manual
*The included battery is for checking operation.
■Measurement Specifications
・DC Voltage
Range: 2.5V / 10V / 50V / 250V / 500V
Internal Resistance: 2kΩ/V
Accuracy: ±4% of the maximum scale value
・AC Voltage
Range: 10V / 50V / 250V / 500V
Internal Resistance: 2kΩ/V
Accuracy: ±5% of the maximum scale value
・DC Current
Range: 10mA / 500mA
Accuracy: ±4% of the maximum scale value
・Resistance
Range: 10kΩ / 100kΩ / 1MΩ (×10 / ×100 / ×1k)
Accuracy: ±4% of the scale length
・Continuity Check
Range: Buzzer sounds at approximately 100Ω or less
・Battery Check
Range: 1.5V AA, AAA, and AA batteries (approx. 120mA load), 9V 6F22 battery (approx. 35mA load)
・Low frequency output
Range: -20 to +22 / 36 / 50 / 56dB
・Material
ABS
・Packaging specifications
Individual packaging: Blister pack and cardboard backing
Individual package size and weight: W120 x D40 x H180mm / 215g
・1 package
・Country of origin: China
