JEFCOM

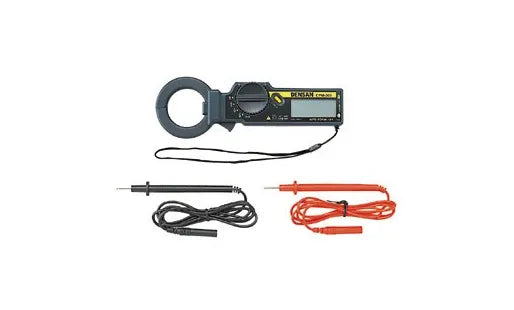

Multi-clamp digital meter CPM-300
Multi-clamp digital meter CPM-300
GTIN（JAN）：4937897043857
SKU：CPM-300
Regular price
¥16,995 JPY
Regular price
Sale price
¥16,995 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
【Product Features】
This single device can measure "current," "voltage," and "resistance."
●Measurement Functions: AC current (clamp type), AC voltage, DC voltage, resistance
●AC Detection Method: Average value rectification
●A/D Conversion Method: Double integration method
●Display: Maximum display of 3200 counts, LCD display, with unit symbols
●Measurement Ranges:
・AC Current: 30A/300A (2 ranges auto) (50/60Hz)
・AC Voltage: 3V-500V (4 ranges auto) (50/60Hz)
・DC Voltage: 300mV-500V (5 ranges auto)
・Resistance: 300/3000Ω (2 ranges auto)
●Range Switching: Rotary switch
●Tolerance: 23 degrees ± 5 degrees, 80% RH or less
AC Current (ACA): 0-300A 2%rdg±8dgt
ACV: 0-500V 2.3%rdg±6dgt
DCV: 0-500V 1.3%rdg±3dgt
Resistance (Ω): 0-3000Ω 2%rdg±5dgt
●Maximum measurable conductor diameter: φ40mm
●Overrange display: Displays OL
●Data hold: "DH" The " " mark lights up and the display is held.
●Sample rate: Approximately 2 times/second
●Auto power off function: Power off mode approximately 10 minutes after power switch is turned ON
●Battery voltage display: "B" mark lights up when below operating voltage
●Operating circuit voltage: AC 500V or less
●Operating temperature and humidity: 0-40 degrees, 80% RH or less (but no condensation)
●Storage temperature and humidity: -10-60 degrees, 70% RH or less (but no condensation)
●Withstand voltage: AC 3700V applied between the CT core metal part and the grip part for 1 minute, no abnormality
●Power consumption: 5mW (approximately 40 hours continuously)
■ Specifications
●Battery: Alkaline button battery LR44 2 pieces
●Size: Width 64 x Depth 24 x Height 193 mm
●Weight: Approx. 100 g
・Packaging specifications
Individual packaging:
Individual packaging size and weight: W140 x D260 x H50 mm・100 g
・1 package
・Country of origin: China
This single device can measure "current," "voltage," and "resistance."
●Measurement Functions: AC current (clamp type), AC voltage, DC voltage, resistance
●AC Detection Method: Average value rectification
●A/D Conversion Method: Double integration method
●Display: Maximum display of 3200 counts, LCD display, with unit symbols
●Measurement Ranges:
・AC Current: 30A/300A (2 ranges auto) (50/60Hz)
・AC Voltage: 3V-500V (4 ranges auto) (50/60Hz)
・DC Voltage: 300mV-500V (5 ranges auto)
・Resistance: 300/3000Ω (2 ranges auto)
●Range Switching: Rotary switch
●Tolerance: 23 degrees ± 5 degrees, 80% RH or less
AC Current (ACA): 0-300A 2%rdg±8dgt
ACV: 0-500V 2.3%rdg±6dgt
DCV: 0-500V 1.3%rdg±3dgt
Resistance (Ω): 0-3000Ω 2%rdg±5dgt
●Maximum measurable conductor diameter: φ40mm
●Overrange display: Displays OL
●Data hold: "DH" The " " mark lights up and the display is held.
●Sample rate: Approximately 2 times/second
●Auto power off function: Power off mode approximately 10 minutes after power switch is turned ON
●Battery voltage display: "B" mark lights up when below operating voltage
●Operating circuit voltage: AC 500V or less
●Operating temperature and humidity: 0-40 degrees, 80% RH or less (but no condensation)
●Storage temperature and humidity: -10-60 degrees, 70% RH or less (but no condensation)
●Withstand voltage: AC 3700V applied between the CT core metal part and the grip part for 1 minute, no abnormality
●Power consumption: 5mW (approximately 40 hours continuously)
■ Specifications
●Battery: Alkaline button battery LR44 2 pieces
●Size: Width 64 x Depth 24 x Height 193 mm
●Weight: Approx. 100 g
・Packaging specifications
Individual packaging:
Individual packaging size and weight: W140 x D260 x H50 mm・100 g
・1 package
・Country of origin: China
