Webcam Wireless Conversion Kit CMS-EXW01

[Wireless Webcam Conversion Kit]

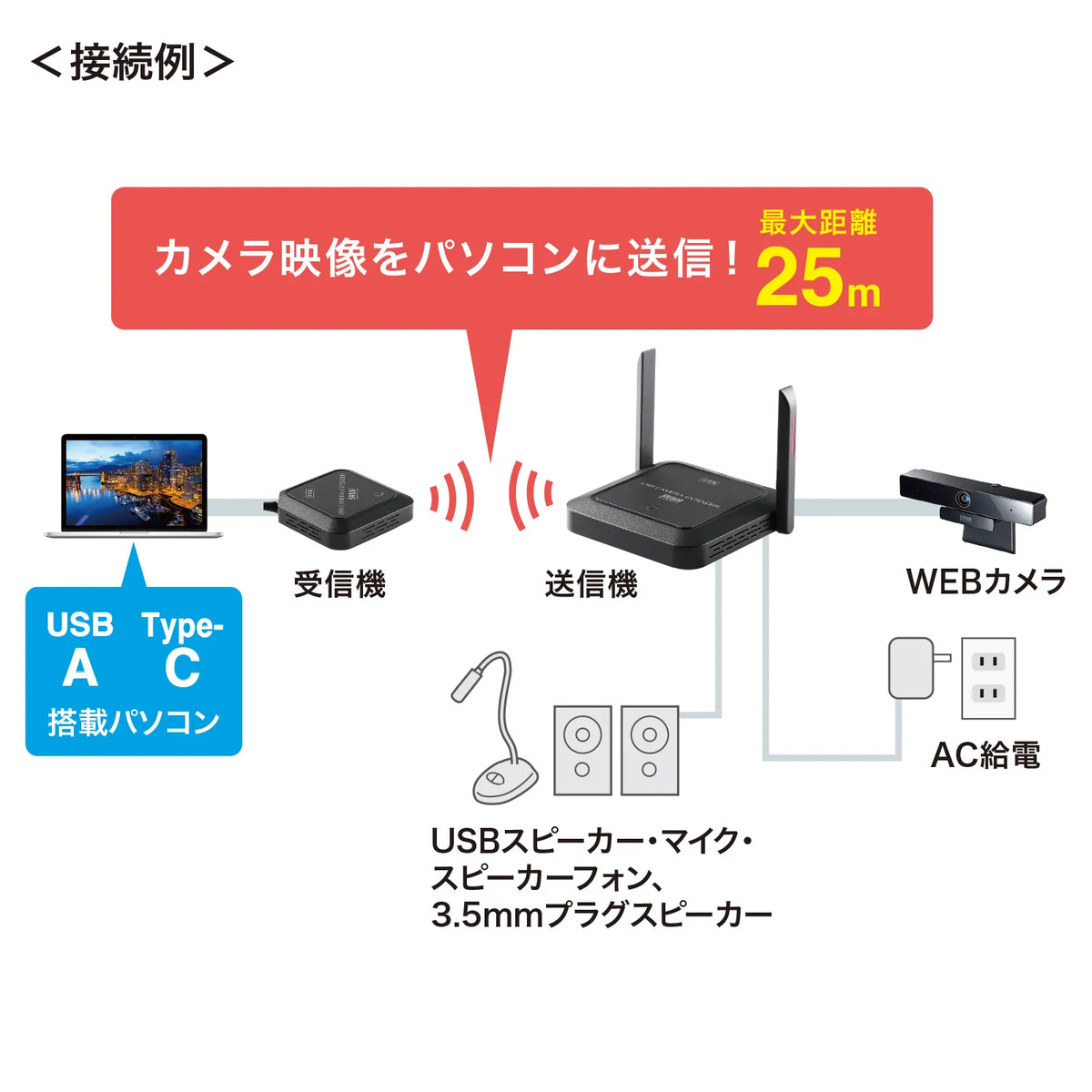

●This is a wireless webcam conversion kit that can make wired webcams that connect via USB wireless.
●It can connect to any webcam that connects via USB to a computer, regardless of the manufacturer.
●It uses 5GHz band wireless transmission technology, allowing for stable transmission and reception of video and audio even over long distances.
●It can transmit up to a distance of 25m.
●It supports a maximum resolution of 3840x2160 (4K). It supports a wide range of resolutions such as 1080p (Full HD) and 720p (HD).
*When using 3840x2160 (4K) resolution, the webcam's video format must support H.264.
*Webcams with MJPEG or YUV video formats do not support 3840x2160 (4K) resolution.
●There is almost no image delay or degradation, and wireless connectivity is possible with the same image quality as a wired connection.

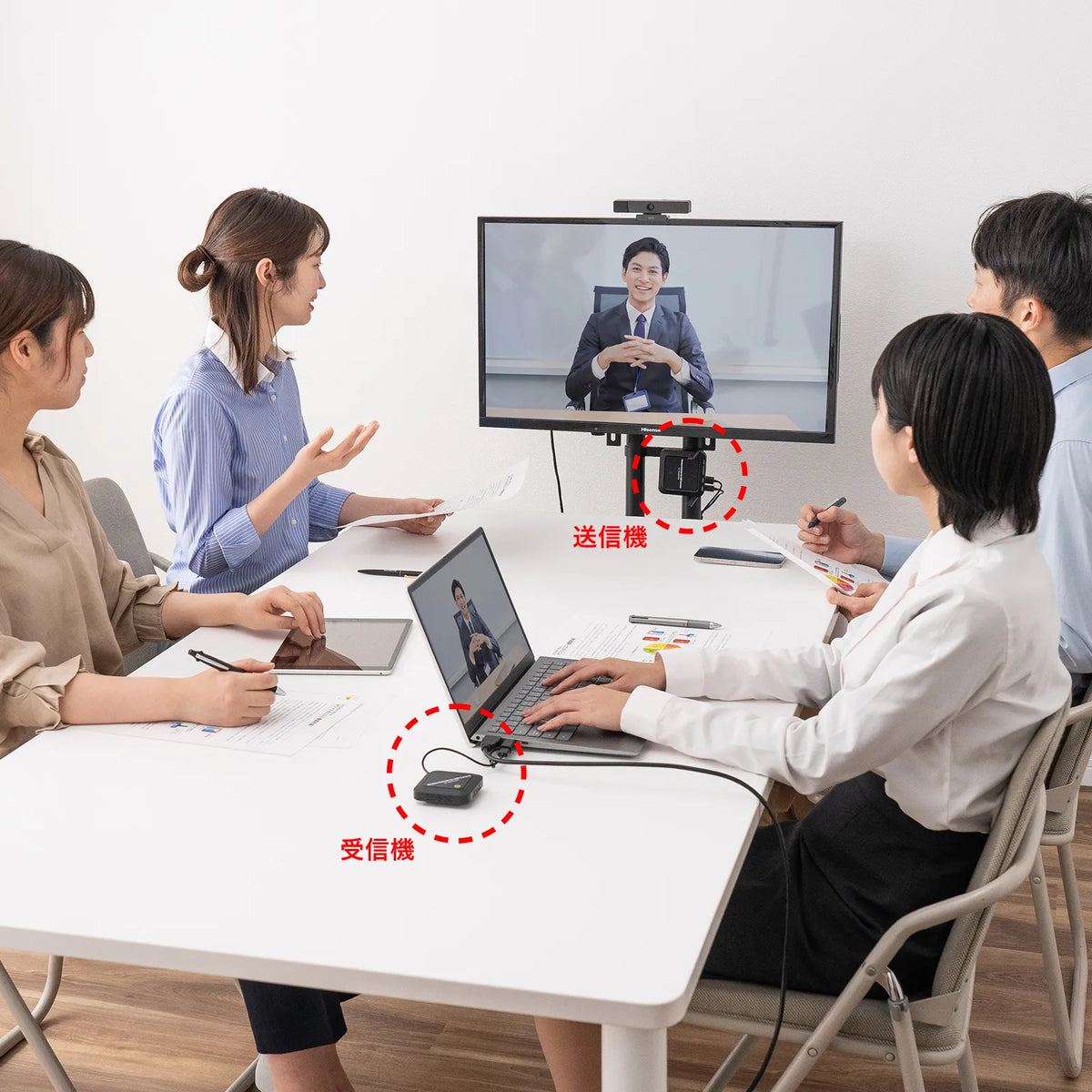

●Convenient for use in large conference rooms and other places where cable length was previously insufficient or cable management was problematic.
●In addition to cameras, it is also possible to connect USB-equipped speakers, microphones, and speakerphones, and speakers with 3.5mm plugs can also be connected.

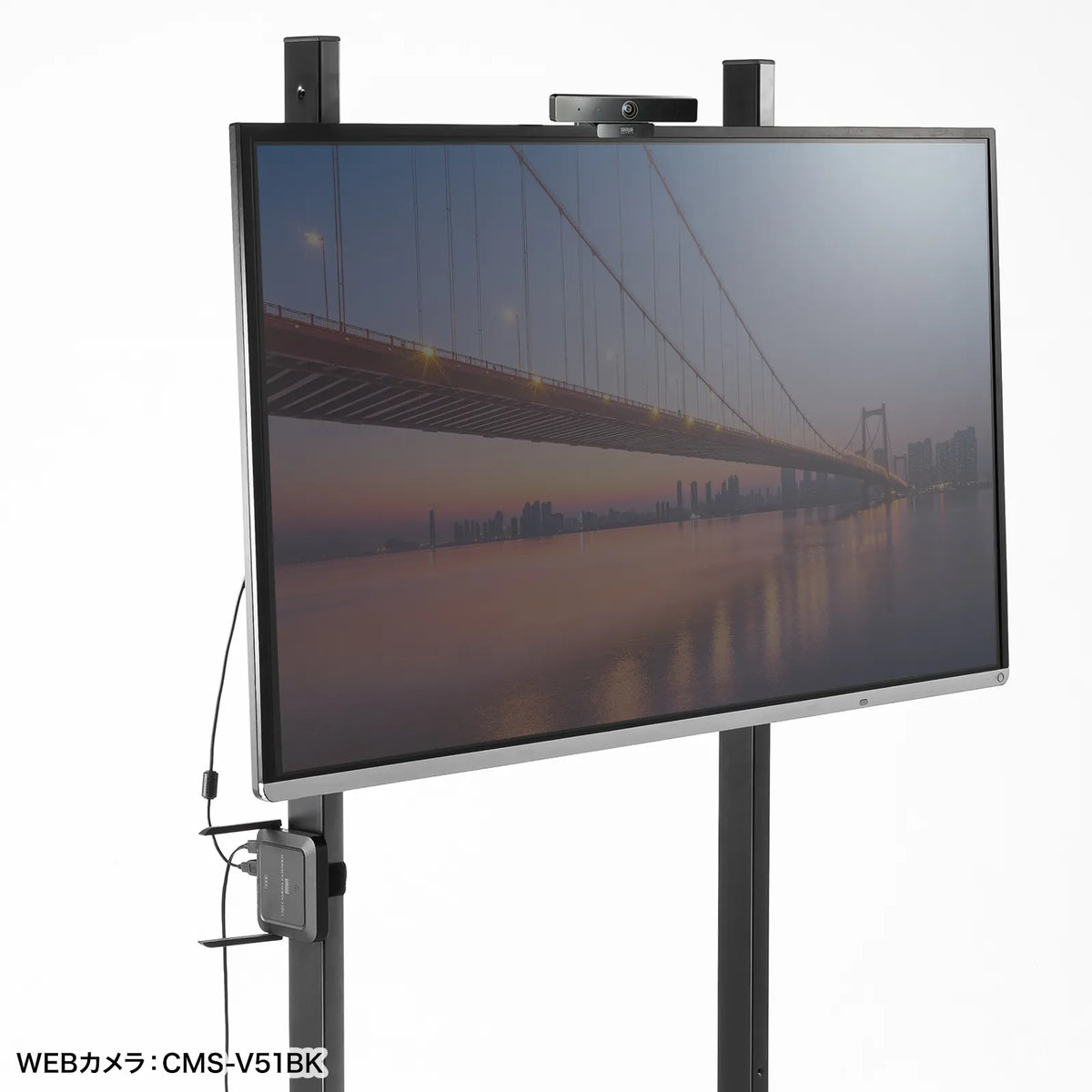

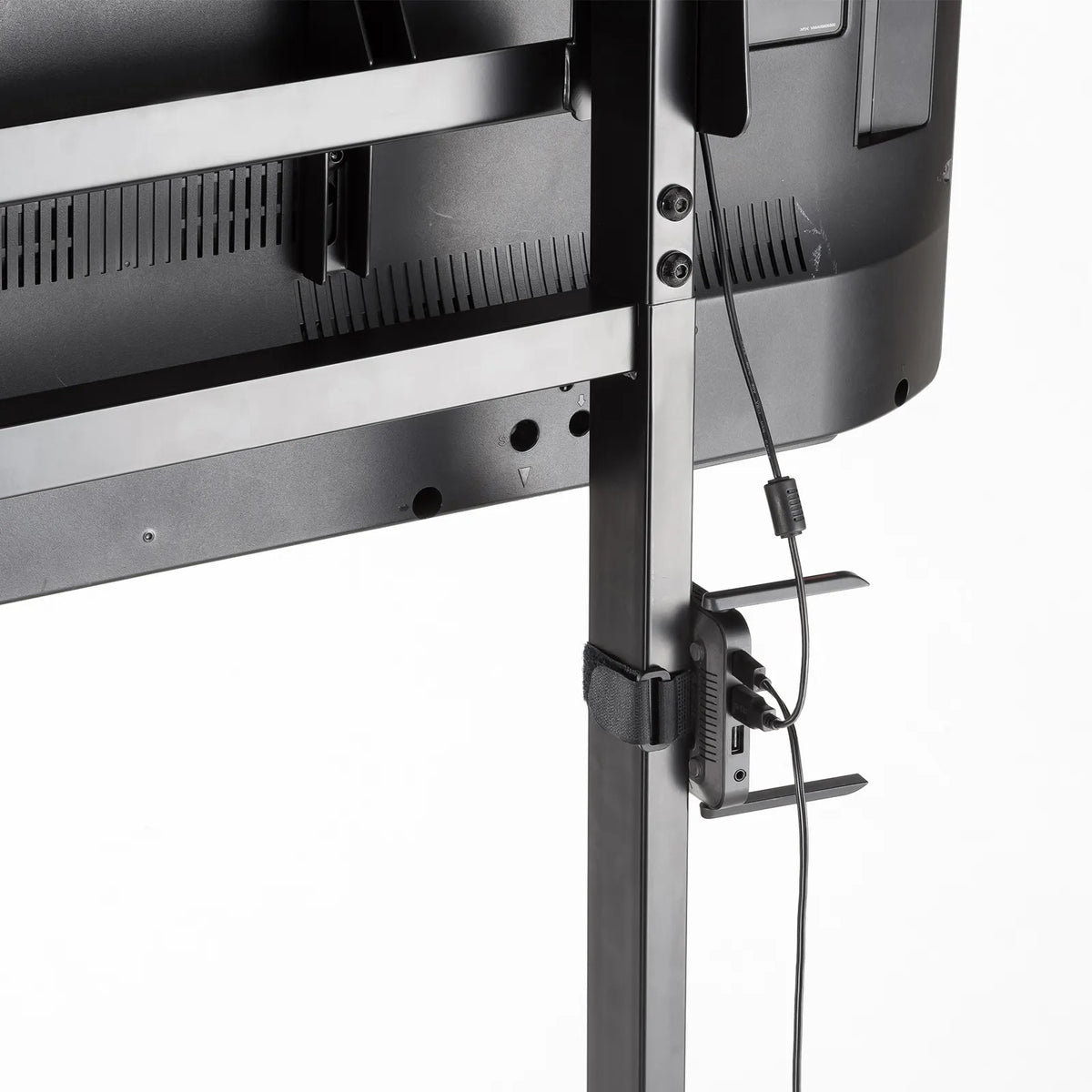

●A Velcro strap is included, allowing it to be attached to the support column of a TV stand or the frame of a desk.
≪Caution≫
*The transmission distance of 25m is a theoretical value. It may be significantly shorter depending on the usage environment.
*Limited to webcams that comply with the UVC camera standard.
*Only one set can be used in the same space. Using multiple units may cause radio interference and may not function properly.
*If this product is used in adjacent rooms, it may not function properly if it is within the distance range where radio waves interfere.
*Operation is not guaranteed with all devices.
*We do not provide any support for video chat software such as Zoom or Microsoft Teams.
*After turning on the power of this product transmitter or connecting the USB receiver, it takes about 30 seconds for it to function properly.
≪Webcam System Requirements≫
* Intel(R) Core(TM) i3 1.2GHz equivalent or higher
* 2GB or more of memory
* 1GB or more of free hard disk space
* One free USB port

■Supported Standards:

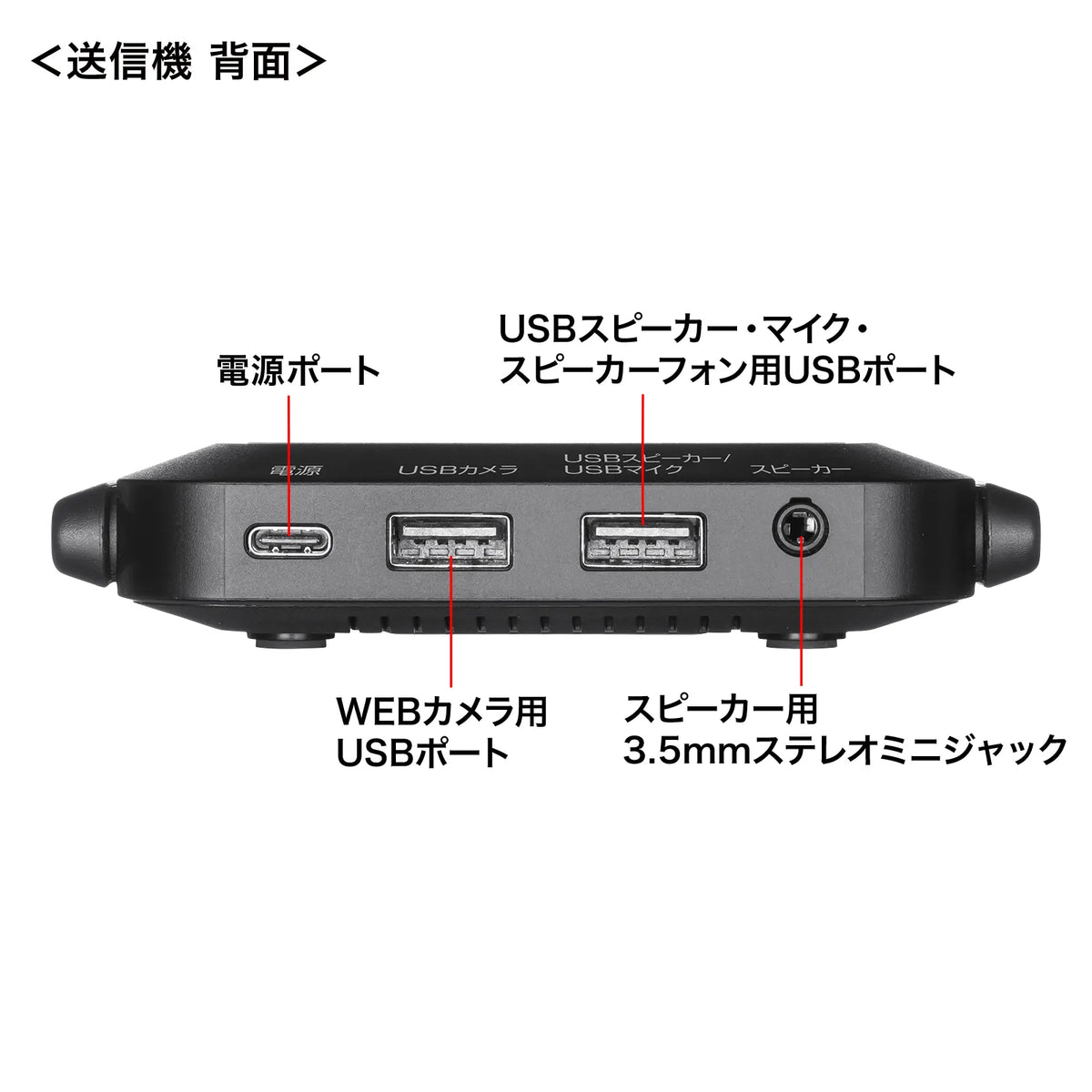

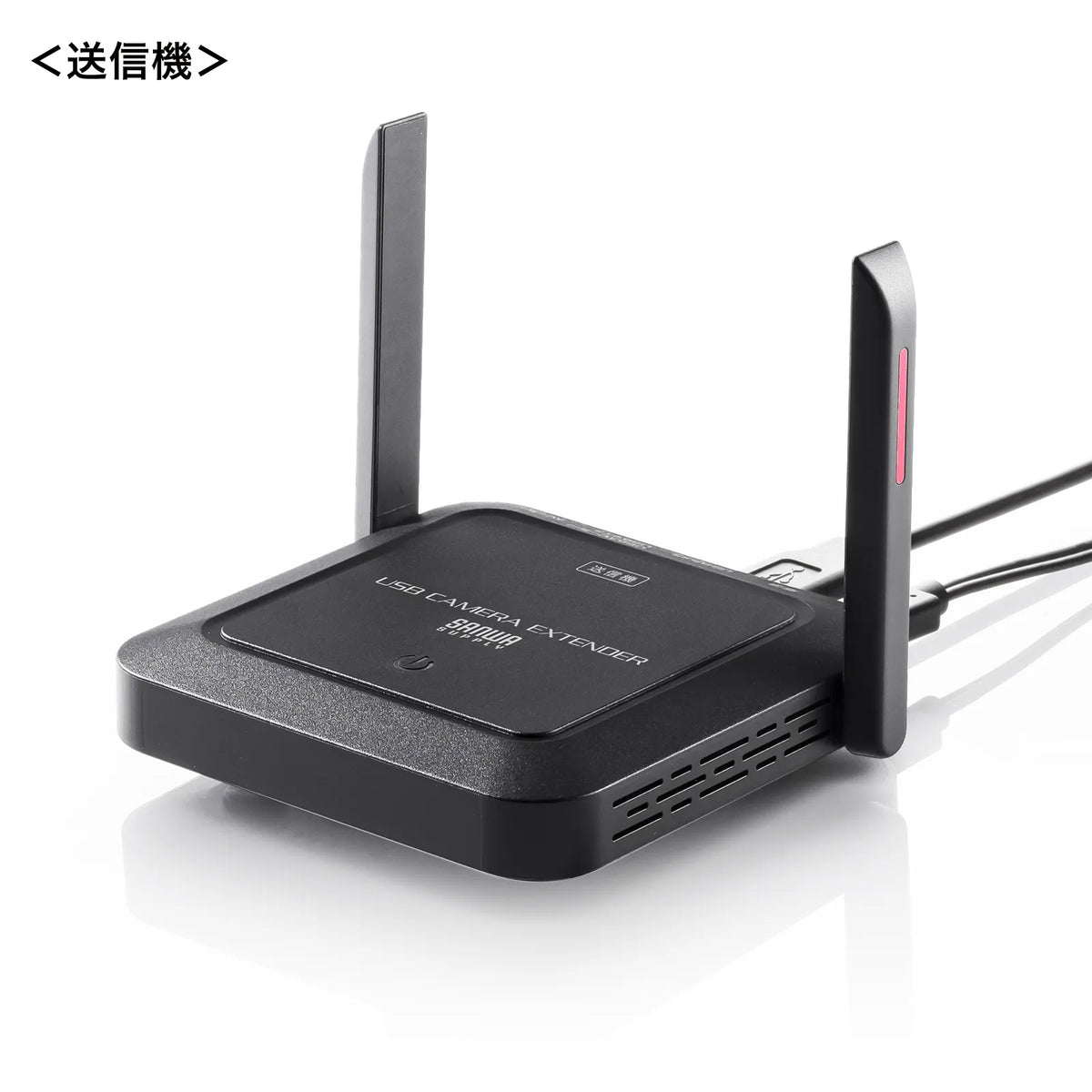

Transmitter/
USB Type-C connector female x1 (for power),
USB A connector female x2 (for webcam/speaker, microphone, speakerphone),
3.5mm stereo mini jack (for speaker)

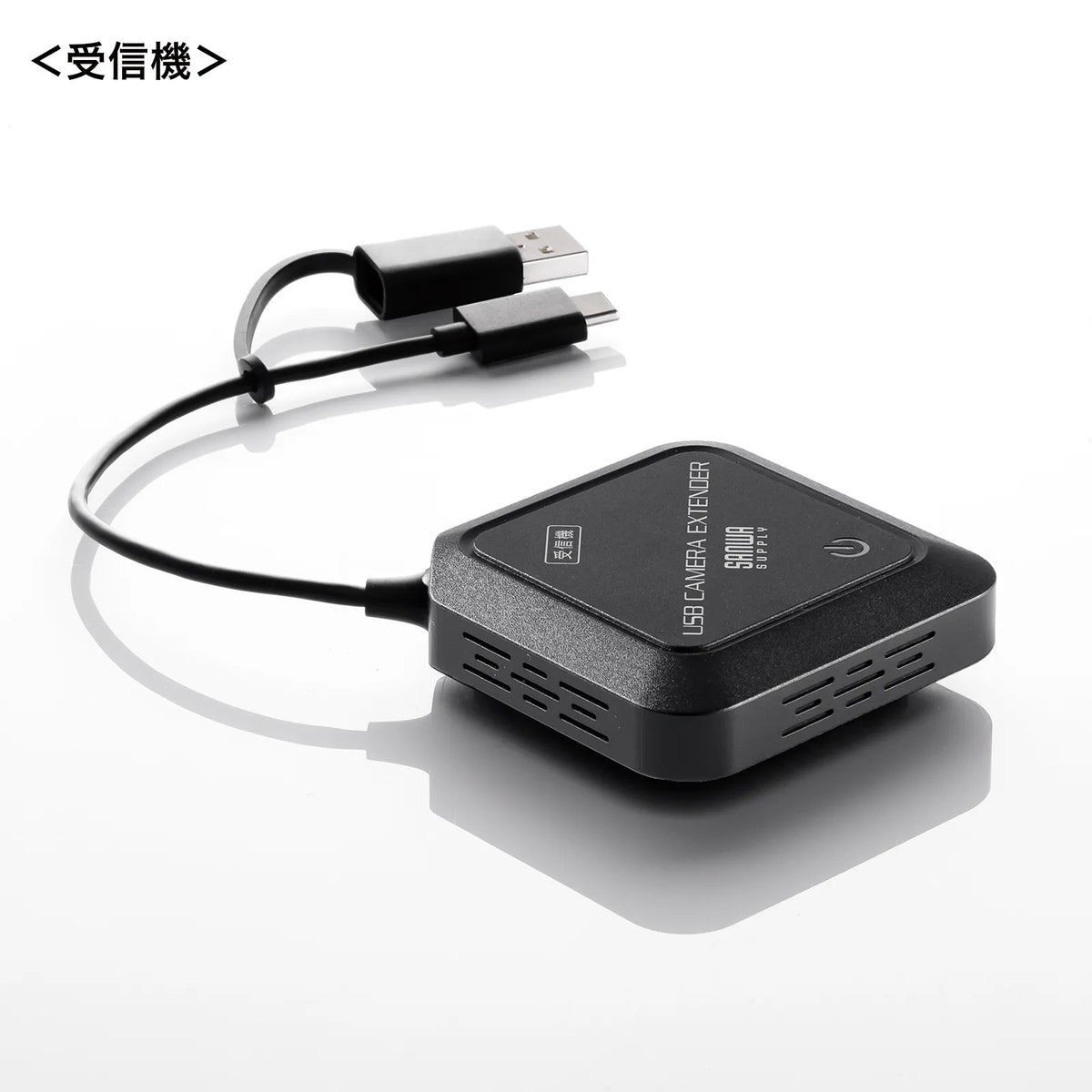

Receiver/

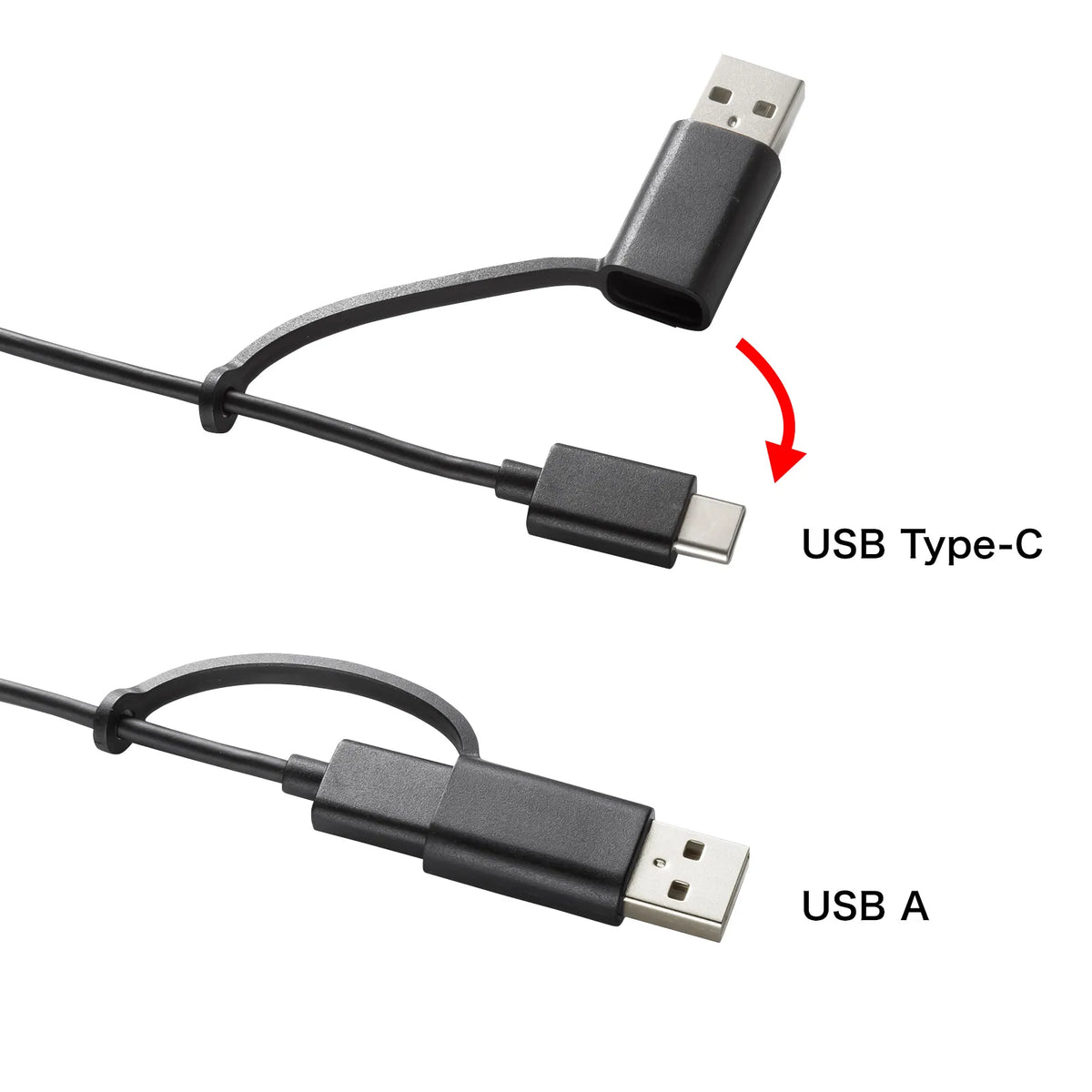

USB A connector male x1, or USB Type-C connector male x1
■Video Format: MJPEG, H.264, YUV
■Video Resolution:
H.264 2160p/1080p/720p/480p/240p 30 fps
MJPEG 1080p/720p/480p/240p 30 fps
YUV 1080p/720p/480p/240p
■Power supply:
Transmitter/DC5V/3A (USB Type-C connector)
Receiver/Powered from the USB port of a PC
■Input ports: USB x1 for webcam, USB x1 for USB speaker/microphone/speakerphone, 3.5mm jack x1 for speaker
■Radio frequency: 5GHz
■Radio range: Up to 25m *Varies greatly depending on the environment
■Connectable devices: USB Features a webcam, USB microphone, USB speaker, USB speakerphone, and speaker with a 3.5mm plug.
■Material: ABS (case)
■Size:
Transmitter/W95xD95xH23mm (excluding antenna and AC adapter)

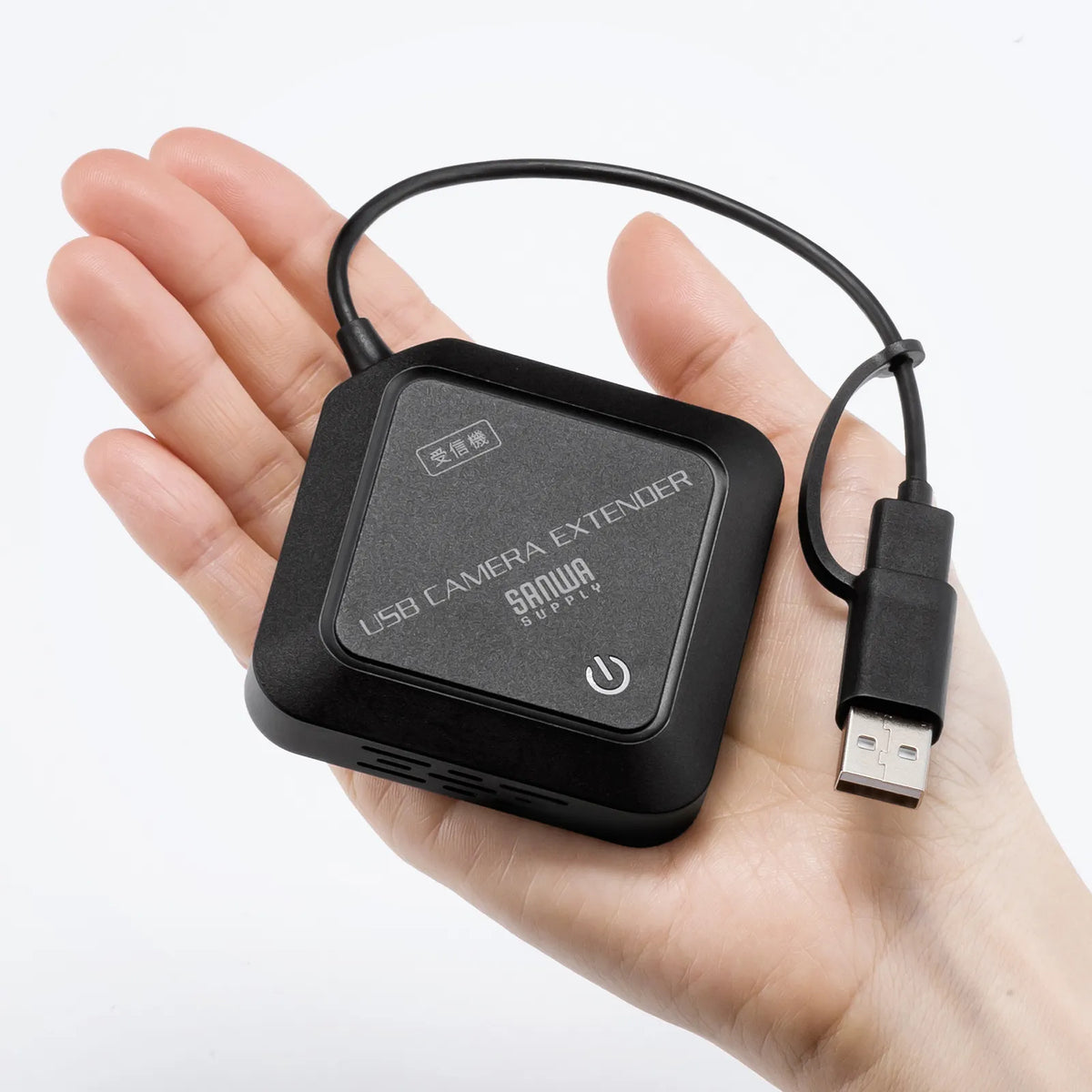

Receiver/W67xD67xH21mm
■Weight:
Transmitter/approx. 54g
Receiver/approx. 32g
■Cable length:
Transmitter/AC adapter approx. 150cm
Receiver/approx. 15cm

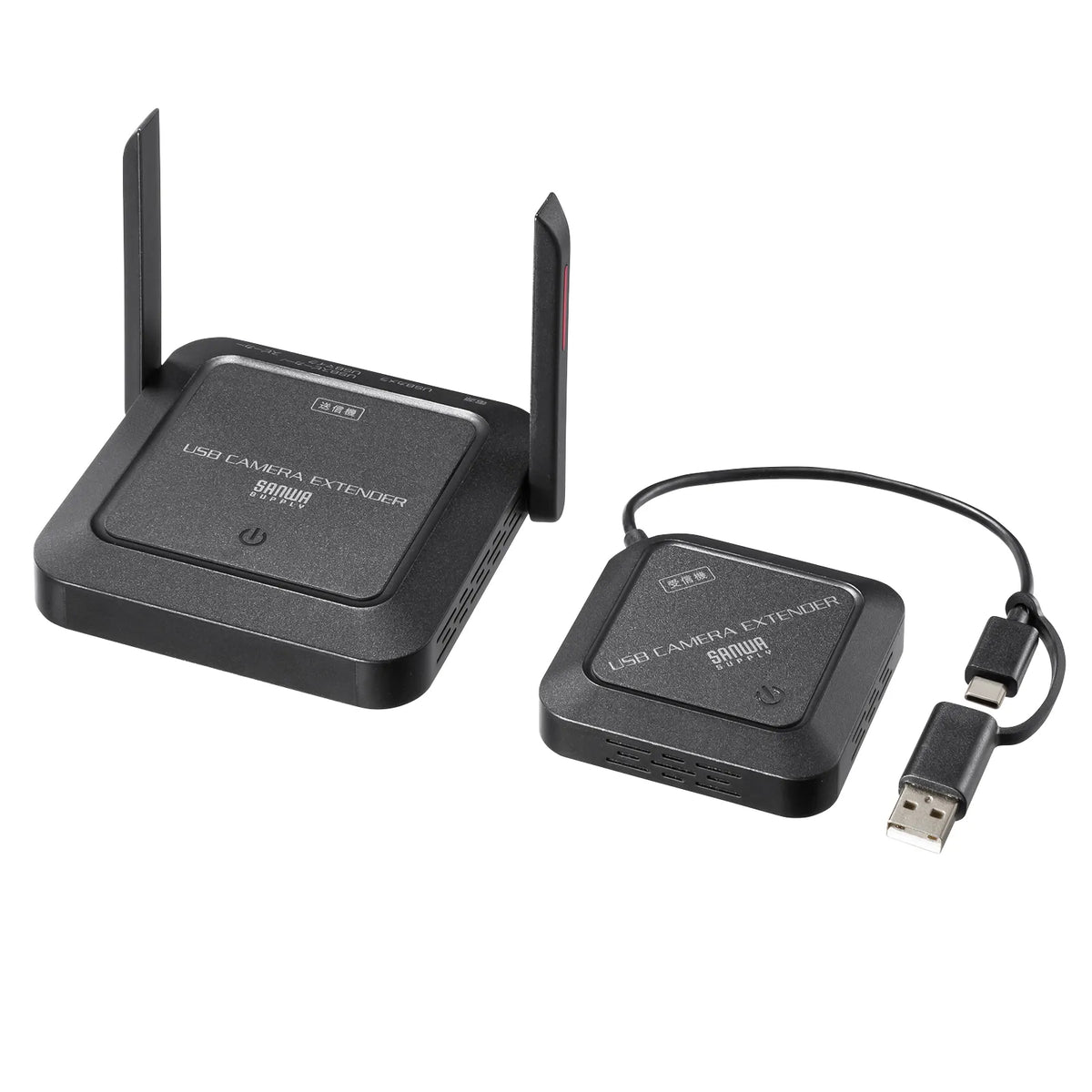

■Set contents: Transmitter, receiver, AC adapter, Velcro strap, instruction manual
