JEFCOM

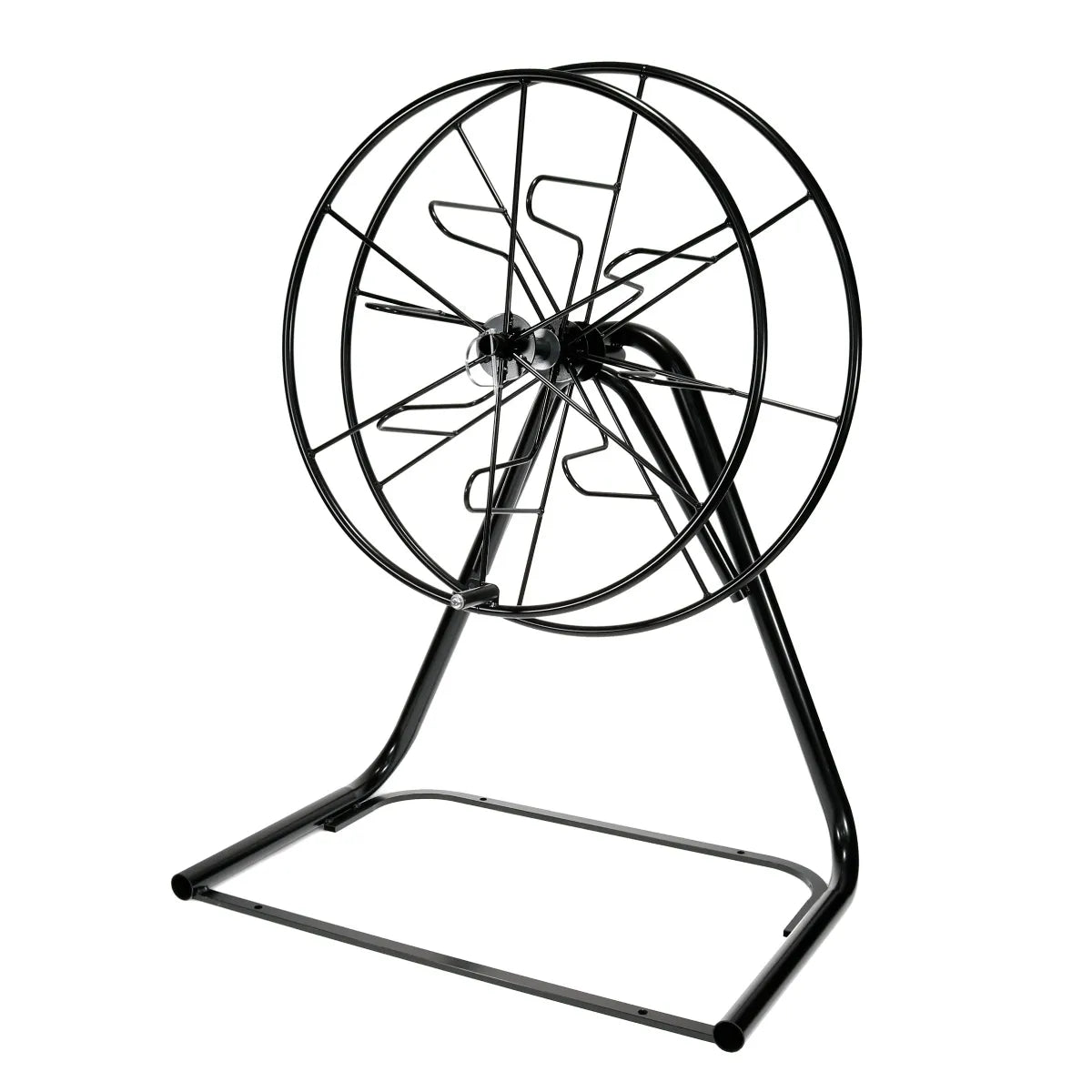

Cable winding machine (kind type) CMR-700
Cable winding machine (kind type) CMR-700
GTIN（JAN）：4937897027277
SKU：CMR-700
Regular price
¥90,750 JPY
Regular price
Sale price
¥90,750 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]
For cable processing work before installation! Can wind up unit cables

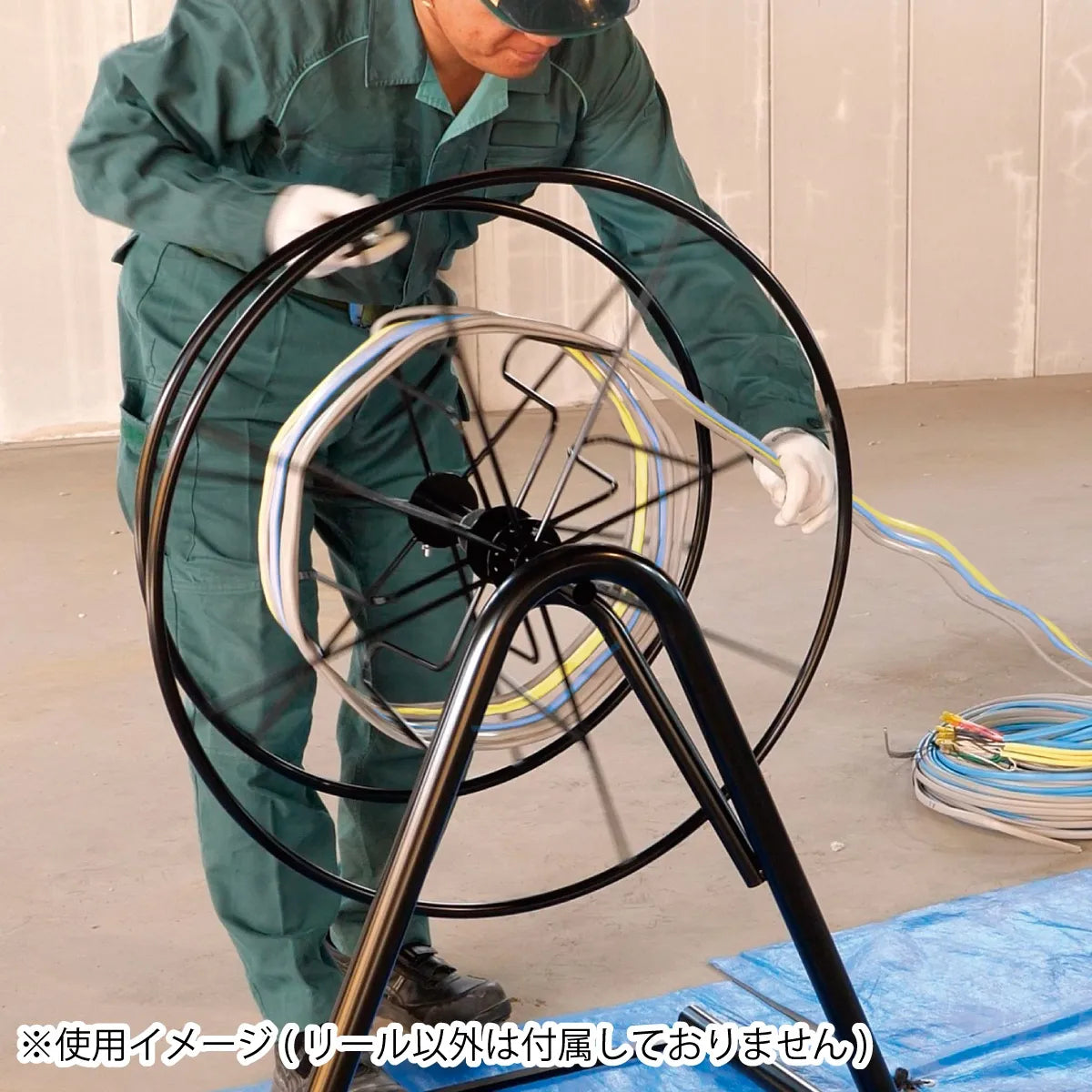

●Ideal for easily winding up processed cables and using them on site
(e.g., bundled cables from distribution boards to the first box that have been pre-patterned, unit cables in hotels and hospital rooms)

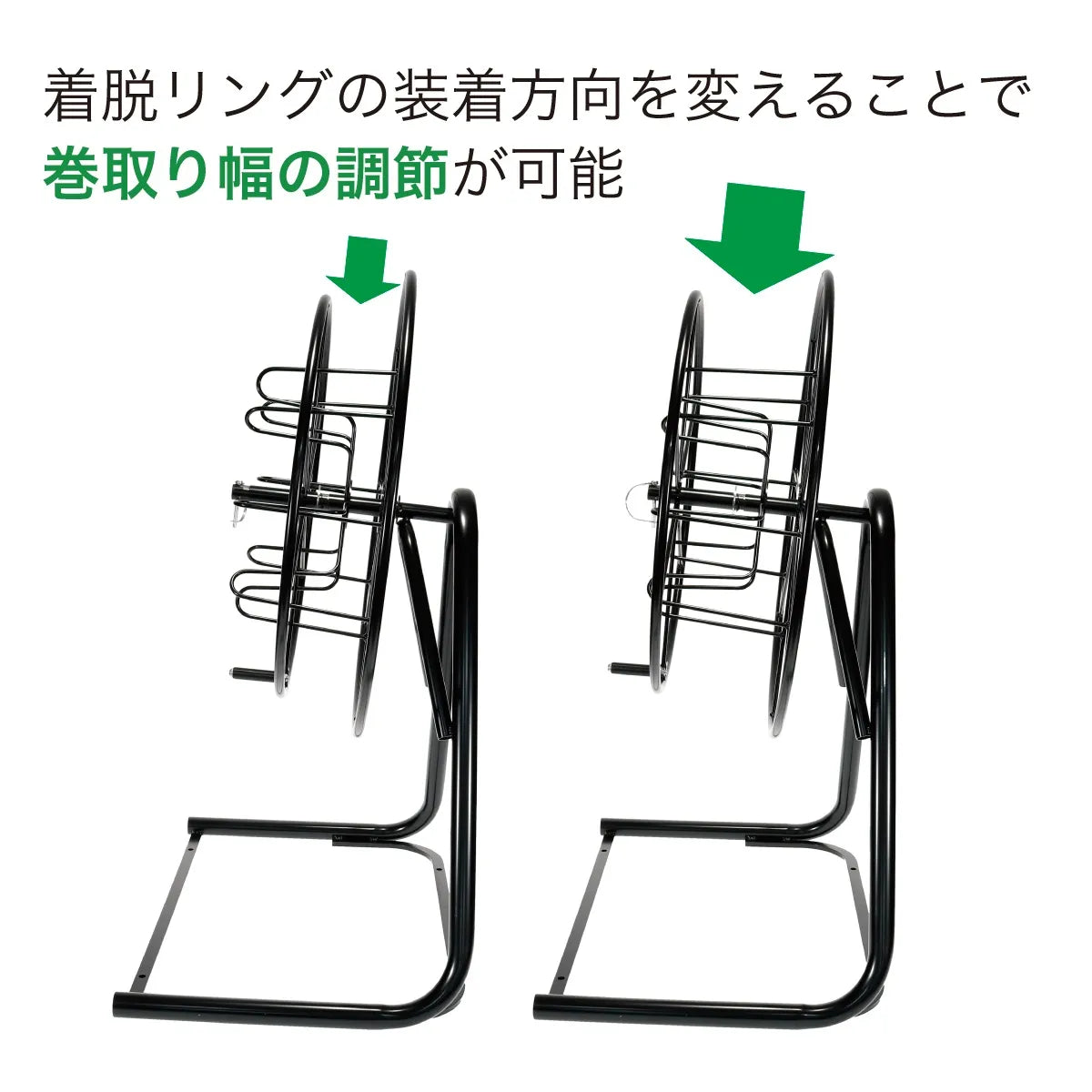

●Two types of wire winding widths are available (185mm and 115mm)

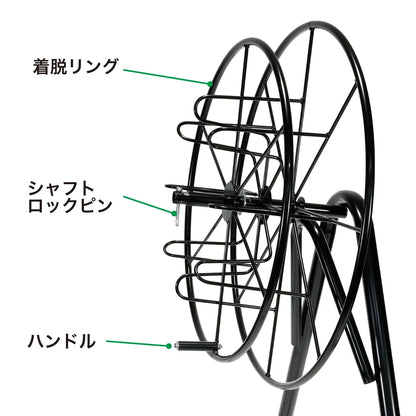

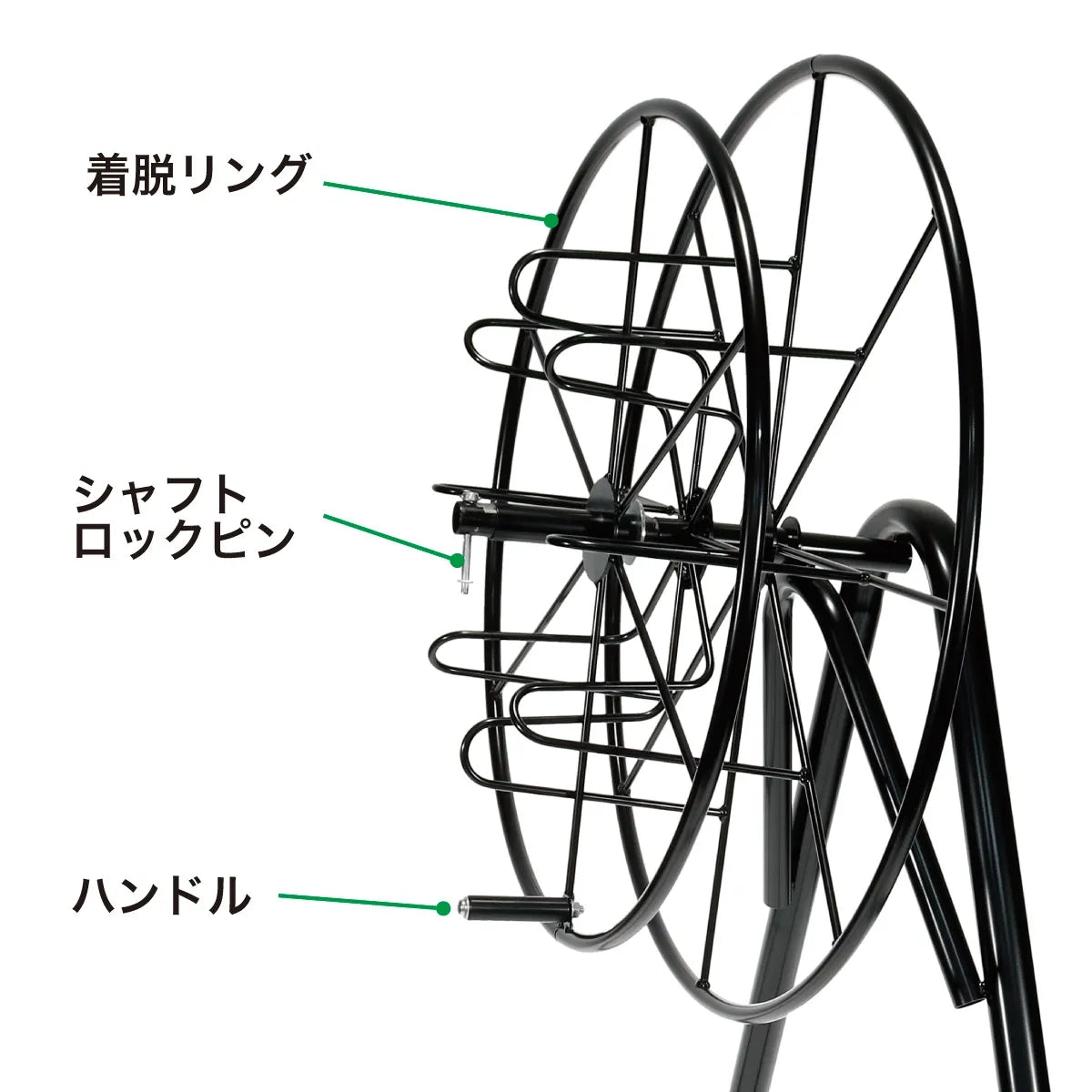

・Winding width can be adjusted by changing the direction in which the attachment ring is attached
●The winding part has a tapered shape, making it easy to remove the wound wire
●The angled reel makes it easy to maintain a comfortable posture when winding

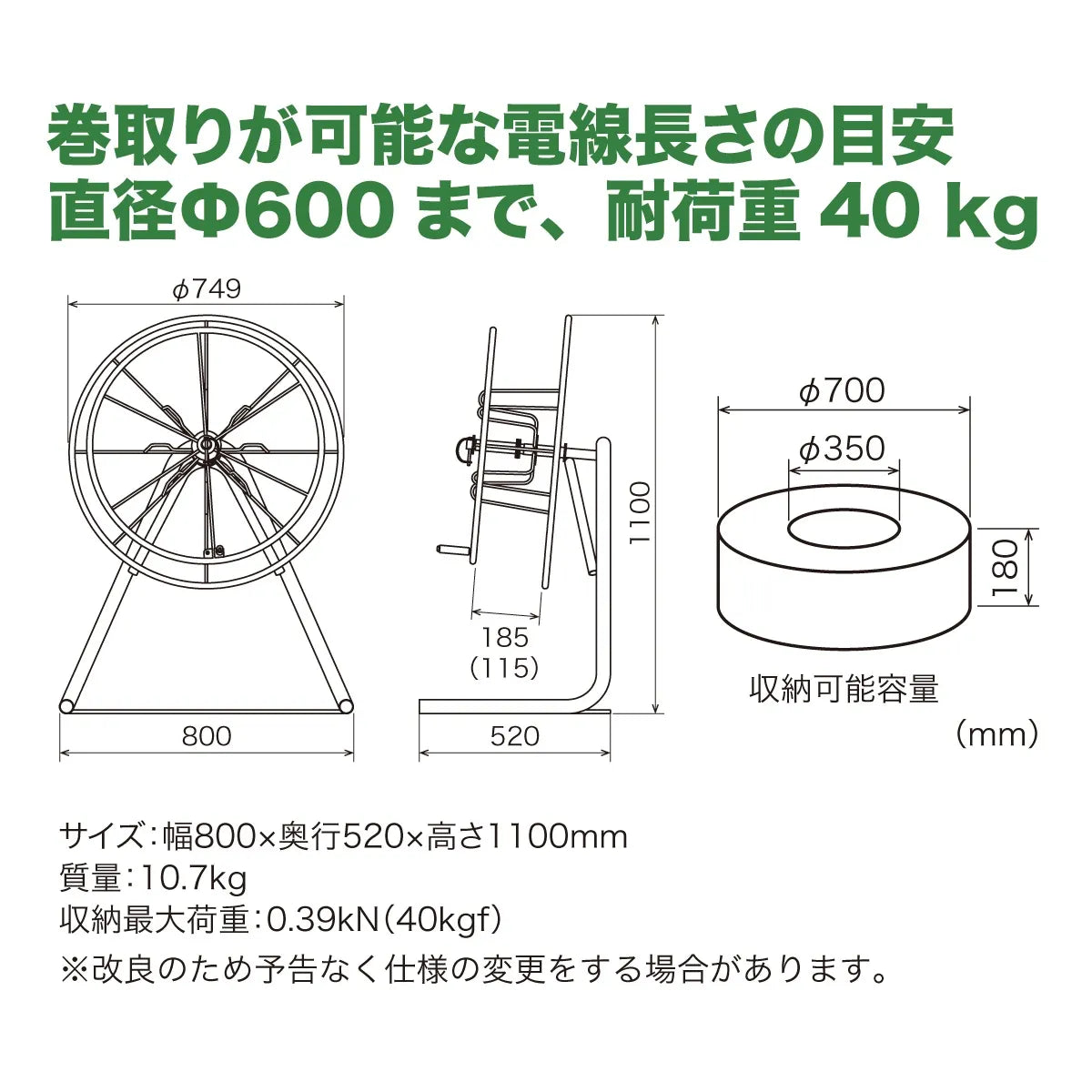

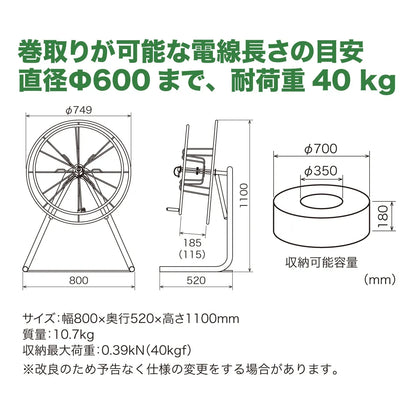

●Approximate length of wire that can be wound
・Up to a diameter of Φ600, load capacity 40 kg
■ Specifications
・Body size and weight: 800mm x 520mm x 1100mm・10.7kg
・Maximum storage load: 0.39kN (40kgf)
*Specifications may be changed without notice for improvement.
・Material
STKM・STKMR・SWM
・Packaging specifications
Individual packaging: Individual box and seal
Individual package size and weight: W550×D830×H780mm・13kg
・1 package
・Country of origin: Japan
For cable processing work before installation! Can wind up unit cables
●Ideal for easily winding up processed cables and using them on site
(e.g., bundled cables from distribution boards to the first box that have been pre-patterned, unit cables in hotels and hospital rooms)
●Two types of wire winding widths are available (185mm and 115mm)
・Winding width can be adjusted by changing the direction in which the attachment ring is attached
●The winding part has a tapered shape, making it easy to remove the wound wire
●The angled reel makes it easy to maintain a comfortable posture when winding
●Approximate length of wire that can be wound
・Up to a diameter of Φ600, load capacity 40 kg
■ Specifications
・Body size and weight: 800mm x 520mm x 1100mm・10.7kg
・Maximum storage load: 0.39kN (40kgf)
*Specifications may be changed without notice for improvement.
・Material
STKM・STKMR・SWM
・Packaging specifications
Individual packaging: Individual box and seal
Individual package size and weight: W550×D830×H780mm・13kg
・1 package
・Country of origin: Japan
