JEFCOM
Cable Mawaru CBM-800
Cable Mawaru CBM-800
GTIN（JAN）：4937897025921
SKU：CBM-800
Regular price
¥89,100 JPY
Regular price
Sale price
¥89,100 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]

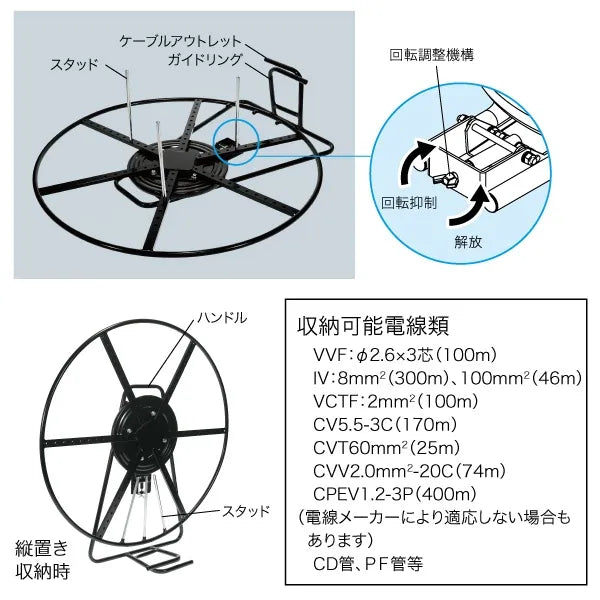

Transport upright, unwind when laid down
● Three studs provide a perfect fit for the inner and outer diameters of the wires
● Rotation adjustment mechanism suppresses rotation when the remaining wire is low
● Includes a guide ring for unwinding the cable
● Cable outlet allows you to remove the cable from the reel without cutting it
● Can unwind the cable while it is still in its shrink-wrapped packaging
● Space-saving storage
・Easy to store upright
● Easy to carry
・Equipped with a handle for easy carrying
● Inner and outer unwinding Either outlet or outlet is OK
●Types of wires that can be stored
・VVF: φ2.6 x 3 cores (100m)
・IV: 8mm_ (300m), 100mm_ (46m)
・VCTF: 2mm_ (100m)
・CV5.5-3C (170m)
・CVT60mm_ (25m)
・CVV2.0mm_-20C (74m)
・CPEV1.2-3P (400m)
(May not be compatible depending on the wire manufacturer)
・CD pipe, PF pipe, etc.
Jointly developed by: Kinden Co., Ltd.
■ Specifications
・Body size and weight: 850mm x 900mm x 290mm, 8kg
・Rotating circle diameter: φ850mm
・Storage size: 850mm x 900mm x 220mm
・Maximum load: 0.49kN (50kgf)
・Material
SPCC, STKMR
・Packaging specifications
Individual packaging: Cardboard box, seal
Individual packaging size and weight: W855 x D915 x H230mm, 9.5kg
・1 package
・Country of origin: Japan
Transport upright, unwind when laid down
● Three studs provide a perfect fit for the inner and outer diameters of the wires
● Rotation adjustment mechanism suppresses rotation when the remaining wire is low
● Includes a guide ring for unwinding the cable
● Cable outlet allows you to remove the cable from the reel without cutting it
● Can unwind the cable while it is still in its shrink-wrapped packaging
● Space-saving storage
・Easy to store upright
● Easy to carry
・Equipped with a handle for easy carrying
● Inner and outer unwinding Either outlet or outlet is OK
●Types of wires that can be stored
・VVF: φ2.6 x 3 cores (100m)
・IV: 8mm_ (300m), 100mm_ (46m)
・VCTF: 2mm_ (100m)
・CV5.5-3C (170m)
・CVT60mm_ (25m)
・CVV2.0mm_-20C (74m)
・CPEV1.2-3P (400m)
(May not be compatible depending on the wire manufacturer)
・CD pipe, PF pipe, etc.
Jointly developed by: Kinden Co., Ltd.
■ Specifications
・Body size and weight: 850mm x 900mm x 290mm, 8kg
・Rotating circle diameter: φ850mm
・Storage size: 850mm x 900mm x 220mm
・Maximum load: 0.49kN (50kgf)
・Material
SPCC, STKMR
・Packaging specifications
Individual packaging: Cardboard box, seal
Individual packaging size and weight: W855 x D915 x H230mm, 9.5kg
・1 package
・Country of origin: Japan
