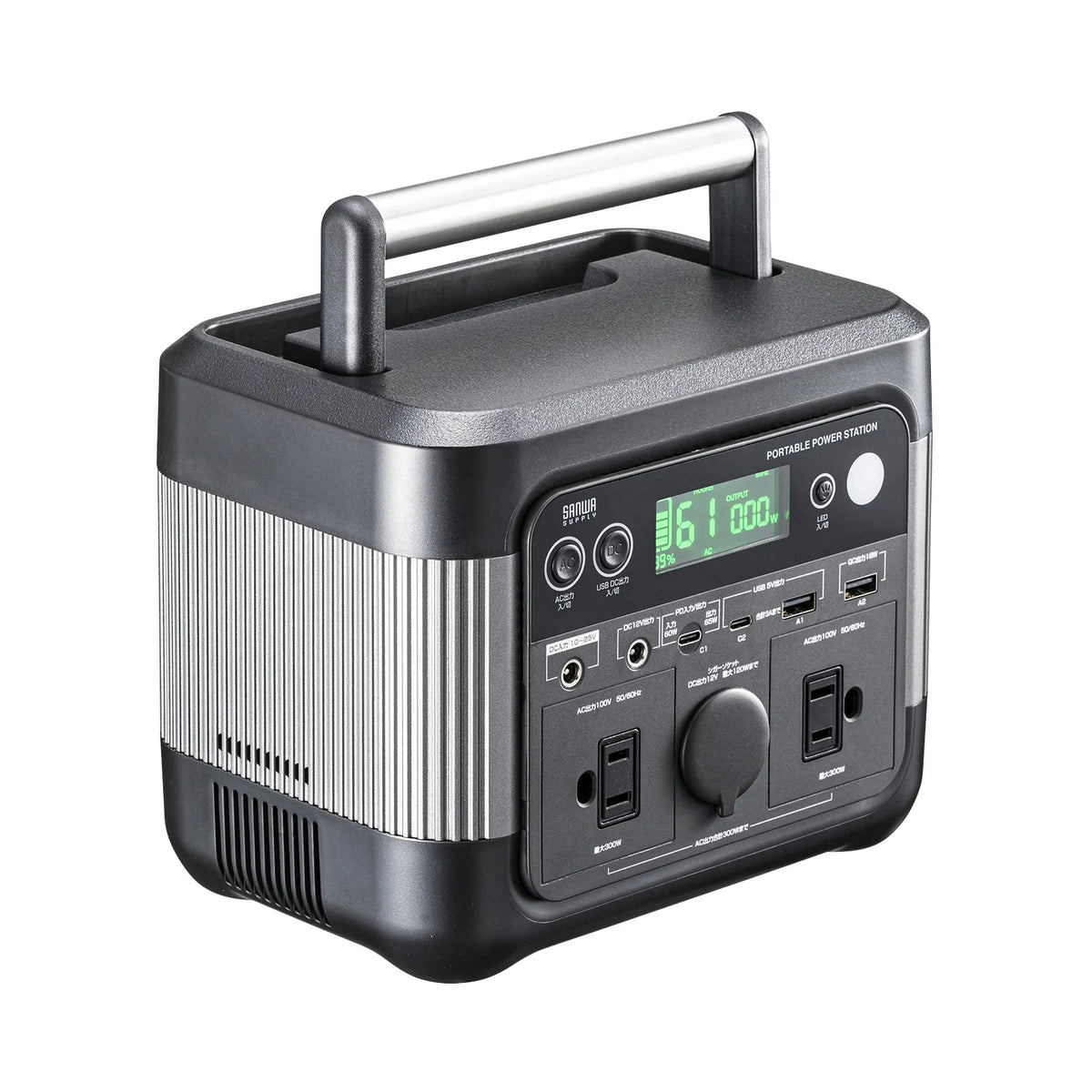

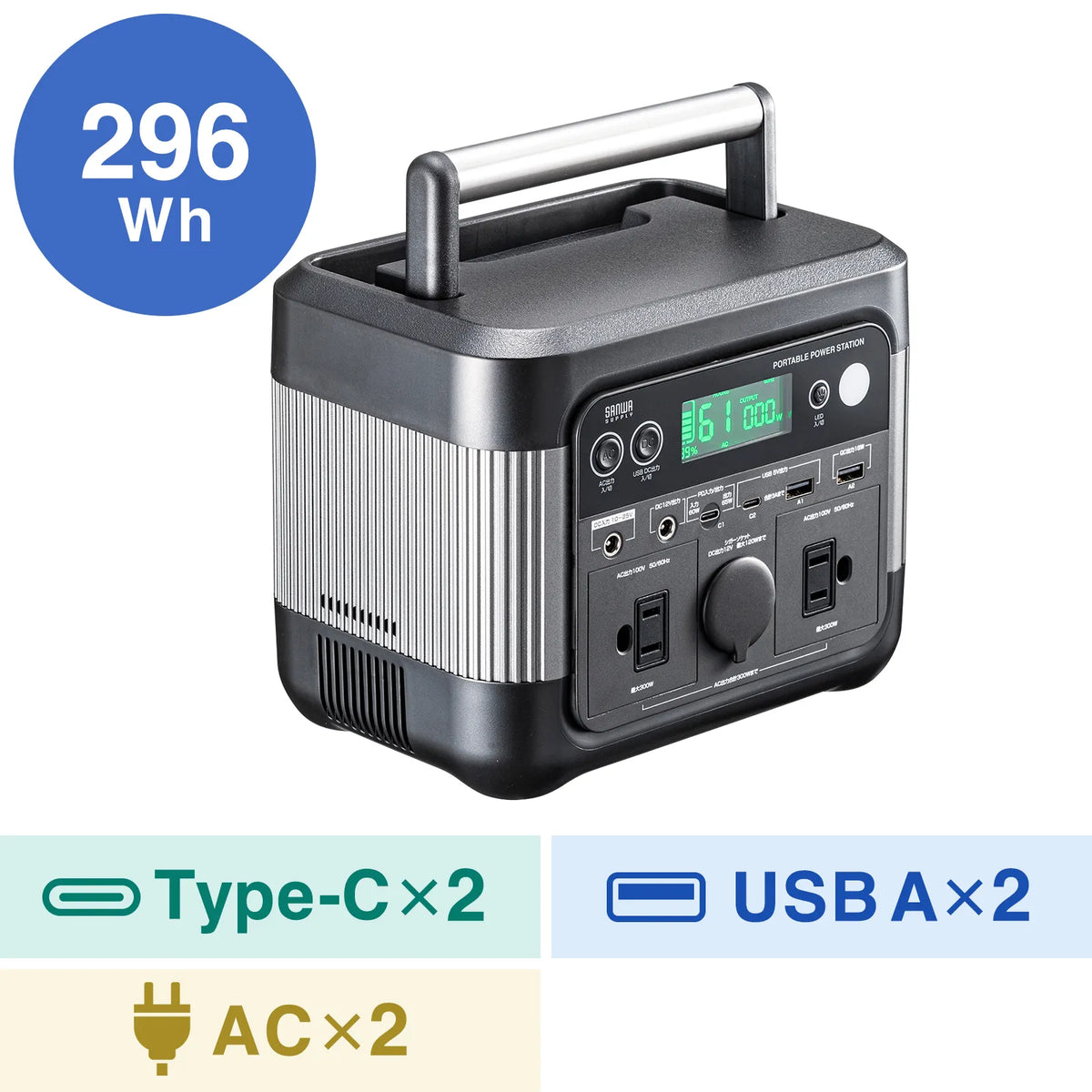

Portable Power Station (296Wh) BTL-RDC33

[A compact and portable 296Wh power supply with a maximum AC output of 300W and five types of power supply ports.]

●A compact and portable 296Wh power supply with a maximum AC output of 300W.
●The AC output uses a sine wave, creating a smooth waveform similar to a household 100V outlet, allowing the use of a wider range of home appliances.

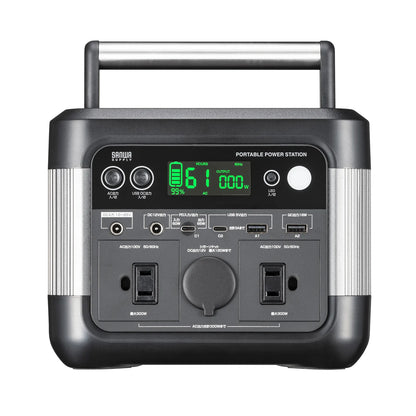

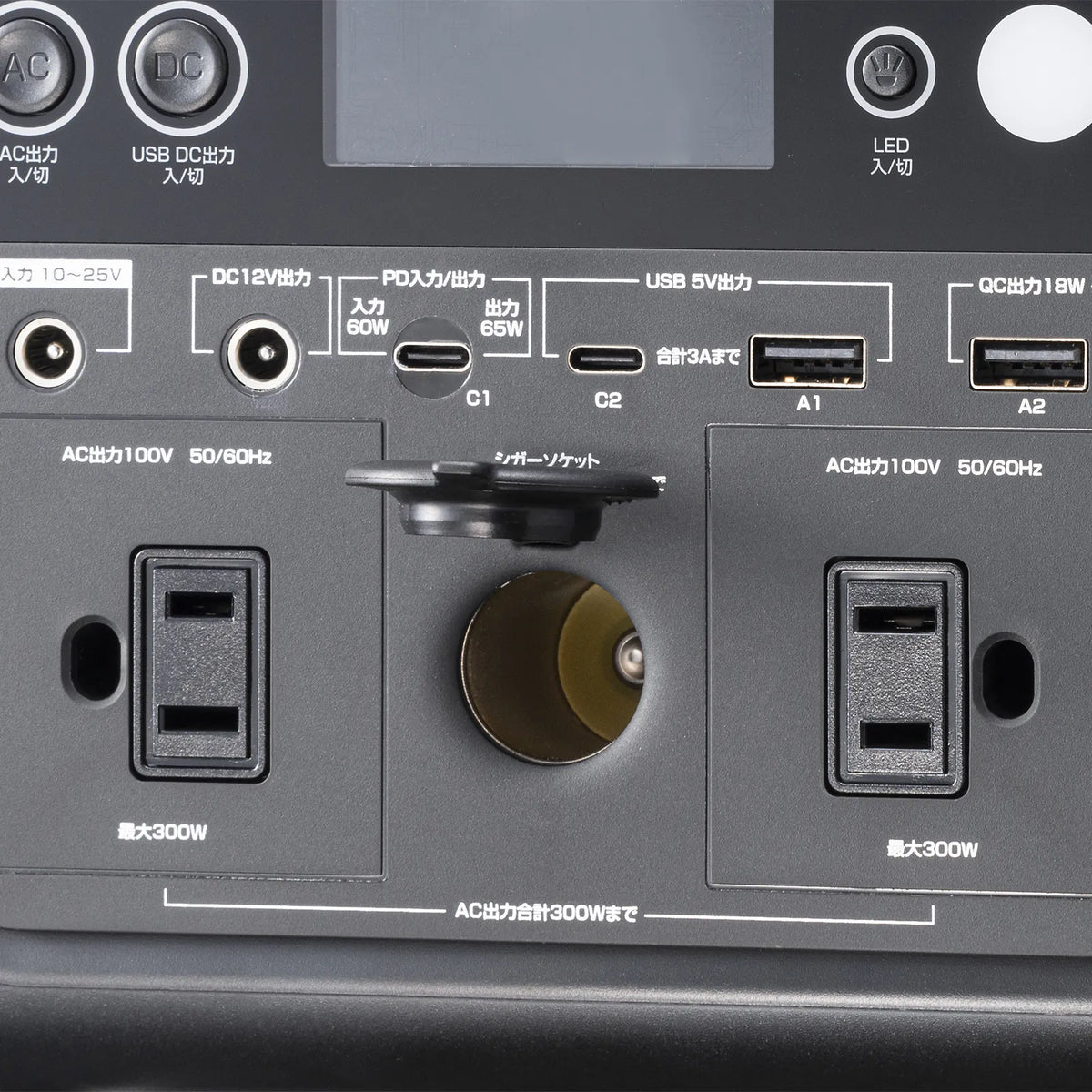

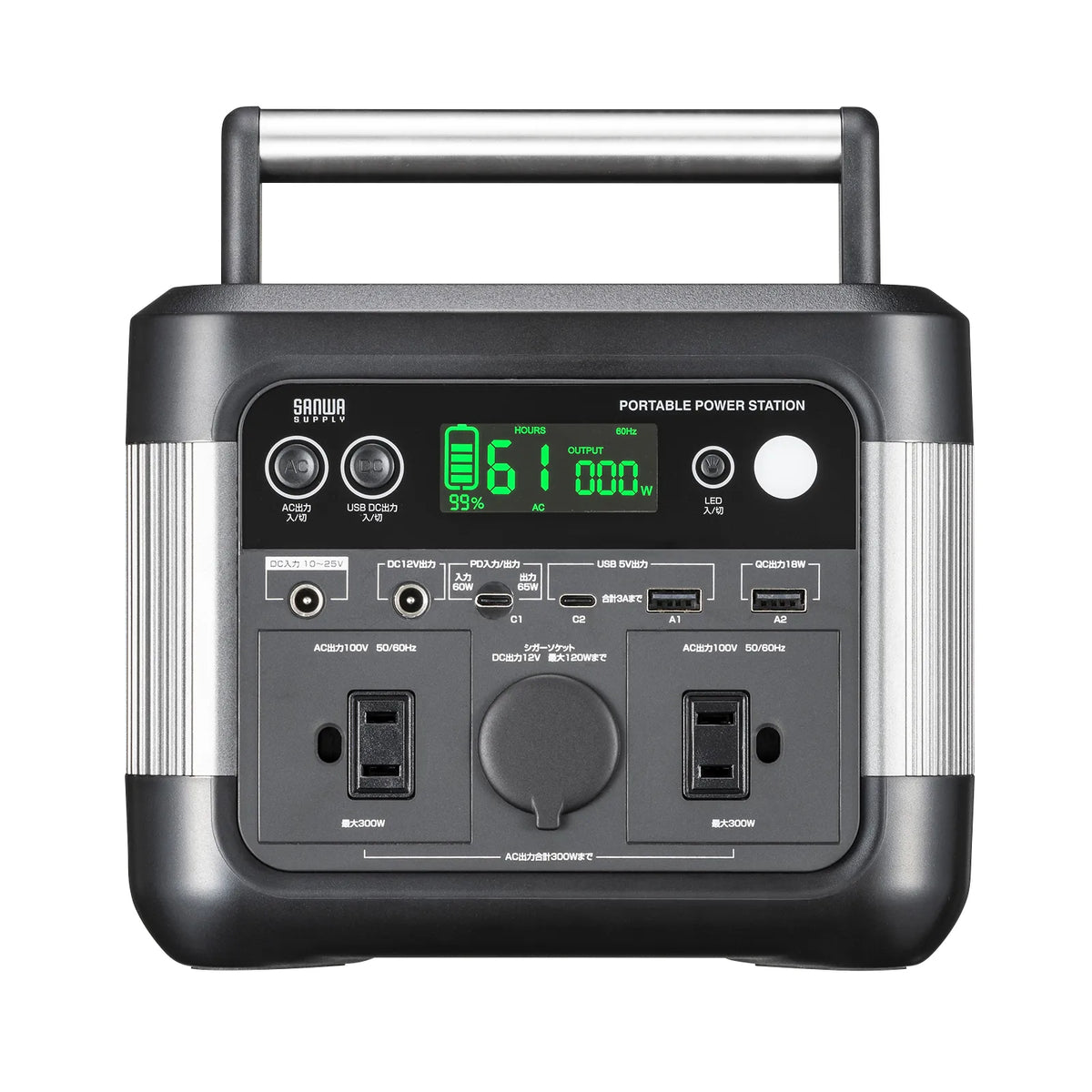

●Supports five types of output: AC output, USB Type-C output compatible with USB Power Delivery standard up to 65W, USB A output, 12V cigarette lighter output, and 12VDC output, allowing you to charge all kinds of devices.

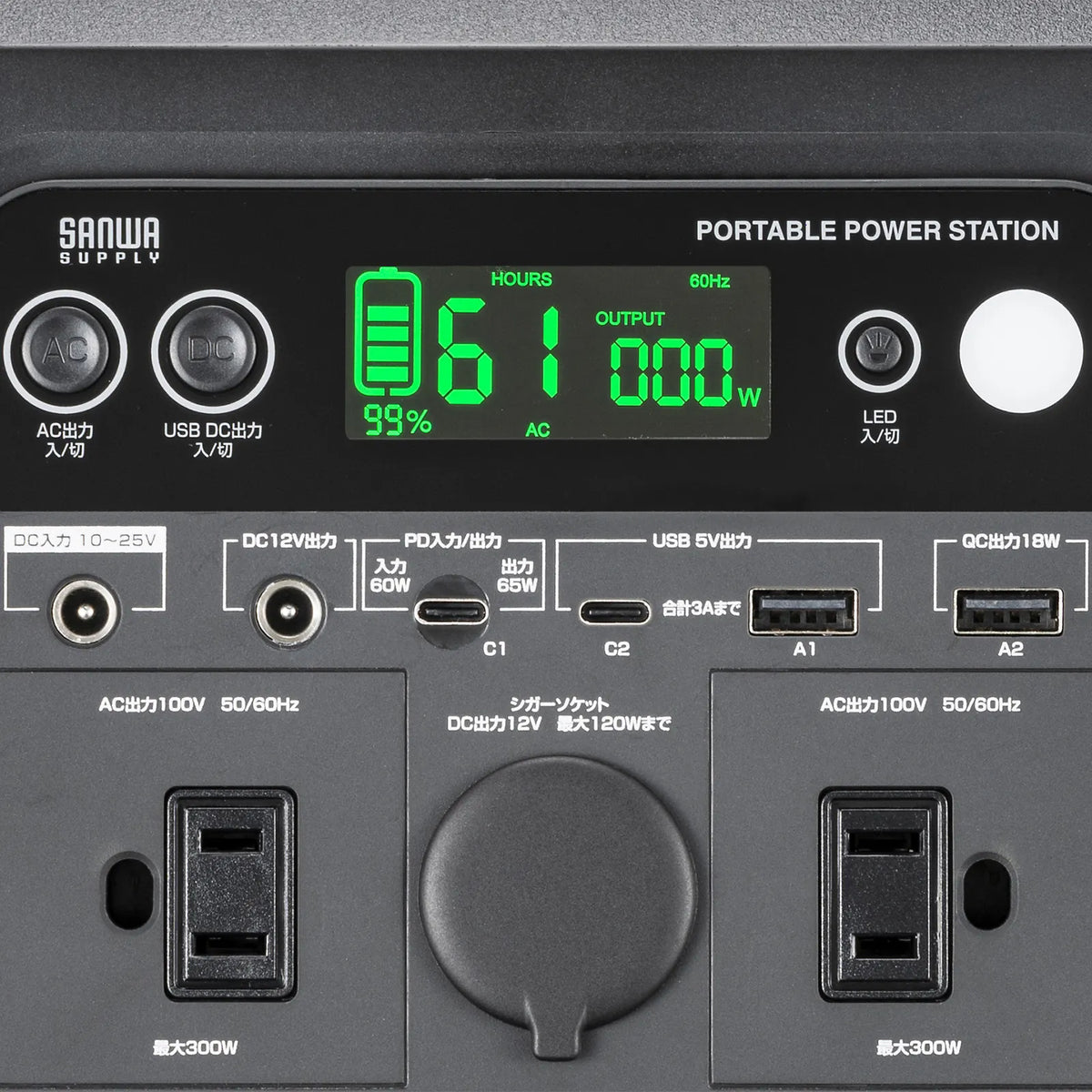

●Equipped with an LCD display panel that shows the battery level, power consumption, and estimated remaining usage time.
●Comes with a dedicated AC adapter for charging the unit.
●Also supports USB Power Delivery standard input, and the unit can be charged using a USB PD standard 60W or higher charger.
●Includes a cigarette lighter socket charging adapter that allows you to charge this product from a car's cigarette lighter socket.
●By using the included solar charging cable, you can charge this product from a commercially available solar panel.
●Equipped with MPPT (Maximum Power Point Tracking) function, it can extract the maximum power from the solar panel and store it efficiently.
●Equipped with a cooling fan, the fan will automatically operate when the internal temperature of the unit rises, cooling the inside of the unit and preventing overheating.
●Equipped with a battery management system (BMS) for a safe design.

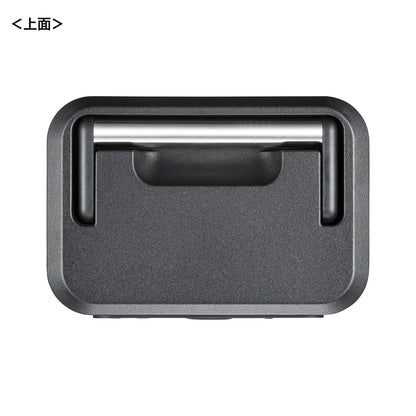

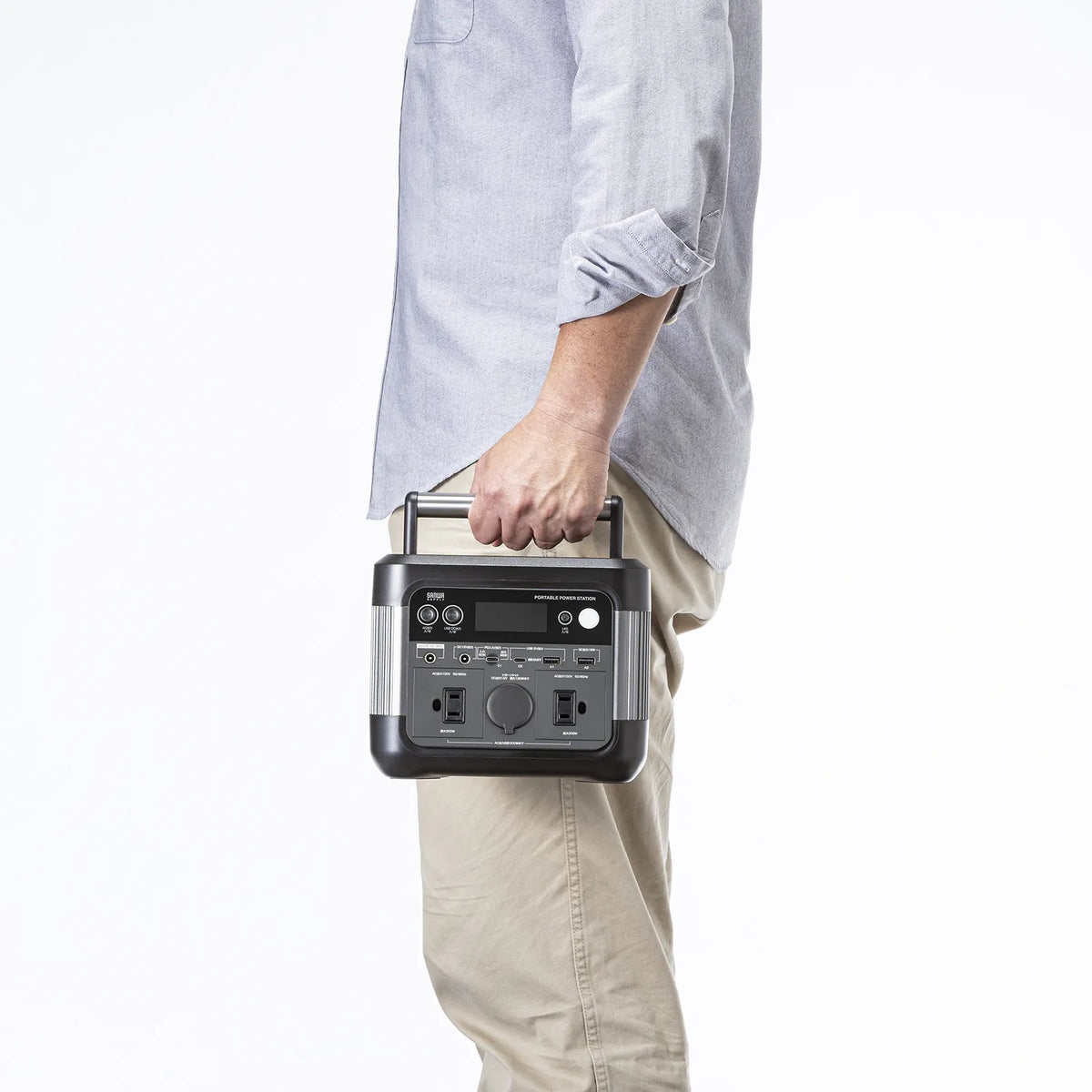

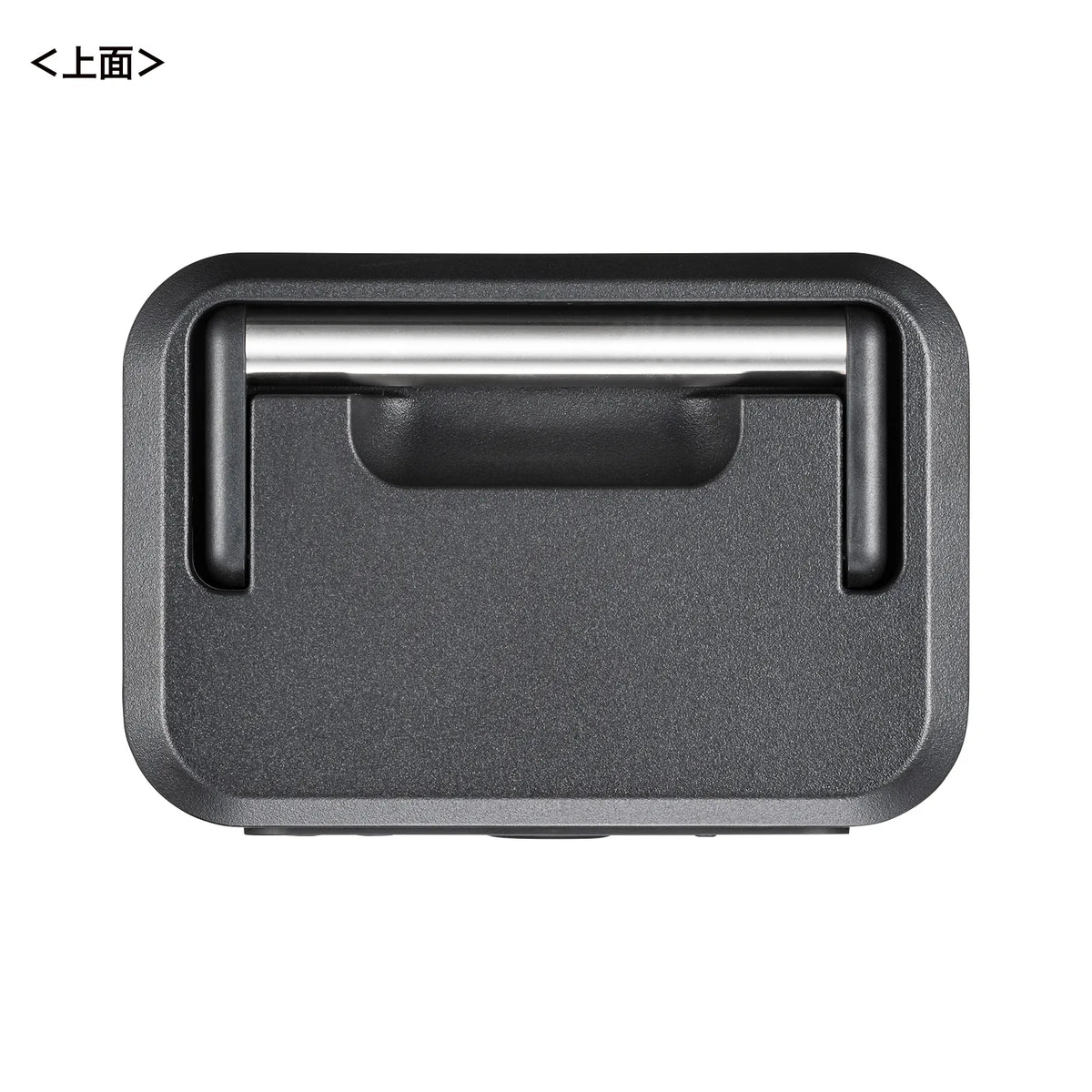

●Comes with a foldable handle for easy carrying.

■Set contents: Main unit, dedicated AC adapter, AC power cord, cigarette lighter plug adapter, solar charging cable, instruction manual and warranty card
【Main unit】
■Battery capacity (Wh): 296Wh
■Number of AC output ports: 2 ports
■AC rated output power: 300W
■Number of DC output ports: 1 port
■DC rated output voltage/current: 12V/10A
■Number of USB output ports: 4 ports
※USB Type-Cx2, USB Ax2
■USB rated output voltage/current:
USB Type-C1: DC5V/3A, DC9V/3A, DC12V/3A, DC15V/3A, DC20V/3.25A (maximum 65W)
USB Type-C2: DC5V/3A
USB A1: DC5V/2.4A
USB A2: DC5V/3A, DC9V/2A, DC12V/1.5A (Max 18W)
*Maximum 5V/3A total for USB Type-C2 and USB A1
■USB PD: Supported
■Battery Type: Lithium-ion battery
■Input Terminal Shape: USB Type-C, DC jack
■Rated Input:
AC Adapter Input: DC19V/3.42A (Max 60W)
USB Type-C Input: USB PD 60W (Max)
Cigarette Lighter Adapter Input: DC12V/24V/5A (Max 60W)
Solar Panel Input (MPPT Control): DC10 to 25V/5A 60W (maximum)
■AC rated output voltage: 100V
■AC rated output frequency: 50/60Hz
*Frequency switching
■AC output waveform: Sine wave
■AC output socket shape: 3P
*3P plugs can be inserted, but ground connection to the ground port is not supported.
■DC Rated Output Power: 120W
■Number of Cigarette Lighter Output Ports: 1 port
■Cigarette Lighter Rated Output Power: 120W
■Cigarette Lighter Rated Output Voltage: 12V
■Cigarette Lighter Rated Output Current: 10A
■USB Output Terminal Shape: USB A, USB Type-C

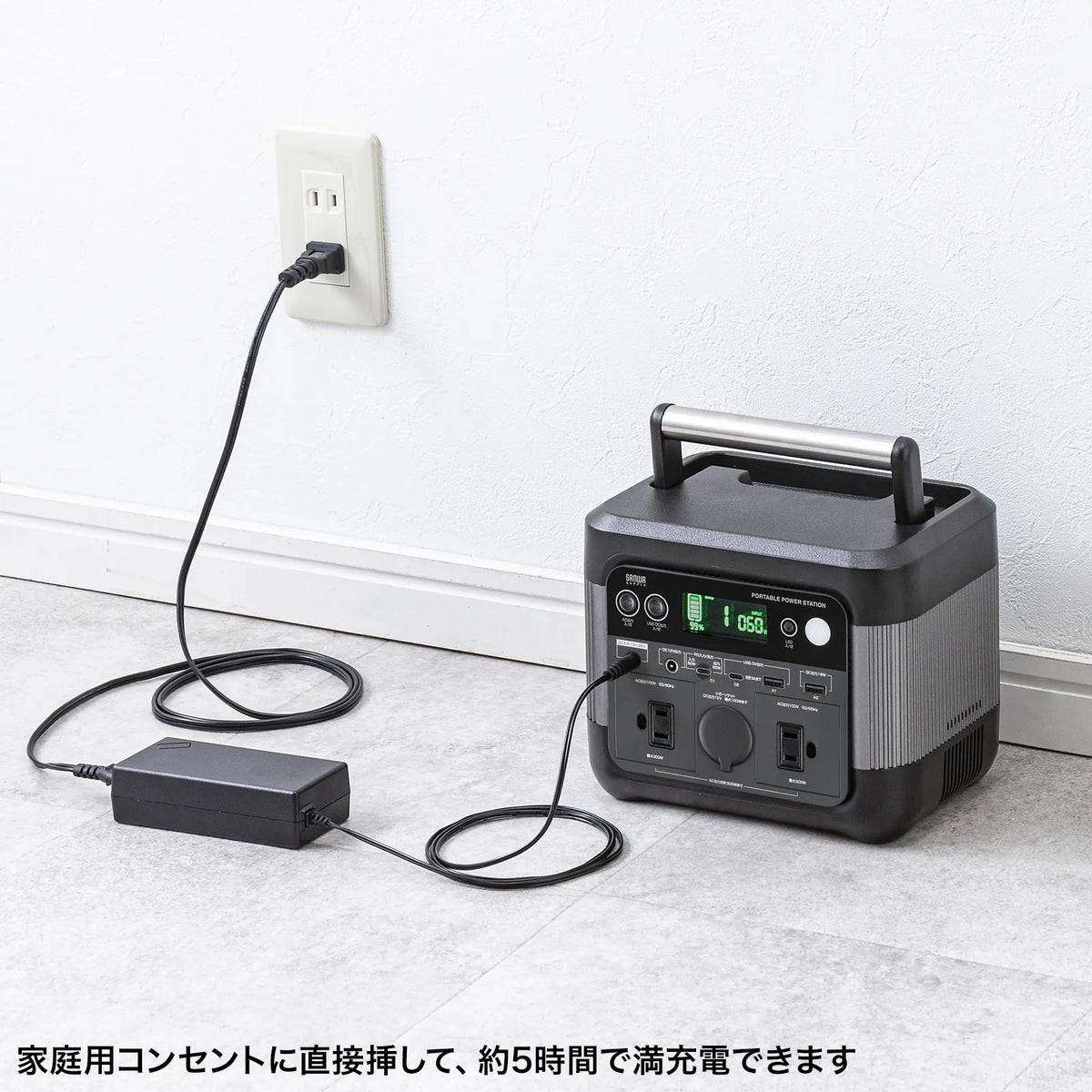

■Charging Time: Approximately 5 hours
*When using the included AC adapter
■USB PD Maximum Supported Output: 65W
■MPPT Method: Supported
■LED Light: Yes
■Laptop Power Supply: Supported
■Operating Temperature Range: 0 to 40 degrees Celsius
■Total USB Maximum Output: 98W
■Digital Battery Level Display: Supported

【AC Adapter】
■Rated Input: AC100-240V 50/60Hz
■Rated output: DC19V/3.42A
■Cable length: Approx. 1m
■AC power cord length: Approx. 1.5m
■AC plug shape: 2P
■Insulation cap: None
