SANWA SUPPLY

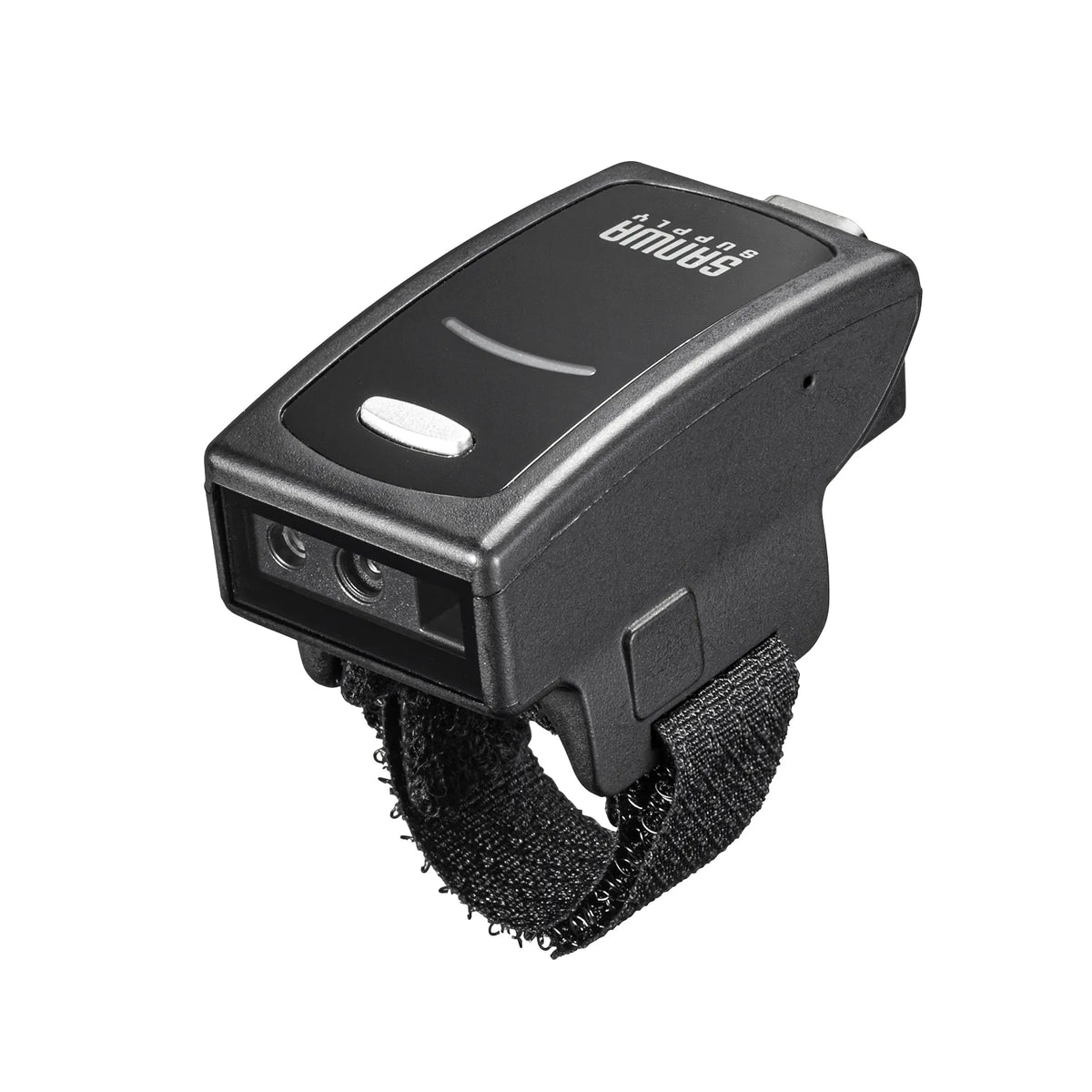

Bluetooth 2D Barcode Reader (Ring Type) BCR-BT2D5BK
Bluetooth 2D Barcode Reader (Ring Type) BCR-BT2D5BK
GTIN（JAN）：4969887806227
SKU：BCR-BT2D5BK
Regular price
¥58,080 JPY
Regular price
Sale price
¥58,080 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[An ultra-compact barcode reader that can be worn on your finger, allowing for hands-free operation]

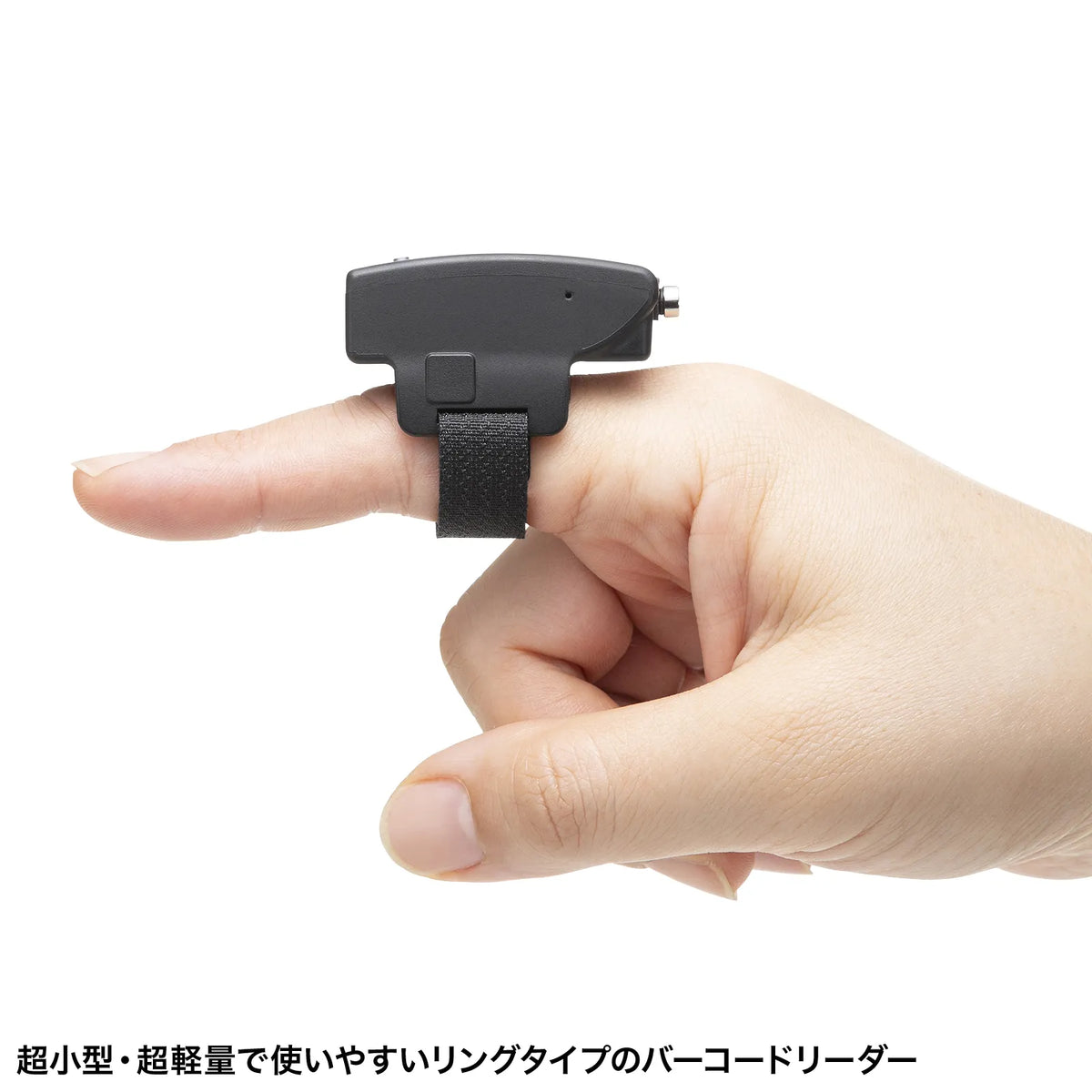

●Ultra-compact, ultra-lightweight, and easy-to-use ring type.
It is worn on the finger, making it easy for women to handle and comfortable to use even during long hours of work.

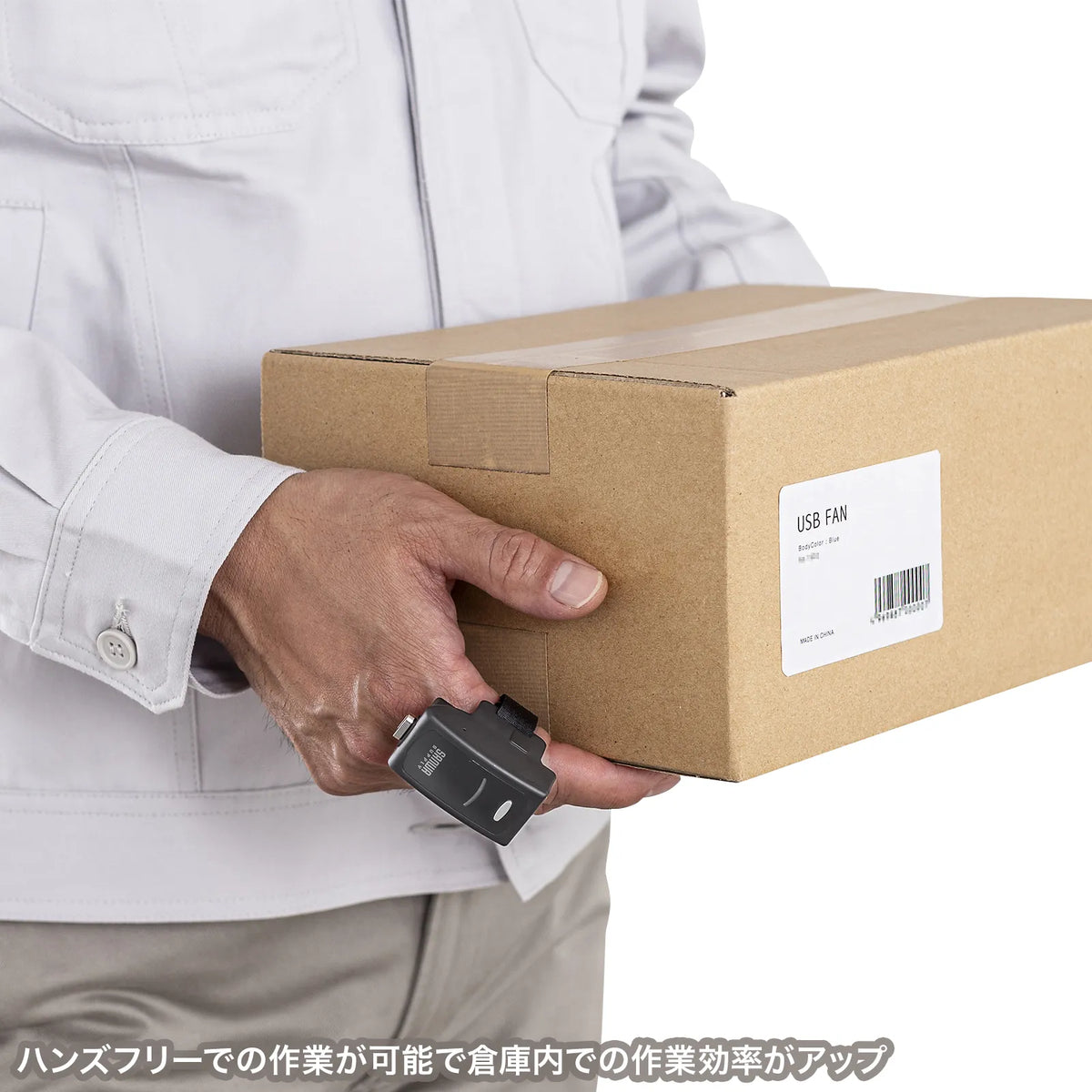

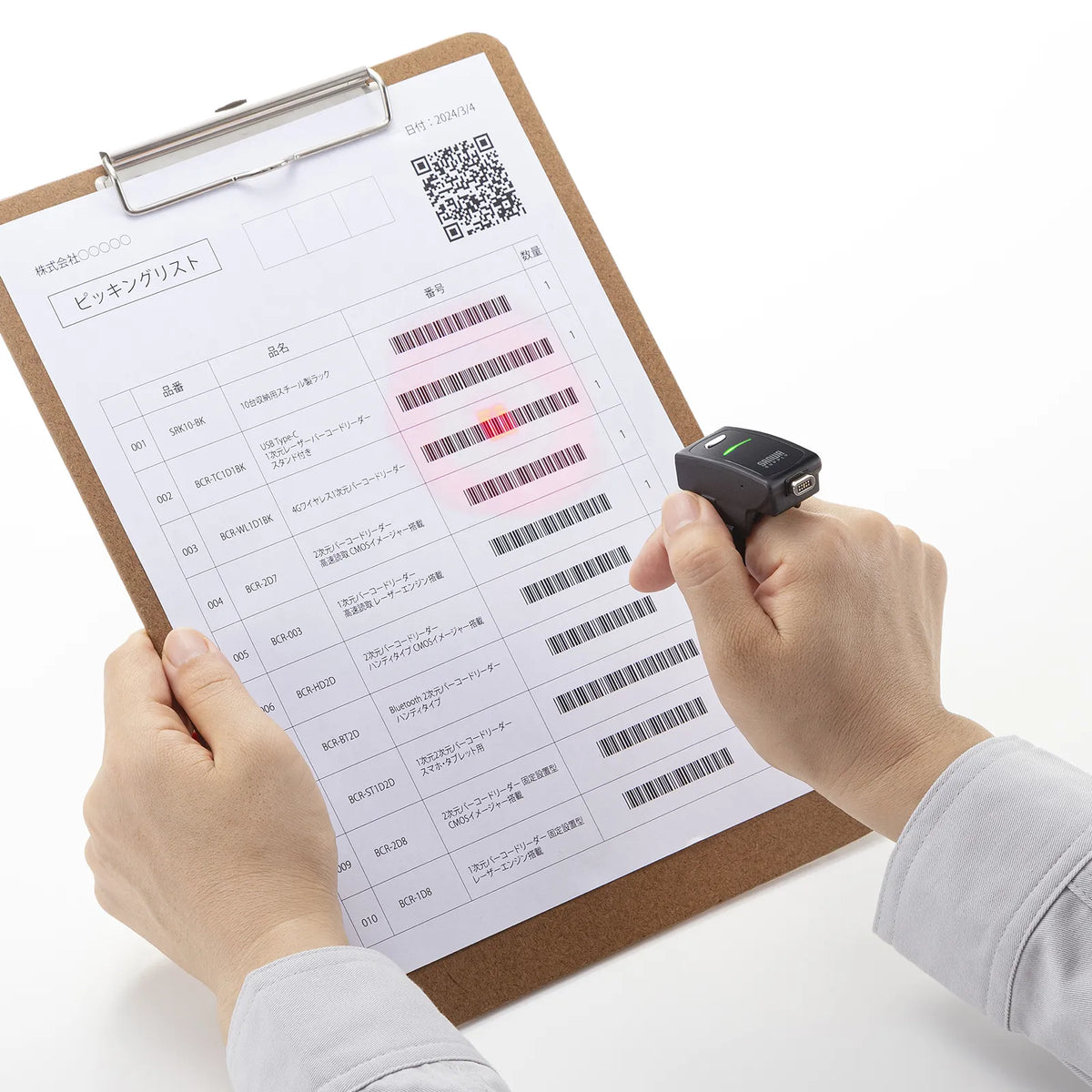

●Hands-free operation is possible, increasing work efficiency in warehouses.

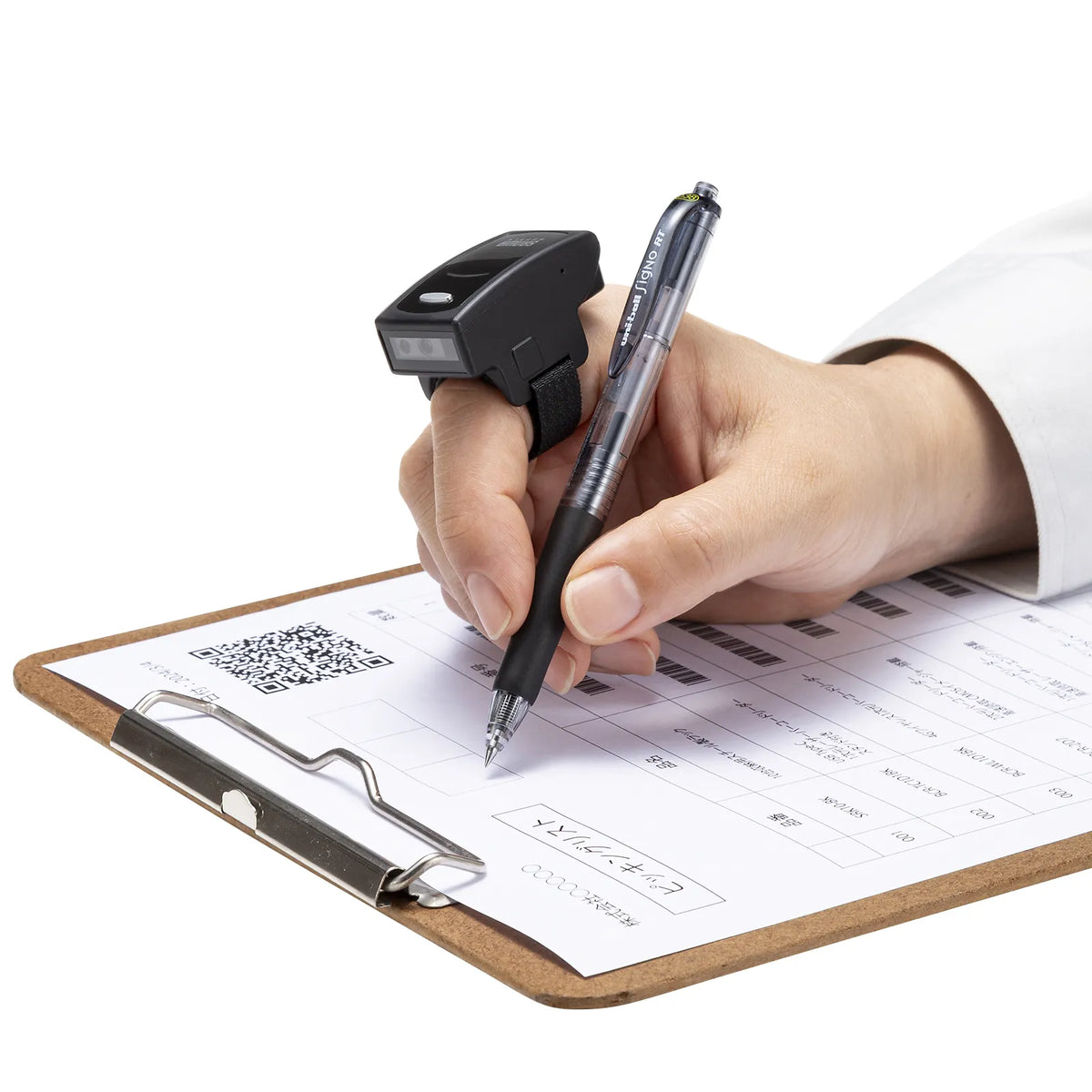

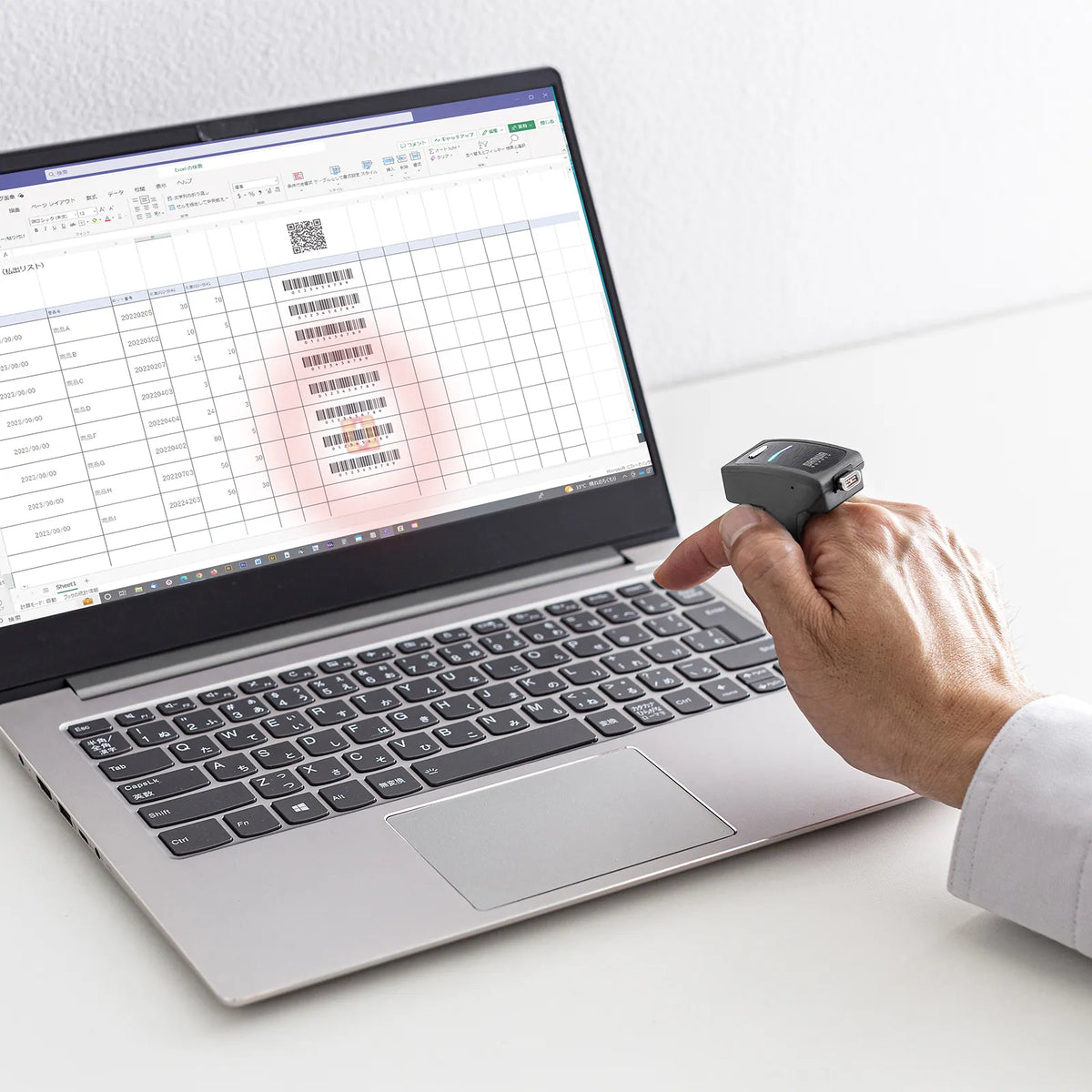

Because it can be worn on the finger, you can read barcodes while keeping both hands free.

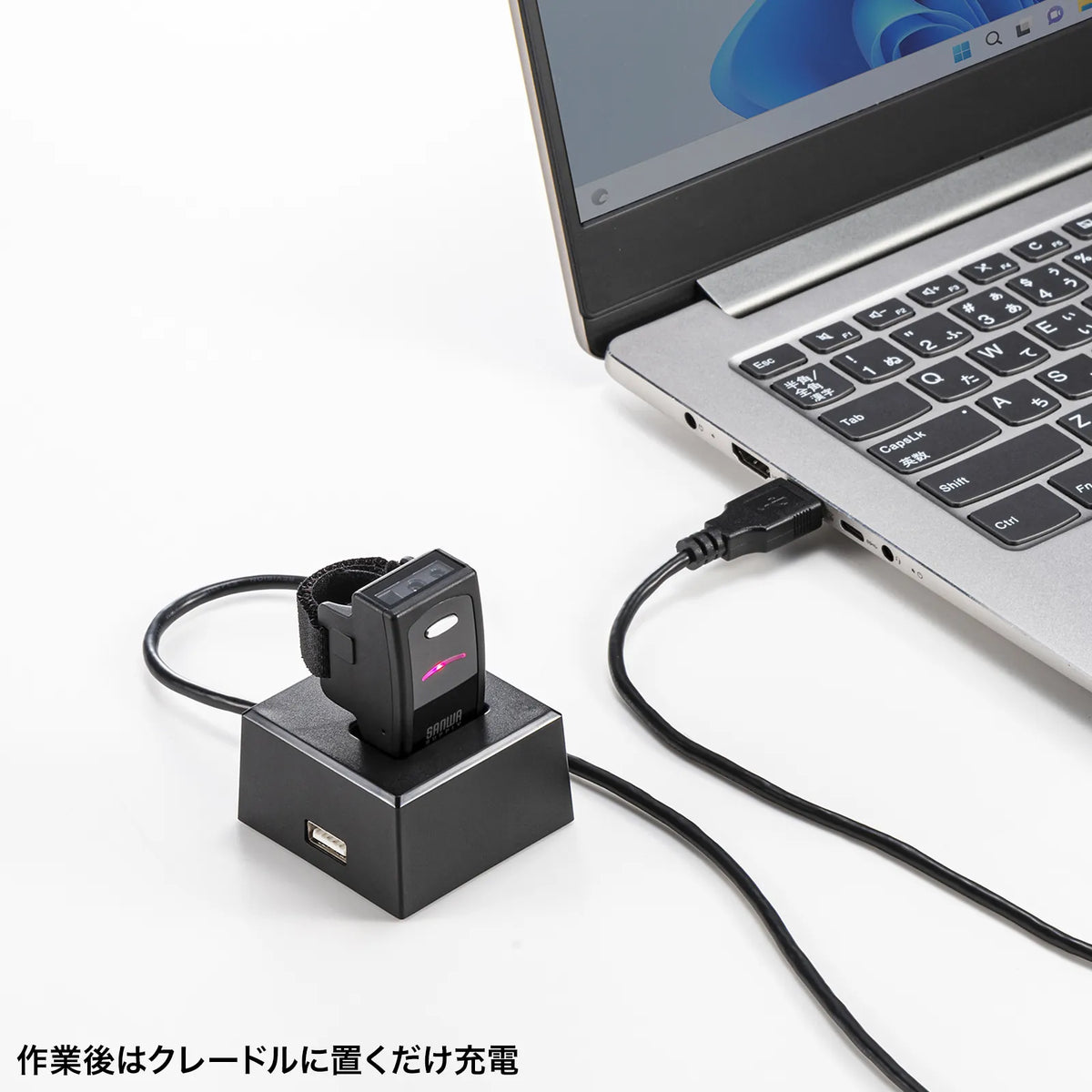

●Charging is easy by simply placing it on the cradle after work.
When placed on the dedicated cradle, charging is possible by simply placing it there after work and going home.
Up to four cradles can be connected.

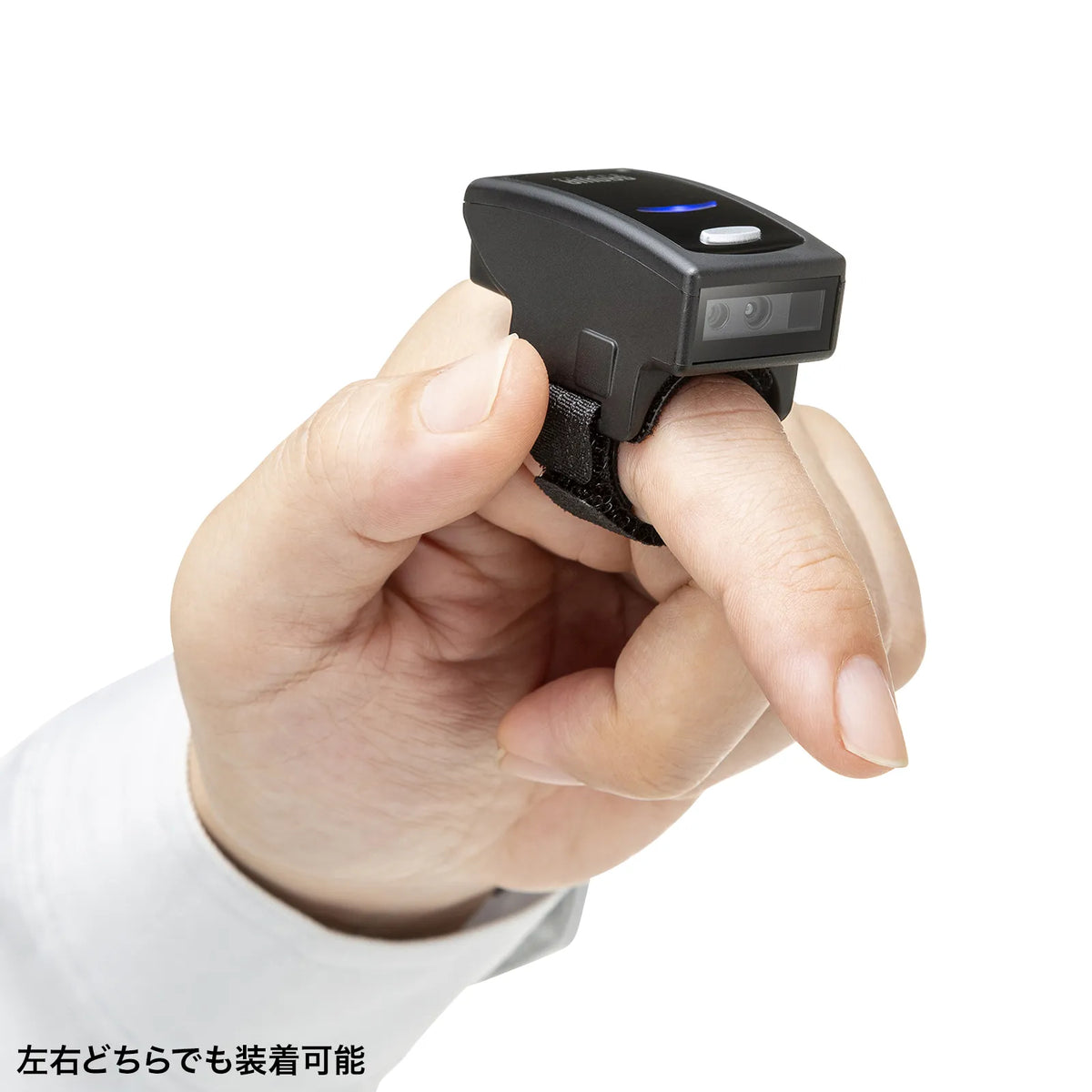

●Can be worn on either the left or right side.
The scan button is also on both the left and right sides, so you can use it according to your dominant hand.

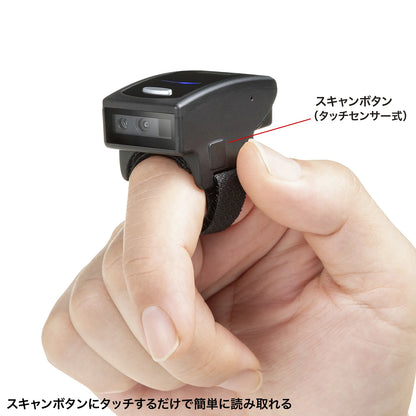

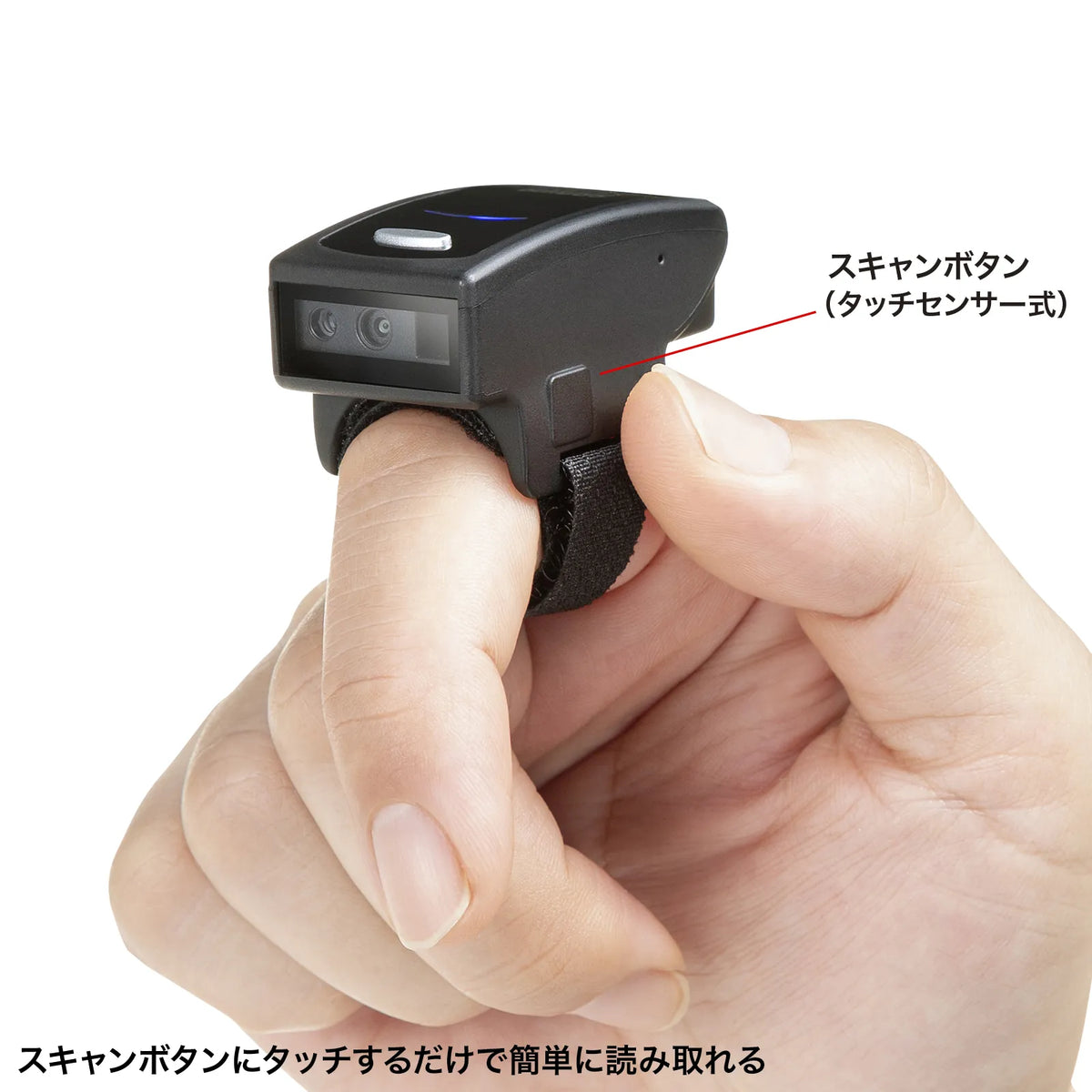

●Easy-to-operate touch sensor button
The scan button is touch-sensitive, so scanning is easy by simply touching it without having to press it.

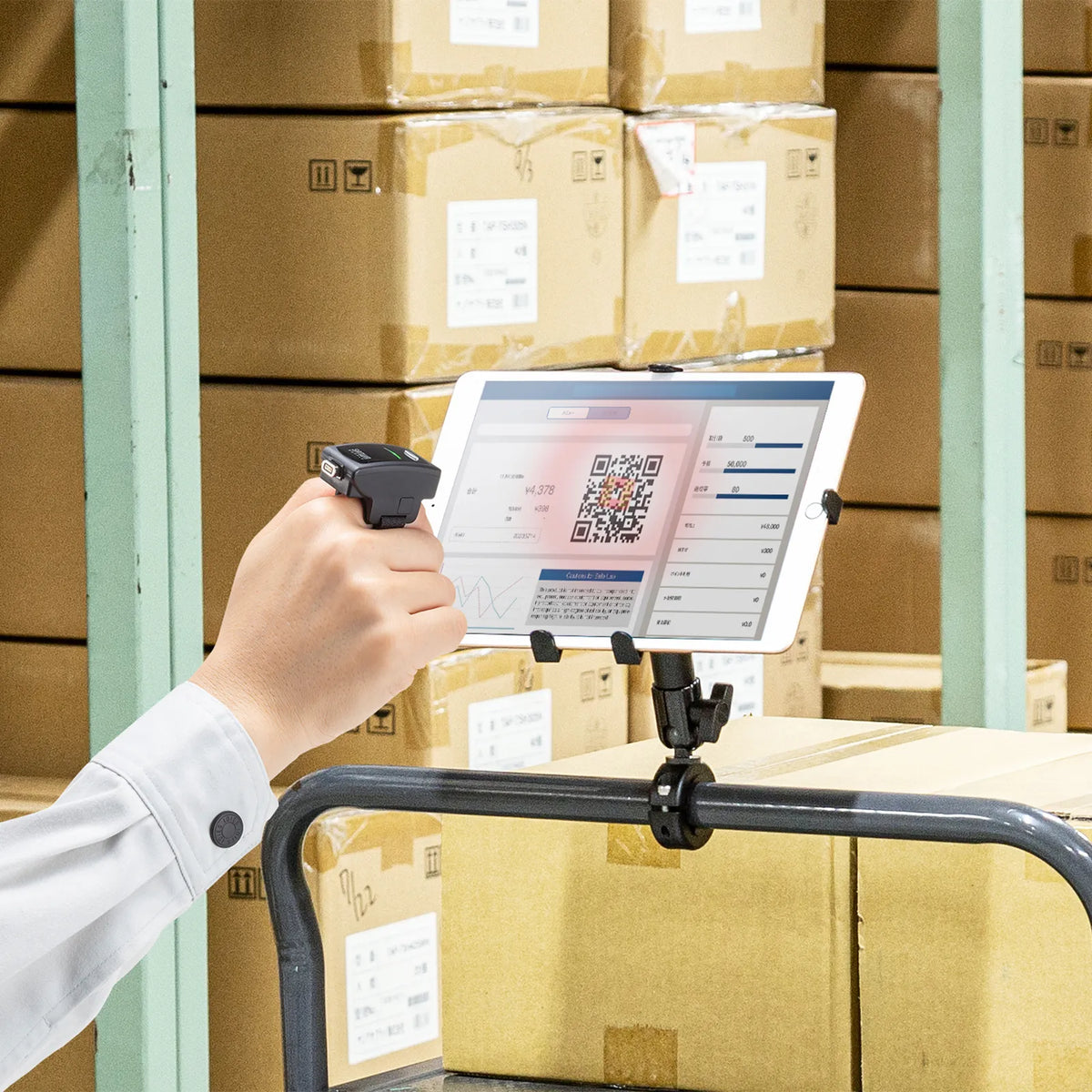

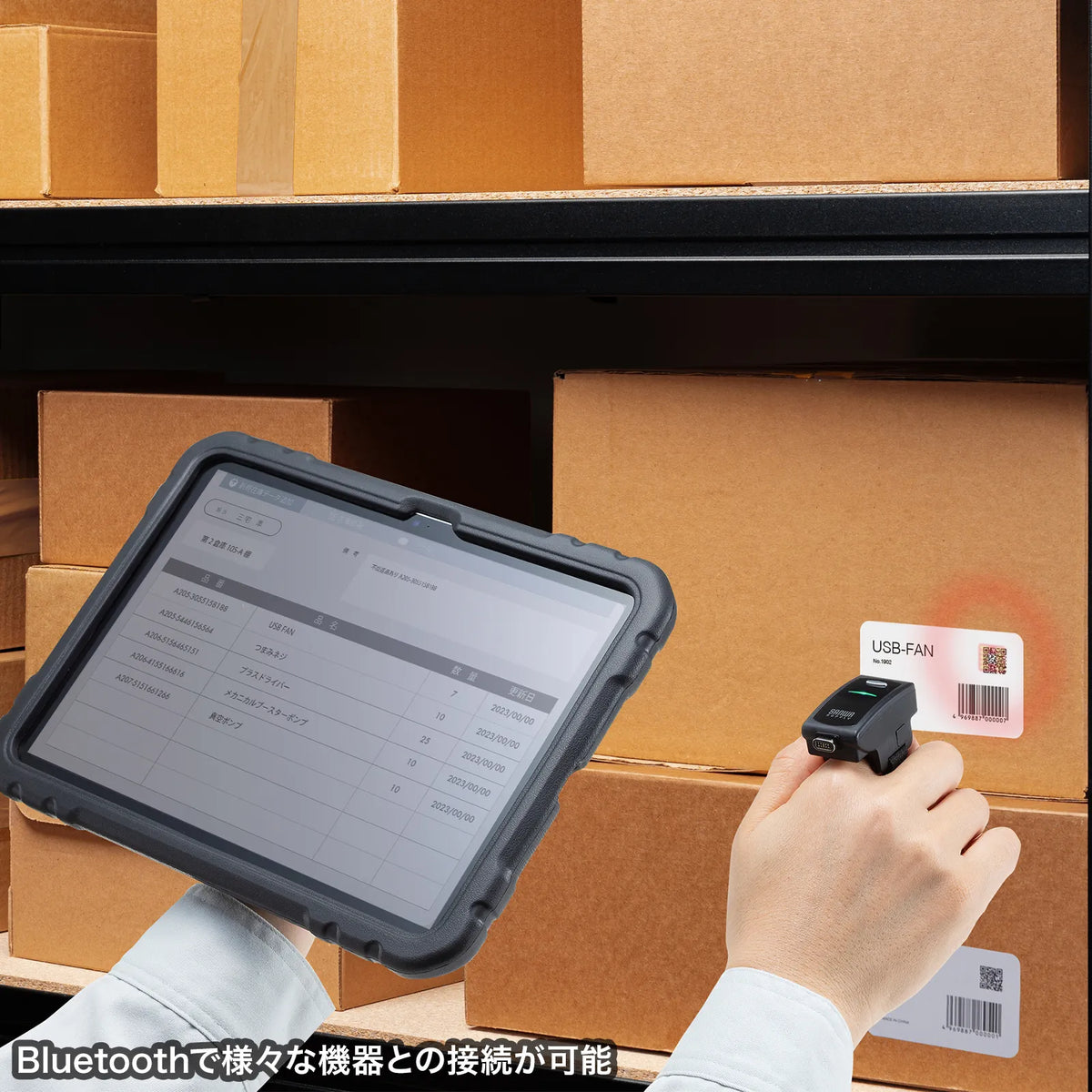

●Bluetooth type that can be used with various devices.
It can connect to various devices via Bluetooth connection.
When connected to an iOS device, the keyboard can be called up by pressing the button on the barcode reader.
●Can read both 1D and 2D barcodes.
Can read a wide variety of codes. Can read codes such as CODE39 (1D) and DataMatrix (2D), which are commonly used in logistics.
Can also read barcodes displayed on computer and smartphone screens.
■Interface: USB HID
■Communication range: 10m (Class 2) *May vary depending on the environment of use.
■Power supply: Built-in lithium polymer battery
■Compliance standards: Bluetooth 5.0 Class 2
■Memory: 2MB
■PCS value: 10%
■Reading depth:
5mil CODE39/39-198mm
13mil UPC/EAN/52-355mm
15mil QR/30-250mm
6.67mil PDF417/41-165mm
10mil Data Matrix/35-163mm
■Scanning speed: 60 frames/sec
■Operating time:
Approximately 15 hours
Charging time: 4.5 hours
■Readable codes (1D): EAN-8, UPC-A, UPC-E, NW-7 (Codabar), Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Code 32, Code 39, Code 93, Code 128, ISSN, ISBN, MSI, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded
■Readable codes (2D): QR Code, Micro QR, PDF417, Micro PDF417, Data Matrix, MaxiCode, AztecCode
■Japanese QR: Supported
*Output to iOS and Android is not supported.
※UTF-8 → Word (Windows)
SHIFT-JIS → Excel, Notepad, Word (Windows)
■Reading method: CMOS
640x480
■Resolution 2D code: 0.25mm
10mil
■Resolution 1D code: 0.01mm
4mil
■Reading angle:
Pitch/55 degrees
Skew/55 degrees
Tilt/360 degrees
■Current consumption (operating): 210mA
■Shock resistance (drop): 1.5m
■Waterproof and dustproof: IP42
■Set contents: Product body, belt, charging cable, charging cradle, instruction manual
●Ultra-compact, ultra-lightweight, and easy-to-use ring type.
It is worn on the finger, making it easy for women to handle and comfortable to use even during long hours of work.
●Hands-free operation is possible, increasing work efficiency in warehouses.
Because it can be worn on the finger, you can read barcodes while keeping both hands free.
●Charging is easy by simply placing it on the cradle after work.
When placed on the dedicated cradle, charging is possible by simply placing it there after work and going home.
Up to four cradles can be connected.
●Can be worn on either the left or right side.
The scan button is also on both the left and right sides, so you can use it according to your dominant hand.
●Easy-to-operate touch sensor button
The scan button is touch-sensitive, so scanning is easy by simply touching it without having to press it.
●Bluetooth type that can be used with various devices.
It can connect to various devices via Bluetooth connection.
When connected to an iOS device, the keyboard can be called up by pressing the button on the barcode reader.
●Can read both 1D and 2D barcodes.
Can read a wide variety of codes. Can read codes such as CODE39 (1D) and DataMatrix (2D), which are commonly used in logistics.
Can also read barcodes displayed on computer and smartphone screens.
■Interface: USB HID
■Communication range: 10m (Class 2) *May vary depending on the environment of use.
■Power supply: Built-in lithium polymer battery
■Compliance standards: Bluetooth 5.0 Class 2
■Memory: 2MB
■PCS value: 10%
■Reading depth:
5mil CODE39/39-198mm
13mil UPC/EAN/52-355mm
15mil QR/30-250mm
6.67mil PDF417/41-165mm
10mil Data Matrix/35-163mm
■Scanning speed: 60 frames/sec
■Operating time:
Approximately 15 hours
Charging time: 4.5 hours
■Readable codes (1D): EAN-8, UPC-A, UPC-E, NW-7 (Codabar), Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Code 32, Code 39, Code 93, Code 128, ISSN, ISBN, MSI, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded
■Readable codes (2D): QR Code, Micro QR, PDF417, Micro PDF417, Data Matrix, MaxiCode, AztecCode
■Japanese QR: Supported
*Output to iOS and Android is not supported.
※UTF-8 → Word (Windows)
SHIFT-JIS → Excel, Notepad, Word (Windows)
■Reading method: CMOS
640x480
■Resolution 2D code: 0.25mm
10mil
■Resolution 1D code: 0.01mm
4mil
■Reading angle:
Pitch/55 degrees
Skew/55 degrees
Tilt/360 degrees
■Current consumption (operating): 210mA
■Shock resistance (drop): 1.5m
■Waterproof and dustproof: IP42
■Set contents: Product body, belt, charging cable, charging cradle, instruction manual
