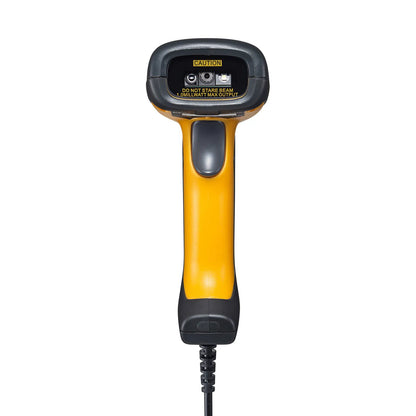

[2D & 1D compatible barcode reader. Waterproof and dustproof.]

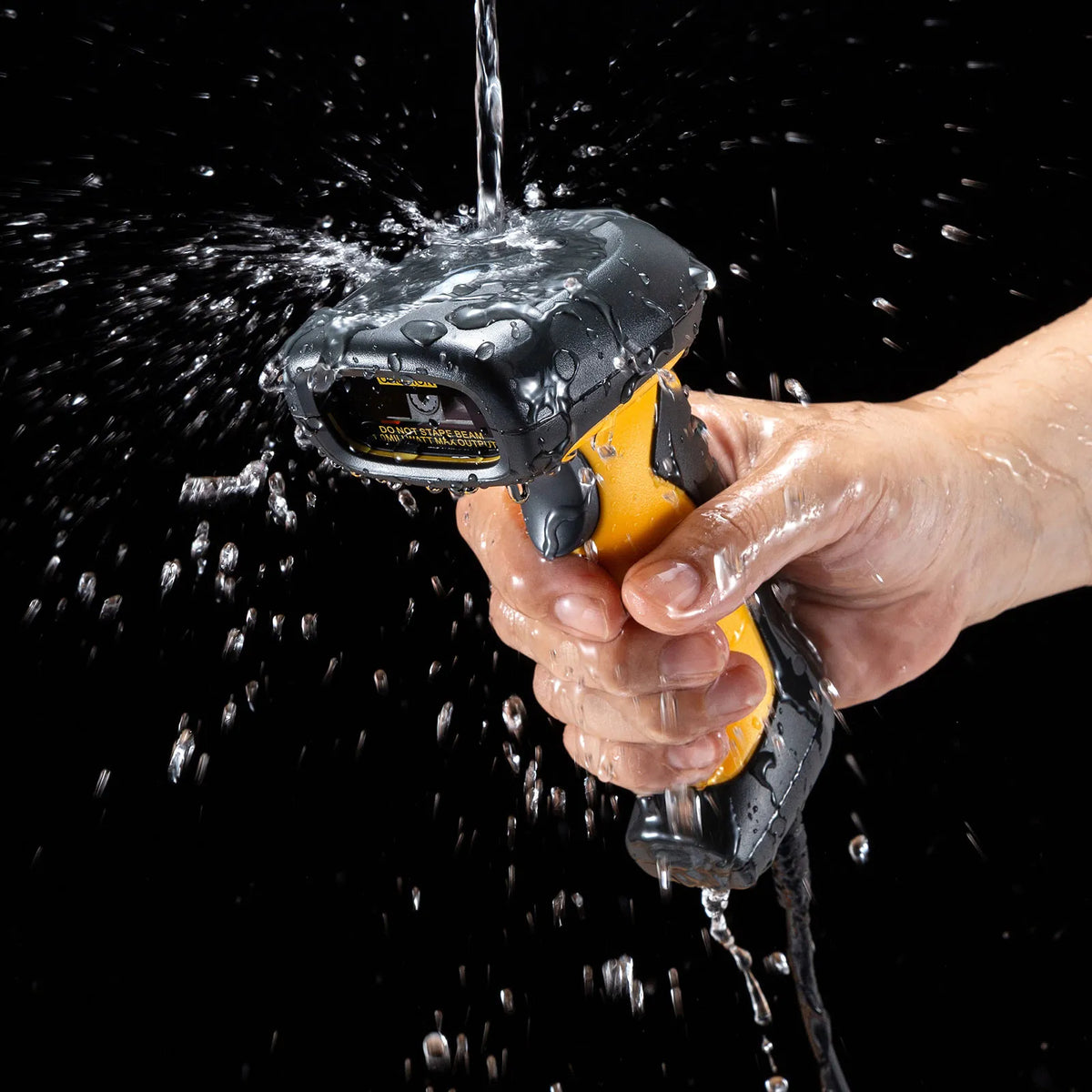

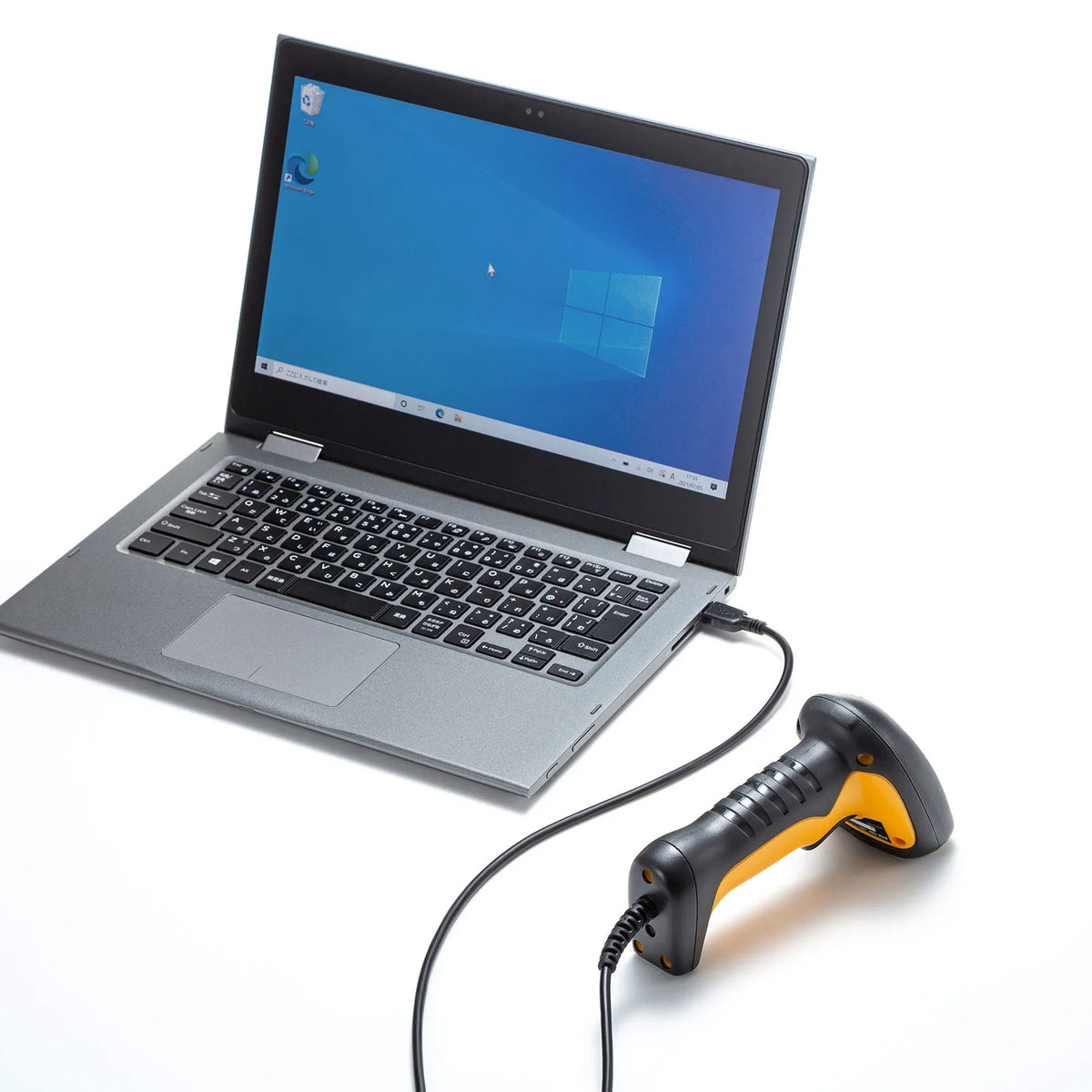

●IP67 dustproof and waterproof performance. ●Wired barcode reader capable of reading both 2D and 1D codes. ●Powered by USB connection from the computer, so no dedicated power supply is required. ●Read barcode data can be directly input into the computer as keyboard data. ●Can read codes displayed on LCD screens of smartphones, tablets, and computers.
*QR Code is a registered trademark of DENSO WAVE INCORPORATED.
■Interface: USB HID ■Connector shape: USB A ■PCS value: ≥30% ■Light source: Illumination LED (white) 650±10nm, Aiming (red) 650±10nm ■Sensor: CMOS (1280x800) ■Reading depth: Code 39 (4mil)/40 to 100mm, Code 39 (5mil)/30 to 130mm UPC-A (100%)/40 to 290mm, Code 39 (20mil)/100 to 350mm PDF417 (5mil)/20 to 150mm, DataMatrix (10mil)/30 to 120mm QR Code (20mil)/15 to 220m ■Scanning speed: 60 frames/second ■Japanese QR code: Supported *Output to iOS and Android is not supported. ※UTF-8 → Word (Windows) SHIFT-JIS → Excel, Notepad, Word (Windows) ■Scan angle: Roll/+-50 degrees, Pitch/+-45 degrees, Skew/+-360 degrees ■Environment: Operating temperature/-20 to 50 degrees, Operating humidity/5 to 95% (non-condensing), Storage temperature/-40 to 70 degrees ■Ambient light (Illuminance): 80,000 Lux or less ■Protection structure: IP67 ■Readable codes (1D): EAN-8, EAN-13, UPC-A, UPC-E, NW-7 (Codabar), Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Code 32, Code 39, Code 128, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded, GS1 Composite *Compatible with GS1 Composite CCA/CC-B/CC-C *Some barcodes may not be readable depending on their size and number of digits. ■Readable codes (2D): QR Code, Micro QR, PDF417, Micro PDF417, Data Matrix, MaxiCode, AztecCode, Composite Code CC-A, Composite Code CC-B, Composite Code CC-C *Some barcodes may not be readable depending on their size and number of digits. ■Size: Approx. W70 x D100 x H170mm ■Weight: 235g (excluding cable) ■Cable length: 1.8m ■Set contents: Instruction manual, warranty card
