SANWA SUPPLY
2D Barcode Reader (with Verification Function) BCR-2D12
2D Barcode Reader (with Verification Function) BCR-2D12
GTIN（JAN）：4969887806920
SKU：BCR-2D12
Regular price
¥37,752 JPY
Regular price
Sale price
¥37,752 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A barcode reader equipped with a matching function that is convenient for inspection work!]

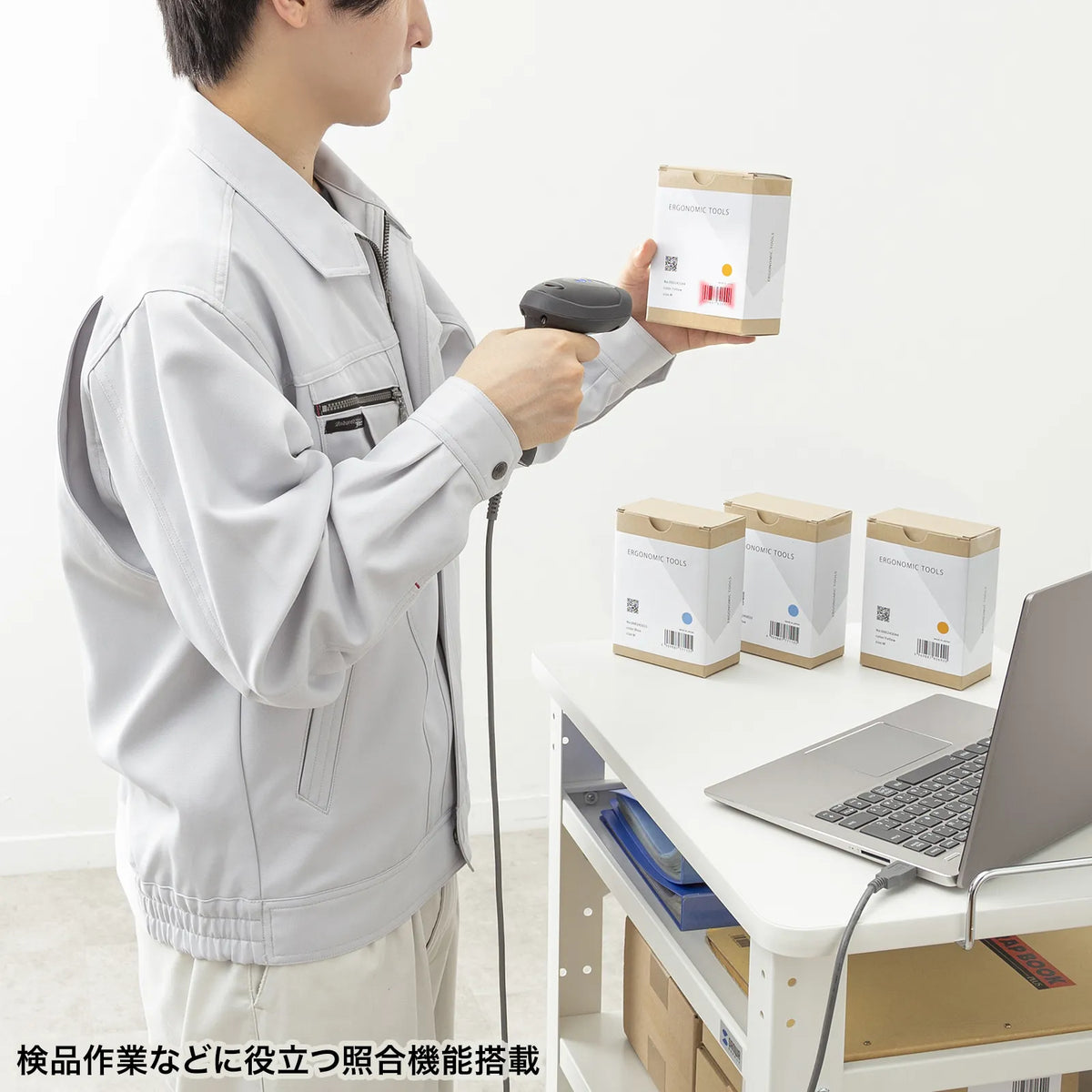

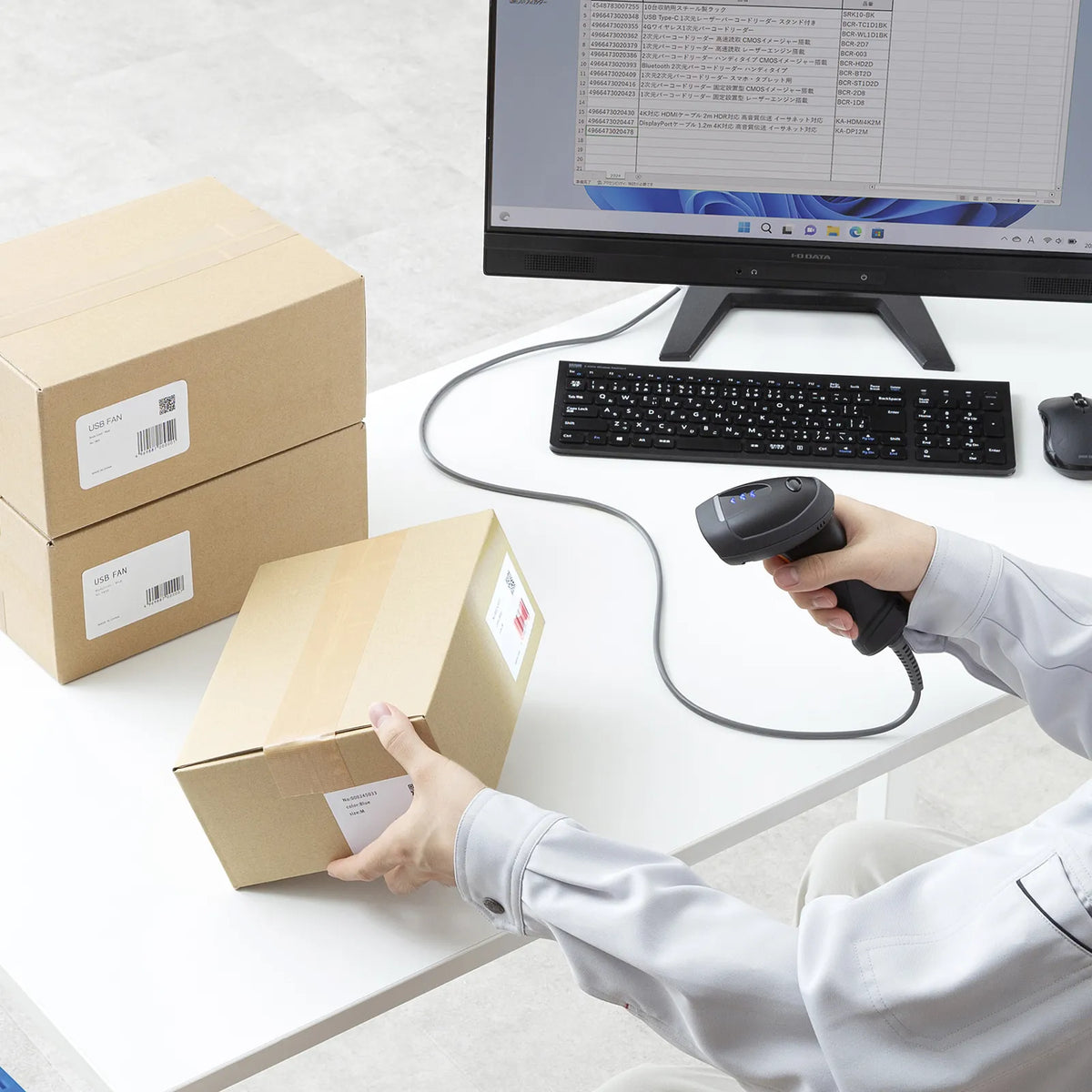

●Equipped with a matching function that is useful for inspection work.
If you read a barcode other than the one registered as the master, an error sound (no output) will be emitted, so you can prevent barcode mistakes and mix-ups with similar products.
●Three matching modes allow you to use it according to your needs.
1-to-1: Register master data → Match → Register the next barcode as the master → Match... and the master data is changed as needed.
1-to-many: This function repeats the process of registering master data → Match → Match → Match.
Many-to-many: Multiple barcodes can be registered as masters and matched.
*It is possible to save and output the matching history.

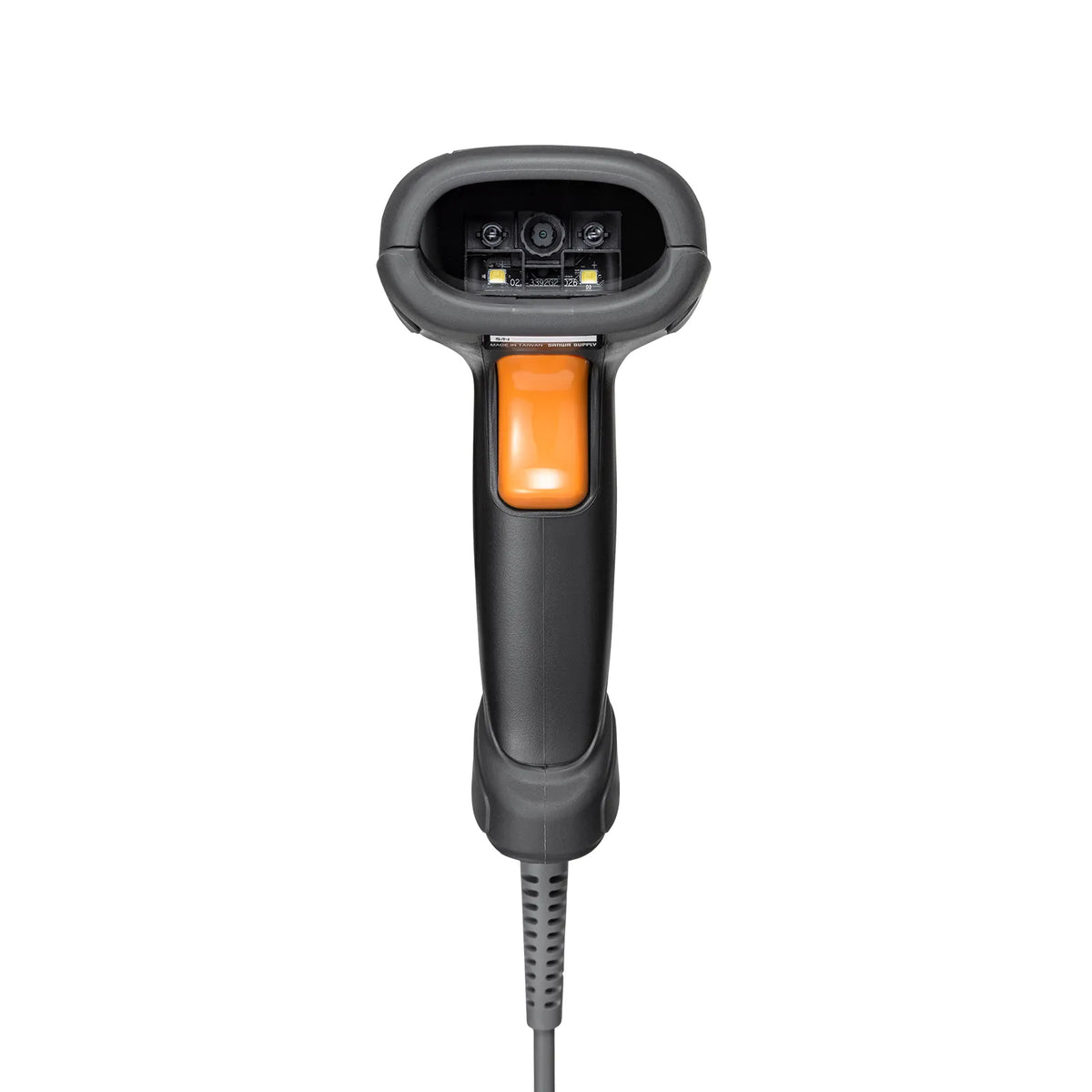

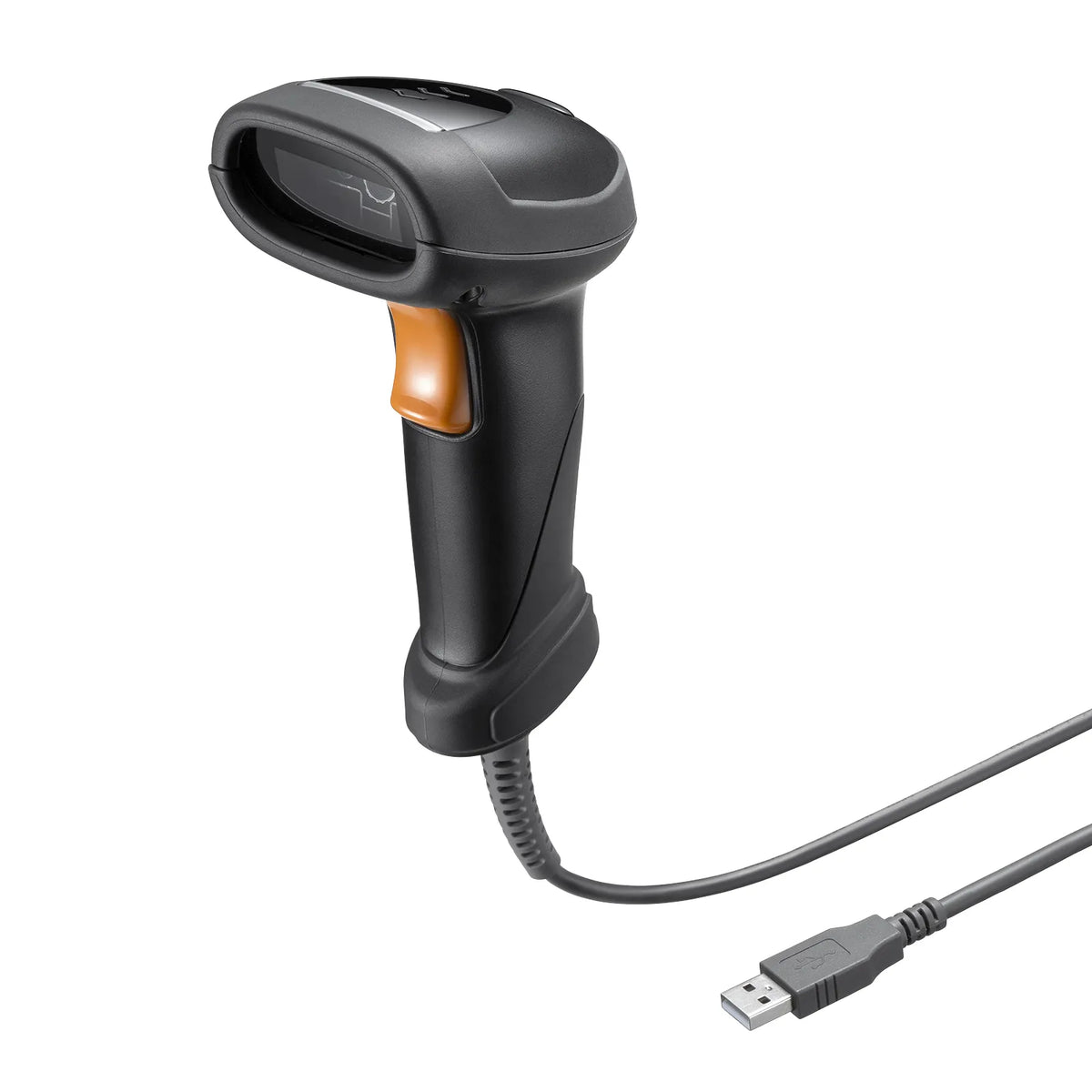

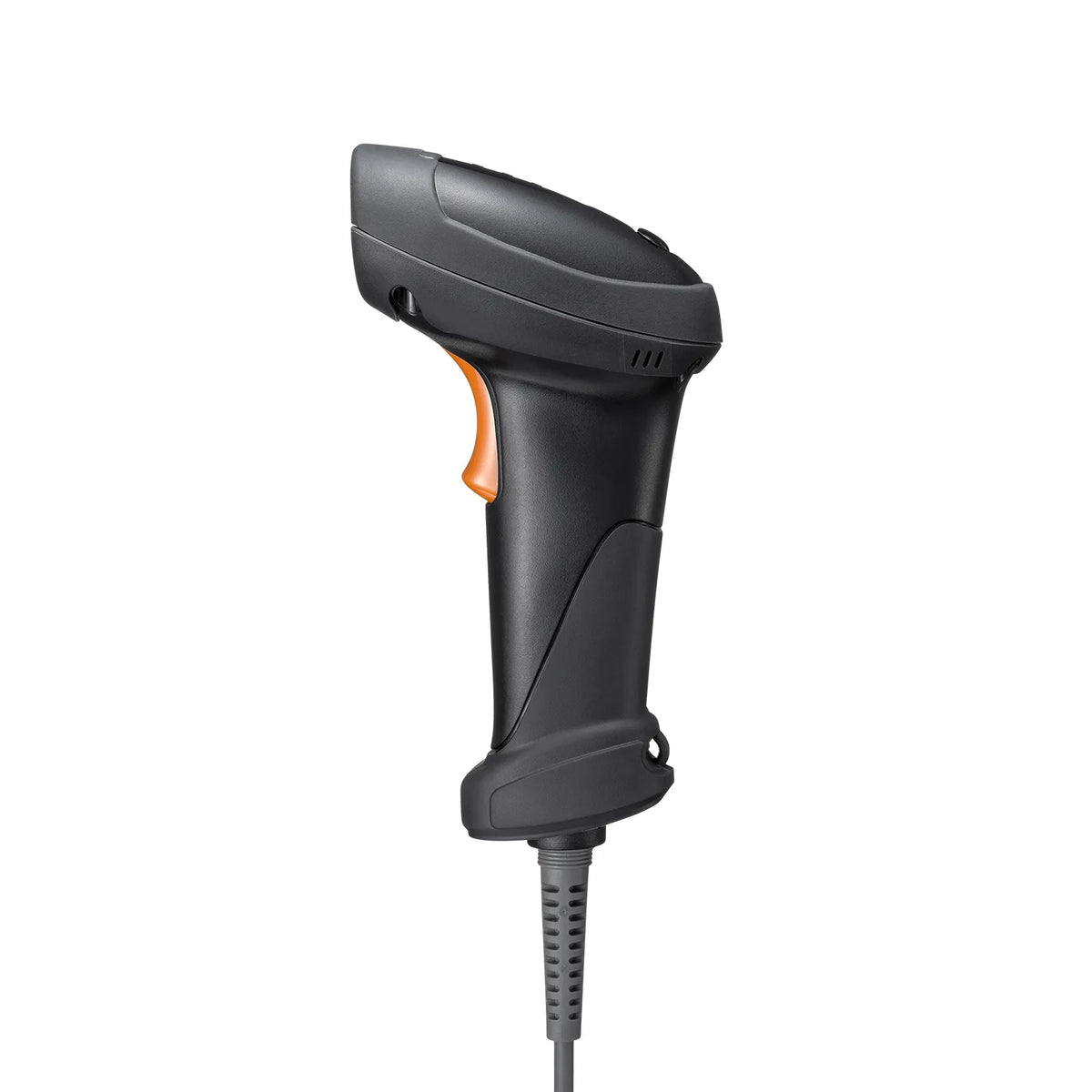

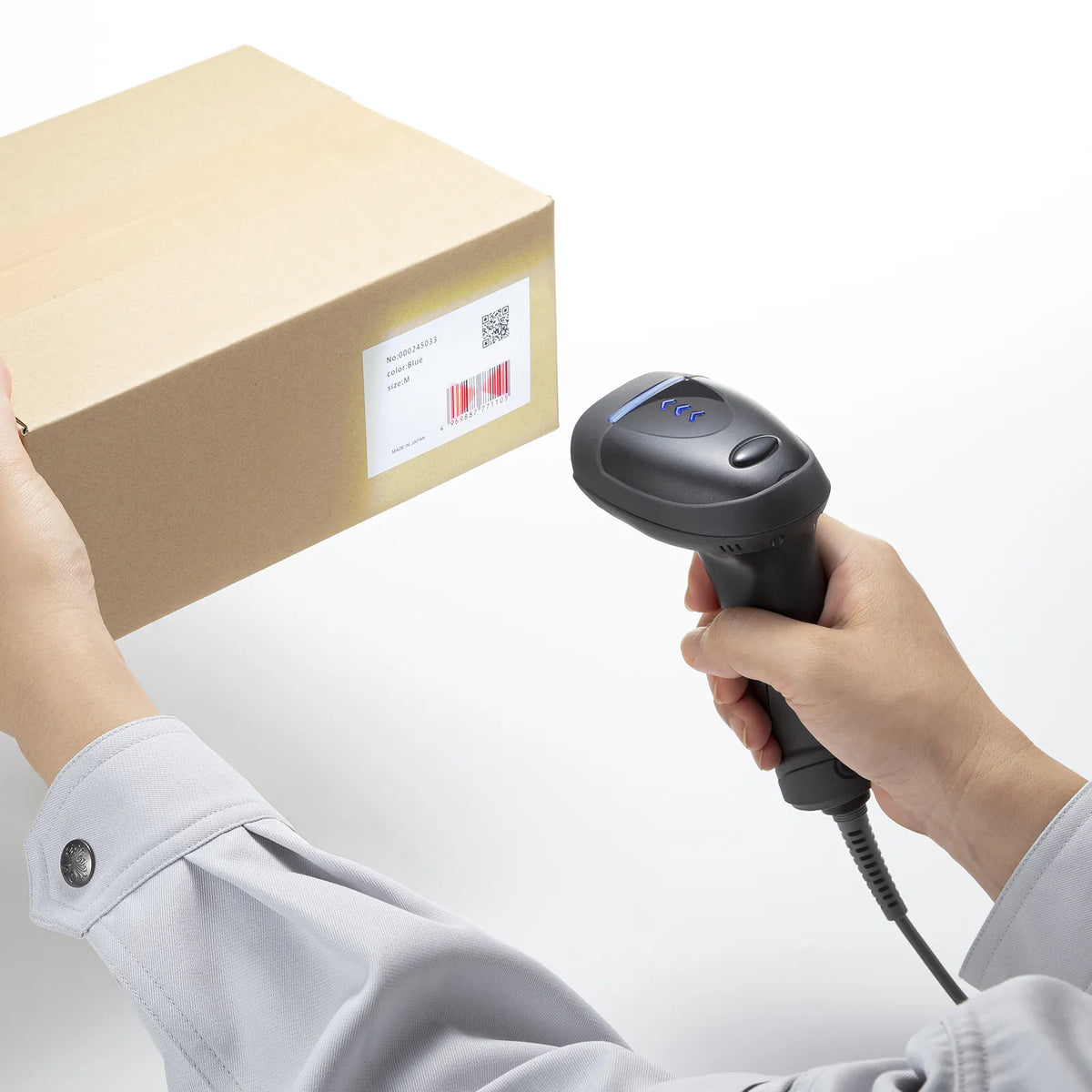

●Small, easy-to-grip handheld type
It is a small type with a shape that fits easily in the hand.
●Supports output of Japanese QR codes
Supports output of Japanese QR codes.
*Depending on the encoding type and the output destination software, it may not be supported.

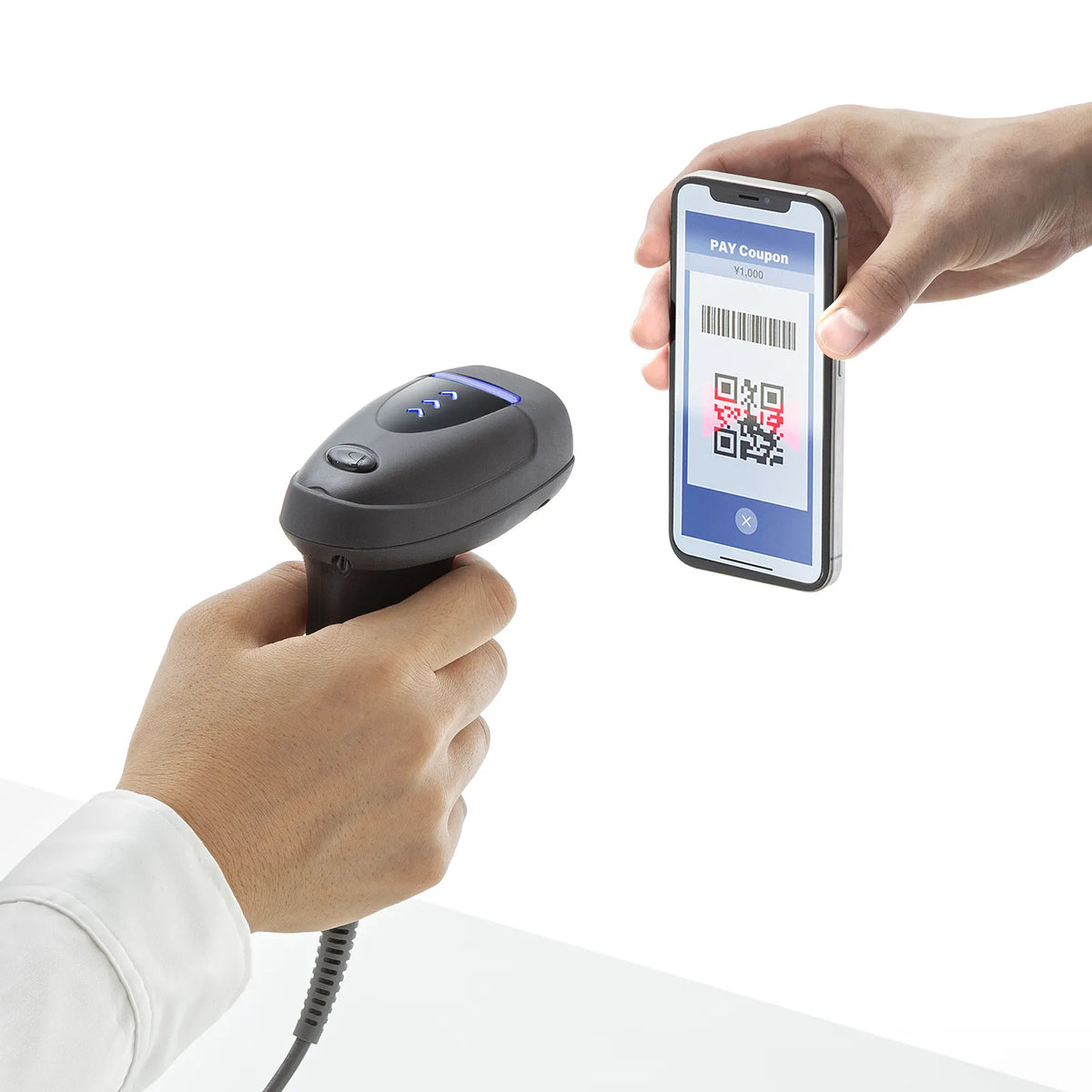

●Supports reading 2D and 1D barcodes.
For 2D, it supports reading commonly used barcodes such as QR, microQR, and Datamatrix.
For 1D, it supports reading CODE39 used in logistics and other applications, as well as commonly used JAN codes.

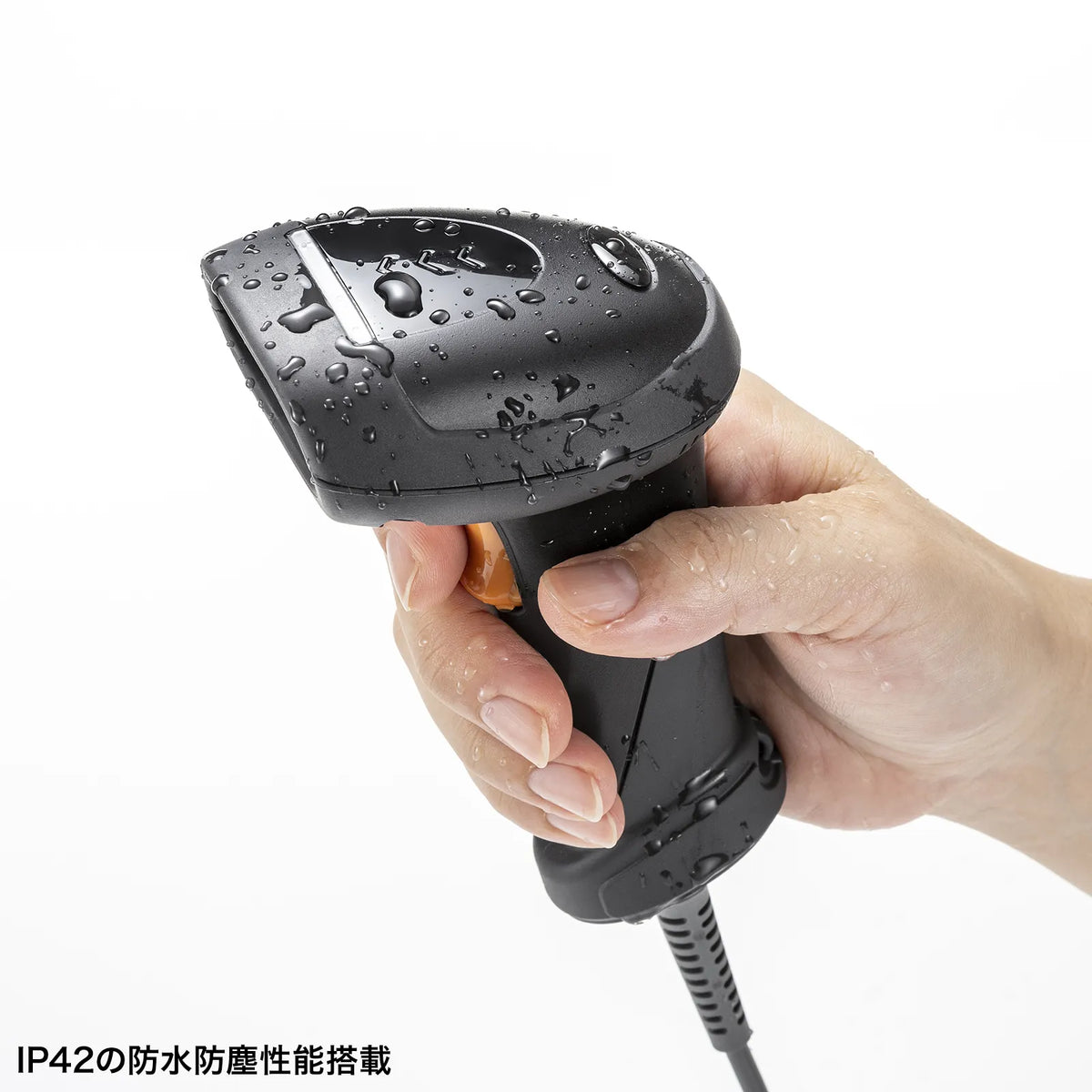

●IP42 waterproof and dustproof performance
●Drop impact resistance of 1.5m

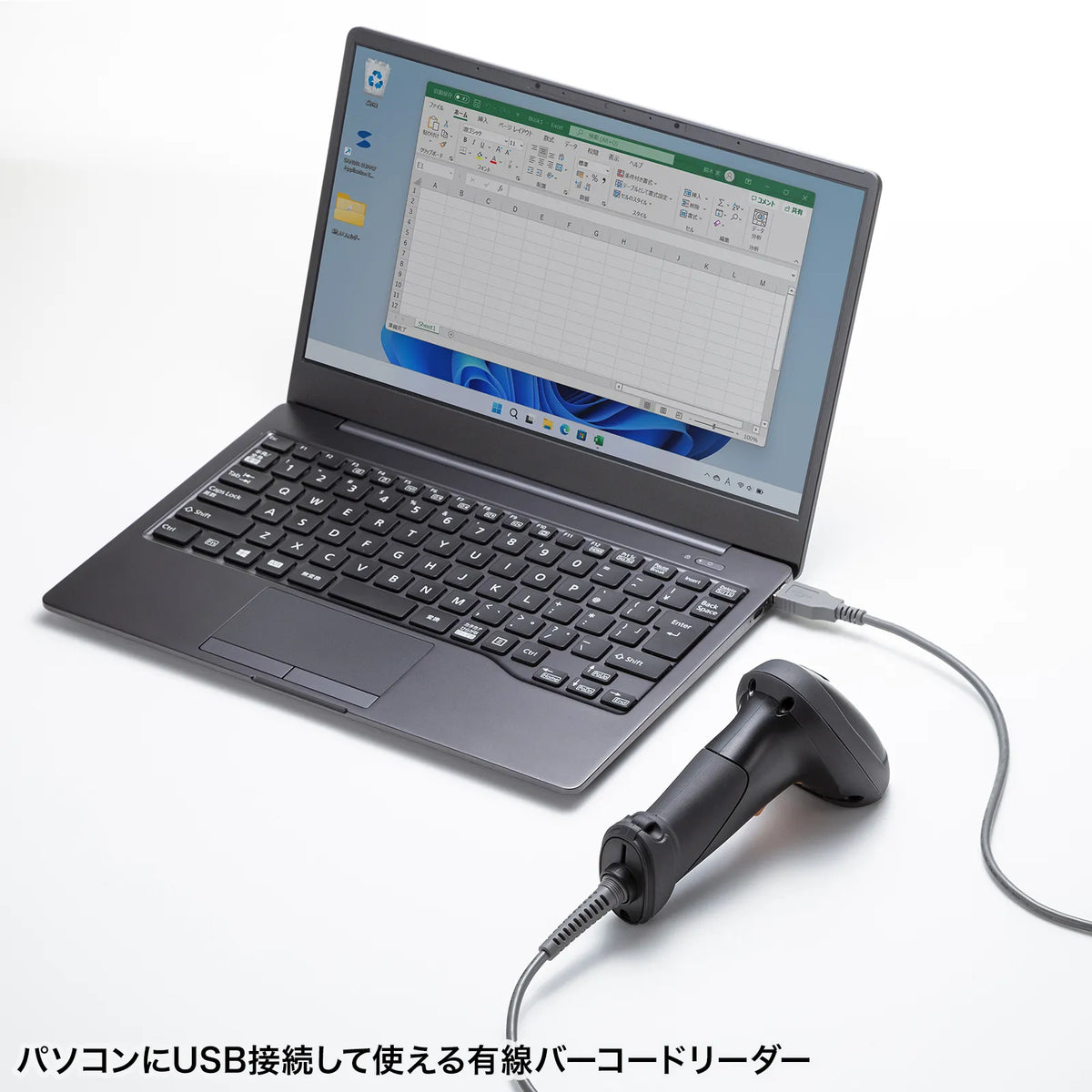

■Interface: USB HID
■Power supply: 5VDC
■PCS value: 30% at UPC/EAN100%
■Reading depth:
Code39 (5mil)/50-150mm
EAN13 (13mil)/30-280mm
■Scanning speed: 60 frames/second
■Connector shape: USB A
■Readable codes (1D): EAN-8, EAN-13, UPC-A, UPC-E, NW-7 (Codabar), Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Code 32, Code 39, Code 93, Code 128, ISBN, MSI, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded, Paramecode
■ Readable codes (2D): QR Code, Micro QR, PDF417, Micro PDF417, Data Matrix, MaxiCode, AztecCode, Codablock F, Composite Code CC-A, Composite Code CC-B, Composite Code CC-C
■ Japanese QR: Supported
※Output to iOS and Android is not supported.
■Reading method: CMOS
1280x800
■Protection class: IP42
■Resolution: 4mil PCS90% (Code39)
■Reading angle:
Pitch/60 degrees
Skew/60 degrees
Tilt/180 degrees
■Current consumption: Maximum 260mA (operating), 120mA (standby)
■Environment: Operating temperature/0 to 50 degrees, Storage temperature/-20 to 60 degrees,
Operating and storage humidity/0 to 90% (non-condensing)
■Size: Approx. W82xD66xH163mm
■Weight: Approx. 128g
■Cable length: Approx. 2m
●Equipped with a matching function that is useful for inspection work.
If you read a barcode other than the one registered as the master, an error sound (no output) will be emitted, so you can prevent barcode mistakes and mix-ups with similar products.
●Three matching modes allow you to use it according to your needs.
1-to-1: Register master data → Match → Register the next barcode as the master → Match... and the master data is changed as needed.
1-to-many: This function repeats the process of registering master data → Match → Match → Match.
Many-to-many: Multiple barcodes can be registered as masters and matched.
*It is possible to save and output the matching history.
●Small, easy-to-grip handheld type
It is a small type with a shape that fits easily in the hand.
●Supports output of Japanese QR codes
Supports output of Japanese QR codes.
*Depending on the encoding type and the output destination software, it may not be supported.
●Supports reading 2D and 1D barcodes.
For 2D, it supports reading commonly used barcodes such as QR, microQR, and Datamatrix.
For 1D, it supports reading CODE39 used in logistics and other applications, as well as commonly used JAN codes.
●IP42 waterproof and dustproof performance
●Drop impact resistance of 1.5m
■Interface: USB HID
■Power supply: 5VDC
■PCS value: 30% at UPC/EAN100%
■Reading depth:
Code39 (5mil)/50-150mm
EAN13 (13mil)/30-280mm
■Scanning speed: 60 frames/second
■Connector shape: USB A
■Readable codes (1D): EAN-8, EAN-13, UPC-A, UPC-E, NW-7 (Codabar), Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Code 32, Code 39, Code 93, Code 128, ISBN, MSI, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded, Paramecode
■ Readable codes (2D): QR Code, Micro QR, PDF417, Micro PDF417, Data Matrix, MaxiCode, AztecCode, Codablock F, Composite Code CC-A, Composite Code CC-B, Composite Code CC-C
■ Japanese QR: Supported
※Output to iOS and Android is not supported.
■Reading method: CMOS
1280x800
■Protection class: IP42
■Resolution: 4mil PCS90% (Code39)
■Reading angle:
Pitch/60 degrees
Skew/60 degrees
Tilt/180 degrees
■Current consumption: Maximum 260mA (operating), 120mA (standby)
■Environment: Operating temperature/0 to 50 degrees, Storage temperature/-20 to 60 degrees,
Operating and storage humidity/0 to 90% (non-condensing)
■Size: Approx. W82xD66xH163mm
■Weight: Approx. 128g
■Cable length: Approx. 2m
