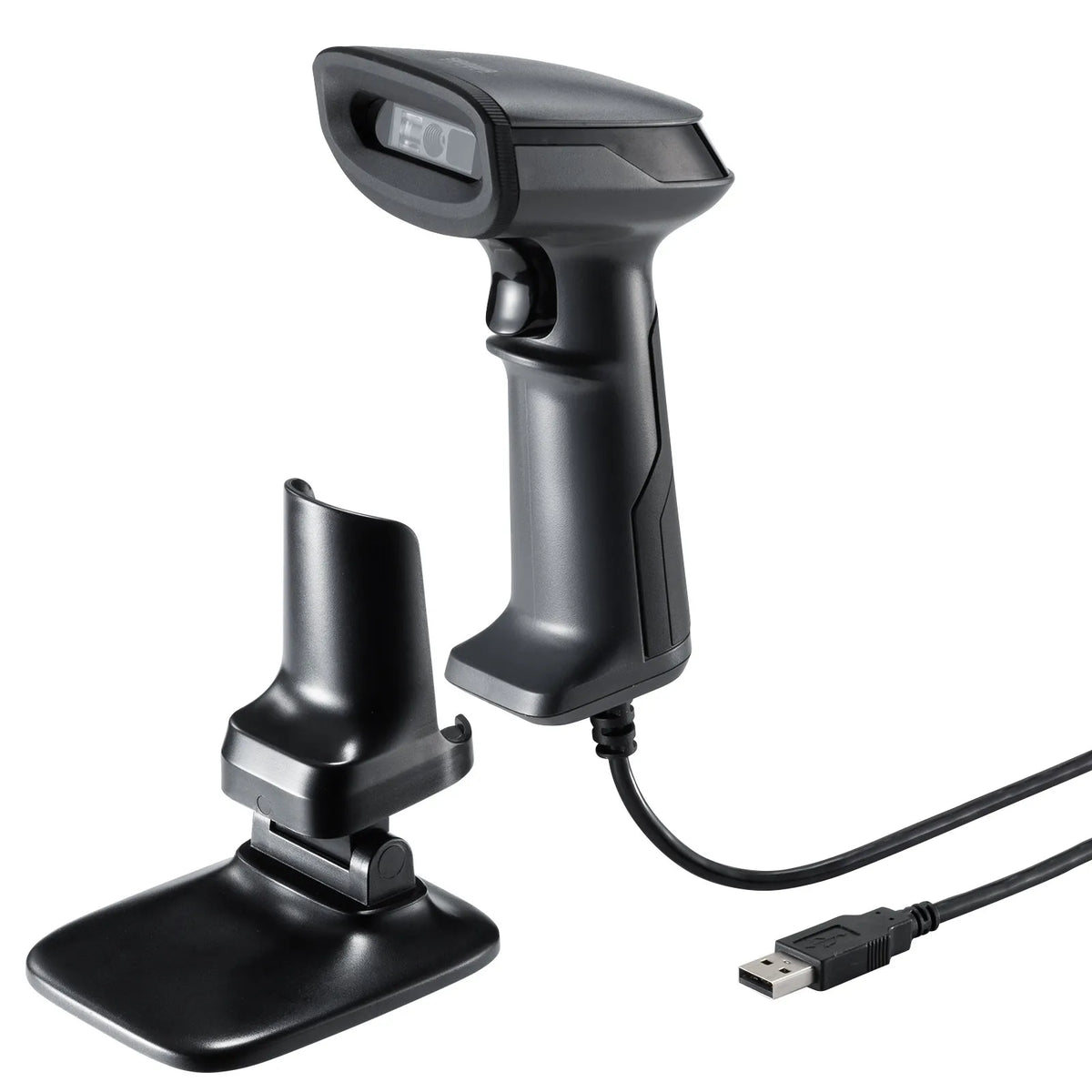

[2D Barcode Reader with Stand and Auto-Sensing Function]
●60 frames/second reading performance enables smooth reading. It can quickly and smoothly read barcodes within the reading range.
●Minimum resolution of 3mil It can smoothly read fine barcodes and small codes.

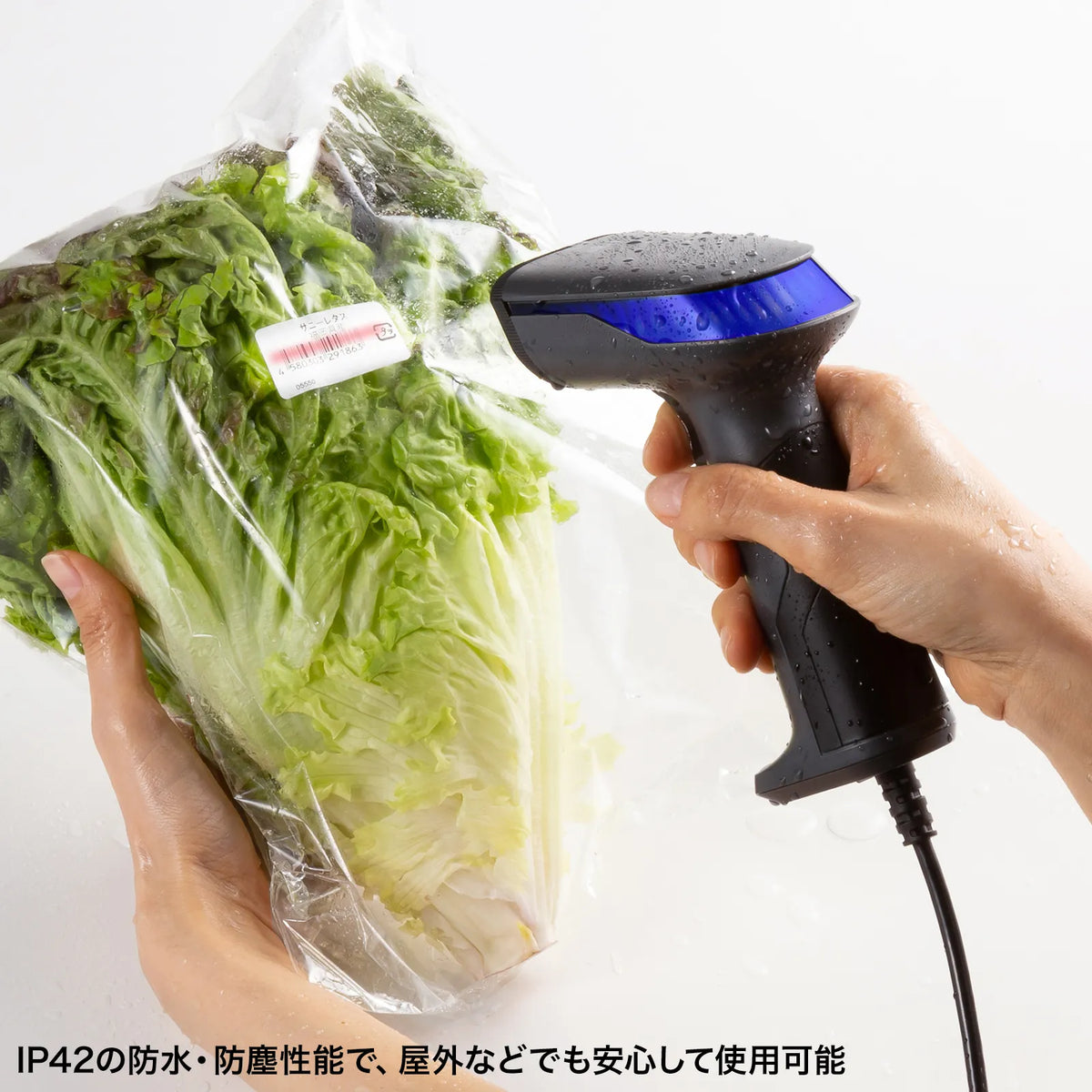

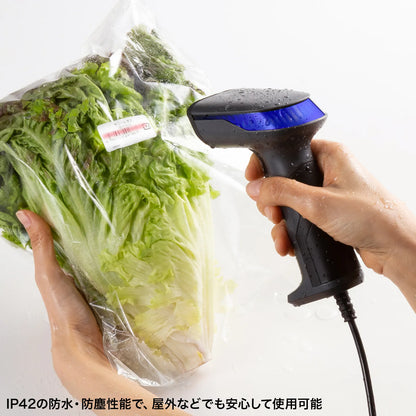

●Equipped with IP42 waterproof and dustproof performance. It can be used in environments with a lot of water and dust.
●Supports both 1D and 2D reading.

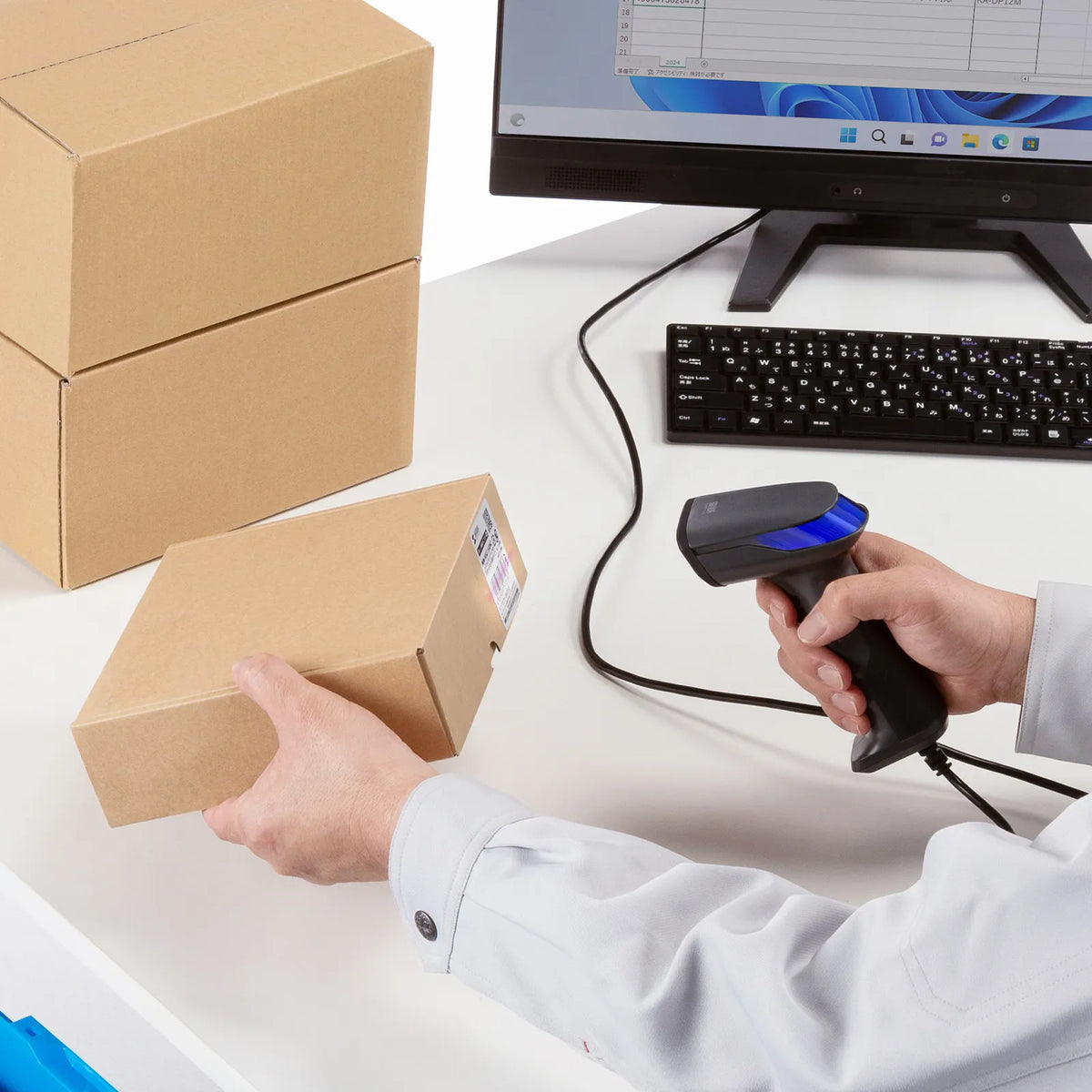

●Supports reading CODE39 used in logistics work and QR codes used for payment at cash registers.

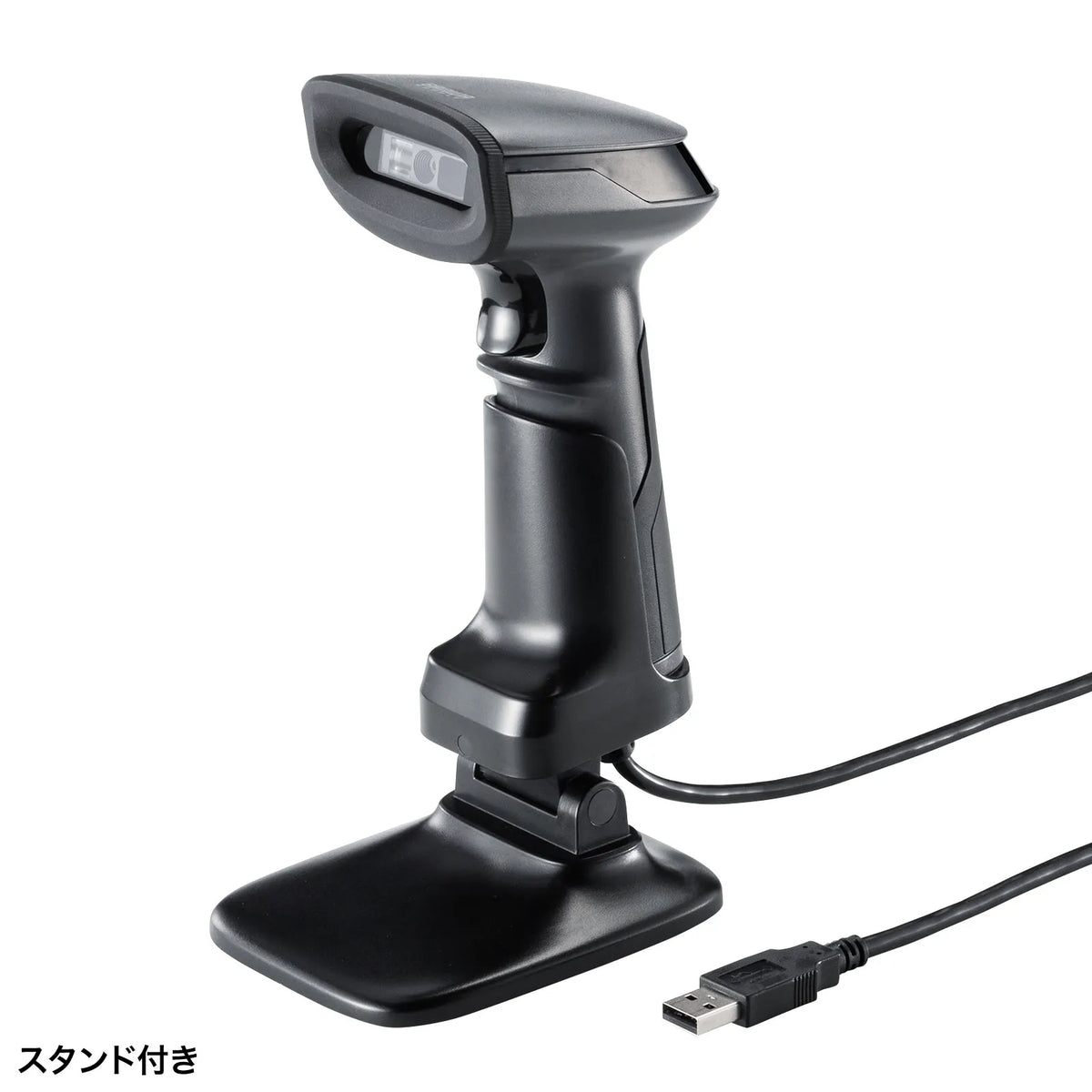

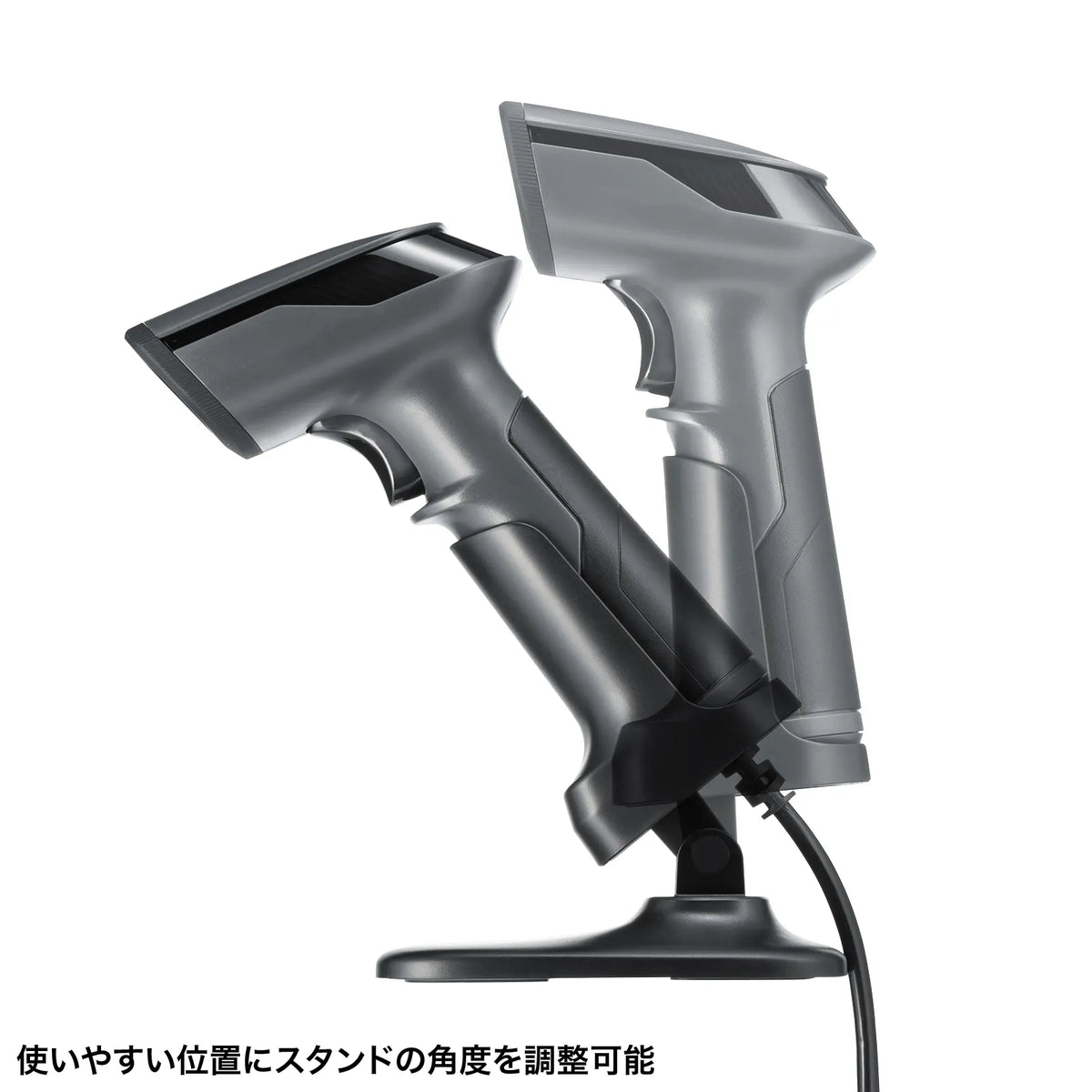

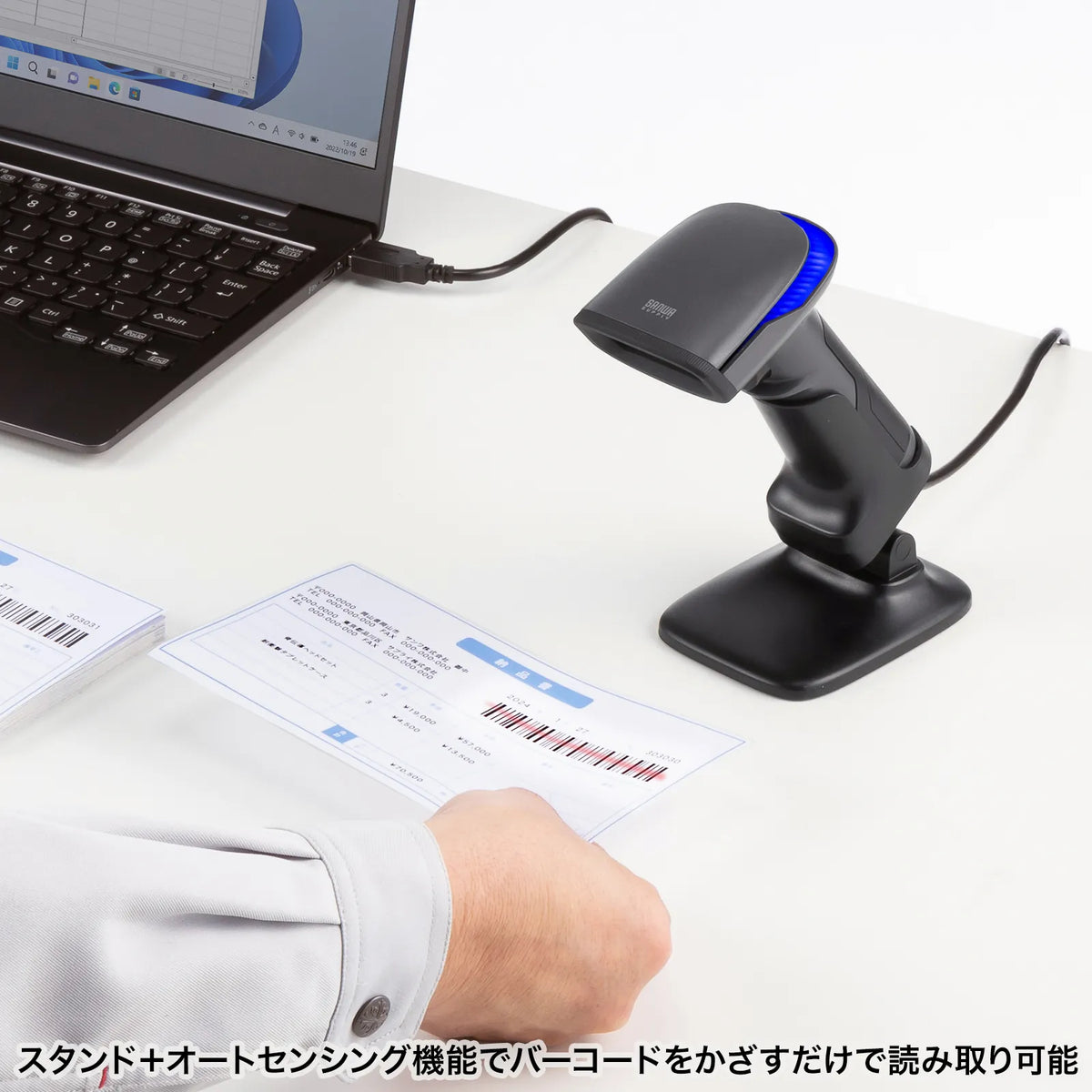

●Equipped with a stand and auto-sensing function for hands-free use. With the auto-sensing function, you can read barcodes simply by holding them over the barcode.

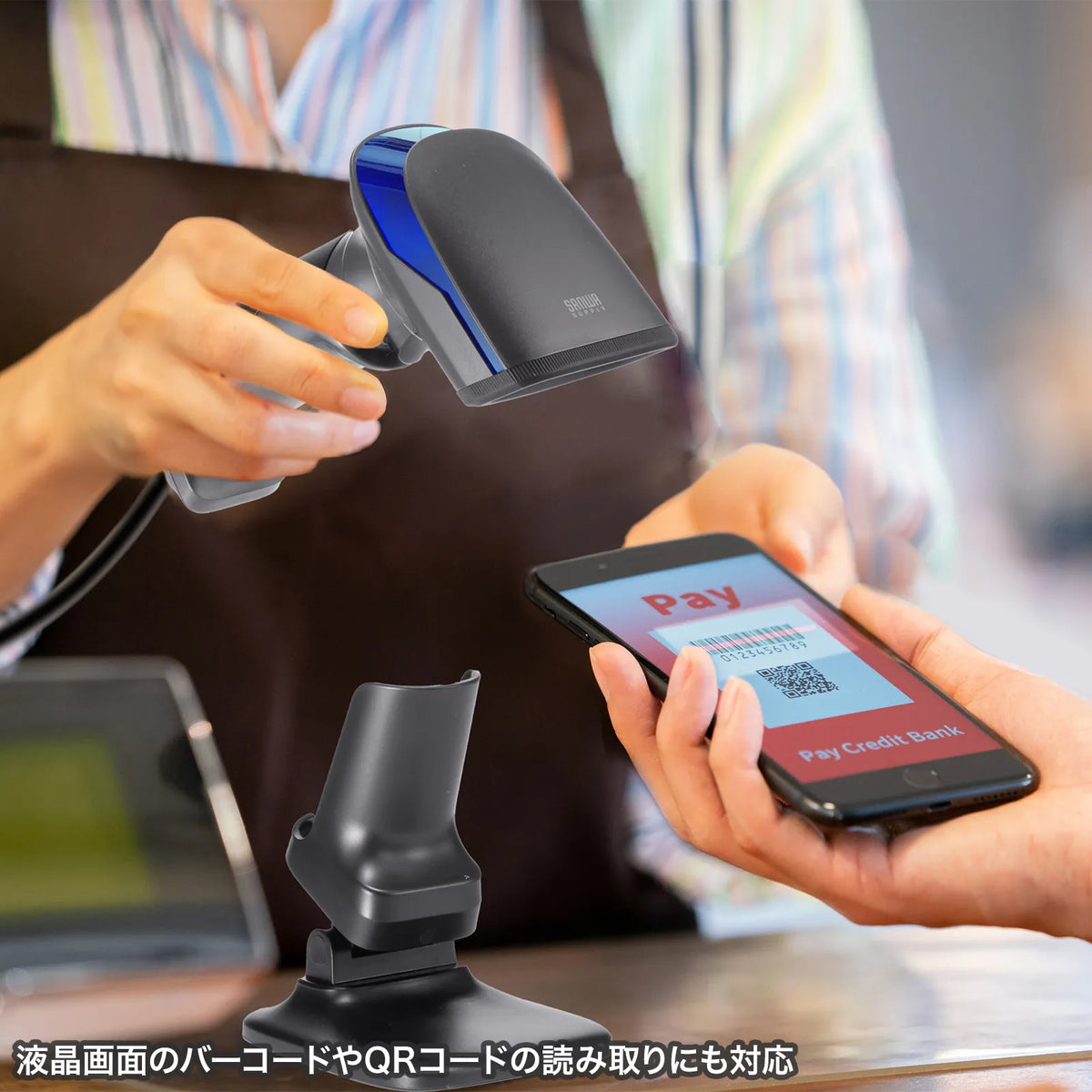

●Supports reading barcodes displayed on the LCD screen of smartphones and computers. Convenient when reading codes such as QR payment codes.
●Also supports reading QR codes containing Japanese characters (Kanji, Hiragana, and Katakana).

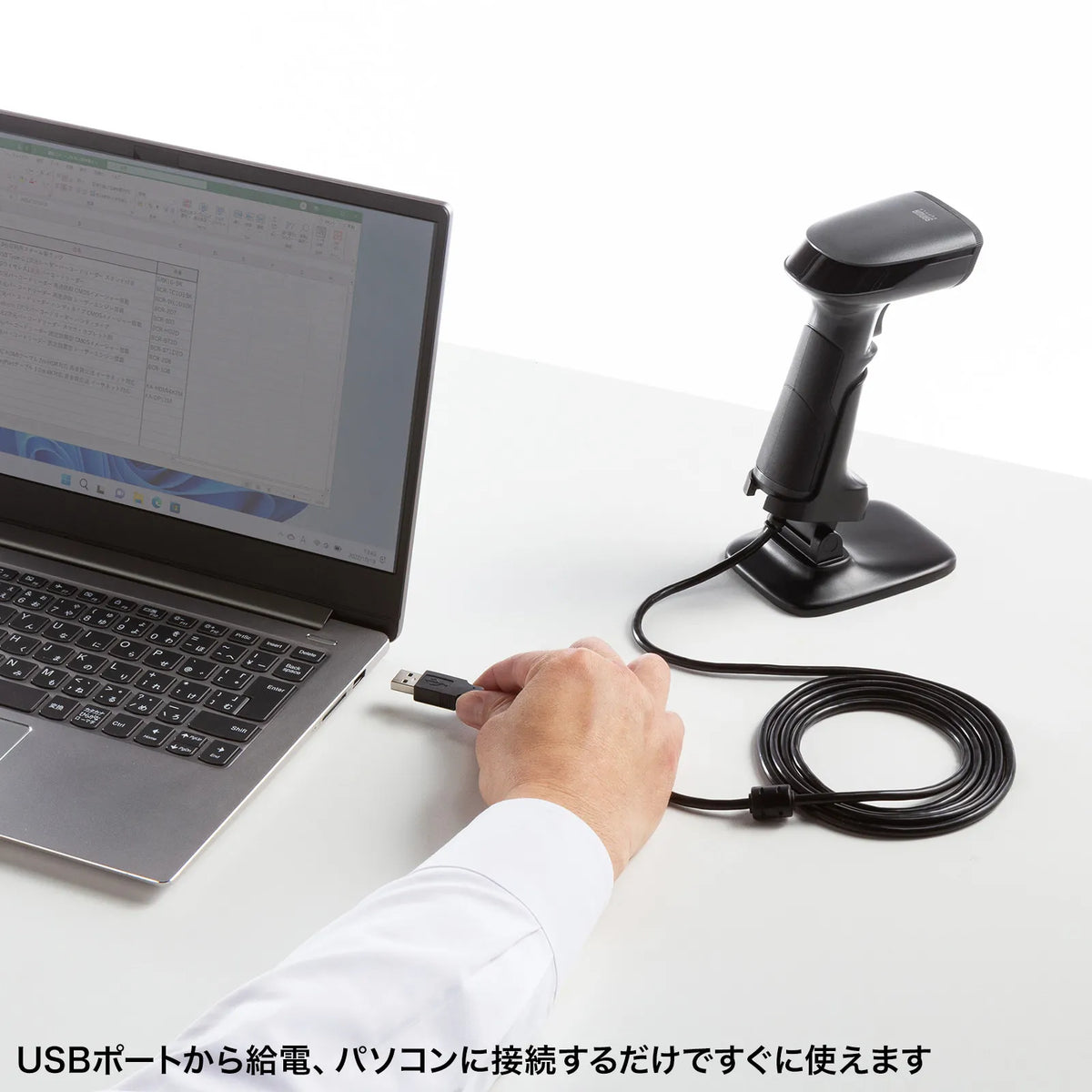

■Interface: USB HID (USB A connector) ■Readable codes: 【1D】EAN-8, UPC-A, UPC-E, NW-7 (Codabar), Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Code 32, Code 39, Code 93, Code 128, ISSN, ISBN, MSI, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded, Paramecode 【2D】QR Code, Micro QR, PDF417, Micro PDF417, Data Matrix, AztecCode ■Reading method: COMS sensor (640x480) ■Minimum resolution: 3mil ■Reading depth:【1D (CODE39)】8mil/30 to 240mm, 13mil/60 to 360mm, 20mil/80 to 450mm 【2D (QR)】25mil/30 to 270mm, 35mil/35 to 360mm, 45mil/50 to 440mm ■Protection class: IP42 ■Scanning speed: 60 frames/second ■Current consumption (operating): Maximum 180mA ■PCS value: ≥20% ■Light source: Red LED, White LED ■Connector shape: USB A ■Japanese QR: Supported *Output to iOS and Android is not supported. *UTF-8 → Excel, Notepad, Word (Windows) SHIFT-JIS → Excel, Notepad, Word (Windows) ■Vehicle registration QR support: Supported *Depending on the usage environment, it may not work, so it is necessary to check with a test device. ■Size: Approx. W112.5 x D81.5 x H204mm (including stand) ■Weight: Approx. 185g (main unit only) ■Cable length: Approx. 2m ■Set contents: Main unit, setting code list, connection cable, stand, instruction manual and warranty ■Operating environment: Temperature: -10 to 50 degrees Celsius Humidity: 5 to 95% (non-condensing)
