Pad Anchor (Stainless Steel, Boltless) AP-9SN
Pad Anchor (Stainless Steel, Boltless) AP-9SN
GTIN（JAN）：4937897046223
SKU：AP-9SN
Regular price
¥4,785 JPY
Regular price
Sale price
¥4,785 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]
For mounting fixtures and piping to hollow walls
●For hollow walls
●Can be installed on lightweight steel studs in building interiors or without damaging the wall surface

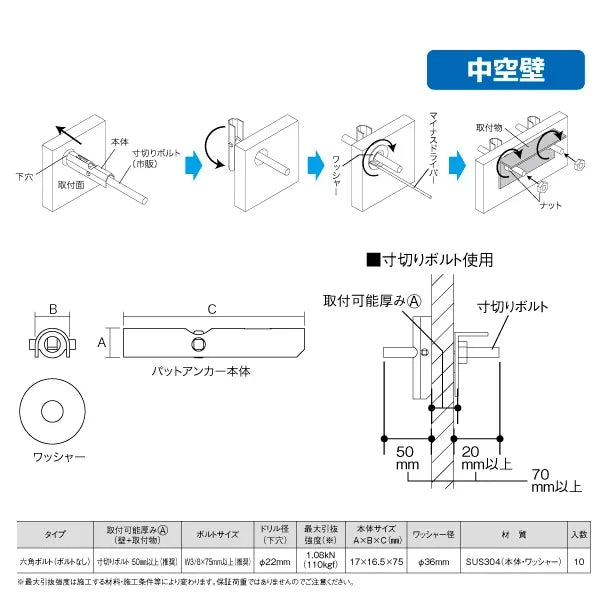

●Insert horizontally through a pilot hole, and the main body on the back of the wall stands vertically, securely fixing the wall surface and the object to be mounted.
●Threaded rods are also OK
●Applications
・Water supply and drainage/gas work: Support for sanitary fixtures and gas supply pipes, etc.
・Heating and cooling work: Support for air conditioners and ductwork, etc.
・Electrical work: Collective meter panels, meter panels, meter boxes, lighting fixtures, VE moldings, metallic molding boxes, etc.
・Building work: Interior partitions, accordion rail installation, installation of handrails for passages and stairs, etc.
●AP-9SN Set contents (10 of each)
・Pad anchor
・Washer
■Specifications
・Body size and weight: 17mm x 16.5mm x 75mm・40g
・Mountable thickness (wall + mounting object): Threaded rods 50mm or more (recommended)
・Bolt size: W3/8 x 75mm or more (recommended)
・Drill diameter (pilot hole): φ22mm
・Maximum pull-out strength (*): 1.08kN (110kgf)
・Washer diameter: φ36mm
・Quantity: 10
*Maximum pull-out strength varies depending on the materials and construction conditions. Please note that this is not a guaranteed load.
・Material
Body and washer: SUS304
・Packaging specifications
Individual packaging: Plastic case and seal
Individual packaging size and weight: W95 x D40 x H190mm, 470g
・1 package
・Country of origin: China
