JEFCOM
Pad Anchor AP-9
Pad Anchor AP-9
GTIN（JAN）：4937897041501
SKU：AP-9
Regular price
¥3,053 JPY
Regular price
Sale price
¥3,053 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]
For mounting fixtures and piping to hollow walls
●For hollow walls
●Can be installed on lightweight steel studs in building interiors without damaging the wall surface

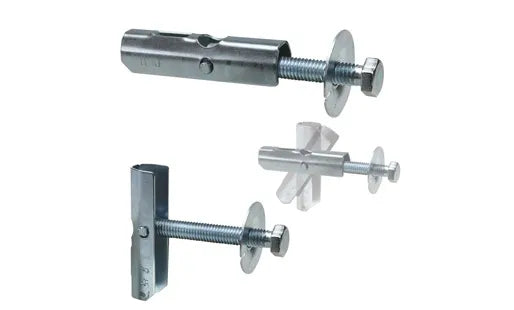

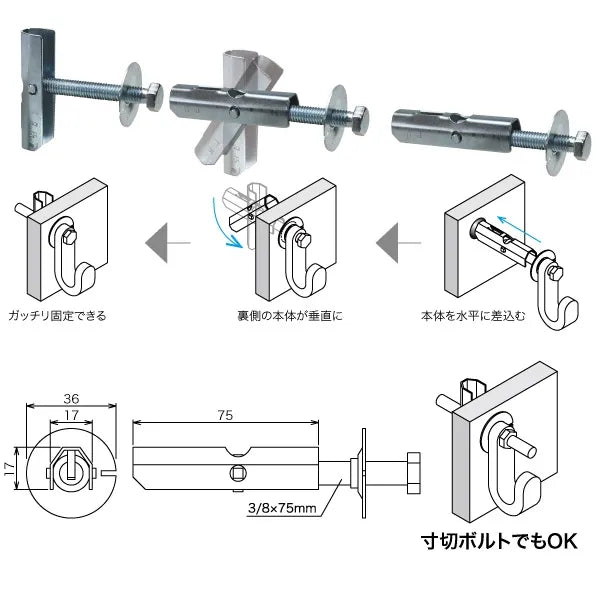

●Insert horizontally through a pilot hole, and the main body on the back of the wall stands vertically, securely fixing the wall surface and the object to be mounted.
●Can also be used with threaded rods
●Applications
・Water supply and drainage/gas work:Support for sanitary fixtures, gas oil supply pipes, etc.
・Heating and cooling work:Support for air conditioners and ductwork, etc.
・Electrical work:Collective meter panels, meter panels, meter boxes, lighting fixtures, VE moldings, metallic molding boxes, etc.
・Building work:Interior partitions, accordion rail installation, installation of handrails for passages and stairs, etc.
●AP-9 Set Contents (10 of each)
・Pad anchor
・Hex bolt 3/8 x 75mm
・Washer
■ Specifications
・Material: Steel
・Bolt size: W3/8 (Mountable thickness + 70mm or more)
・Drill diameter (pilot hole): φ22
・Maximum pull-out strength (*): 1.08kN (110kgf)

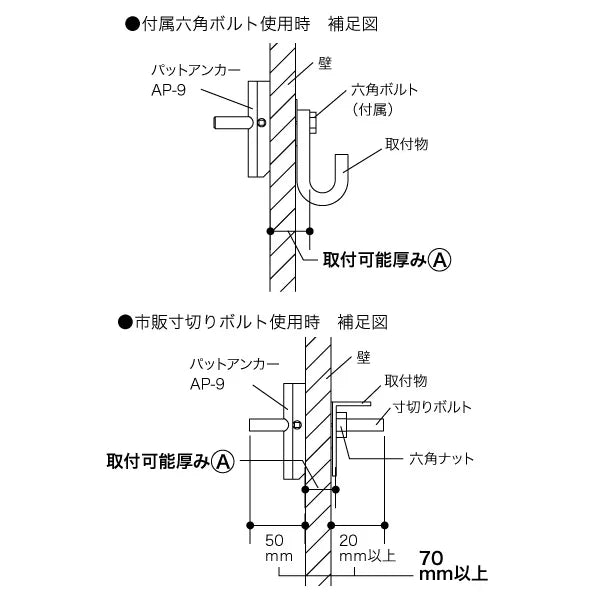

■When using hex bolts (included)
・Mountable thickness (wall + object to be mounted): 30mm or less *50mm or less when using threaded rods
・Bolt size: W3/8 x 75mm
■When using threaded rods (commercially available)
・Mountable thickness (wall + object to be mounted): 50mm or less (recommended)
*Maximum pull-out strength varies depending on the materials used and construction conditions. Please note that this is not a guaranteed load.
・Material
Body and washer: SPHC (trivalent chromate), Hex bolt: SWCH (trivalent chromate)
・Packaging specifications
Individual packaging: Plastic case and seal
Individual packaging size and weight: W150 x D110 x H65 mm, 850 g
・1 package
・Country of origin: China
