SANWA SUPPLY
Lightning surge protector (Gigabit compatible) ADT-NF5EN
Lightning surge protector (Gigabit compatible) ADT-NF5EN
GTIN（JAN）：4969887751862
SKU：ADT-NF5EN
Regular price
¥27,588 JPY
Regular price
Sale price
¥27,588 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

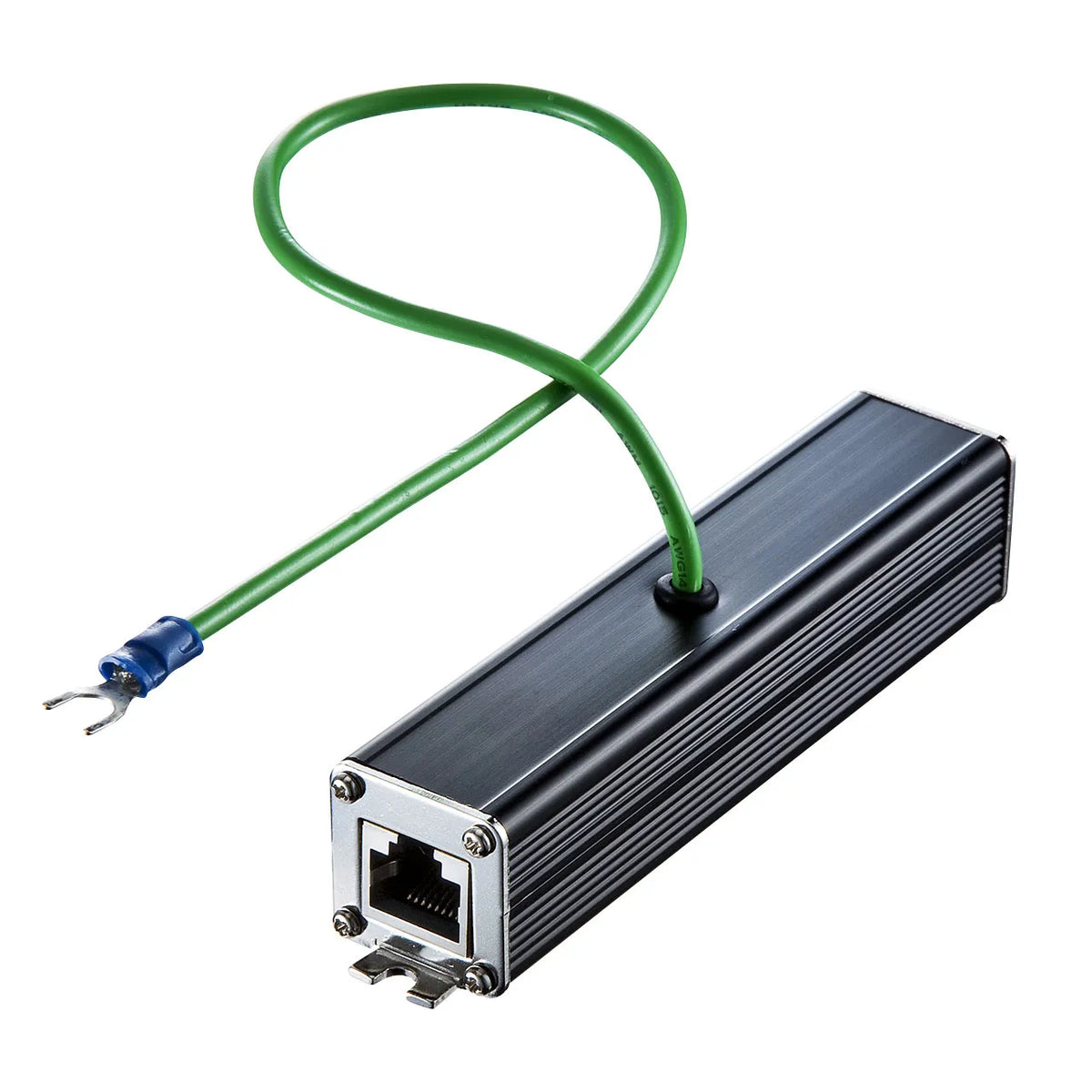

[A Gigabit Ethernet compatible RJ-45 relay adapter that protects equipment from lightning surges.]
●Protects network-connected equipment from lightning surges.
●Supports Gigabit Ethernet.
●Capable of Category 5e (1000BASE-T) transmission.
●Supports PoE (Power over Ethernet) (48V).
●Forged aluminum body ensures complete EMC noise resistance.
*This product uses electronic components internally and will not pass Fluke Tester's GigaTest.

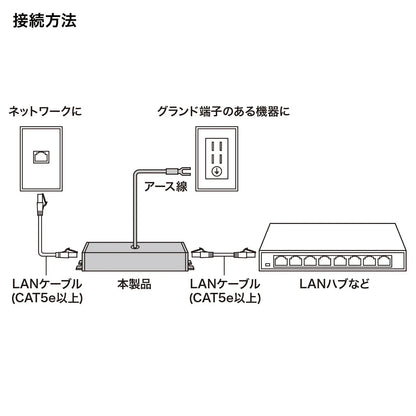

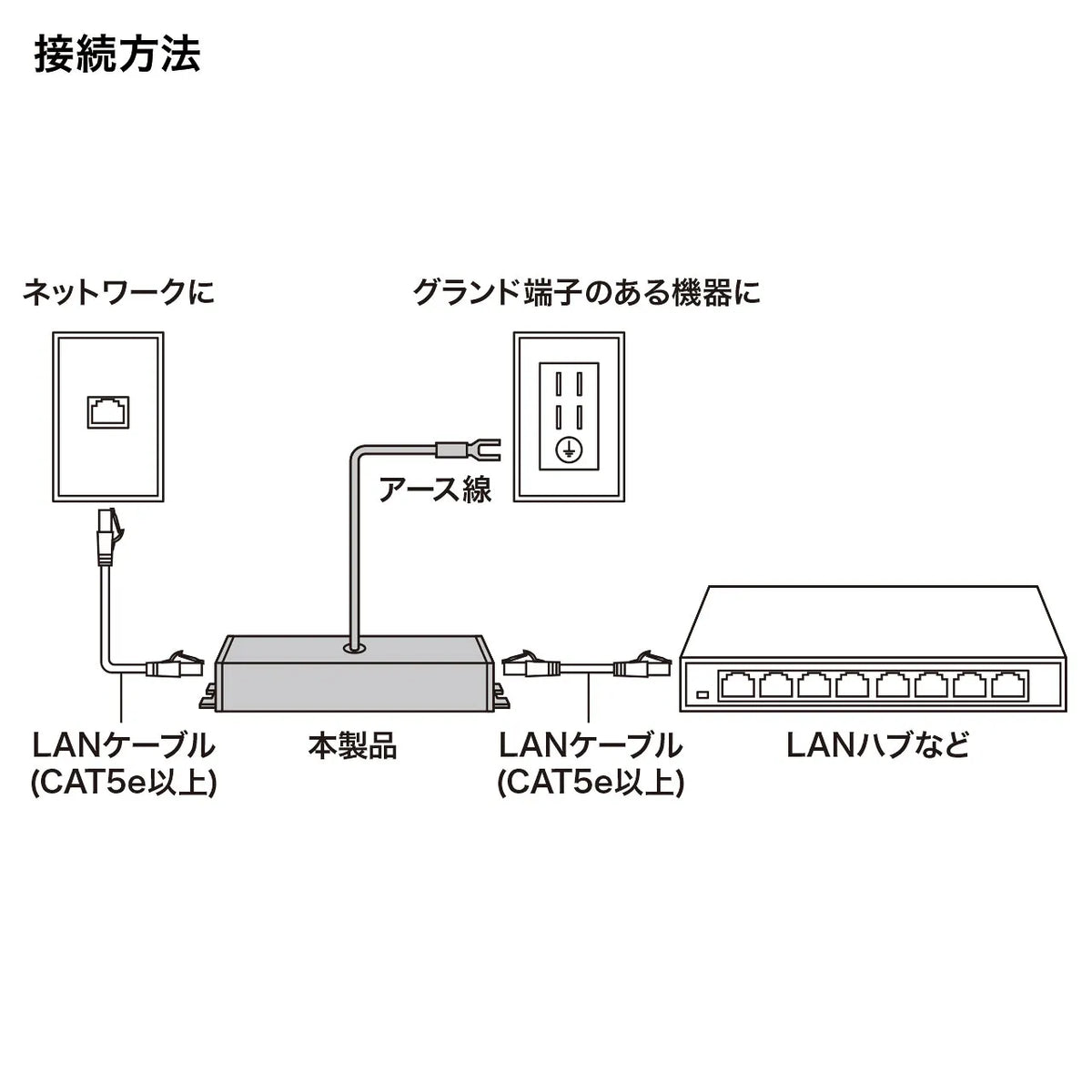

＜Connection Method＞
1. Before connecting this product, please ensure that your existing network is functioning correctly.
2. Turn off the power to the equipment to be connected.
3. Connect the equipment to be connected using an Enhanced Category 5 or higher LAN cable.
*When connecting to PoE equipment, please use AWG24 solid wire, AWG23 solid wire, or AWG22 stranded/solid wire LAN cable.

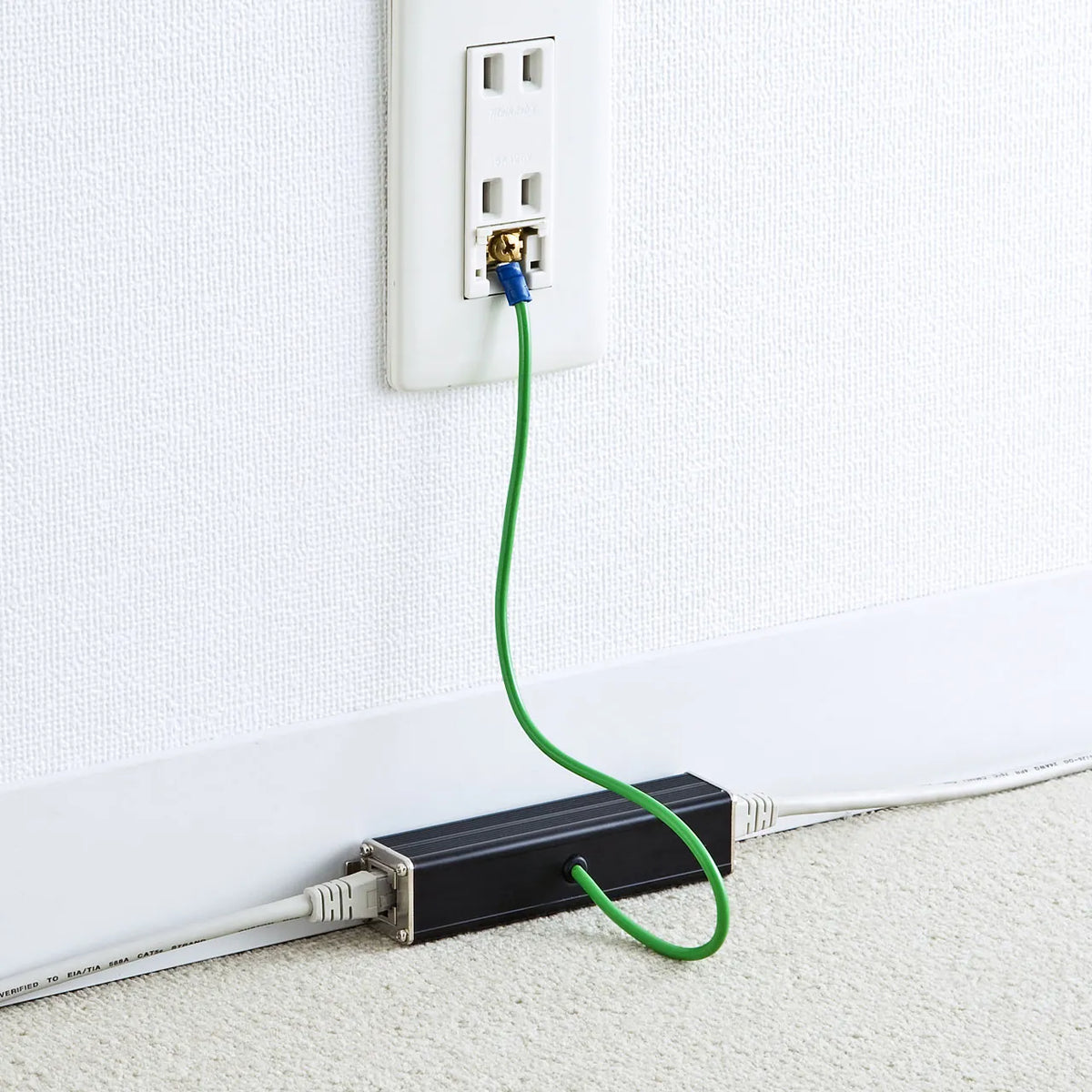

4. Connect the ground wire of this product to ground.
*To obtain sufficient lightning surge protection, be sure to ground the equipment with an earth wire. If grounding is not performed, lightning surge protection will not be effective.
5. Turn on the power to the connected equipment.

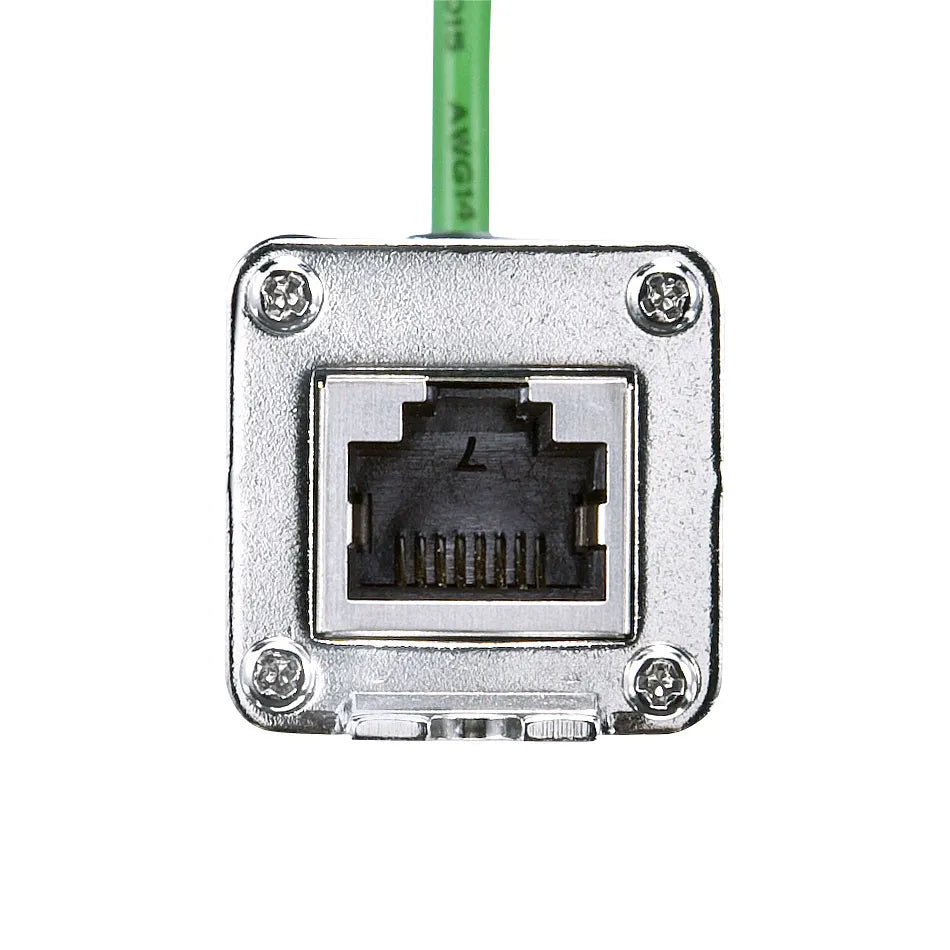

■Connector: RJ-45 shielded port
■Rated voltage: Data/5V, Power/48V
■Surge discharge current (8/20μs): Power/Data/10KA
■Protection pins: 8 pins total
■Protection mode: Differential & Common mode
■Isolation impedance: 1000MΩ
■Data transfer rate: 1000Mbps (1000BASE-T)
■Impulse protection voltage: 500V or less
■Response time: 5ns or less
■Ground cable: 27cm (with Y terminal)
■Operating temperature: -20 to 60℃
■Operating humidity: 0 to 90% (non-condensing)
■Dimensions: W25×D120×H25mm
■Weight: 105g
