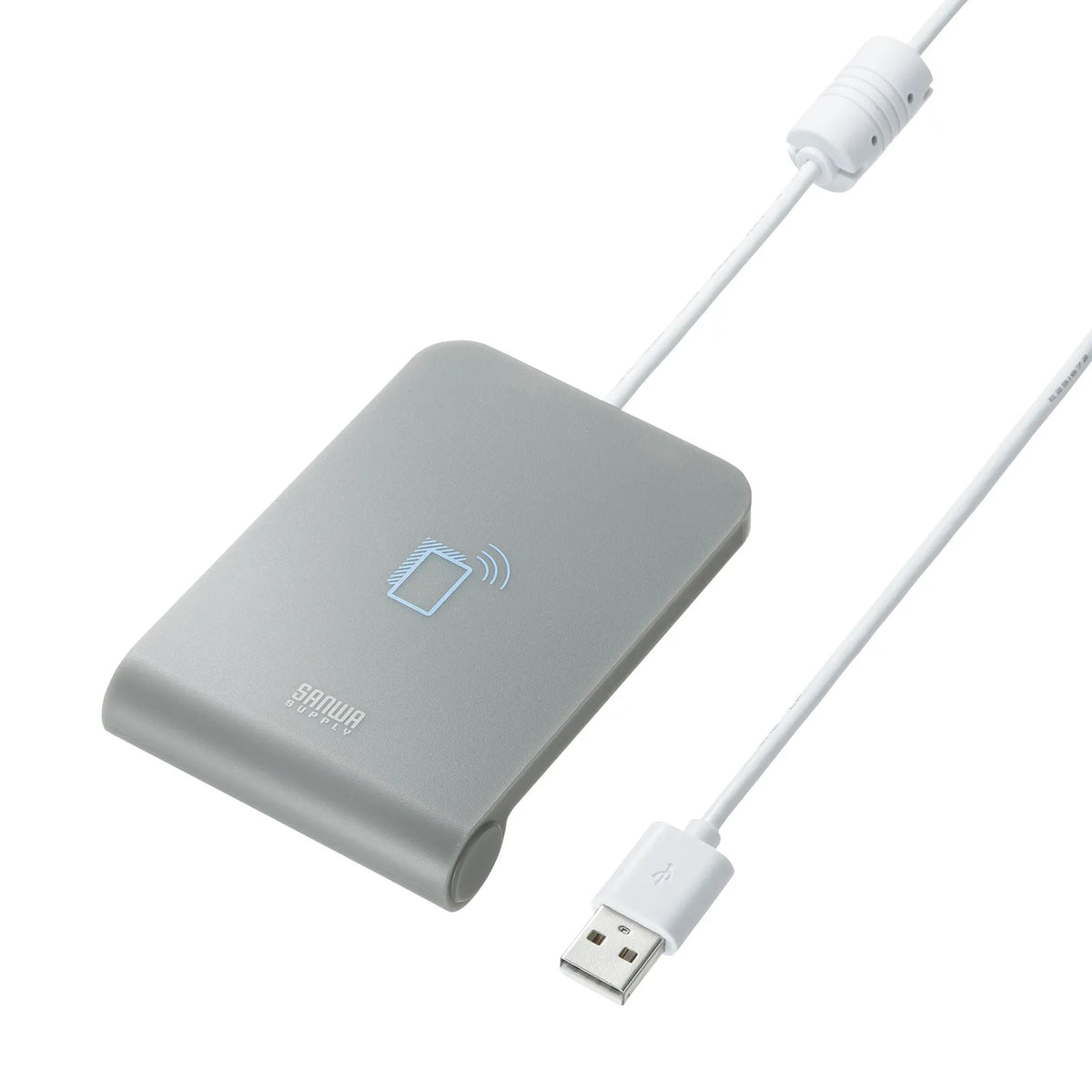

Contactless IC card reader/writer ADR-MNICU3

[Contactless IC Card Reader/Writer Compatible with Electronic Vehicle Inspection Certificates]

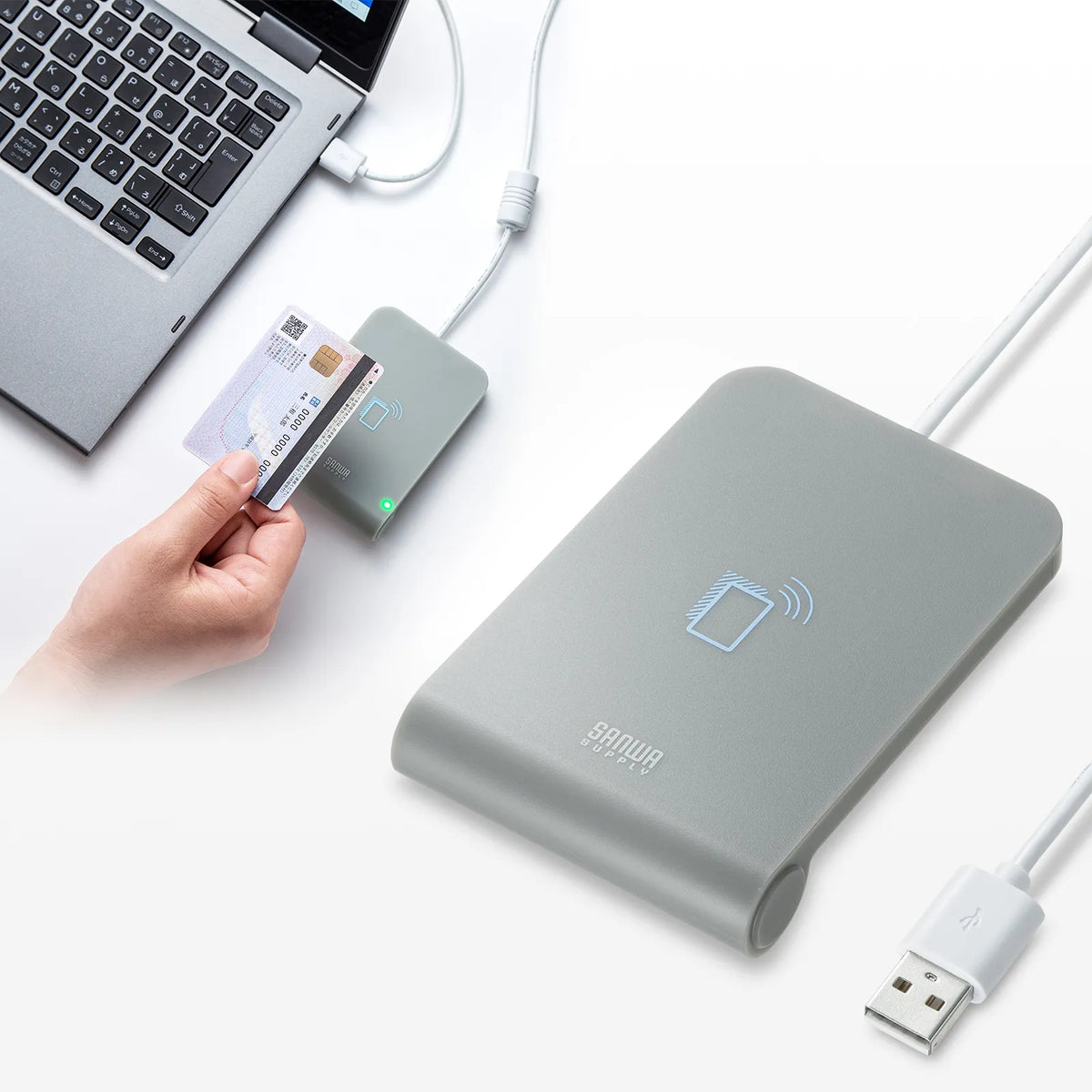

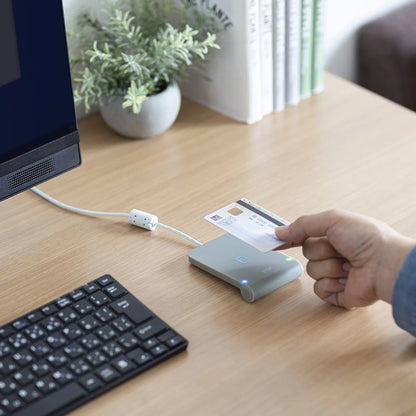

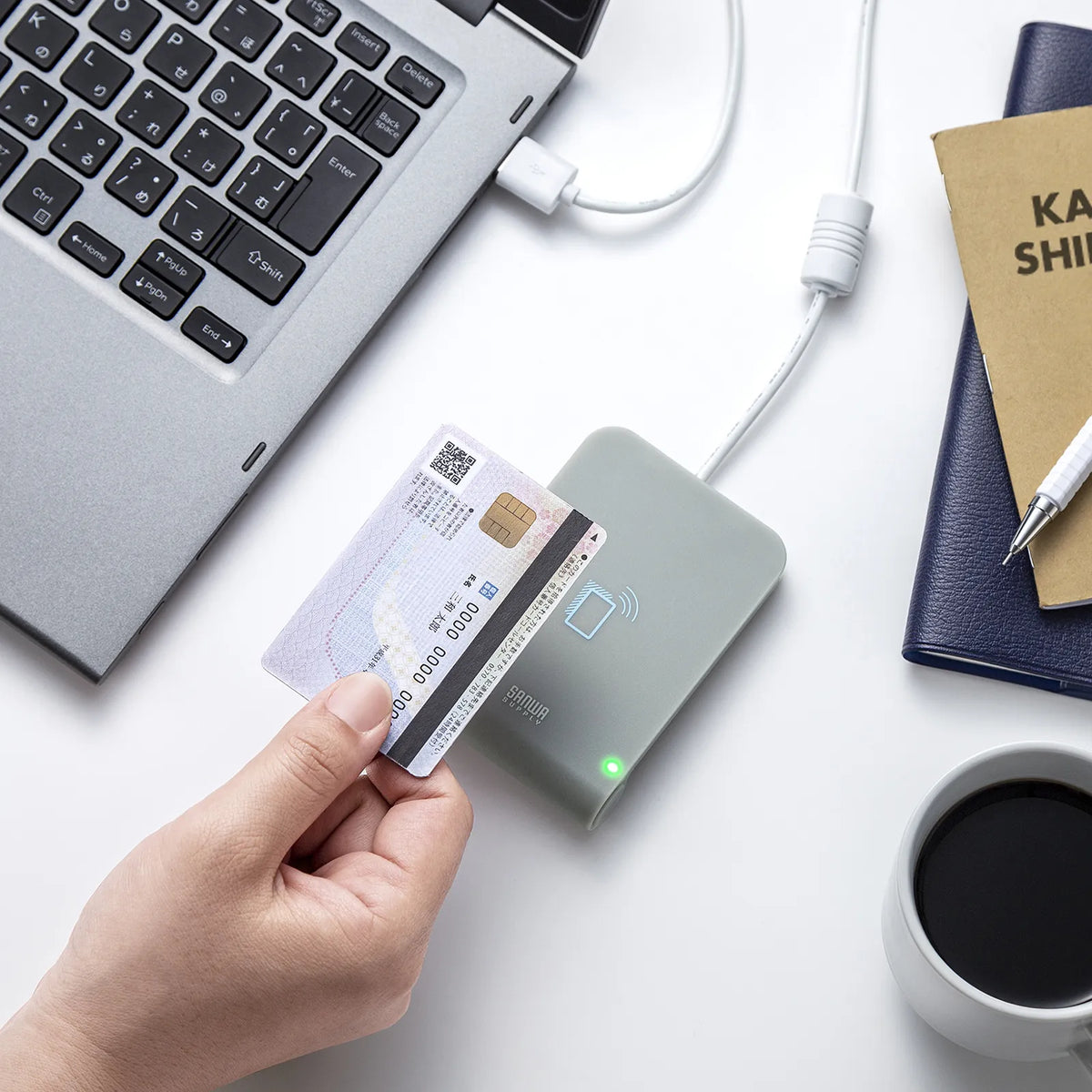

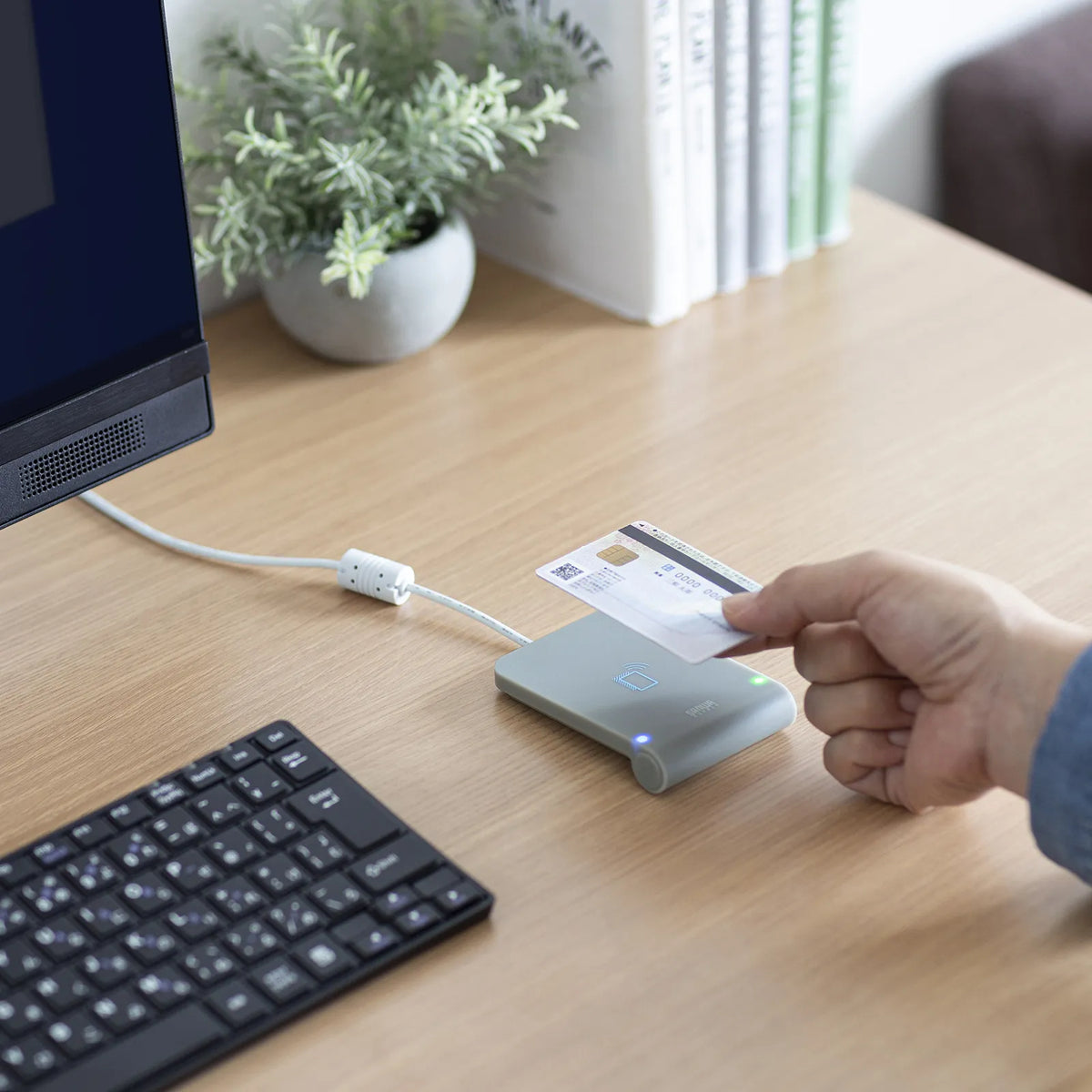

●This is a contactless card reader/writer that can read IC cards simply by holding them over the reader.
●It is compatible with the electronic vehicle inspection service that will be introduced from January 2023.
●It has been verified to be compatible with the public personal authentication service and can be used for e-TAX, eLTAX, etc.
●It is compatible with My Number and can be used not only for tax returns but also for My Number points and My Number portal.
●It makes a sound when you hold the card over the reader, so it is easy to tell if it has been recognized.
●It is an all-in-one type so there is no need to worry about losing the cable.

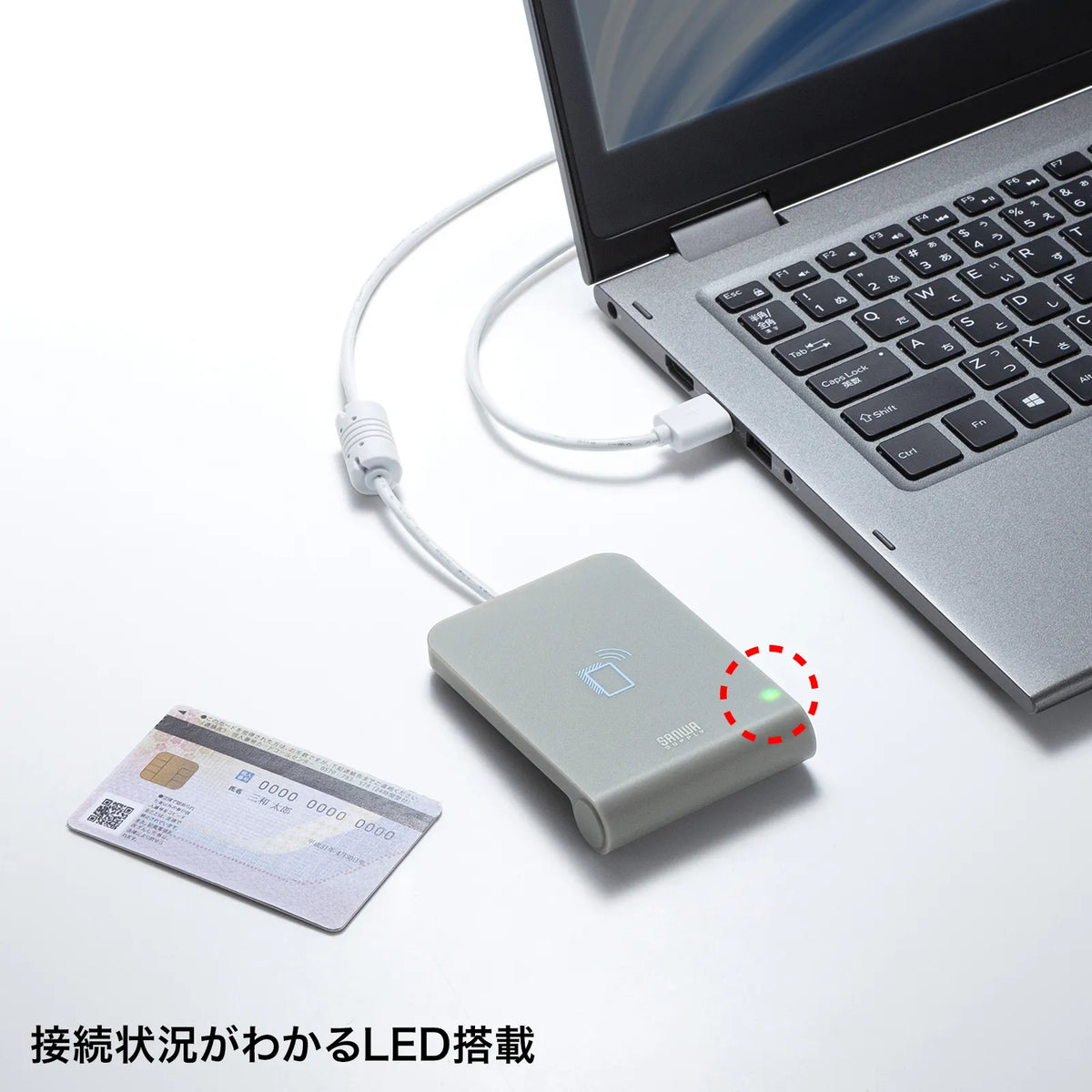

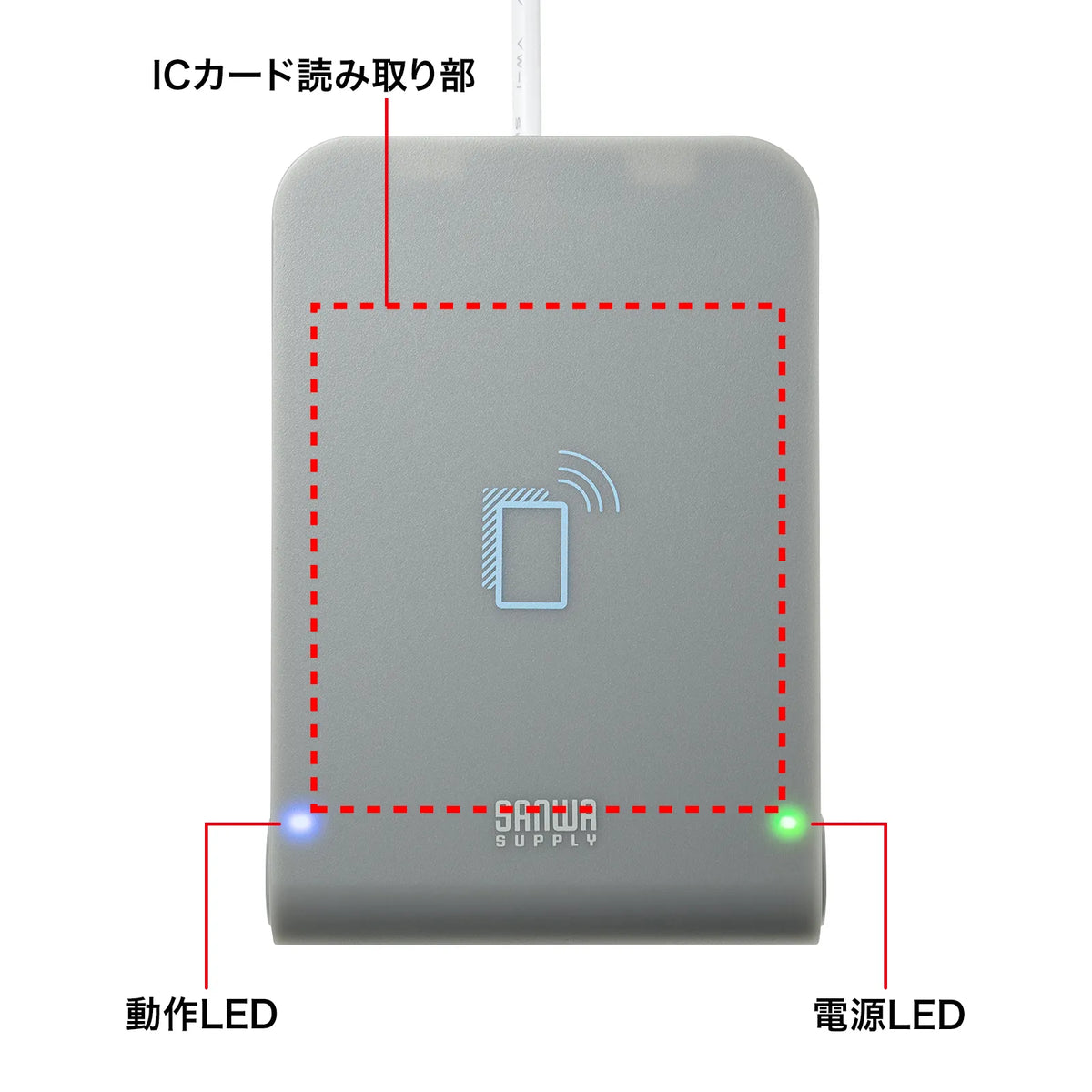

●It has an LED that shows the connection status.
●It can be used with bus power so no power supply is needed.
●It is compatible with both Windows and Mac and can be used with a wide range of models.
●It is also compatible with HPKI cards and can be used with tax accountant electronic certificates, etc.
●It is a gray color that does not show dirt easily.

＜Card Reader＞
■Supported IC card standards: ISO/IEC14443 Type A/B, ISO/IEC15693,
MIFARE series: Classic/ PLUS/ Ultralight/ Ultralight C/DESFire/ DESFire EV1/ DESFire EV2,
FeliCa (Standard/ Lite-S/ Plug), Calypso,
NFC Forum Tag type 1/2/3/4/5
■Compatible IC cards: Electronic vehicle registration certificate, IC driver's license, Felica, Myfare, My Number Card, Basic Resident Register Card with IC chip, Tax accountant card, Medical license certificate (HPKI card)
*Reading software/driver compatible with each IC card is required.

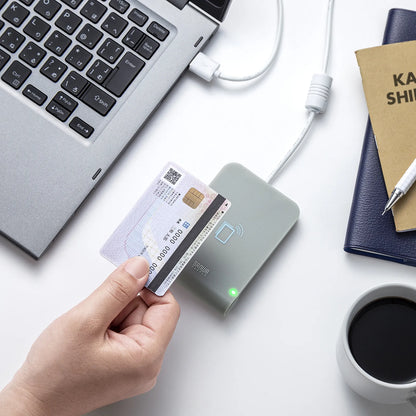

■IC card operation: Hold the IC card over the reader (contactless)
■Host interface: USB Ver.2.0 compliant
*To use as a USB2.0 device, you must have a USB2.0 compatible host adapter or a device equipped with a USB2.0 compatible port.
*For Mac OS, you need a model equipped with a USB2.0 compatible host adapter or a USB2.0 compatible port and with Mac OS 10.2.7 or later installed.
*In environments other than those mentioned above, it will operate at USB1.1.
*Data transfer speed may be reduced on devices without USB2.0.
*Suica is not supported.
*FeliCa does not support payment or balance display functions.
■Communication speed: 480Mbps, 12Mbps, 1.5Mbps
Card communication speed 106/212/424/848kbps (Default: 424kbps)

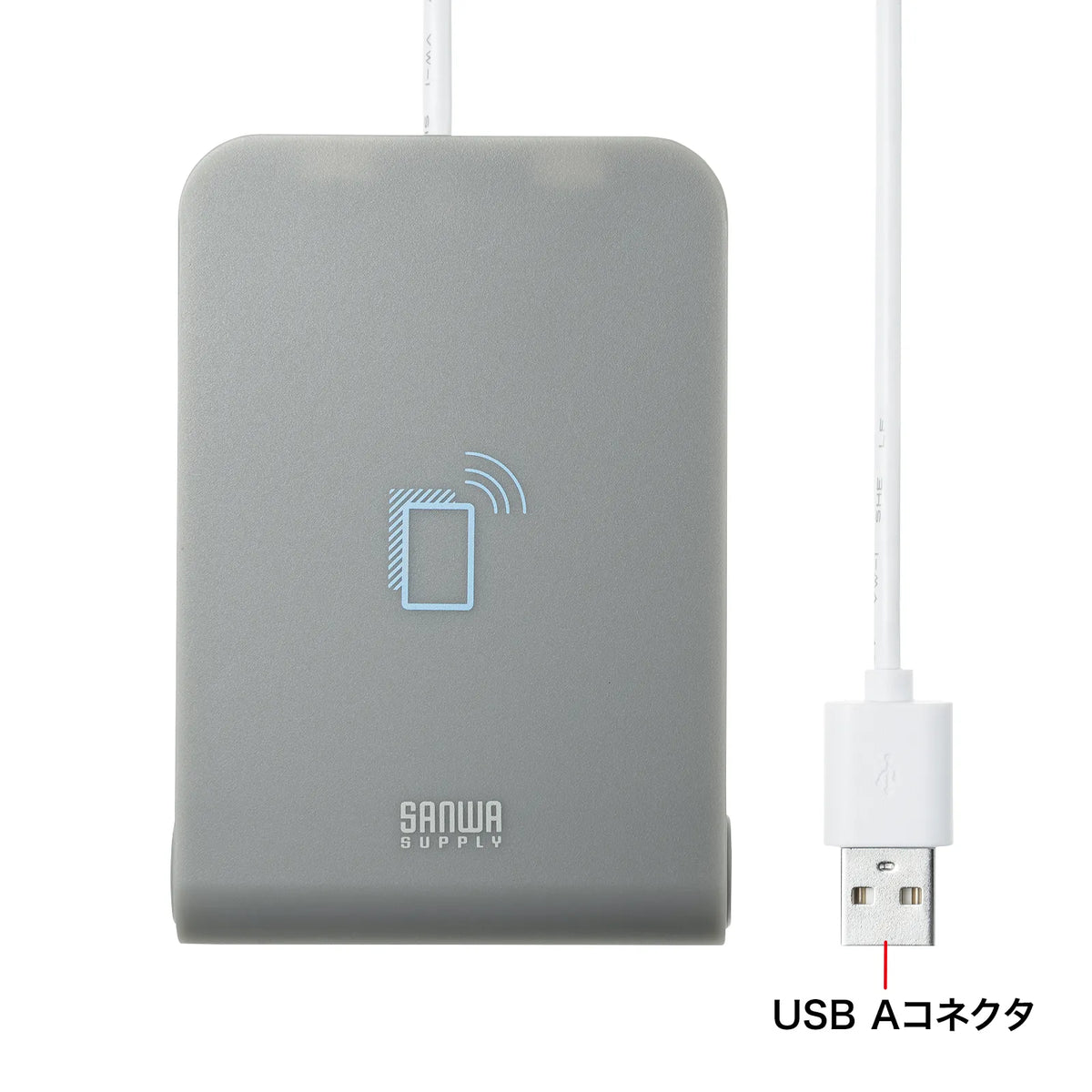

■Connector shape: PC connection side/USB A
＜Common specifications＞
■Operating temperature: -10 to 70 degrees
■Storage temperature: -20 to 70 degrees
■Cable length: 1m

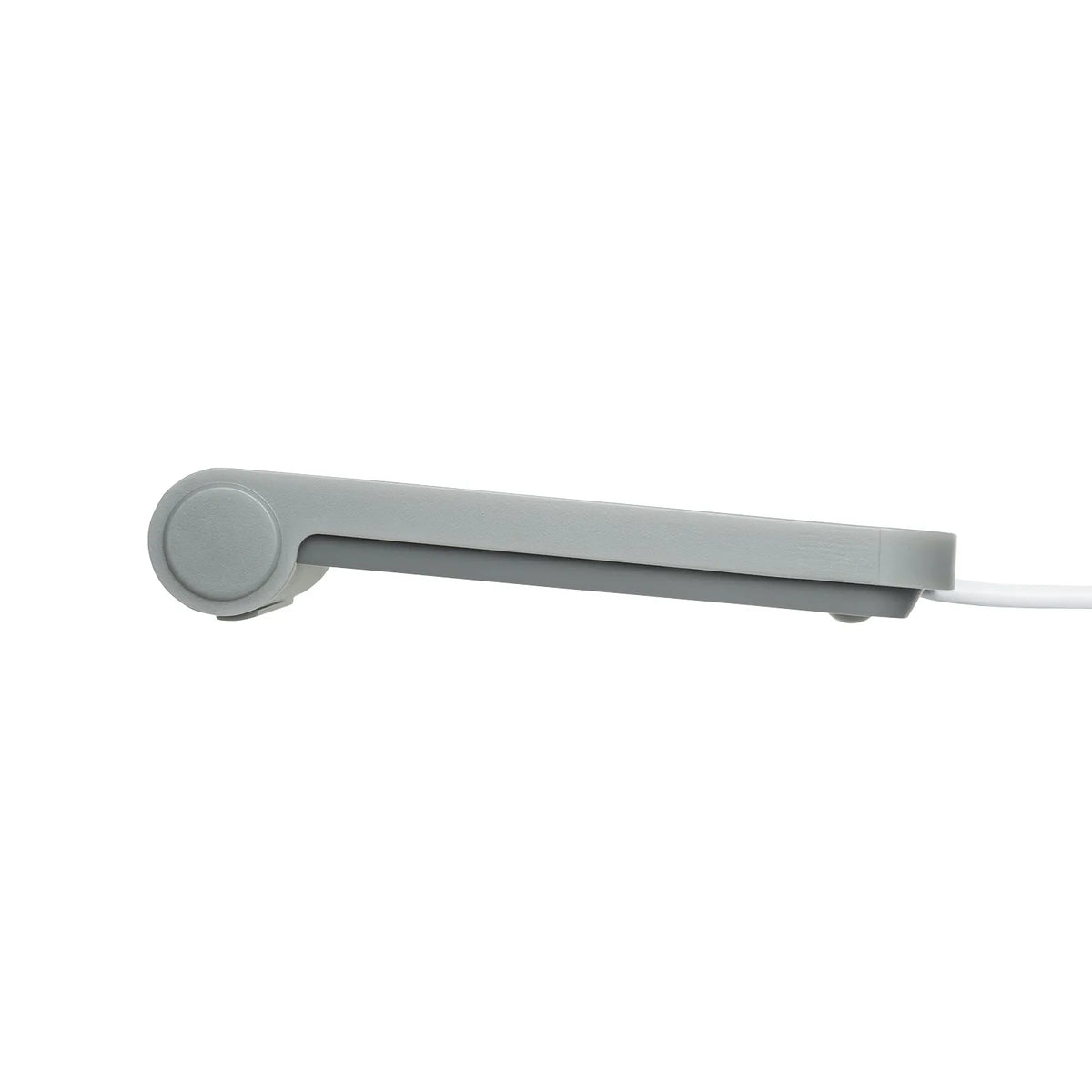

■Size: W66xD98xH11mm
■Weight: Approx. 82g
■Set contents: Main unit, instruction manual, warranty card
